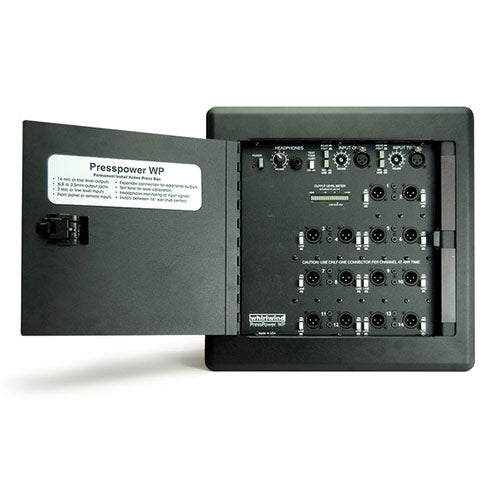

Whirlwind PressPower WP Press Wall - Installed Press Box System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PressPower WP (Press Wall) features 2 mic/line input channels with individual gain controls and 14 transformer isolated outputs that are individually switchable for mic or line level operation. Input audio can be applied at the front panel jacks or remotely located input connectors. The PRESSPOWER WP includes a 20-segment LED level meter, an internal test tone generator, a built-in headphone monitor amp with volume control, and 48 VDC phantom power for condenser microphones.
The high-performance input stage provides clean audio even in high RF environments.
The unit can be installed in walls with standard 16" stud centers and uses 115 VAC - 60 Hz power. A locking, hinged cover protects the unit when not in use.
| Frequency Response | -.5 dBm 20 Hz to -2 dBm 16 kHz |
| Input Impedance | Mic: 1.5k Ohms Line: 200k Ohms |
| Maximum Input Level | Mic: -5 dBm Line: +50 dBm |
| Output Impedance | Mic: 150 Ohms Line: 150 Ohms |
| Maximum Output Level | Mic: -5 dBm into 2k Ohms Line: +23 dBm into 2k Ohms |
| Total Harmonic Distortion | .075% at 1 kHz, mic @ unity gain |
| Isolation Between Outputs | Mic: Greater than 95 dBm Line: Greater than 60 dBm |
| Power Draw AC mode | 31 W max. |
| Finished Size (flush mount) | 14.25"x14.25"x 4" |
| Wall Cutout | 12"x12" |
| Weight w/ case | 24 lb. |
| Shipping weight | 30 lb. |
The PressPower WP (Press Wall) features 2 mic/line input channels with individual gain controls and 14 transformer isolated outputs that are individually switchable for mic or line level operation. Input audio can be applied at the front panel jacks or remotely located input connectors. The PRESSPOWER WP includes a 20-segment LED level meter, an internal test tone generator, a built-in headphone monitor amp with volume control, and 48 VDC phantom power for condenser microphones.
The high-performance input stage provides clean audio even in high RF environments.
The unit can be installed in walls with standard 16" stud centers and uses 115 VAC - 60 Hz power. A locking, hinged cover protects the unit when not in use.
| Frequency Response | -.5 dBm 20 Hz to -2 dBm 16 kHz |
| Input Impedance | Mic: 1.5k Ohms Line: 200k Ohms |
| Maximum Input Level | Mic: -5 dBm Line: +50 dBm |
| Output Impedance | Mic: 150 Ohms Line: 150 Ohms |
| Maximum Output Level | Mic: -5 dBm into 2k Ohms Line: +23 dBm into 2k Ohms |
| Total Harmonic Distortion | .075% at 1 kHz, mic @ unity gain |
| Isolation Between Outputs | Mic: Greater than 95 dBm Line: Greater than 60 dBm |
| Power Draw AC mode | 31 W max. |
| Finished Size (flush mount) | 14.25"x14.25"x 4" |
| Wall Cutout | 12"x12" |
| Weight w/ case | 24 lb. |
| Shipping weight | 30 lb. |
