Description

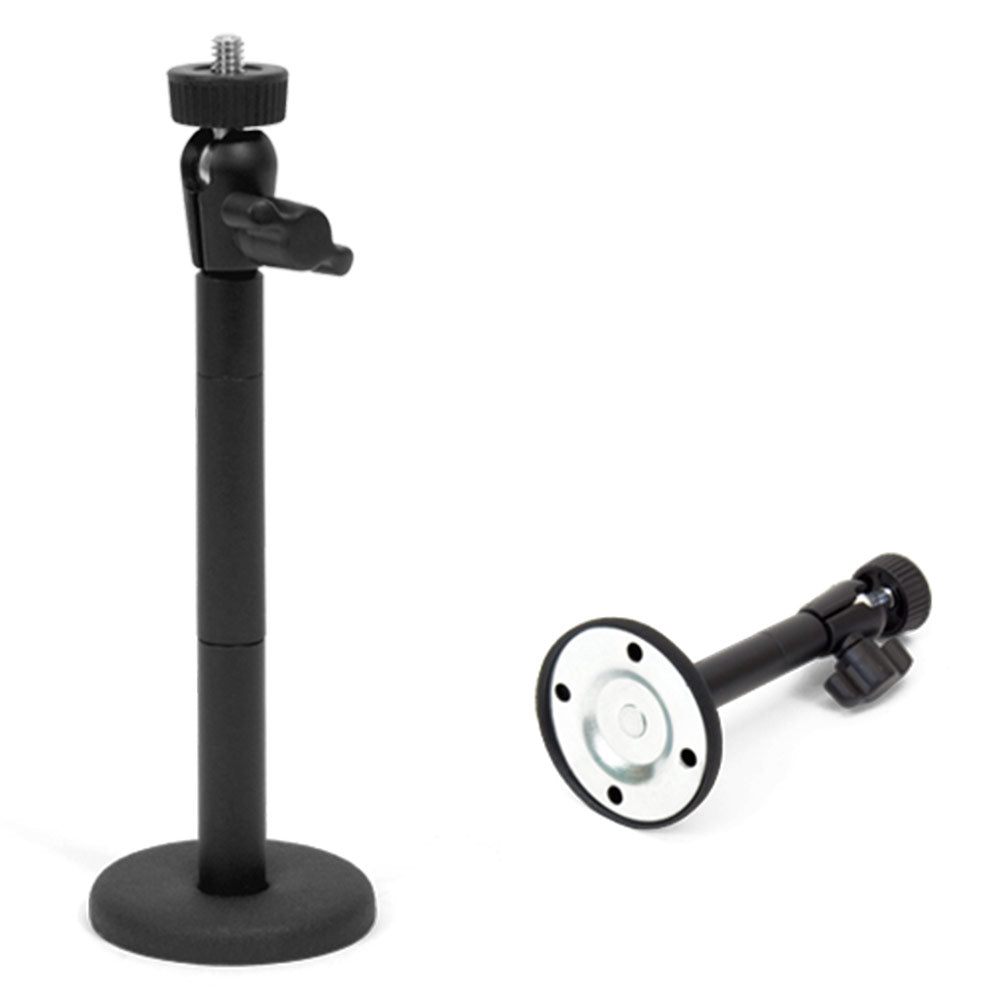

Omindirectional wall or ceiling mounting bracket. Use with a single TX9 or TX90 transmitter, WIR TX75 transmitter and WIR TX75-S emitter.

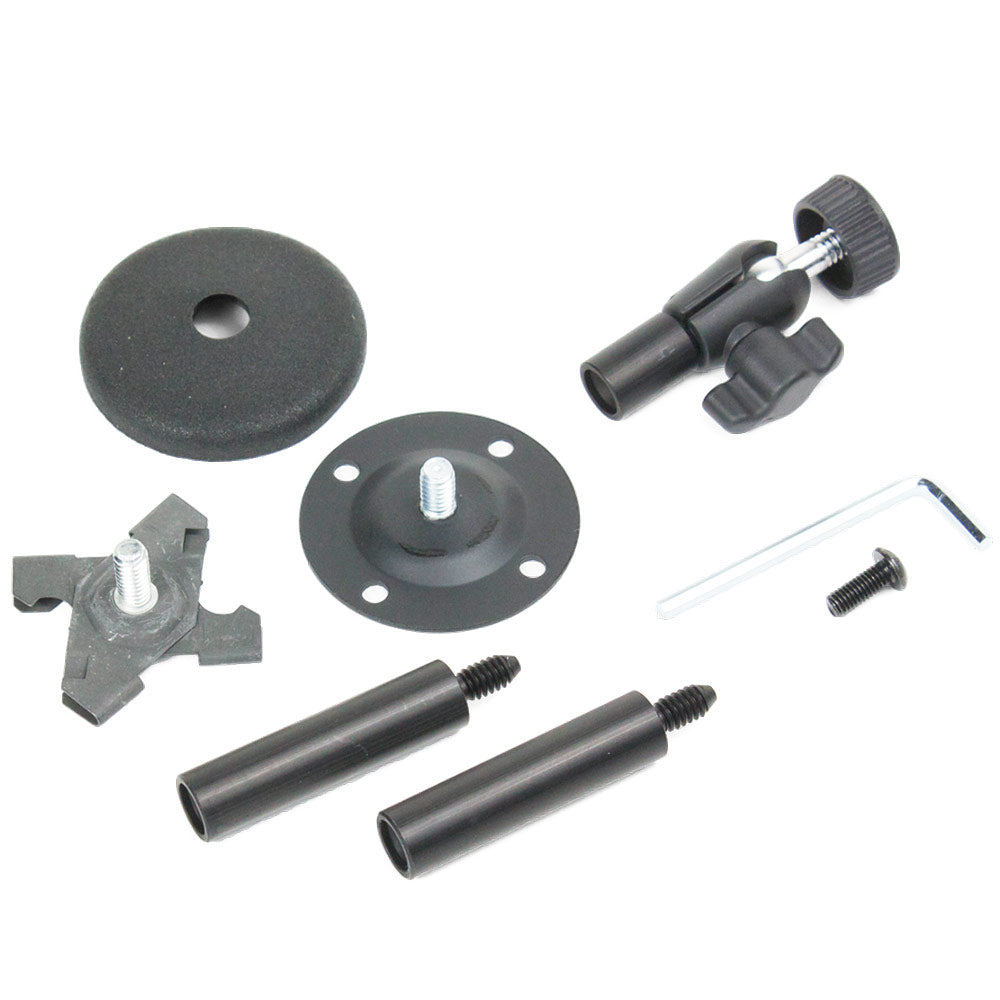

| BKT 024 | |
| Base 1 | 2" (50.8 mm) round base with four 0.188" (4.8mm) holes on 1.6" (40.6mm) bolt circle for solid surface mounting |
| Base 2 | T-Bar Clip for drop ceiling rails |
| Base Cover | Black Vinyl, covers either base |
| Shafts | Two 0.5" (12.7mm) diameter, 2" (50.8mm long aluminum, black. 1/4-20 stud with lock ring |
| Head | 190¡ Tilt, 360¡ Turn and 360¡ Rotation |
| Finished Lengths | 2", 4" or 6" |
| Maximum Weight | 3 lbs (1.36 kg) |
| Shipping Weight | 0.3 lbs (166.5g) |
Omindirectional wall or ceiling mounting bracket. Use with a single TX9 or TX90 transmitter, WIR TX75 transmitter and WIR TX75-S emitter.
| BKT 024 | |
| Base 1 | 2" (50.8 mm) round base with four 0.188" (4.8mm) holes on 1.6" (40.6mm) bolt circle for solid surface mounting |
| Base 2 | T-Bar Clip for drop ceiling rails |
| Base Cover | Black Vinyl, covers either base |
| Shafts | Two 0.5" (12.7mm) diameter, 2" (50.8mm long aluminum, black. 1/4-20 stud with lock ring |
| Head | 190¡ Tilt, 360¡ Turn and 360¡ Rotation |
| Finished Lengths | 2", 4" or 6" |
| Maximum Weight | 3 lbs (1.36 kg) |
| Shipping Weight | 0.3 lbs (166.5g) |
