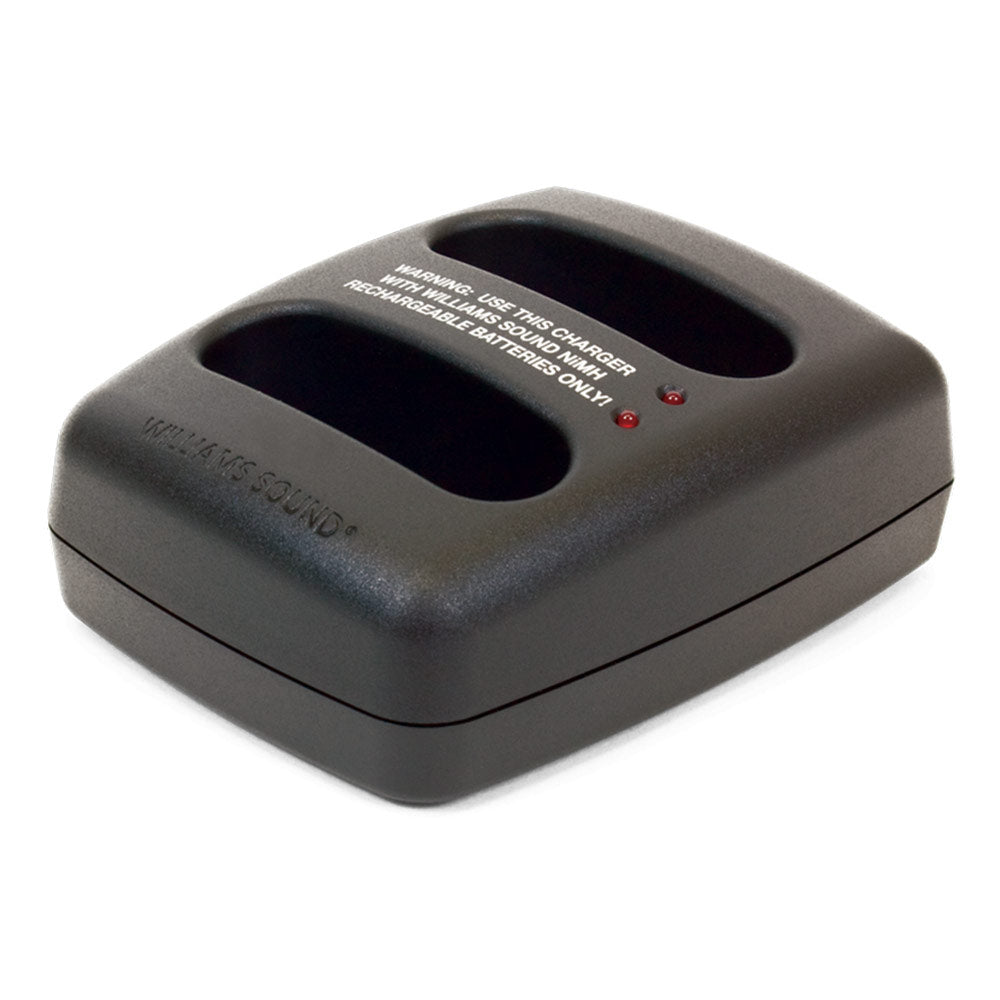

Williams AV CHG 3502 Two-Bay, Drop-In Charger For FM/Infrared Body-Pack Transmitters/Receivers
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Dual drop-in charger for body-pack style transmitters and receivers. Includes Power Supply.
4-7/8" x 3-7/8"" x 2", (12.4 cm x 9.8 cm x 5.1 cm), (LxWxH)
1.1 lbs (0.5 kg).
For use with:
PLR BP1 Loop receiver
PPA R37 FM receiver
PPA R37-8 FM receiver
PPA R38 FM receiver
PPA T46 FM transmitter
WIR RX22-4 Infrared receiver
| CHG 3502 | |
| Dimensions | 4-7/8"L x 3-7/8"W x 2"H (12.4 cm L x 9.8 cm W x 5.1 cm) |
| Shipping Weight | 1.1 lbs (0.5 kg) |
| Enclosure | Black, ABS plastic |
| Charger Power | Input: 6 VDC, 300mA, Center Positive. Output: 100mA per bay. |
| Power Supply | Williams Sound TFP 041 (US) or TFP 030 (International). Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A Output: 6 VDC, 1.5 A. |
| Charging Time | 16 hours nominal |
| Unit Capacity | 2 Units |
| Indicators | 2 Red LEDs - one for each bay. LEDs are lit when charging. |
| Warranty | 90 days |
| Approvals | CE, FCC, RoHS |
Dual drop-in charger for body-pack style transmitters and receivers. Includes Power Supply.
4-7/8" x 3-7/8"" x 2", (12.4 cm x 9.8 cm x 5.1 cm), (LxWxH)
1.1 lbs (0.5 kg).
For use with:
PLR BP1 Loop receiver
PPA R37 FM receiver
PPA R37-8 FM receiver
PPA R38 FM receiver
PPA T46 FM transmitter
WIR RX22-4 Infrared receiver
| CHG 3502 | |
| Dimensions | 4-7/8"L x 3-7/8"W x 2"H (12.4 cm L x 9.8 cm W x 5.1 cm) |
| Shipping Weight | 1.1 lbs (0.5 kg) |
| Enclosure | Black, ABS plastic |
| Charger Power | Input: 6 VDC, 300mA, Center Positive. Output: 100mA per bay. |
| Power Supply | Williams Sound TFP 041 (US) or TFP 030 (International). Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A Output: 6 VDC, 1.5 A. |
| Charging Time | 16 hours nominal |
| Unit Capacity | 2 Units |
| Indicators | 2 Red LEDs - one for each bay. LEDs are lit when charging. |
| Warranty | 90 days |
| Approvals | CE, FCC, RoHS |
