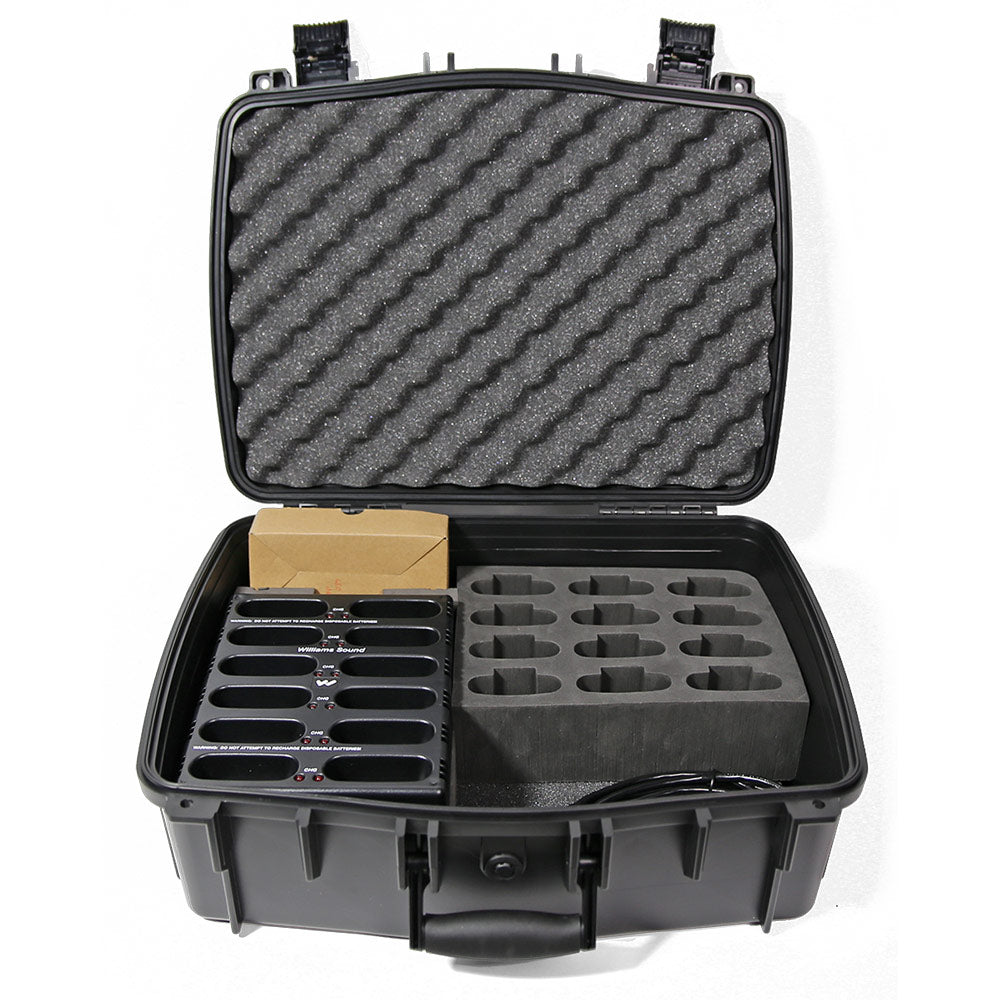

Williams AV CHG 3512 PRO Multi-Bay Drop-In Charger w/ Case
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Charger for body-packs, 12 bay, with case. For up to 12 receivers or transmitters, switching 100-240 VAC power supply. (For use in US). 18-1?4" x 7" x 14-1?8", 10.7 lbs. Includes Power Supply.
For use with:
PLR BP1 Loop receiver
PPA R37 FM receiver
PPA R38 FM receiver
PPA T46 FM transmitter
WIR RX22-4 Infrared receiver
System Includes:

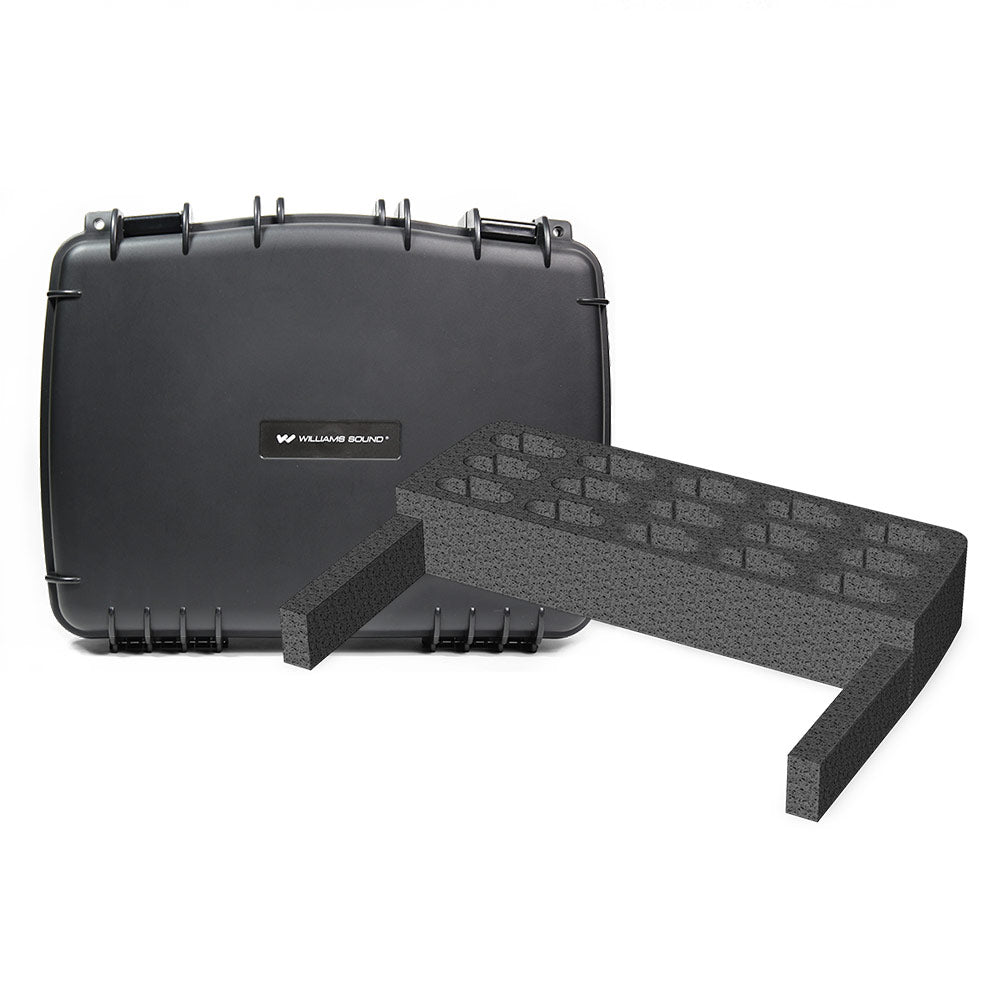

- (1) CCS 056S Carry case

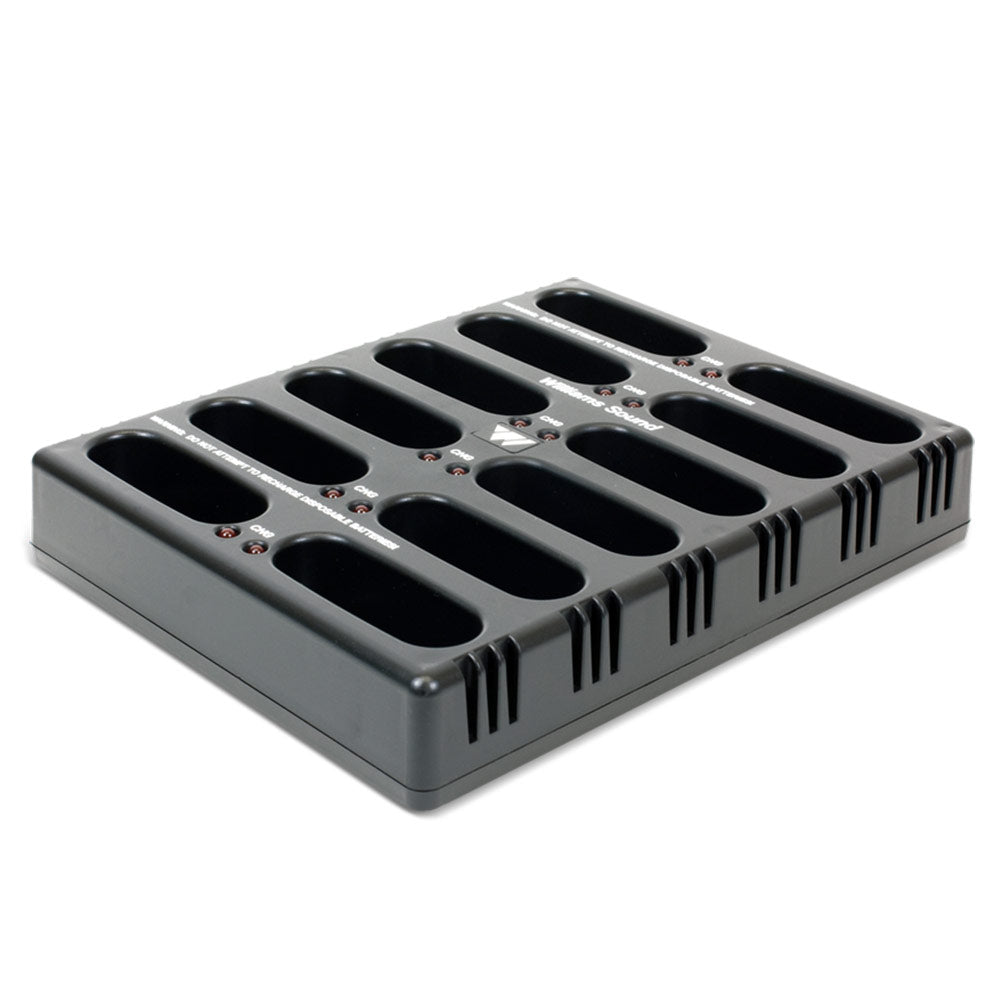

- (1) 12-bay charger
- (1) Power Supply (TFP 037)
- (1) Main Power Cord for USA (WLC 004)
| CHG 3512 PRO | |
| Charger Only | |
| Size | 18"L x 14"W x 6.75"H (45.7 cm L x 35.5 cm W x 17.1 cm H) |
| Weight | 10.7 lbs (4.85 kg) |
| Color | Black ABS |
| Power Supply Input | 90 - 240 VAC input |
| Power Supply | TFP 037 Switching AC adapter, 5 VDC - 4A output |
| Charging Rate | 16 Hour Charge: 140 mA Pulse/Maintain: 140 mA |
| Charging Time | 16 hours nominal |
| Unit Capacity | 12 Units |
| Indicators | Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged |
| Warranty | 1 year (cables and power supply warrantied for 90 days) |
| Approvals | CE, WEEE, RoHS |
| Case | |
| Interior Dimensions | 13.0" W x 18.0" L x 6.7"H (33 cm W x 46 cm L x 17 cm H) |
| Exterior Dimensions | 15.7" W x 19.7" L x 7.2" H (40 cm W x 50 cm L x 18 cm H) |
| Lid Inner Depth | 1.5" (4 cm) |
| Bottom Inner Depth | N/A5.2" (13 cm) |
| Approx. weight (empty) | 6.6 lbs (3 kg) |
| Material | Copolymer |
| Minimum Temperature | -40¼F (-40¼C) |
| Maximum Temperature | 160¼F (71.1¼C) |
| Warranty | Limited Lifetime |
