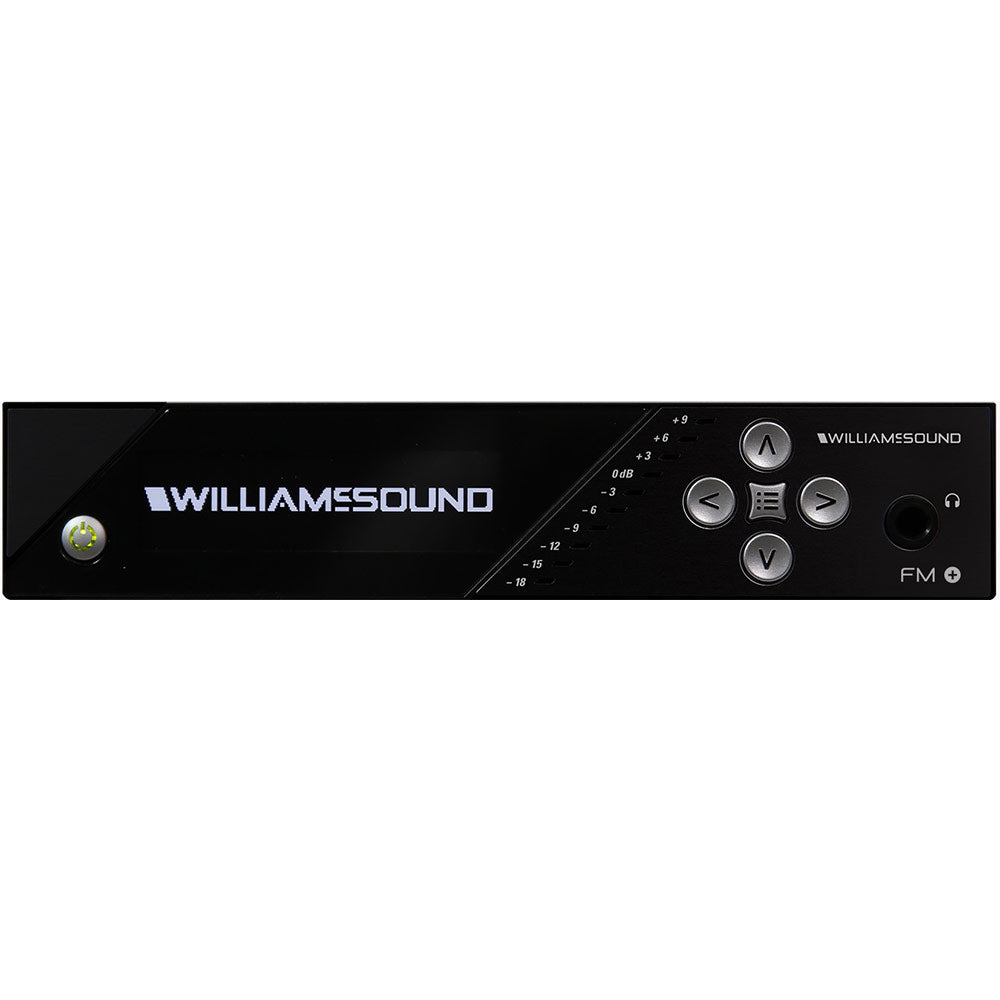

Williams AV FM 557-12 PRO D FM Plus Large-Area Dual Assistive Listening System w/ R37 Receivers
Dale #:
WISO-FM55712PRODAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Our Price: $4,745.00
Free Shipping (Continental US)
Suggested Accessories
Description
FM Plus Large-area Dual FM and Wi-Fi assistive listening system with 12 FM R37 receivers. Features Dante input, coaxial cable and rack panel kit for professional installation.

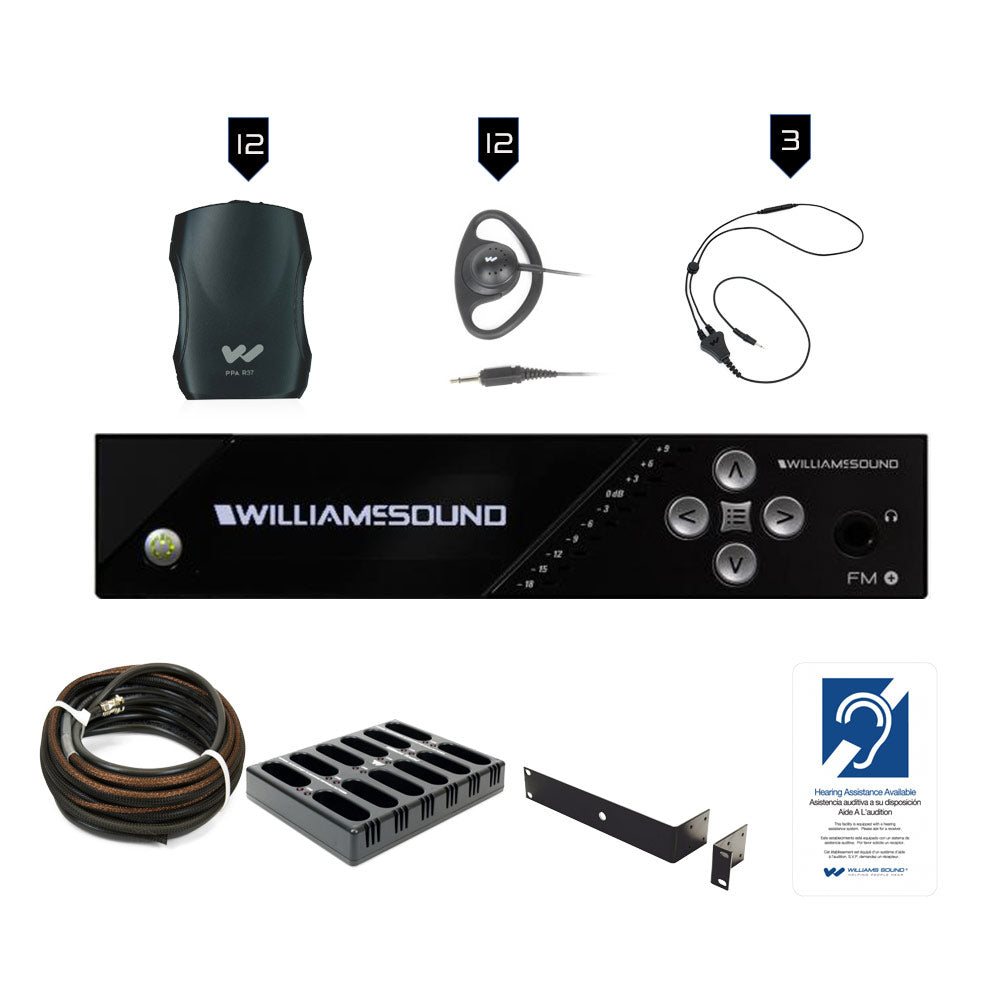

System Includes:
- (1) FM T55 D transmitter
- (12) FM R37 receivers
- (12) EAR 022 surround earphones
- (3) NKL 001 neckloops
- (1) CHG 3512 12-bay charger
- (12) BAT 026-2 AA NiMH rechargeable batteries
- (1) ANT 005 remote coaxial antenna
- (1) IDP 008 ADA wall plaque
- (1) RPK 005 rack panel kit
More +
Product Specs

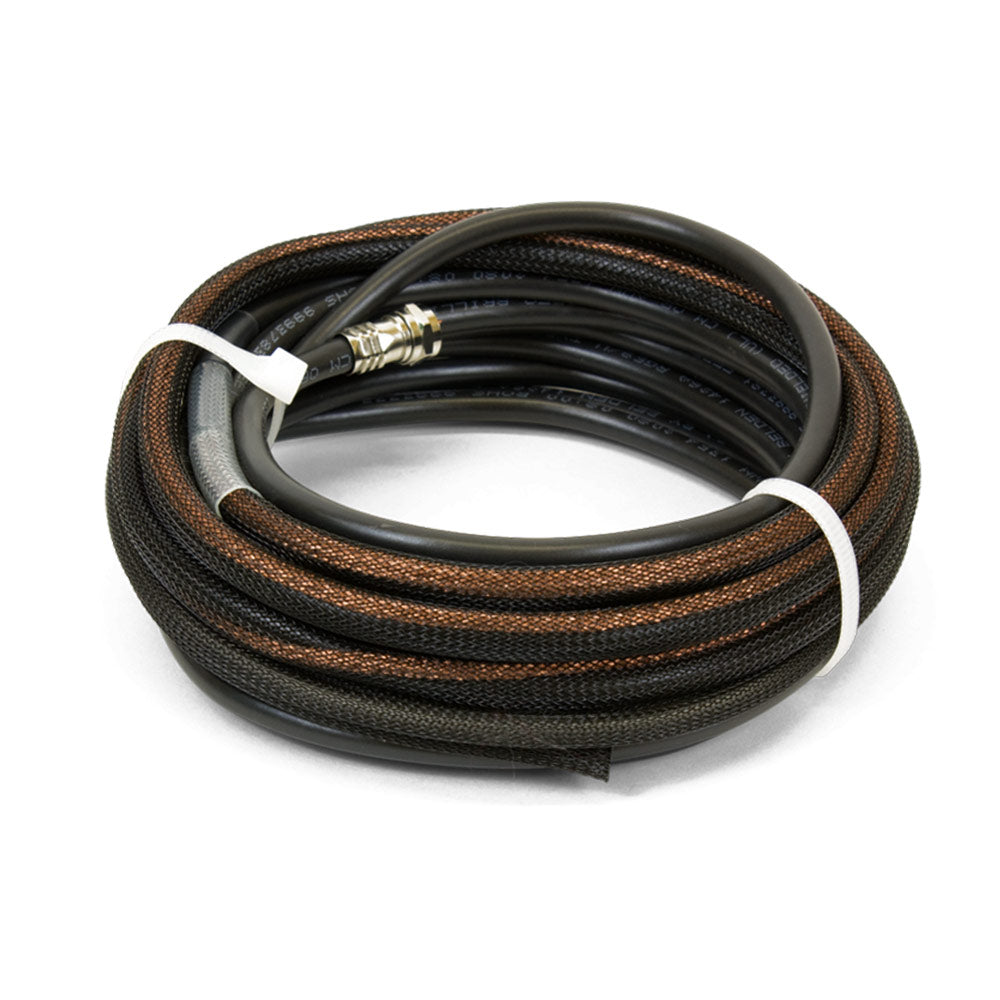

| ANT 005 | |
| Use with | PPA T45, PPA T45NET, PPA T27 Transmitters |
| Connector type | F-connector |
| Cable type | RG 59 coax |
| Nominal Impedance | 75 Ohm |
| Total Cable Length | 22 ft |
| Active Antenna Length | 80in |
| BAT 026-2 | |
| NiMH, 1.2 Volt, 1500 mAh | |

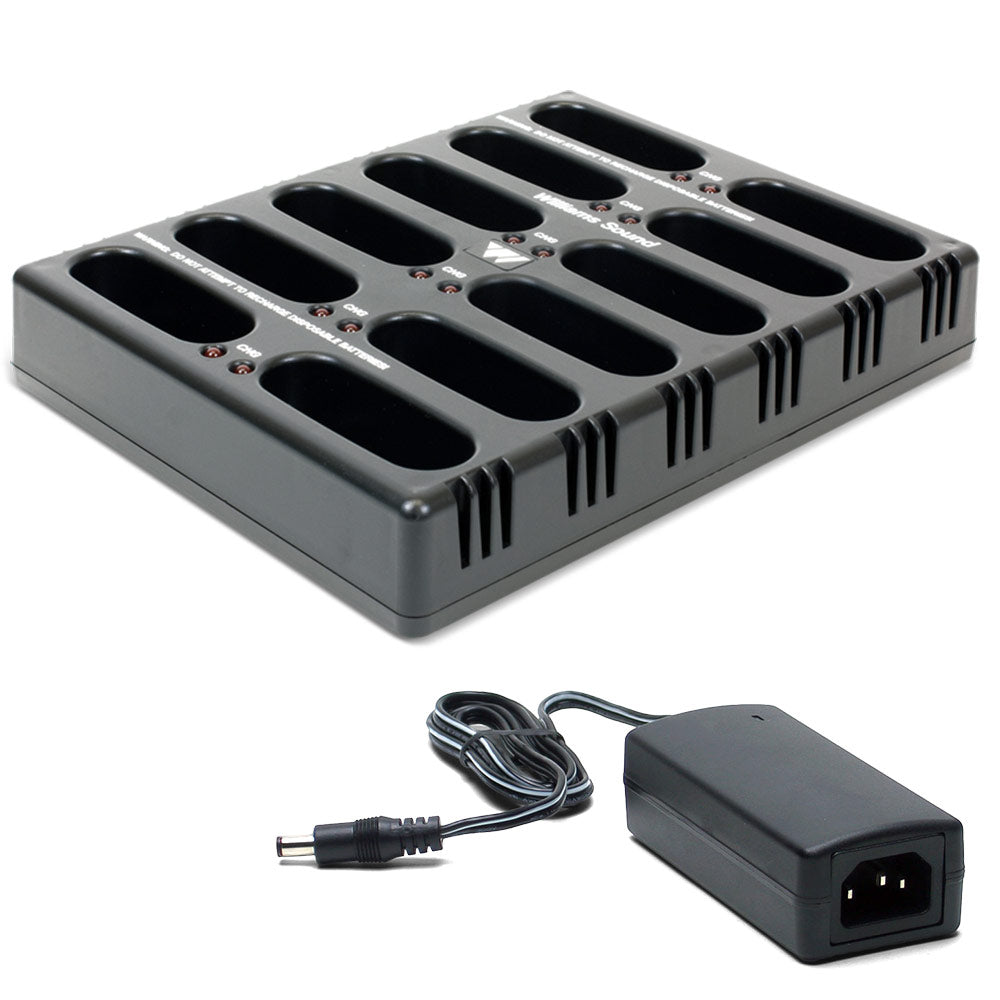

| CHG 3512 | |
| Size | 9.5"L x 7.4"W x 1.7"H (24.1 cm L x 18.8 cm W x 4.3 cm H) |
| Weight | 1.2 lbs (.54 kg), excluding power supply |
| Color | Black ABS |
| Power Supply Input | 90 - 240 VAC input |
| Power Supply | TFP 037 Switching AC adapter, 5 VDC - 4A output |
| Charging Rate | 16 Hour Charge: 140 mA Pulse/Maintain: 140 mA |
| Charging Time | 16 hours nominal |
| Unit Capacity | 12 Units |
| Indicators | Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged |
| Warranty | 1 year (cables and power supply warrantied for 90 days) |
| Approvals | CE, WEEE, RoHS |

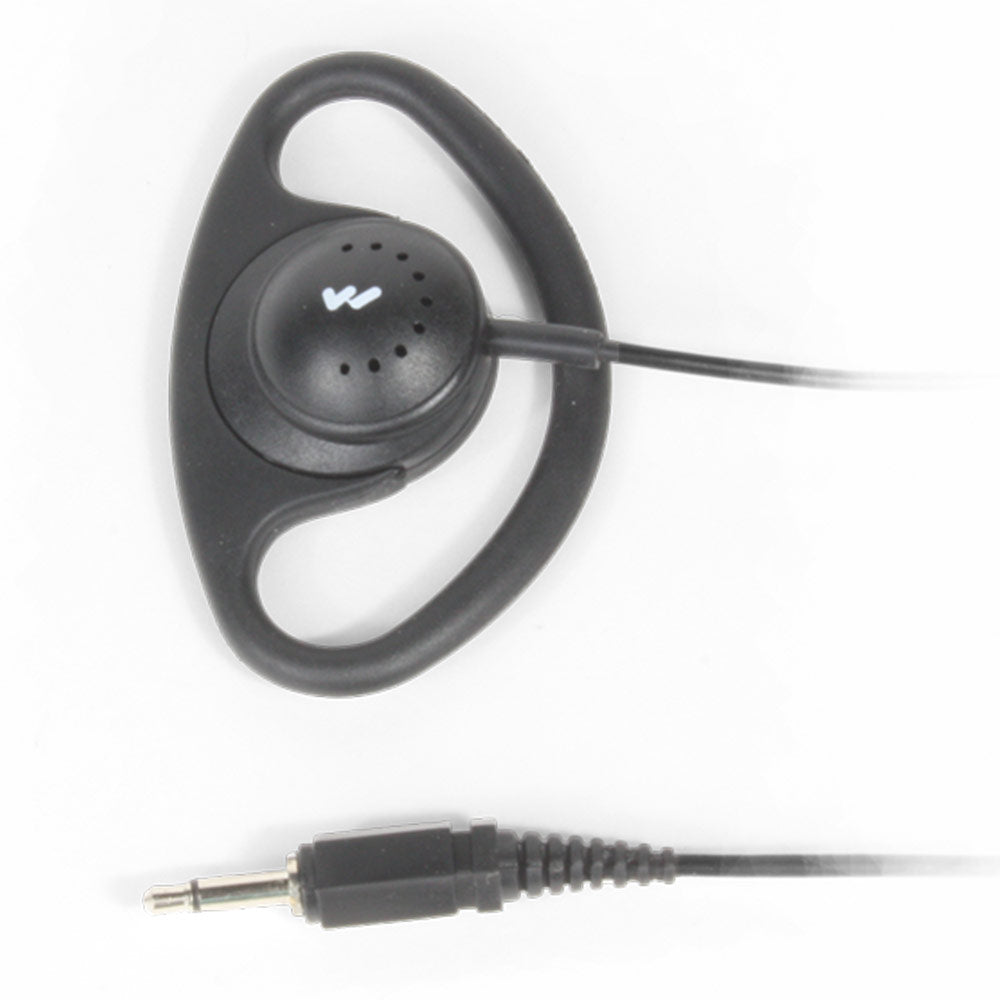

| EAR 022 | |
| Style | Around-ear speaker |
| Plug | 3.5mm mono |
| Cord | 39" |
| Driver Size | 23 mm |
| Nominal Impedance | 32 ? |
| Freq. Response | 20 -20kHz |
| Weight | 15g |
| Max Power Input | 30 mW |
| Sensitivity | 118 dB @ 1kHz |

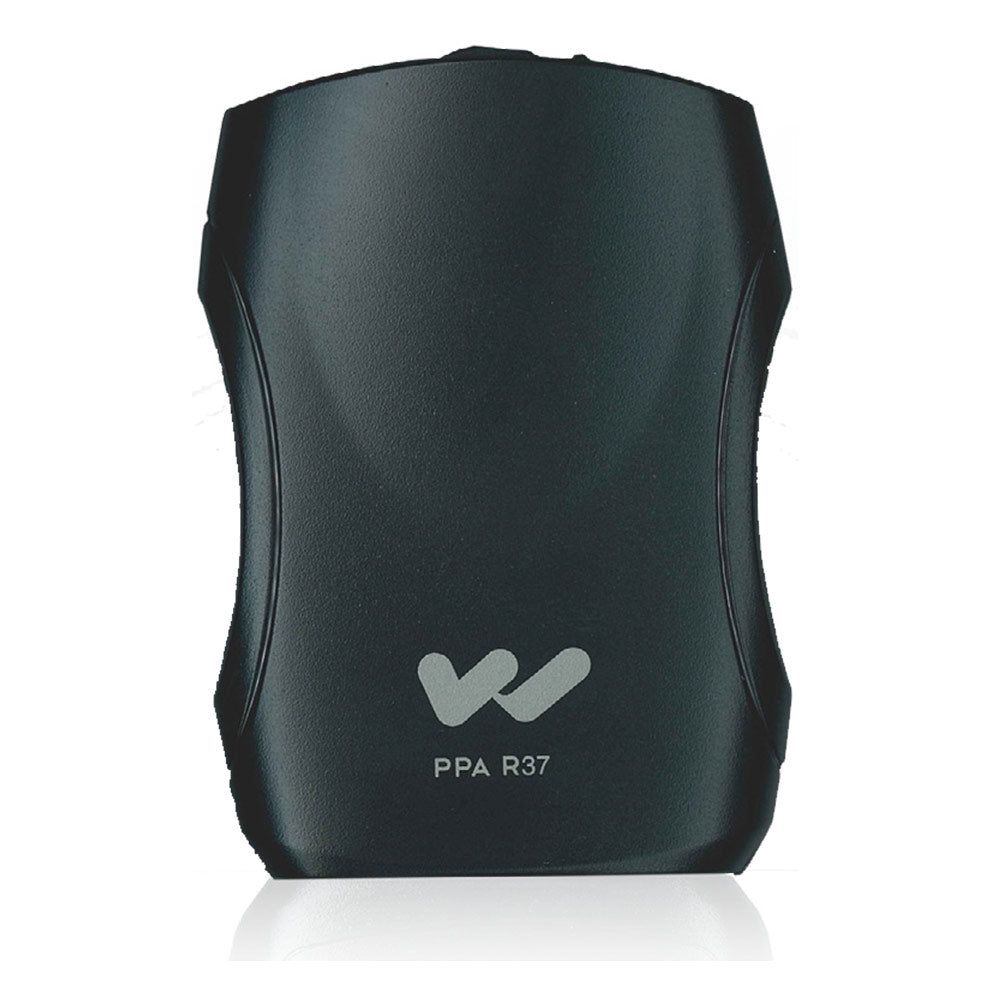

| FM R37 | |
| Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
| Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color | Black |
| Battery Type | (2) AA Alkaline or 2 x AA NiMH |
| Battery Life | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs Two (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs |
| Current Consumption | 52mA nominal |
| Temperature Range | - 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq. | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
| Intermediate Freq. | 75 kHz |
| FM Deviation | 75 kHz |
| De-Emphasis | 75 µS |
| LED Indicator | Power: Green; Low Battery: Flashes Green |
| AFC Range | ± 120 kHz |
| Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 - 15 kHz |
| Modulation | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio | 65 dB min @ 100 uV |
| Receive Antenna | Integral with earphone/headphone cord |
| Audio Output | 35 mW max, peak into 16 ohms |
| Output Connector | 3.5 mm stereo/mono phone jack |
| Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 ? |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
| FM T55 D | |
| Dimensions | 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm) |
| Weight | Transmitter: 3.2 lbs (1.45 kg) |
| Color | Black/Silver with silver legends on the front, white legends on the back |
| Rack Mount | Standard 19" Rack, one EIA rack space high, 1/2 space wide 1 - 2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power ON Indicator | Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode. |
| Temperature Range | Operating: +32° F to +104° F (0° C to 40° C); Storage: -4° F to +158° F (-20° C to 70° C) |
| User Interface | 3.12" High Resolution OLED display with selections via buttons. Hosted Web page. Remote control and monitoring |
| Dante | Only available on FM T55 D |
| Ethernet | RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address |
| RF Section | |
| Operating Frequencies | 72.1-75.9 MHz , 17 wideband channels (selectable) |
| Frequency Accuracy | ± 2 ppm stability, 0-50? C |
| Deviation | ± 75 kHz maximum |
| Pre-Emphasis | N/A75 microsec |
| RF Field Strength | Does not exceed 80 mV/m at 3 m |
| Compatible Antennas | ANT 005, ANT 021, ANT 024, or ANT 025 |
| Transmission Range | Up to 1000 ft (304 m) with ANT 005 coaxial antenna mounted on rear chassis connector |
| RF Outputs | (1x) #10-32 stud connector in center of unit (pcb mounted) (1x) F-connector on rear chassis |
| RF Transmit Indicator | 1 Green LED, indicates RF "On Air" |
| RF Power | Full, Medium, Low or OFF indiacted by menu icon |
| RF Time Out (sleep mode) | 30 min. duration, 4 hr. duration, or Always On selected via menu. Starts when audio is below -18 dB level with no button pressed for selected duration |
| Audio Section | |
| Audio Processor Functions | DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control |
| Frequency Response | 31 - 16000 Hz, ±3 dB (Music Audio Preset) |
| Signal-to-Noise Ratio | Greater than or equal to 74 dB Transmitted RF |
| Total Harmonic Distortion | Less than 0.25% @ 1 kHz (RF output) |
| Common Mode Rejection | Greater than 57 dB @ 1 kHz, Mic or Line |
| Audio Inputs | (1x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power |
| Audio Input Gain Adjust | In menu, adjustable to 0 to -50 dB, in 1dB steps |
| Phantom Power | 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack |
| Audio Level Indicators | 10-LED?array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks |
| Headphone Output | 1/4" TRS stereo jack, mono signal, 15.7 mW, maximum in 33 ? (level adjustable in menu 0 to -40 dB in 2 dB steps) |
| Line Output | RCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 ohms at +9dB |
| Input Levels (Bal or Unbal) (at Audio Input Gain = 0dB) | |
| Nominal (1st Amber LED) | Microphone: -55 dBV (1.7 mV RMS); Line: -25 dBV (55 mV RMS) |
| Overload Warning (Displayed on Screen) | Microphone: -15 dBV (180 mV RMS); Line: +16 dBV (6.3 V RMS) |
| Absolute Max Rating* | Microphone: +20 dBV (10.0 V RMS); Line: +20 dBV (10.0 V RMS) |
| Approvals | FCC, RoHS3, WEEE, Industry Canada |
| Warranty | 2-year parts and labor |
| IDP 008 | |
| 10-3/8" (L) x 6-¼" (W) x 1/8" (H) | |

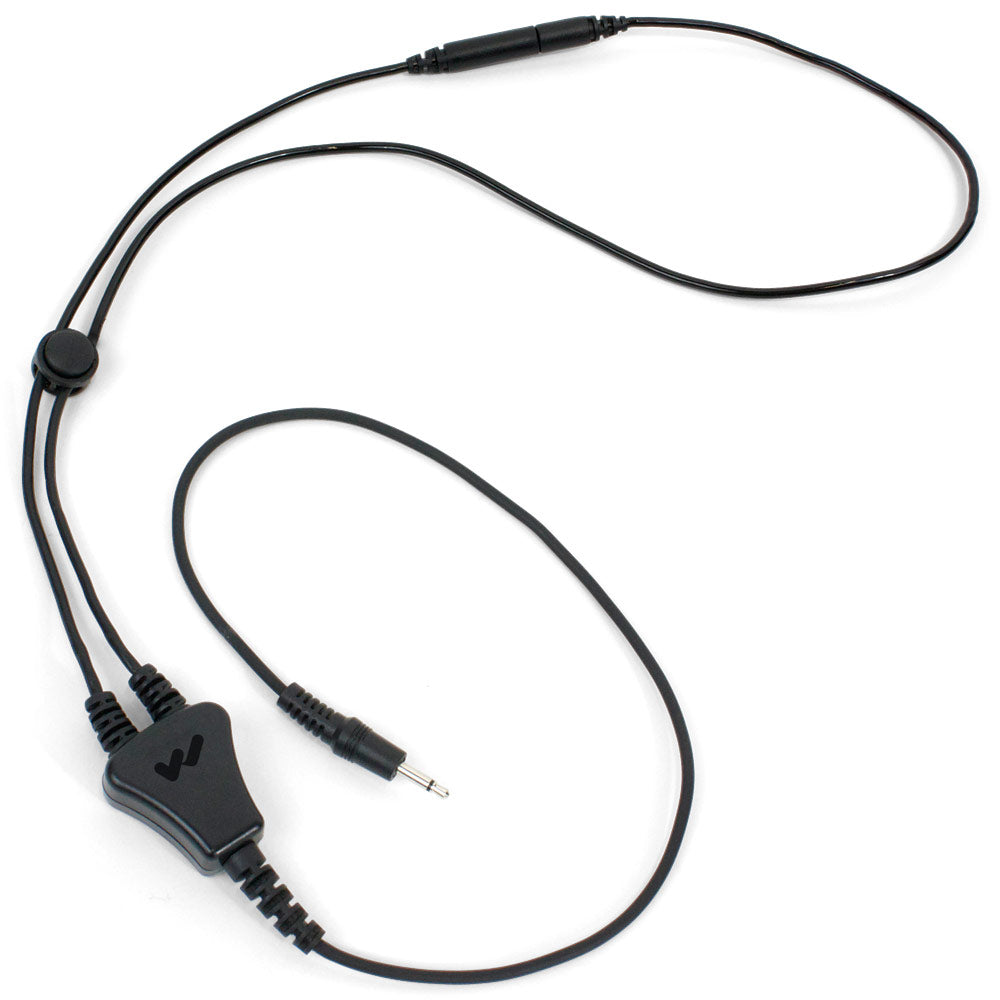

| NKL 001 | |
| Other Models | NKL 001 S (3.5mm stereo plug) |

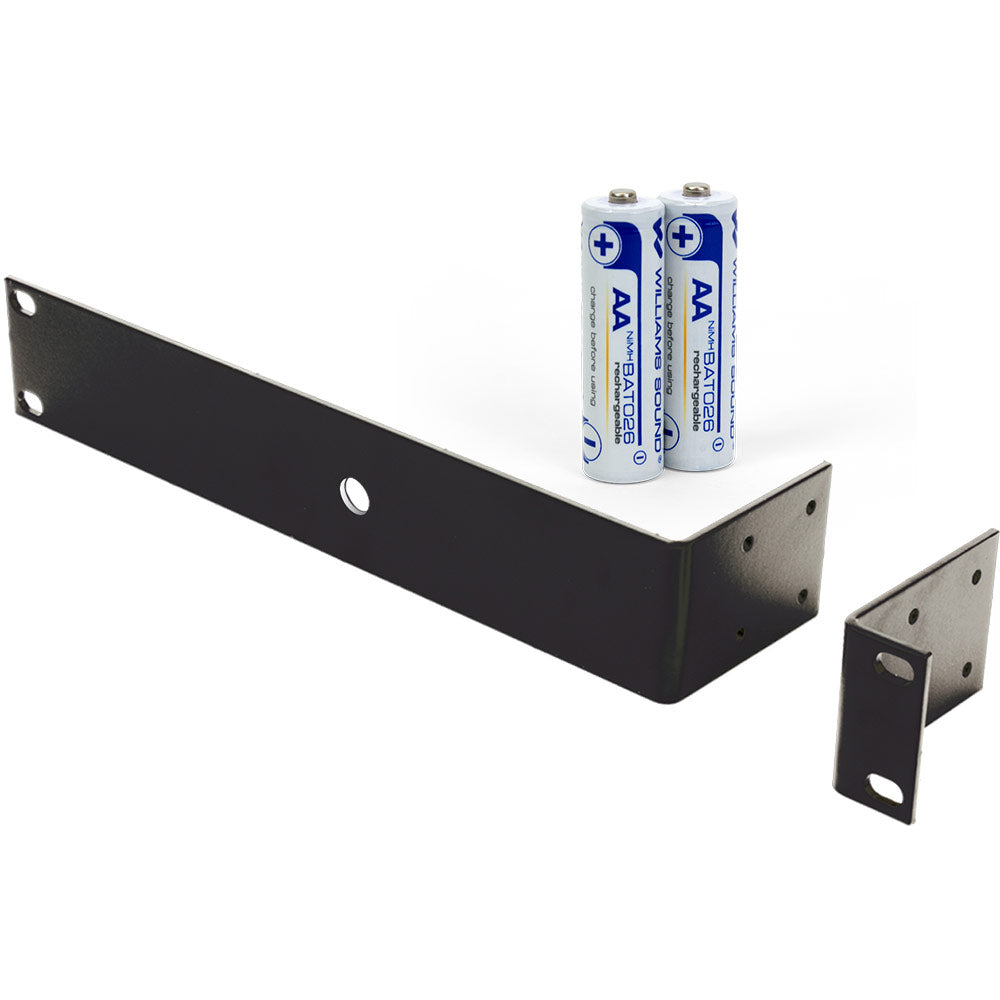

| RPK 005 | |
| Other Models | RPK 006 For mounting two 1/2-space products side-by-side in a single rack space |
NOTE: Specifications are subject to change without notice.
* Stresses above these ratings may cause permanent damage or degrade reliability.
