Williams AV FM 558-12 PRO FM Plus Large-Area Dual Assistive Listening System w/ R38 Receivers

  • Dale #:

  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.


FM Plus Large-area Dual FM and Wi-Fi assistive listening system with 12 FM R38 receivers. Features coaxial cable and rack panel kit for professional installation.System Includes: (1) FM T55 transmitter (12) PPA R38N receivers (12) EAR 022 surround earphones (3) NKL 001 neckloops (1) CHG 3512 12-b... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories


FM Plus Large-area Dual FM and Wi-Fi assistive listening system with 12 FM R38 receivers. Features coaxial cable and rack panel kit for professional installation.

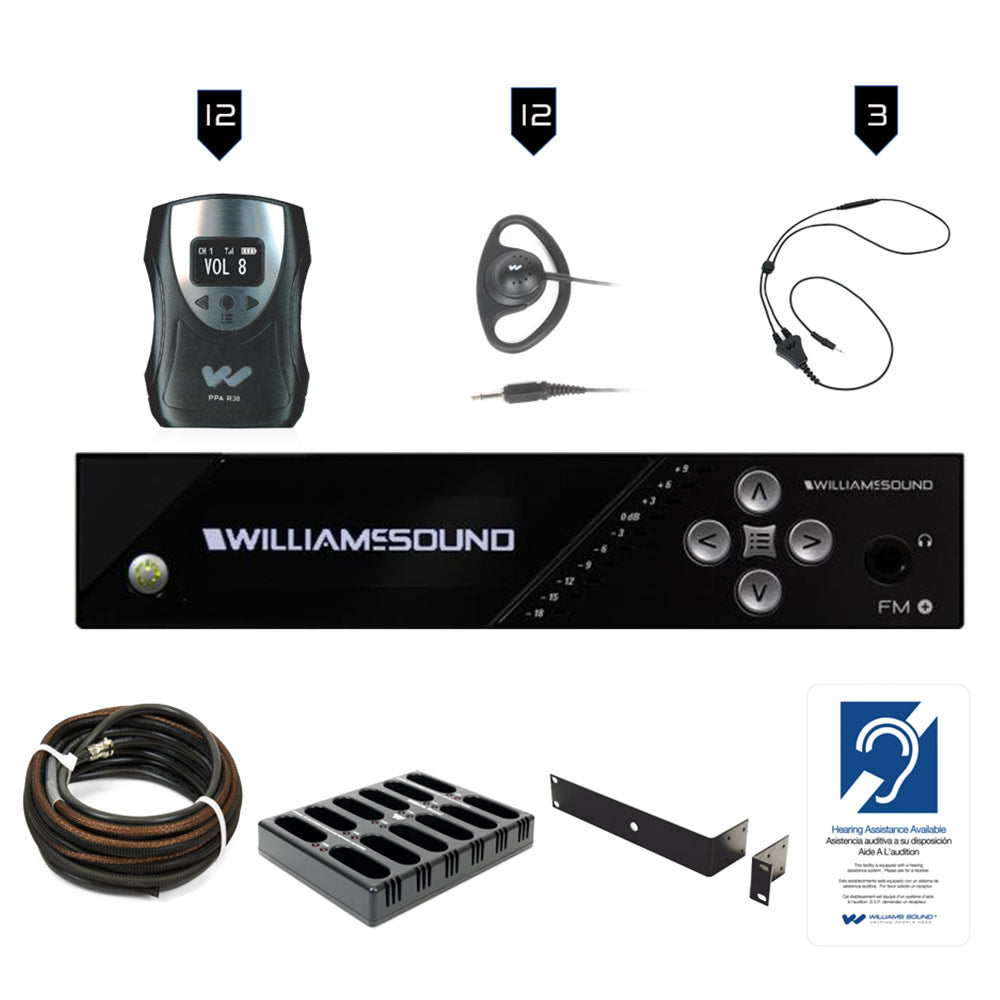

System Includes:

  • (1) FM T55 transmitter

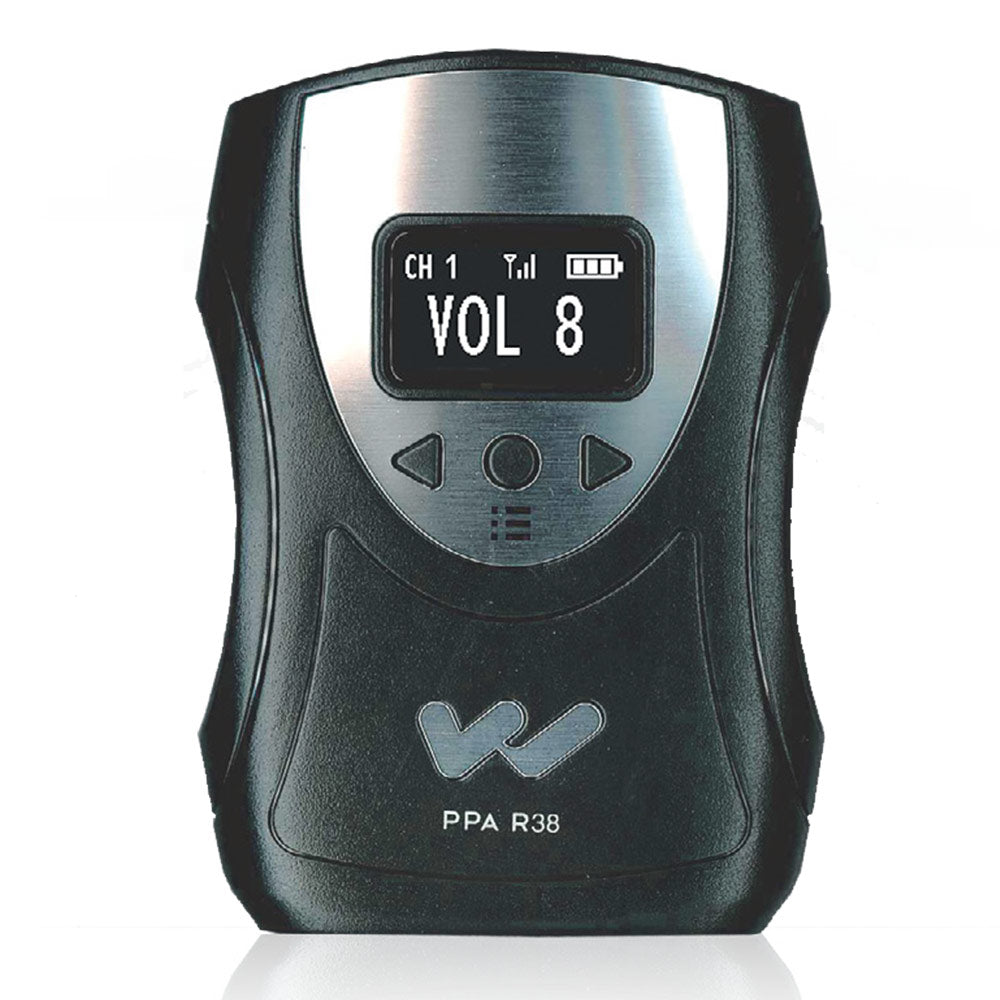

  • (12) PPA R38N receivers
  • (12) EAR 022 surround earphones

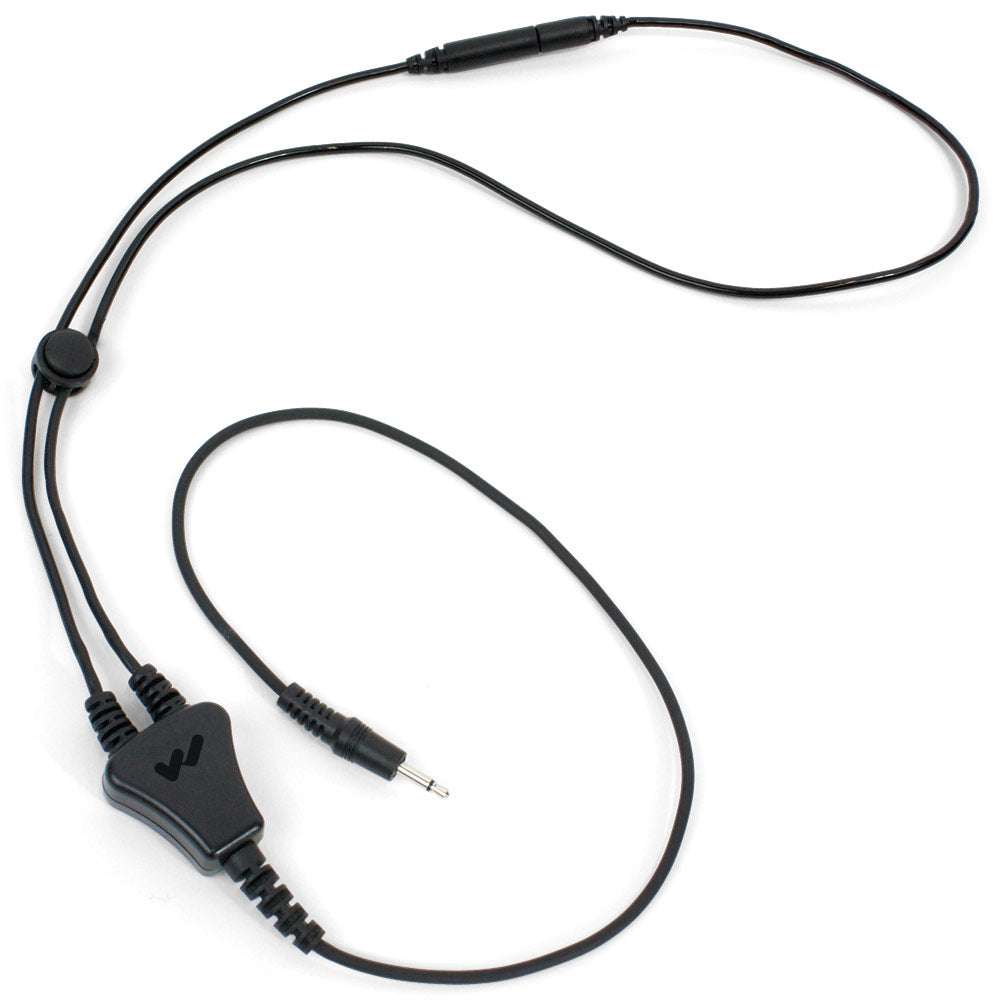

  • (3) NKL 001 neckloops
  • (1) CHG 3512 12-bay charger
  • (12) BAT 026-2 AA NiMH rechargeable batteries
  • (1) ANT 005 remote coaxial antenna
  • (1) IDP 008 ADA wall plaque
  • (1) RPK 005 rack panel kit

More +

Product Specs

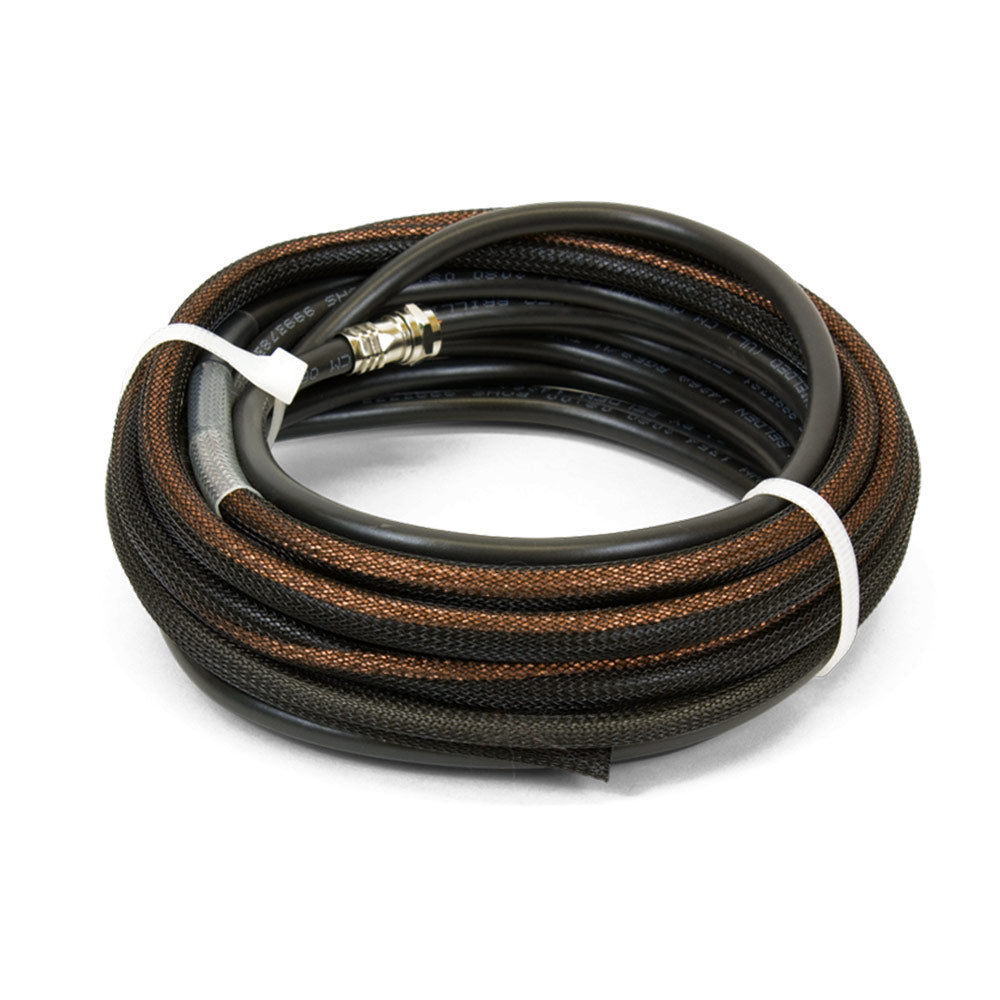

ANT 005
Use withPPA T45, PPA T45NET, PPA T27 Transmitters
Connector typeF-connector
Cable typeRG 59 coax
Nominal Impedance75 Ohm
Total Cable Length22 ft
Active Antenna Length80in
BAT 026-2
NiMH, 1.2 Volt, 1500 mAh

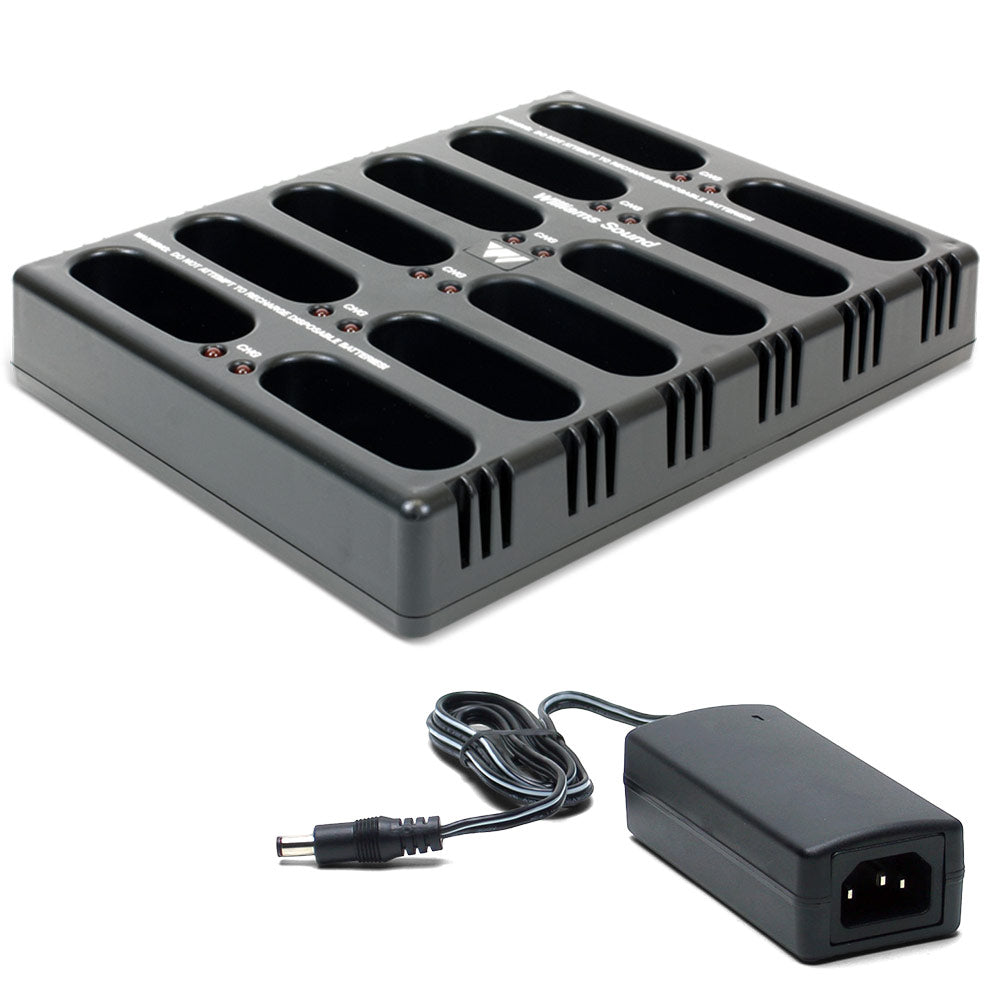

CHG 3512
Size9.5"L x 7.4"W x 1.7"H (24.1 cm L x 18.8 cm W x 4.3 cm H)
Weight1.2 lbs (.54 kg), excluding power supply
ColorBlack ABS
Power Supply Input90 - 240 VAC input
Power SupplyTFP 037 Switching AC adapter, 5 VDC - 4A output
Charging Rate16 Hour Charge: 140 mA
Pulse/Maintain: 140 mA
Charging Time16 hours nominal
Unit Capacity12 Units
IndicatorsIndividual Charging Indicators: Red LEDs. LEDs blink when batteries are charged
Warranty1 year (cables and power supply warrantied for 90 days)
ApprovalsCE, WEEE, RoHS

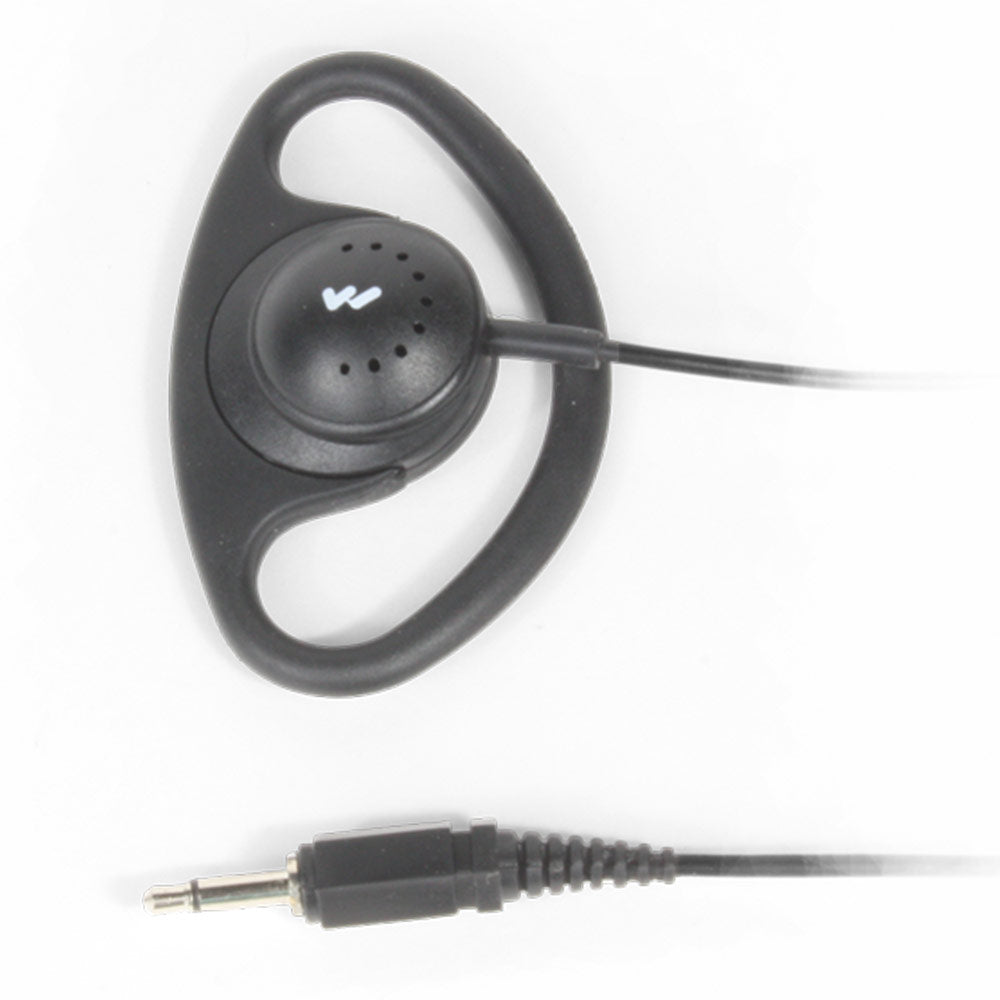

EAR 022
StyleAround-ear speaker
Plug3.5mm mono
Driver Size23 mm
Nominal Impedance32 ?
Freq. Response20 -20kHz
Max Power Input30 mW
Sensitivity118 dB @ 1kHz

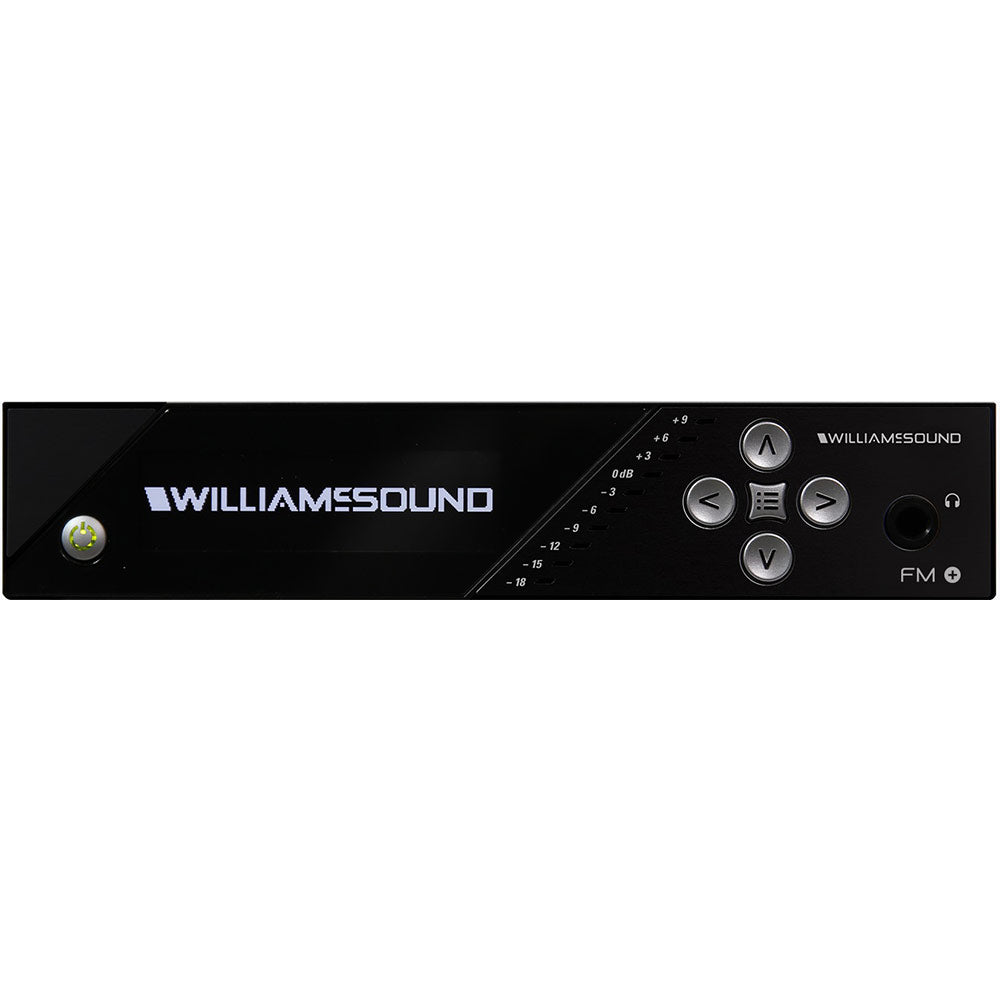

FM T55
Dimensions8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
WeightTransmitter: 3.2 lbs (1.45 kg)
ColorBlack/Silver with silver legends on the front, white legends on the back
Rack MountStandard 19" Rack, one EIA rack space high, 1/2 space wide
1 - 2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Power SupplyDesktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
Power ON IndicatorPush On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode.
Temperature RangeOperating: +32° F to +104° F (0° C to 40° C); Storage: -4° F to +158° F (-20° C to 70° C)
User Interface3.12" High Resolution OLED display with selections via buttons. Hosted Web page. Remote control and monitoring
DanteOnly available on FM T55 D
EthernetRJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address
RF Section
Operating Frequencies72.1-75.9 MHz , 17 wideband channels (selectable)
Frequency Accuracy± 2 ppm stability, 0-50? C
Deviation± 75 kHz maximum
Pre-Emphasis75 microsec
RF Field StrengthDoes not exceed 80 mV/m at 3 m
Compatible AntennasANT 005, ANT 021, ANT 024, or ANT 025
Transmission RangeUp to 1000 ft (304 m) with ANT 005 coaxial antenna mounted on rear chassis connector
RF Outputs(1x) #10-32 stud connector in center of unit (pcb mounted)
(1x) F-connector on rear chassis
RF Transmit Indicator1 Green LED, indicates RF "On Air"
RF PowerFull, Medium, Low or OFF indiacted by menu icon
RF Time Out (sleep mode)30 min. duration, 4 hr. duration, or Always On selected via menu. Starts when audio is below -18 dB level with no button pressed for selected duration
Audio Section
Audio Processor FunctionsDSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control
Frequency Response31 - 16000 Hz, ±3 dB (Music Audio Preset)
Signal-to-Noise RatioGreater than or equal to 74 dB Transmitted RF
Total Harmonic DistortionLess than 0.25% @ 1 kHz (RF output)
Common Mode RejectionGreater than 57 dB @ 1 kHz, Mic or Line
Audio Inputs(1x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Audio Input Gain AdjustIn menu, adjustable to 0 to -50 dB, in 1dB steps
Phantom Power14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
Audio Level Indicators10-LED?array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks
Headphone Output1/4" TRS stereo jack, mono signal, 15.7 mW, maximum in 33 ? (level adjustable in menu 0 to -40 dB in 2 dB steps)
Line OutputRCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 ohms at +9dB
Input Levels (Bal or Unbal) (at Audio Input Gain = 0dB)
Nominal (1st Amber LED)Microphone: -55 dBV (1.7 mV RMS); Line: -25 dBV (55 mV RMS)
Overload Warning (Displayed on Screen)Microphone: -15 dBV (180 mV RMS); Line: +16 dBV (6.3 V RMS)
Absolute Max Rating*Microphone: +20 dBV (10.0 V RMS); Line: +20 dBV (10.0 V RMS)
ApprovalsFCC, RoHS3, WEEE, Industry Canada
Warranty2-year parts and labor

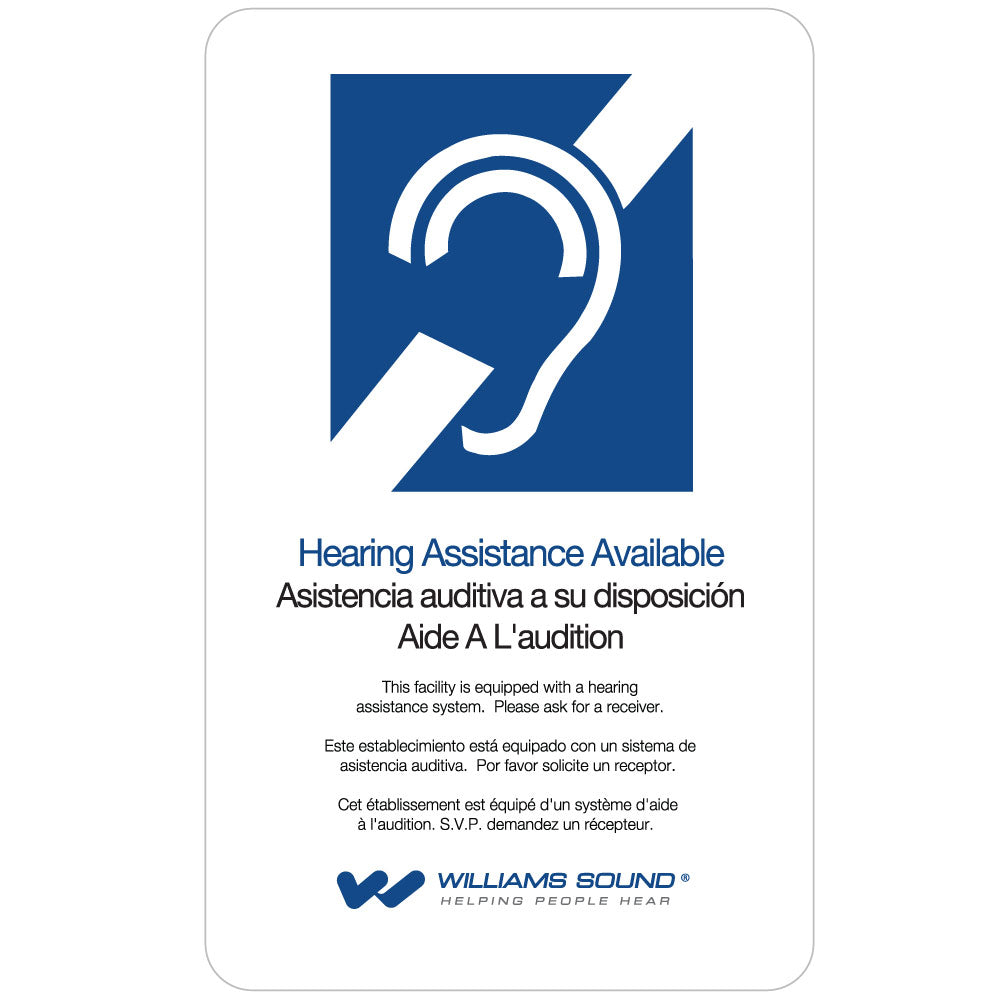

IDP 008
10-3/8" (L) x 6- 1/4" (W) x 1/8" (H)
NKL 001
Other ModelsNKL 001 S (3.5mm stereo plug)
Dimensions4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
Weight4.6oz (130g) with batteries. 2.6oz (73g) without batteries
ColorBlack/Silver. Black ABS Plastic case with Aluminum faceplate
Battery Type(2) AA Alkaline or (2) AA NiMH Rechargeable
Battery Life(2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
(2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
Current Consumption52mA normal
Operating Temp. Range32° - 122°F (0° to 50°C)
Channels17 Wideband, accessed via menu
Operating Frequencies72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
FM Deviation75 kHz
De-Emphasis75 µS
Display Screen1" OLED
Power IndicationPower button, backlit green. Good battery strength - glows solid. Low battery - flashes
Sensitivity2 µV at 12 dB Sinad with squelch defeated
Input Overload100 mV
Frequency Response200 Hz - 15 kHz, ±3dB
ModulationFM, +/- 75 kHz peak deviation
Signal-to-Noise RatioMinimum 65 dB @ 1.0V
Receive Antennantegral with earphone/headphone cord
Audio Output5 mW max at 16 ?
Headphone Connector3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
Supplied EarphoneStereo,earbud-type with foam cushion, 3.5 mm plug, 32 ?
Power Save ModeEnters sleep mode after approximately 3 minutes of no RF signal
ApprovalsFCC, Industry Canada, RoHS, WEEE
WarrantyLifetime PLUS Limited Warranty, 90 Days on most accessories

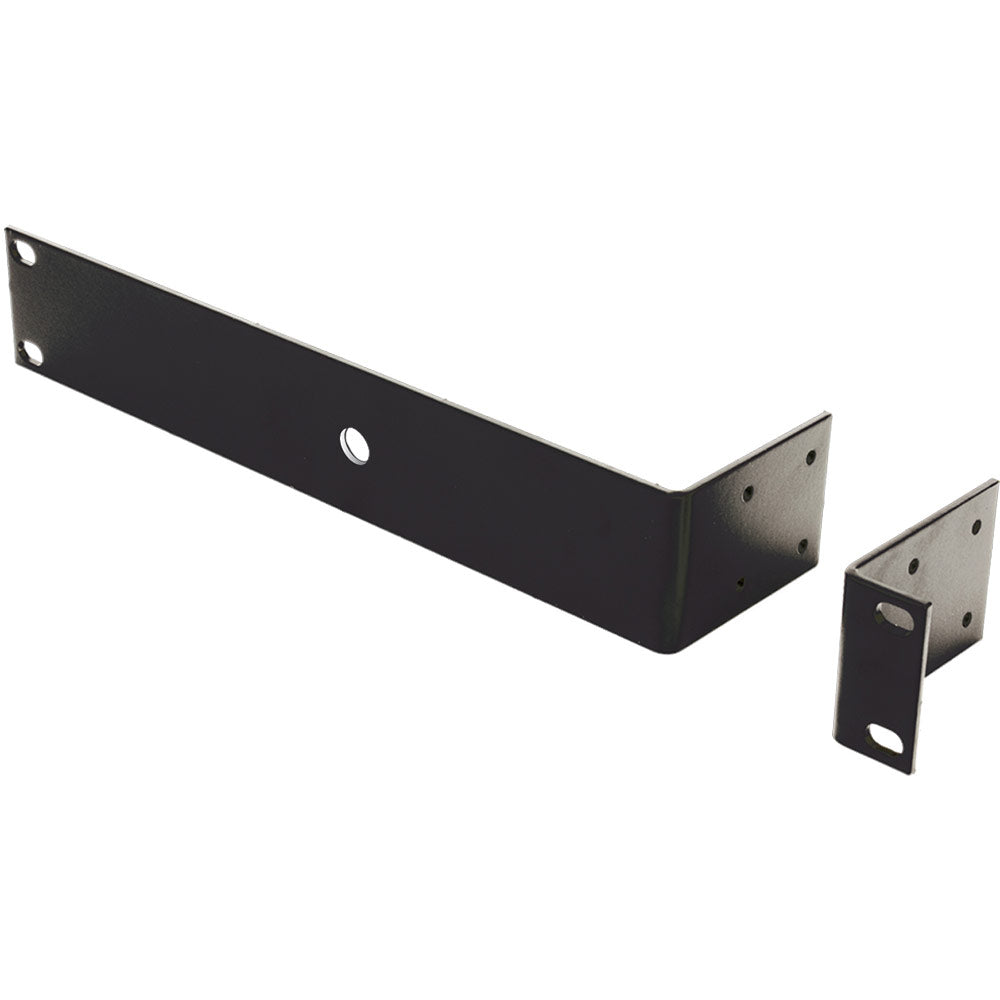

RPK 005
Other ModelsRPK 006 For mounting two 1/2-space products side-by-side in a single rack space

NOTE: Specifications are subject to change without notice.
* Stresses above these ratings may cause permanent damage or degrade reliability.
