Williams AV FM ADA KIT 1 Large Area ADA Compliance Kit
Dale #:
WISO-FMADAKIT1Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The Americans with Disabilities Act (ADA) requires public facilities to provide equal access to people with disabilities, including those who are hard-of-hearing. The Williams Sound FM ADA Kit 1 is a convenient and economical solution for satisfying these requirements. This kit provides everythin... Read MoreRetail Price: $1,045.00 Our Price: $939.00
Free Shipping (Continental US)
Suggested Accessories
Description
The Americans with Disabilities Act (ADA) requires public facilities to provide equal access to people with disabilities, including those who are hard-of-hearing. The Williams Sound FM ADA Kit 1 is a convenient and economical solution for satisfying these requirements. This kit provides everything you need to accommodate individuals for hearing accessibility in large venues such as auditoriums, theaters, conferences and houses of worship. The PPA T27 transmitter broadcasts a speakers voice, music program or audio source wirelessly up to 1000 feet to a listening audience.
Features:
- Range of up to 1,000 feet
- Industry leading, 5-year warranty (90 days on accessories)
- Meets new 2010 ADA accessibility guidelines
- Made in USA

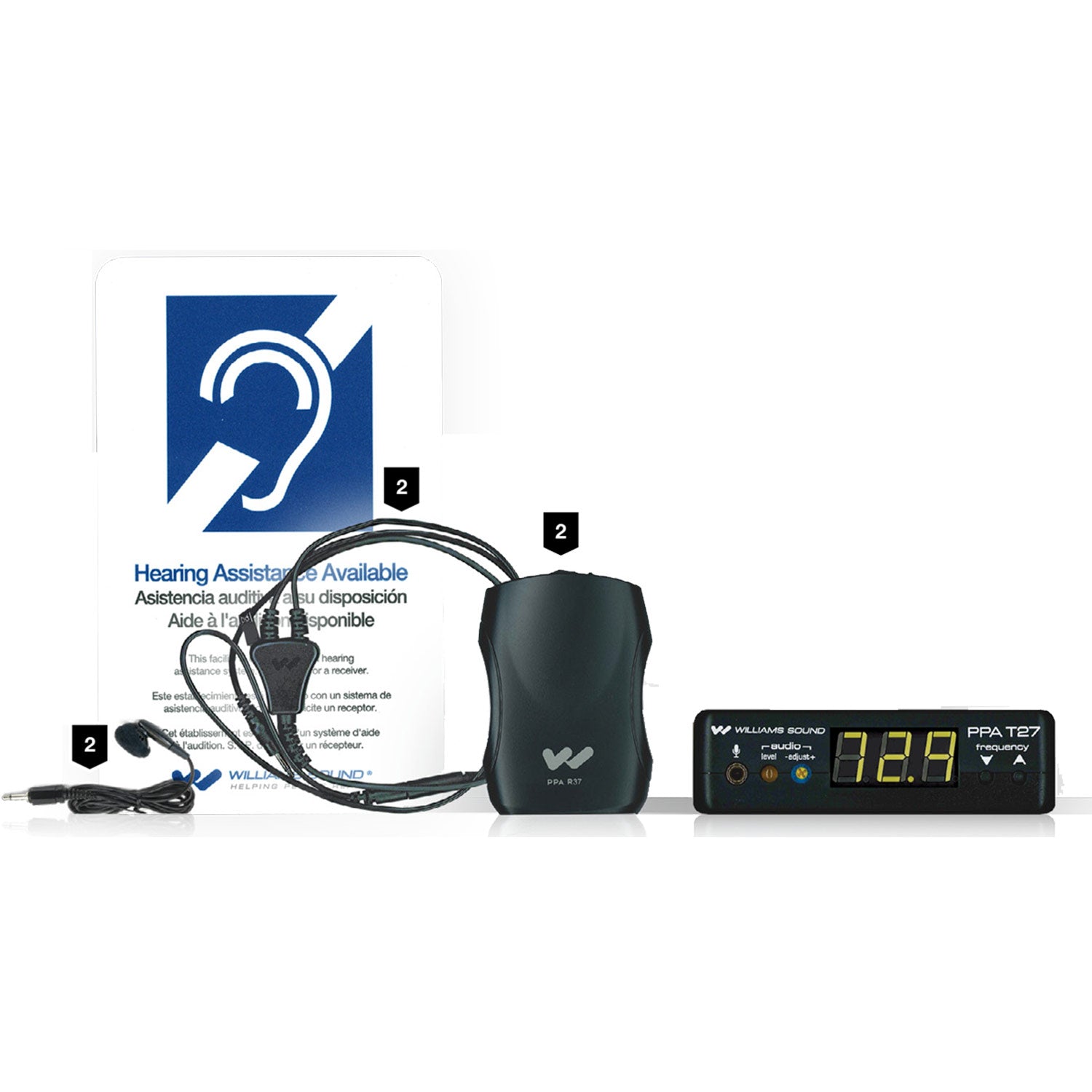

System Includes:

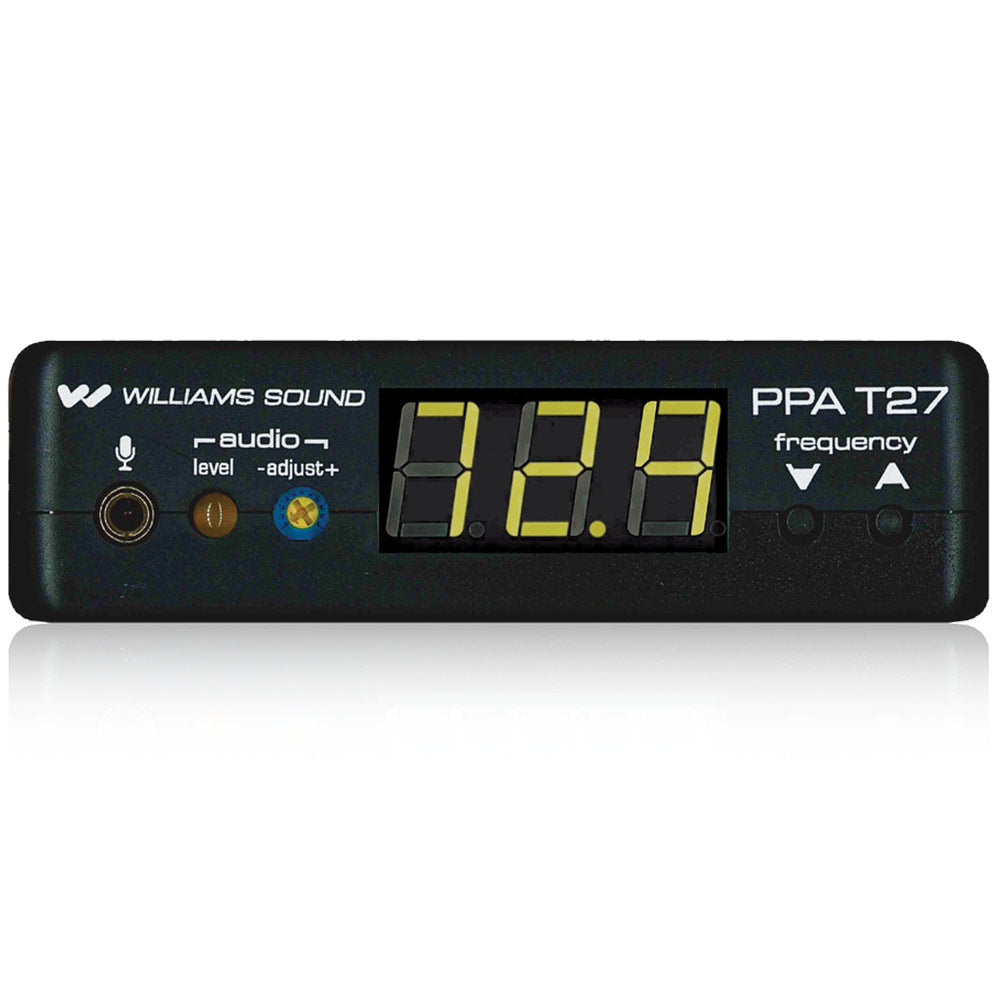

(1) PPA T27 transmitter
(2) PPA R37 receivers

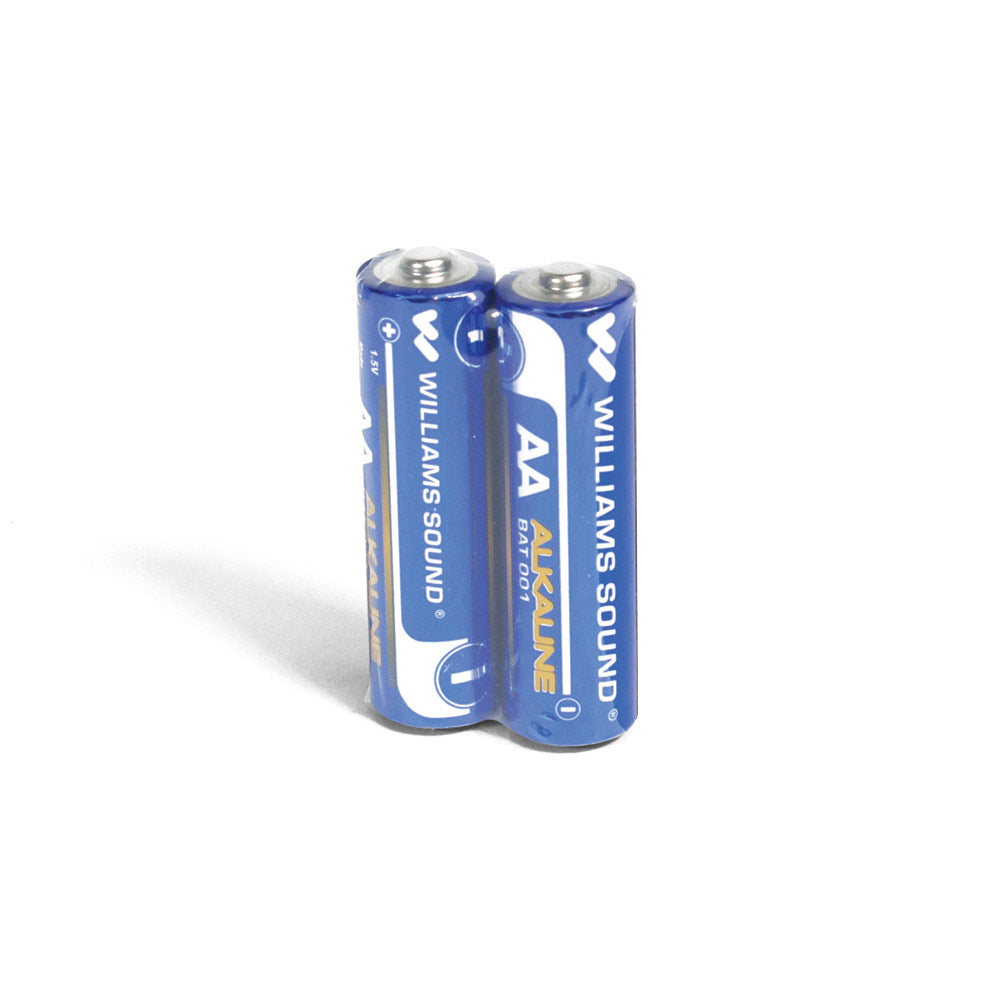

(2) BAT 001-2 AA alkaline batteries

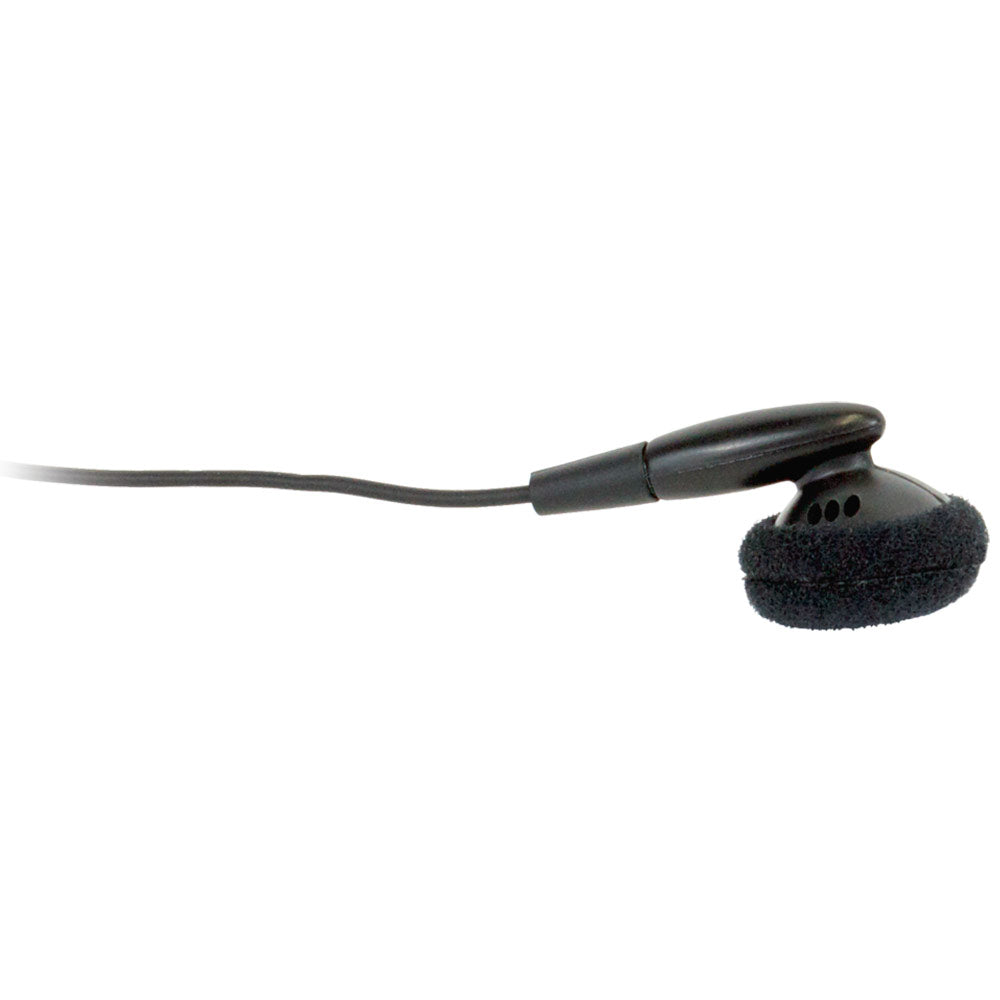

(2) EAR 013 single mini earbuds

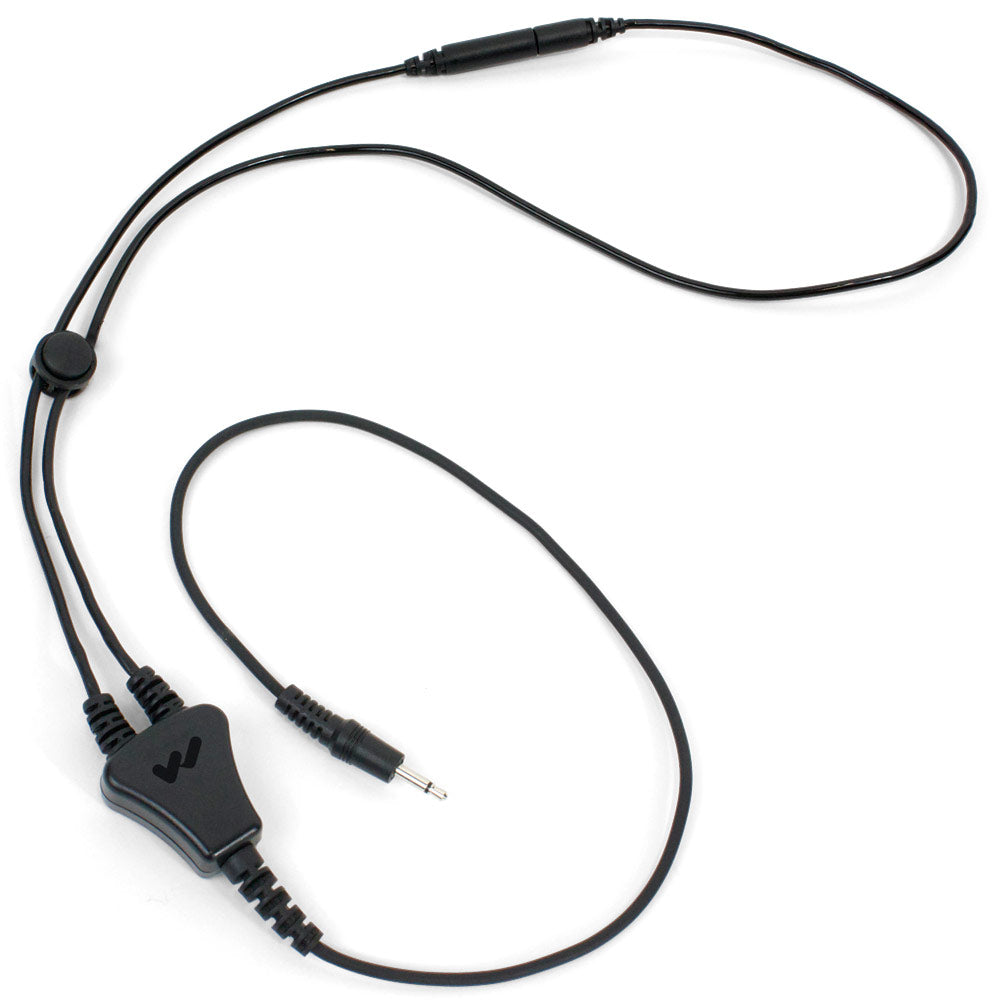

(2) NKL 001 neckloops

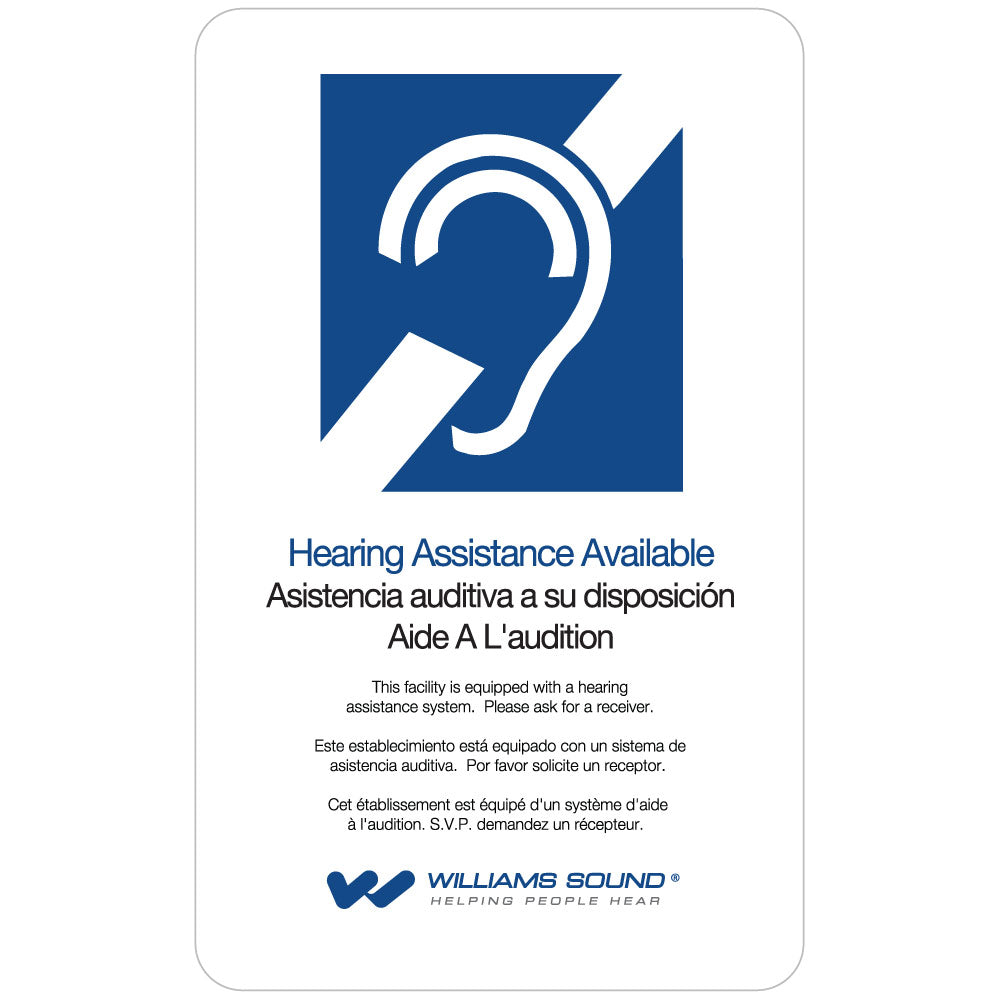

(1) IDP 008 ADA wall plaque

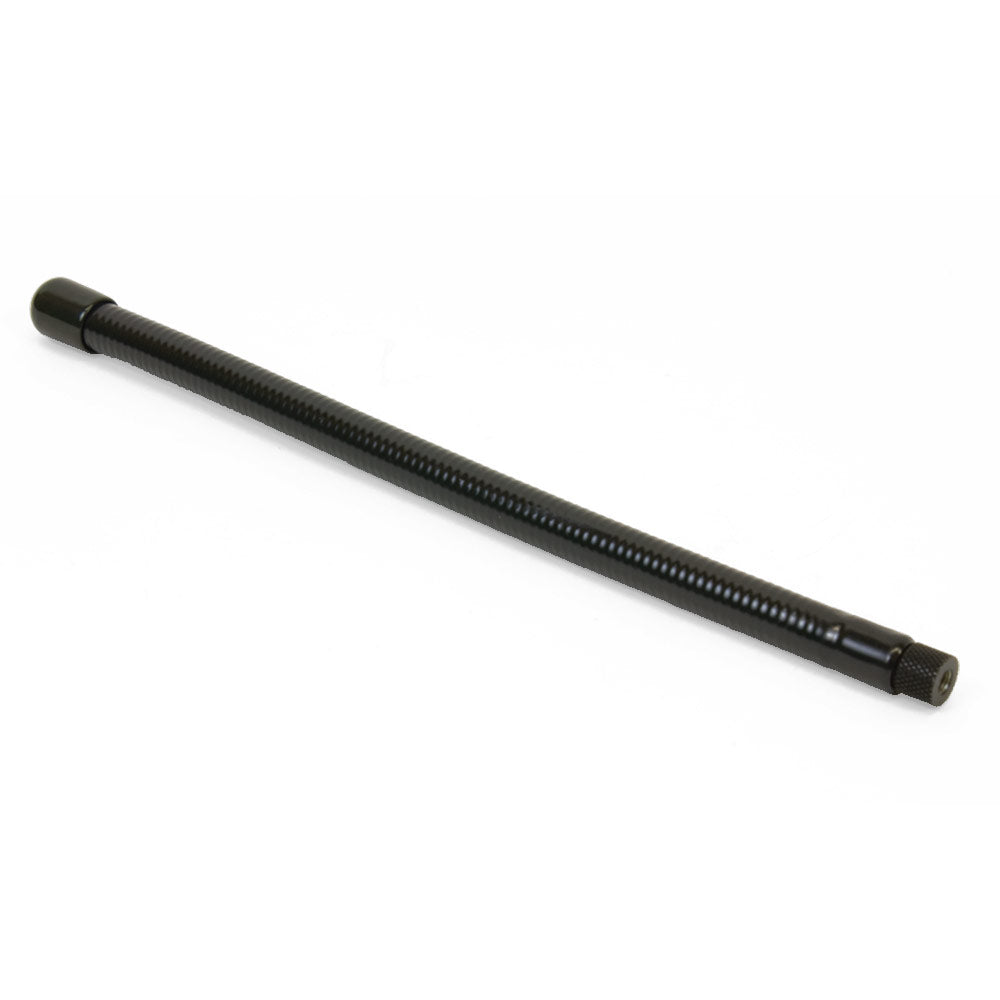

(1) ANT 021 Antenna

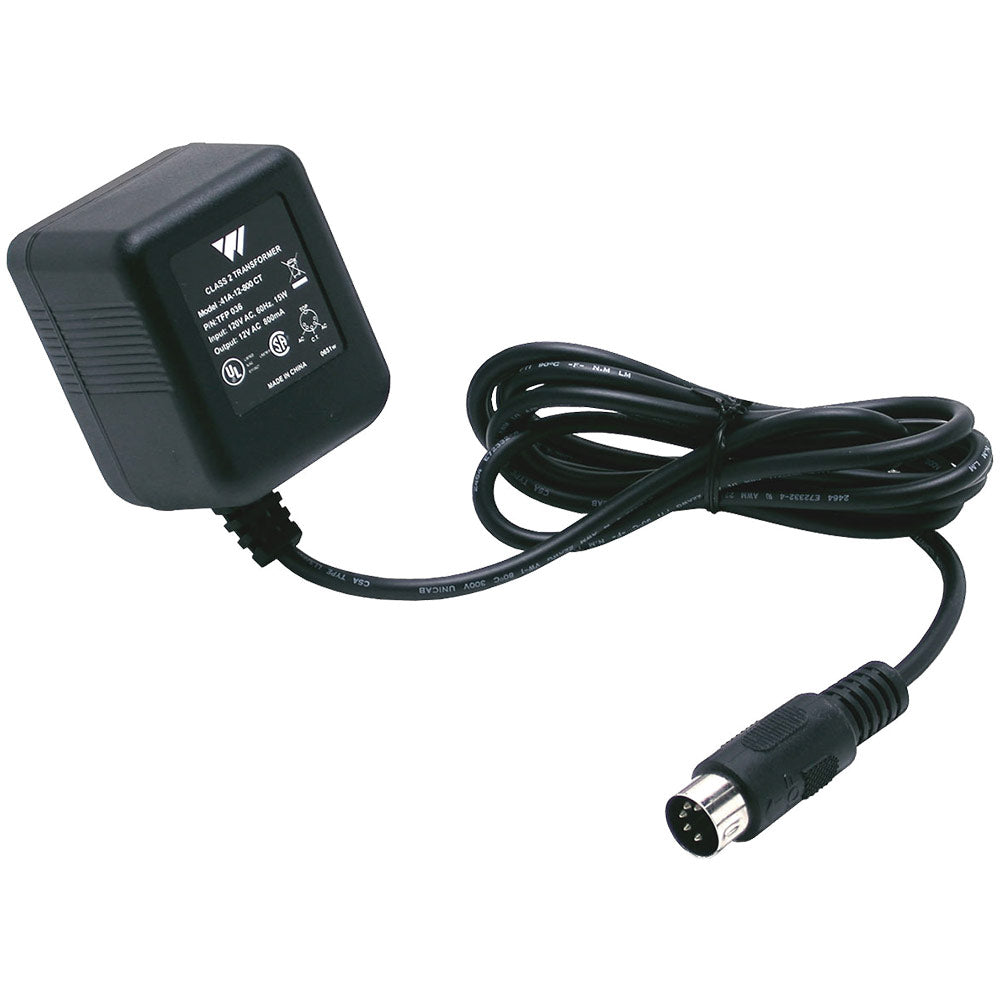

(1) TFP 036 Power Supply
More +
Product Specs
| EAR 013 | |
| Plug | 3.5 mm mono |
| Cord length | 39 inches |
| Impedance | 32 Ohms |
| Frequency Range | 20 - 20kHz |
| Max input power | 5mV |
| Sensitivity | 128dB @ 1kHz |
| Driver size | 13 mm |
| Weight | 9g |
| Replacement earpad | EAR 015 |

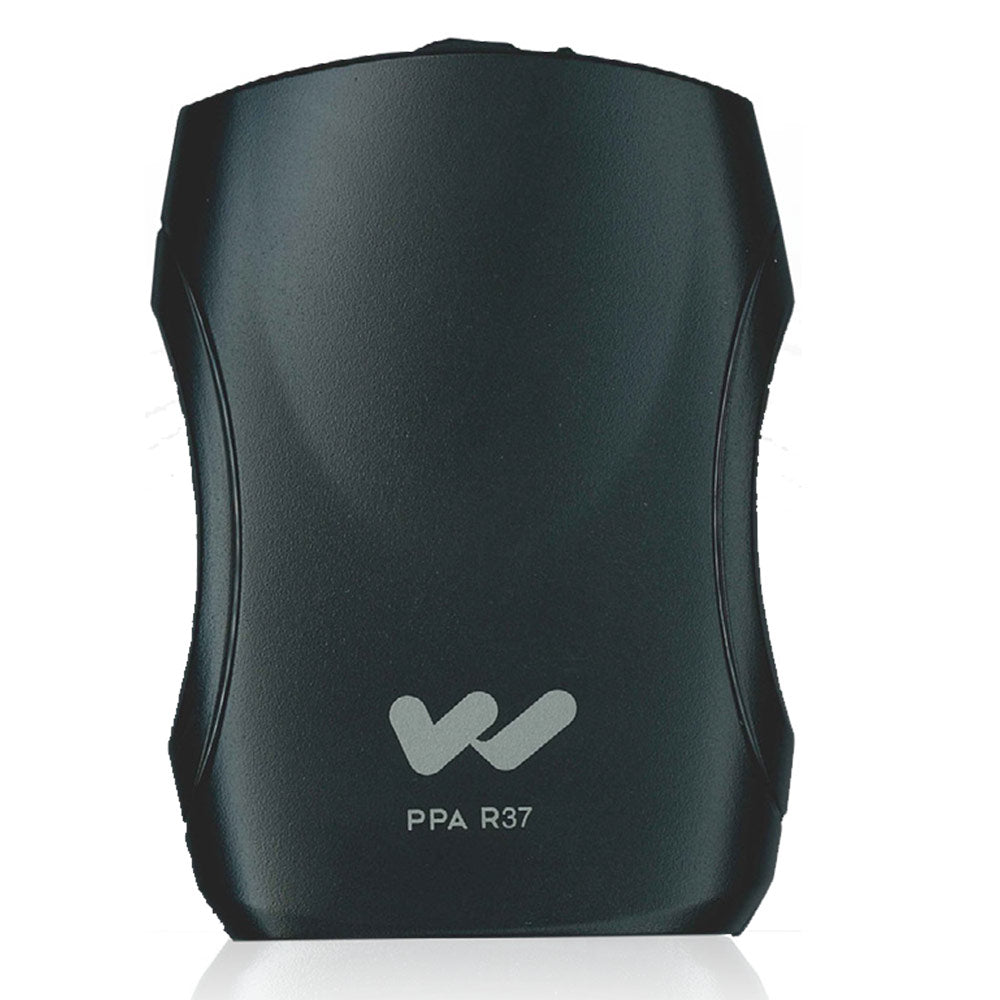

| PPA R37 | |
| Dimensions | 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) |
| Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color | Black |
| Battery Type | (2) AA Alkaline or 2 x AA NiMH |
| Battery Life | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs |
| Current Consumption | 52mA nominal |
| Temperature Range | Temperature Range: – 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq. | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
| Intermediate Freq. | 75 kHz |
| FM Deviation | 75 kHz |
| De-Emphasis | 75 µS |
| LED Indicator | Power: Green; Low Battery: Flashes Green |
| AFC Range | ± 120 kHz |
| Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 – 15 kHz |
| Modulation | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio | 65 dB min @ 100 uV |
| Receive Antenna | Integral with earphone/headphone cord |
| Audio Output | 35 mW max, peak into 16 ohms |
| Output Connector | 3.5 mm stereo/mono phone jack |
| Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 Ω |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
| PPA T27 | |
| Dimensions & Weight | 4.1” W x 6.1” L x 1.3” H (104.1 mm x 154.9 mm x 33 mm) 7.8 oz. (221 g) |
| Color | Black |
| Power (U.S./Canada) | 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC |
| Operating Frequencies | 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H) |
| Frequency Selector | External switches, 17 channels (lockable) |
| RF Field Strength | Does not exceed 80mV/m @ 3m |
| Nominal Range | Up to 1000 feet (305 m) w/standard ANT 021 “rubber duckie” antenna or optional ANT 005 coaxial antenna. |
| Modulation | FM, 75 kHz deviation (wide–band) max. |
| Stability | ± .005% over 0-50˚C |
| Pre-Emphasis | 75 µS |
| Frequency Response | 85Hz - 14kHz ±3dB |
| Distortion | 1% Max. THD |
| Signal to Noise Ratio | 65 dB with R35 Receiver |
| Microphone Input | 3.5mm mini phone jack, supplies +DC for electret mics |
| Mic Input Level | 1–10 mV, nominal |
| Line-Level Input | RCA Jack, Hi Z, unbal. |
| Line Input Level | .1–1 Vrms, nominal |
| Input Attenuator | Pot, screwdriver-adjustable |
| Antenna Outputs | Thread mount for ANT 021 “rubber duckie” antenna or ANT 025 telescoping antenna RF connector for ANT 024 dipole or ANT 005 coaxial antenna |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
