Williams AV FM ADA KIT 37 RCH ADA Compliance Kit - Rechargable
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This kit provides everything you need to accommodate individuals for hearing accessibility in a small-group settings such as libraries, conference rooms and information desks. This portable, easy-to-use FM system operates at 72-76 MHz on one of 17 selectable channels. This single kit satisfies ADA requirements for multiple-room facilities.

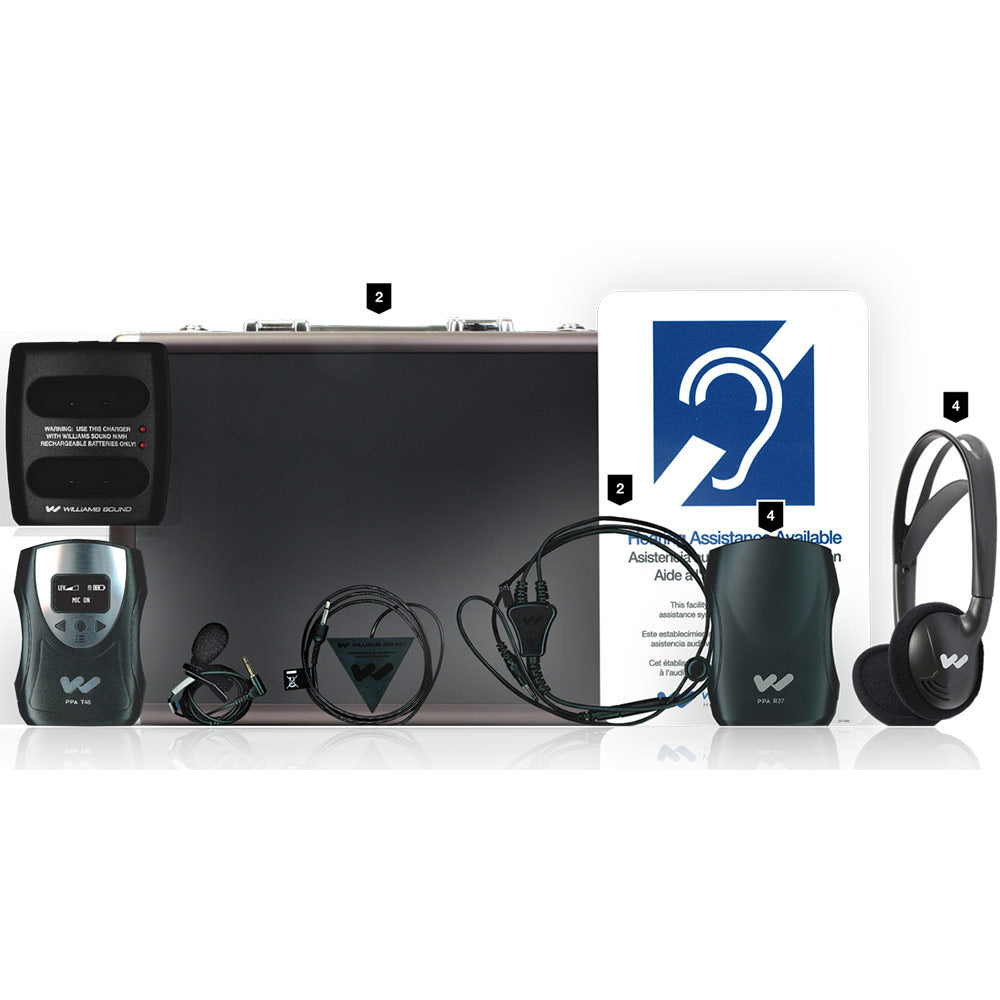

System Includes:

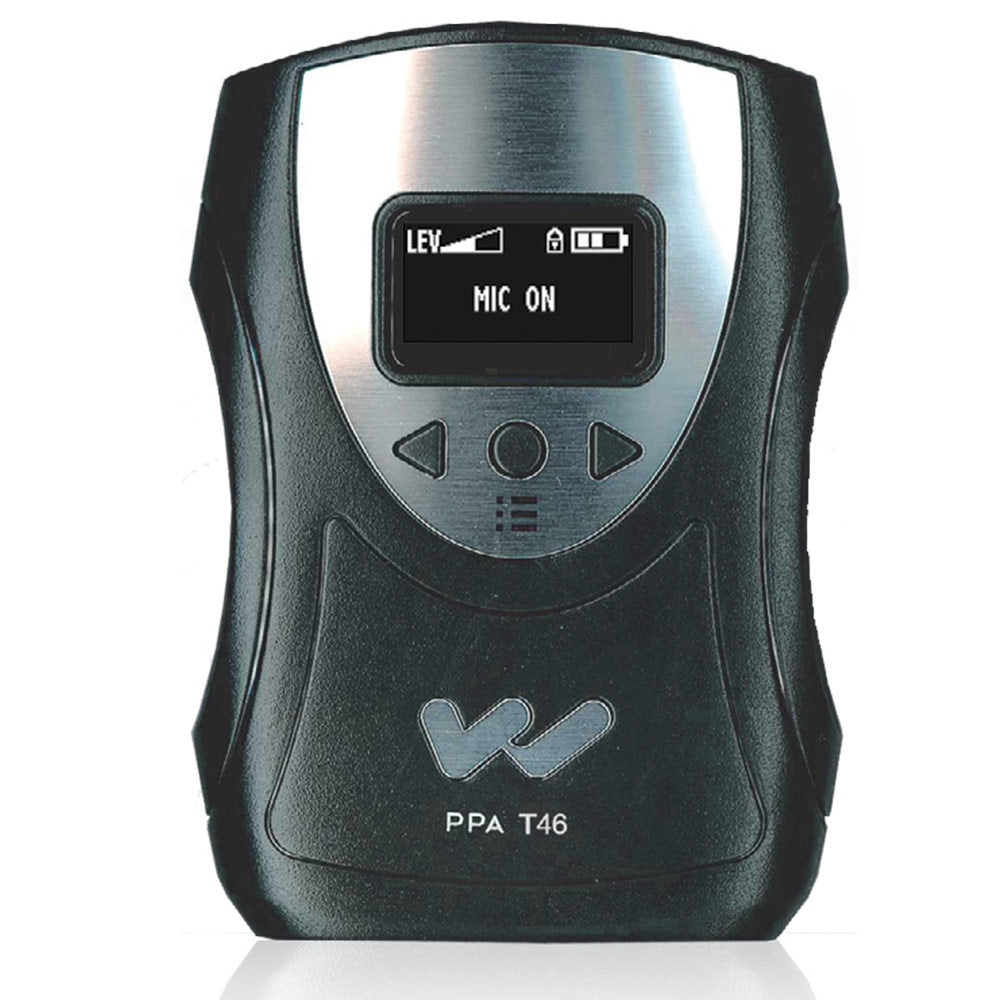

- (1) PPA T46 transmitter

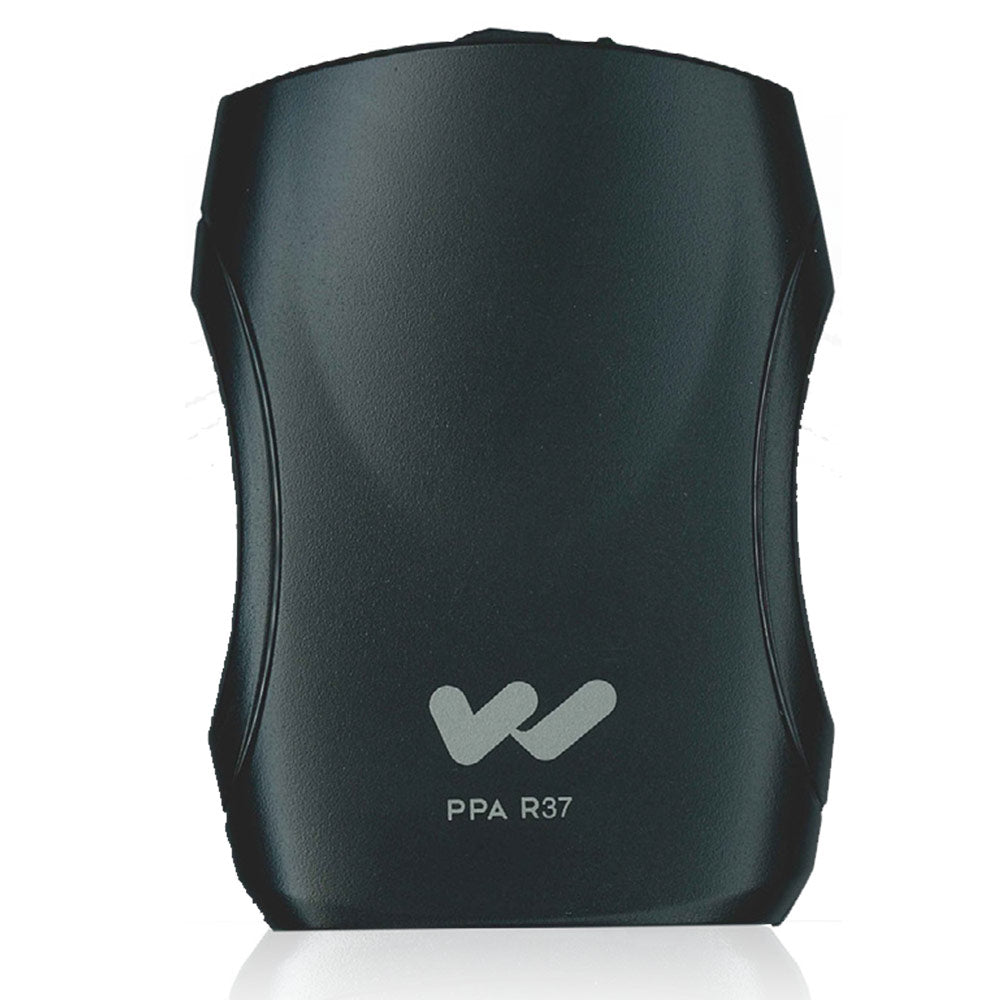

- (4) PPA Select (PPA R37) receivers

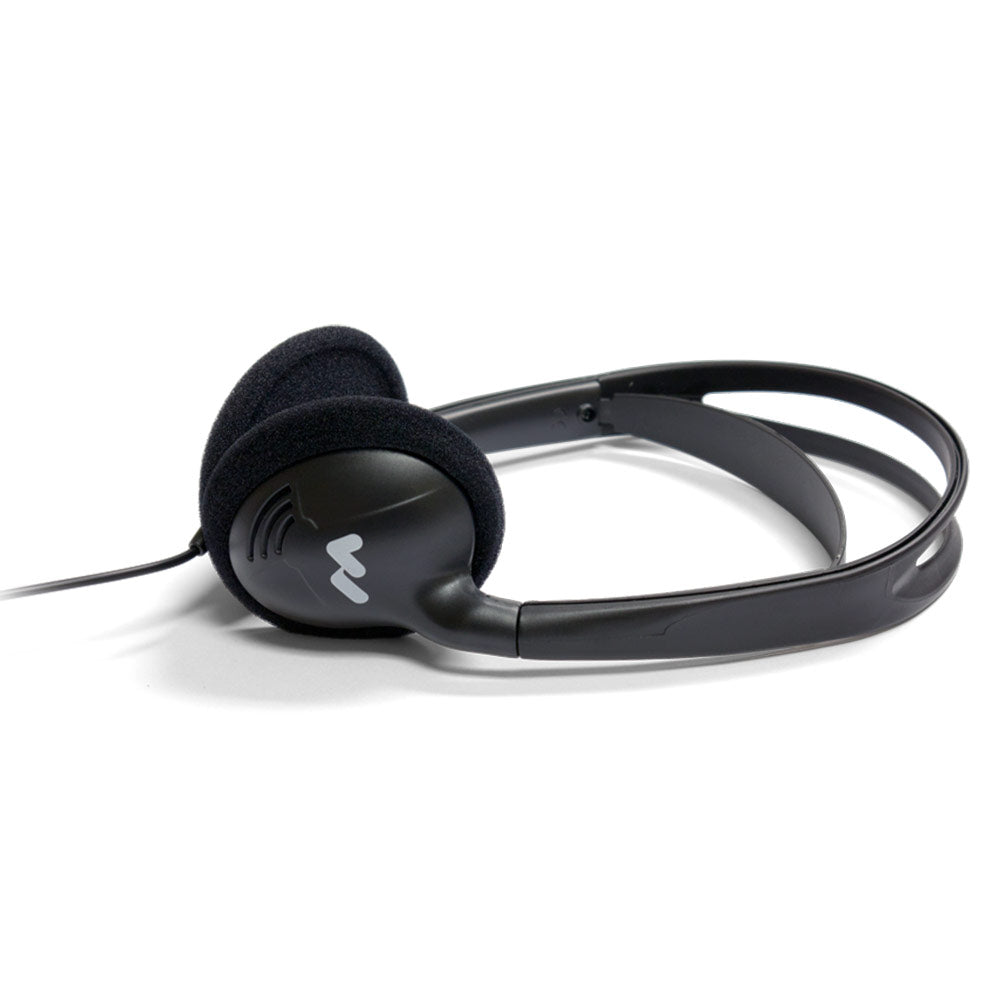

- (4) HED 027 headphones

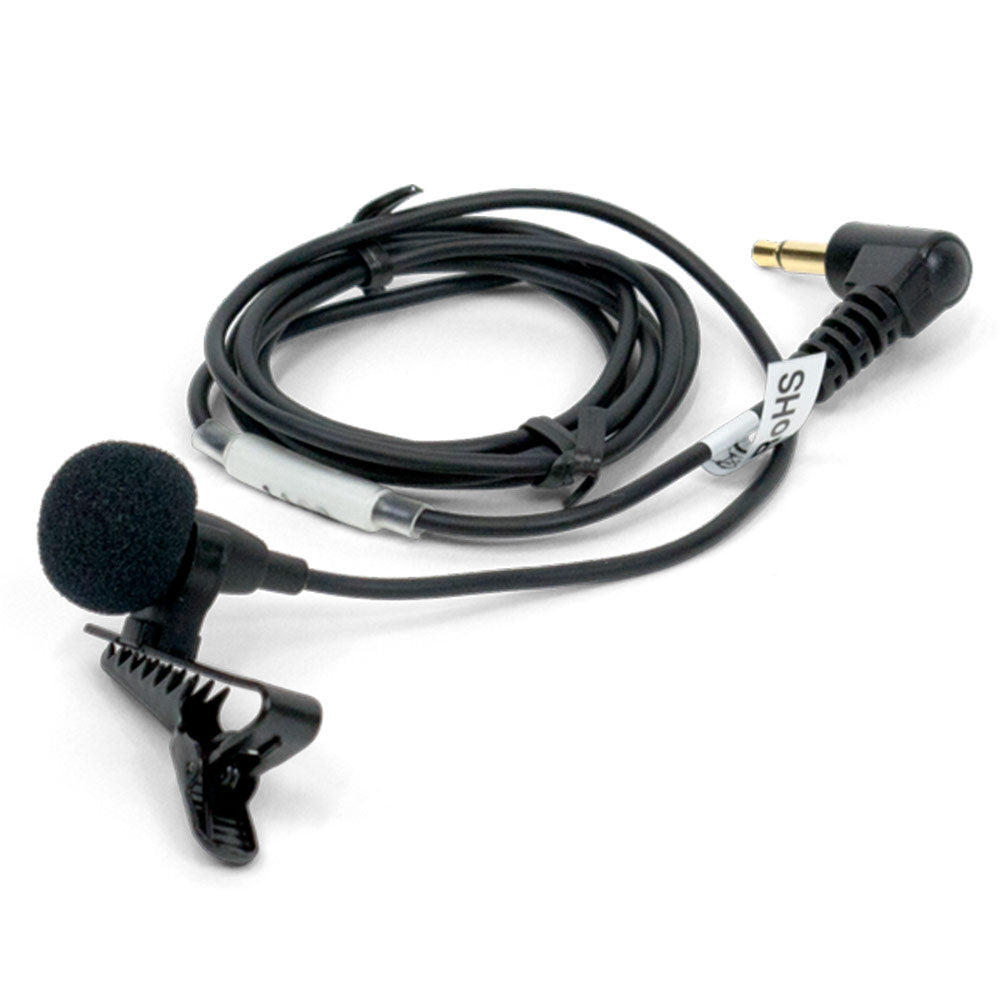

- (1) MIC 090 lapel microphone

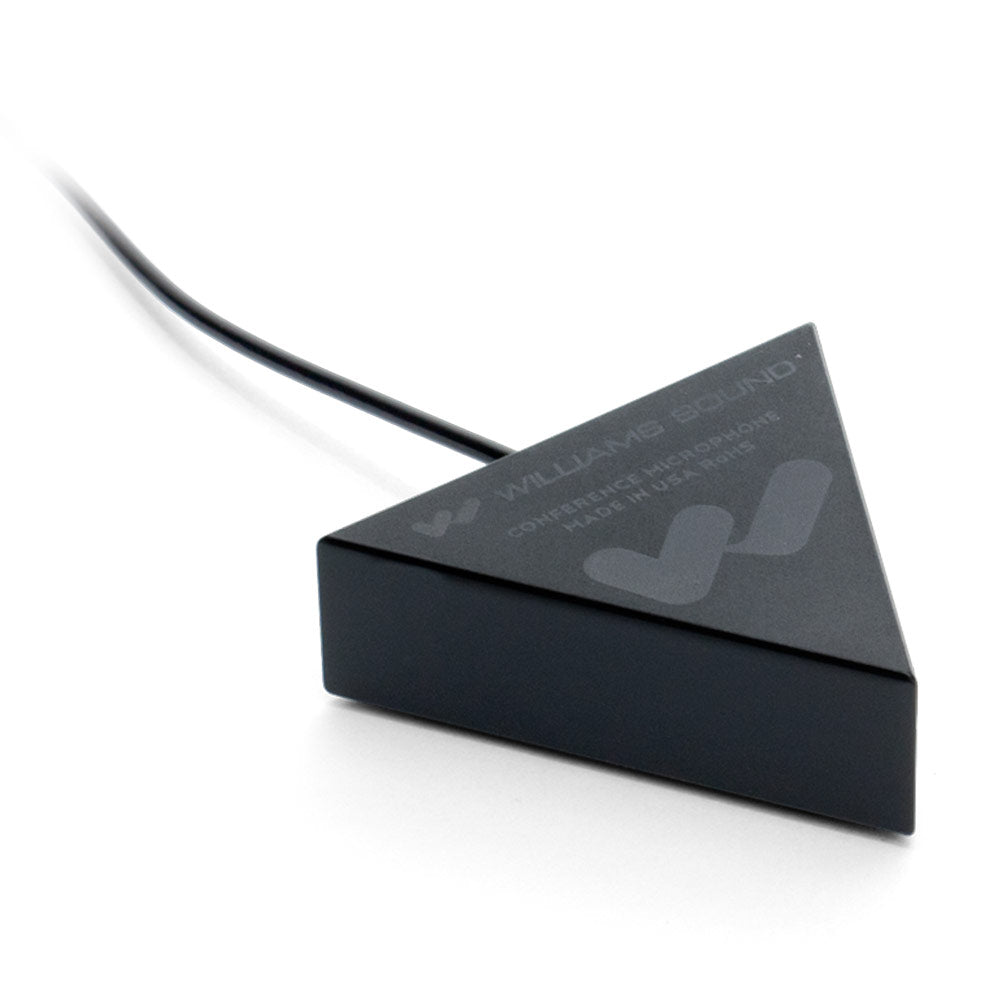

- (1) MIC 049 desktop conference mic
- (1) CCS 029 system carry case

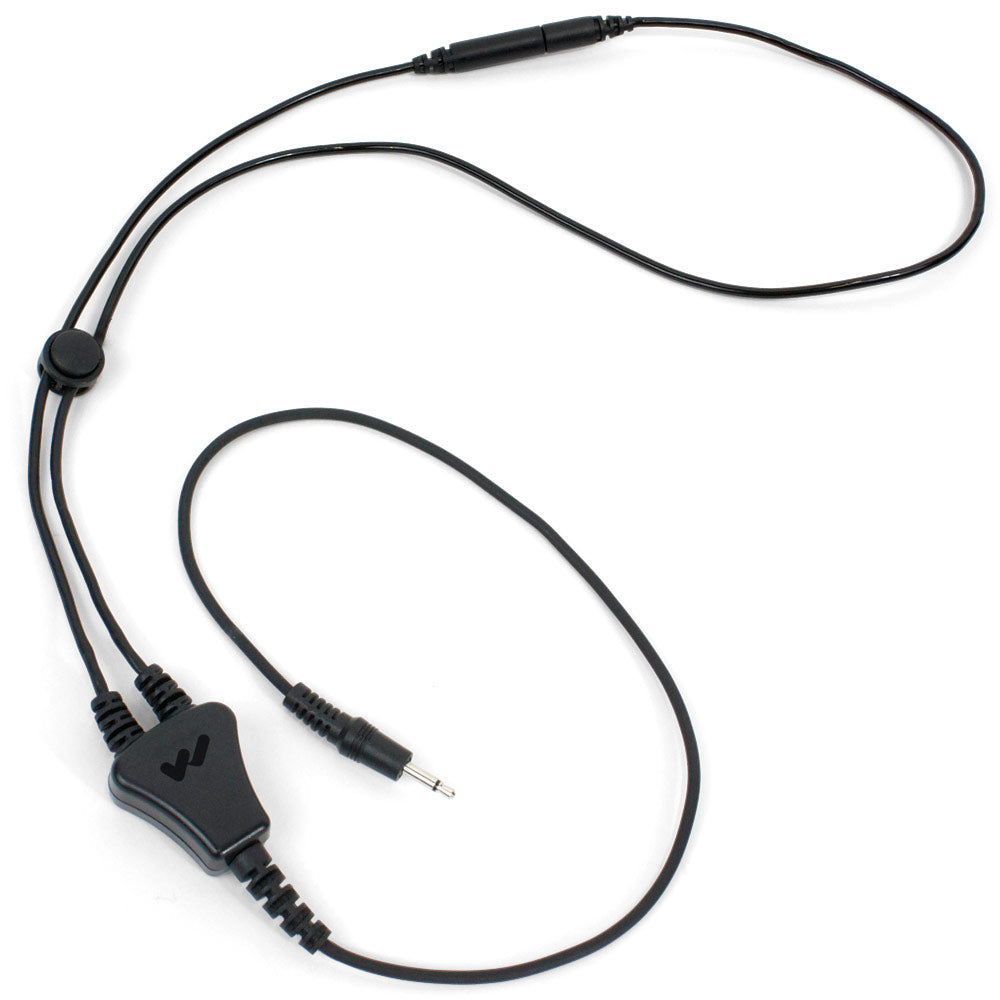

- (2) NKL 001 neckloops
- (10) BAT 001 AA alkaline battery
- (1) IDP 008 ADA wall plaque
Features:
- Simple set-up and operation
- T46 transmitter
- 150' operating range
- 100 hours receiver battery life
- Lifetime PLUS Limited Warranty (90 days on accessories)
- Meets new 2010 ADA accessibility guidelines
- Made in USA
| Dimensions: | 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) |
| Weight: | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color: | Black |
| Battery Type: | (2) AA Alkaline or 2 x AA NiMH |
| Battery Life: | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs |
| (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs | |
| Current Consumption: | 52mA nominal |
| Temperature Range: | Ð 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq.: | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
| Intermediate Freq.: | 75 kHz |
| FM Deviation: | 75 kHz |
| De-Emphasis: | 75 µS |
| LED Indicator: | Power: Green; Low Battery: Flashes Green |
| AFC Range: | ± 120 kHz |
| Sensitivity: | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload: | 100 mV |
| Frequency Response: | 200 Ð 15 kHz |
| Modulation: | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio: | 65 dB min @ 100 uV |
| Receive Antenna: | Integral with earphone/headphone cord |
| Audio Output: | 35 mW max, peak into 16 ohms |
| Output Connector: | 3.5 mm stereo/mono phone jack |
| Earphone: | Earbud-type with foam cushion, 3.5 mm plug, 32 |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals: | FCC, Industry Canada, RoHS, WEEE |
| Warranty: | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
