Description

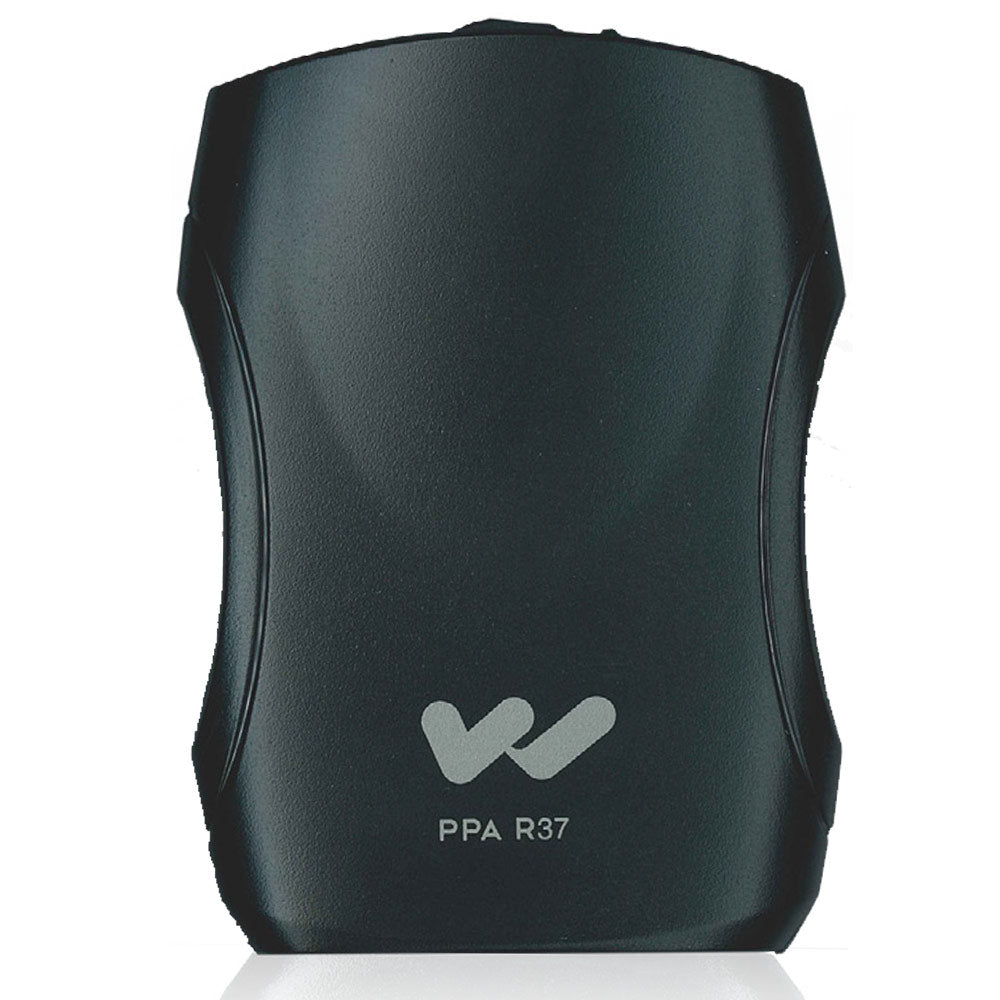

The FM R37 features seek-button channel selection with access to 17 pre-set, wideband frequencies (72-76 MHz). Offers sleep mode, low-battery indicator and stereo headphone jack. Compatible with all Williams Sound 72-76 MHz wide-band transmitters. Digitally synthesized for exceptional audio clarity and stability. Versatile 3.5mm stereo/mono jack allows for a variety of earphone/headphone options, and is neckloop/telecoil-equipped hearing aid compatible.
System Includes:
- (1) PPA R37N Receiver
- (1) EAR 022 Surround Earphone
- (1) BAT 001-2 AA Alkaline Battery
FM R37 | |
Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
Color | Black |
Battery Type | (2) AA Alkaline or 2 x AA NiMH |
Battery Life | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs Two (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs |
Current Consumption | 52mA nominal |
Temperature Range | - 0 to 50C |
Channels | 17, accessed via seek button in battery compartment |
Operating Freq. | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
Intermediate Freq. | 75 kHz |
FM Deviation | 75 kHz |
De-Emphasis | 75 µS |
LED Indicator | Power: Green; Low Battery: Flashes Green |
AFC Range | ± 120 kHz |
Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
Input Overload | 100 mV |
Frequency Response | 200 - 15 kHz |
Modulation | FM, +/- 75 kHz peak deviation |
Signal-to-Noise Ratio | 65 dB min @ 100 uV |
Receive Antenna | Integral with earphone/headphone cord |
Audio Output | 35 mW max, peak into 16 ohms |
Output Connector | 3.5 mm stereo/mono phone jack |
Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 ? |
Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
Approvals | FCC, Industry Canada, RoHS, WEEE |
Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
