Description

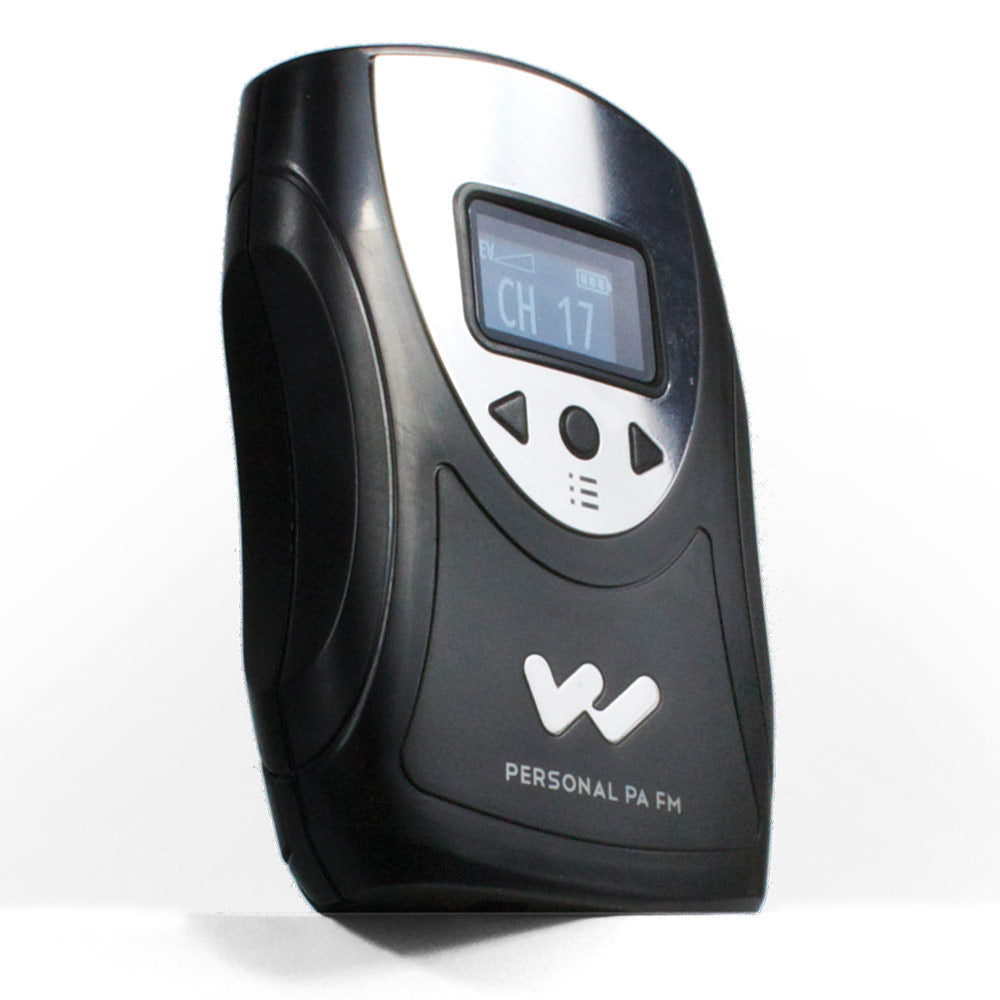

The FM R38N is a multi-channel FM receiver with a high-resolution OLED screen. Offers a quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wide-band frequencies (72-76 MHz). Compatible with all Williams Sound 72-76 MHz wide-band transmitters. Digitally synthesized for exceptional audio clarity and stability. Digital tuning, digital squelch and battery saving sleep mode. New stereo jack paired with the mono jack adds compatibility with a variety of earphones/headphones. Rechargeable.
System Includes:
- (1) PPA R38N Receiver
- (1) EAR 022 Surround Earphone
- (1) BAT 001-2 AA Alkaline Battery
All Williams Sound headphones and earphones are compatible with this product.
FM R38 | |
Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
Color | Black/Silver. Black ABS Plastic case with Aluminum faceplate. |
Battery Type | (2) AA Alkaline or (2) AA NiMH Rechargeable |
Battery Life | (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs. |
Current Consumption | 52mA nominal |
Operating Temp. Range | 32¡ - 122¡F (0¡ to 50¡C) |
Channels | 17 Wideband, accessed via menu |
Operating Freq. | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
FM Deviation | 75 kHz |
De-Emphasis | 75 µS |
Display Screen | 1" OLED |
Power Indication | Power button, backlit green. Good battery strength - glows solid. Low battery - flashes. |
Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
Input Overload | 100 mV |
Frequency Response | 200 Hz - 15 kHz, ±3dB |
Modulation | FM, +/- 75 kHz peak deviation |
Signal-to-Noise Ratio | Minimum 65 dB @ 1.0V |
Receive Antenna | Integral with earphone/headphone cord |
Audio Output | 35 mW max at 16 ? |
Headphone Connector | 3.5 mm stereo jack, mono output for stereo or mono earphones/headphones |
Supplied Earphone | Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 ? |
Power Save Mode | Enters sleep mode after approximately 3 minutes of no RF signal |
Approvals | FCC, Industry Canada, RoHS, WEEE |
Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
