DALE SKU # WISO-IC2

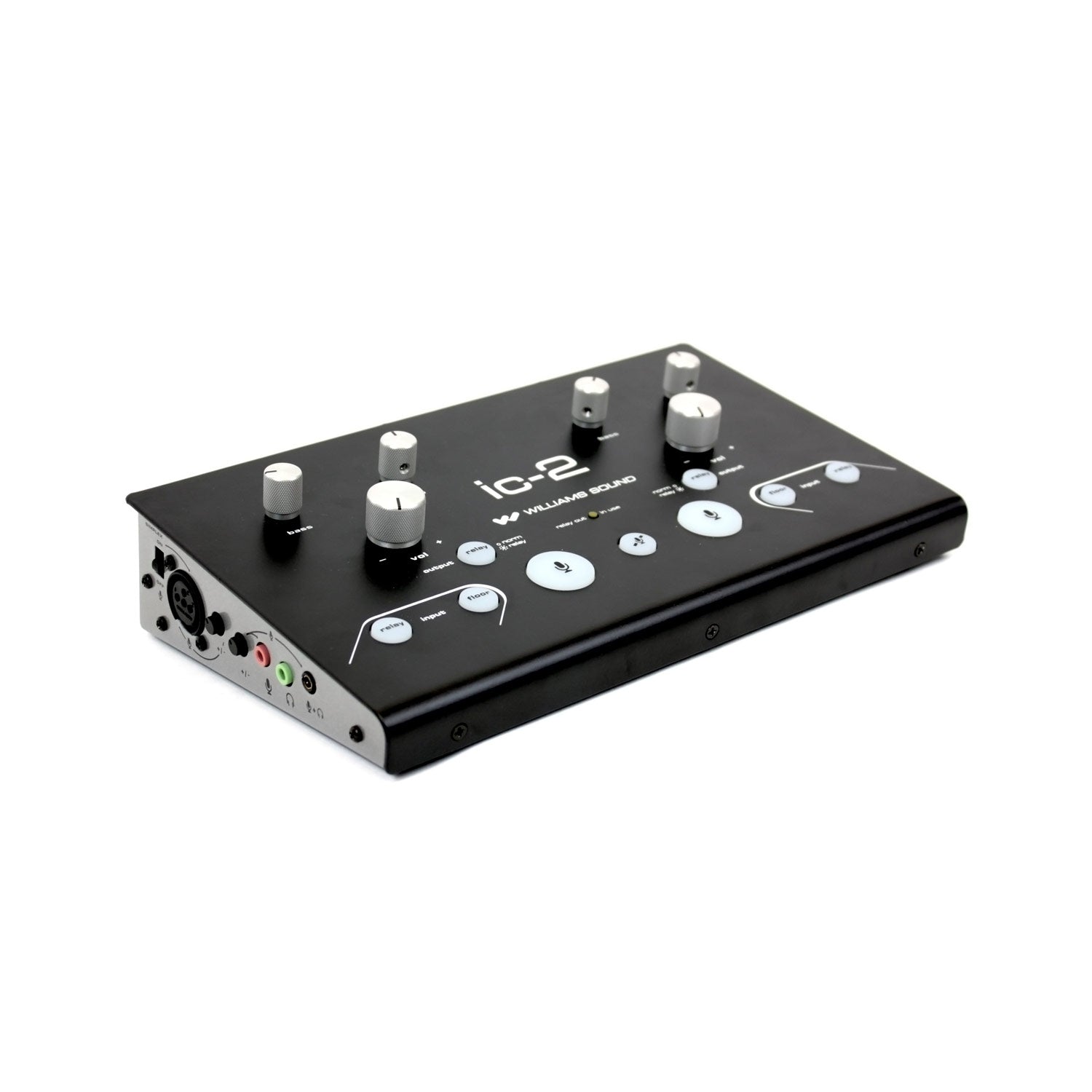

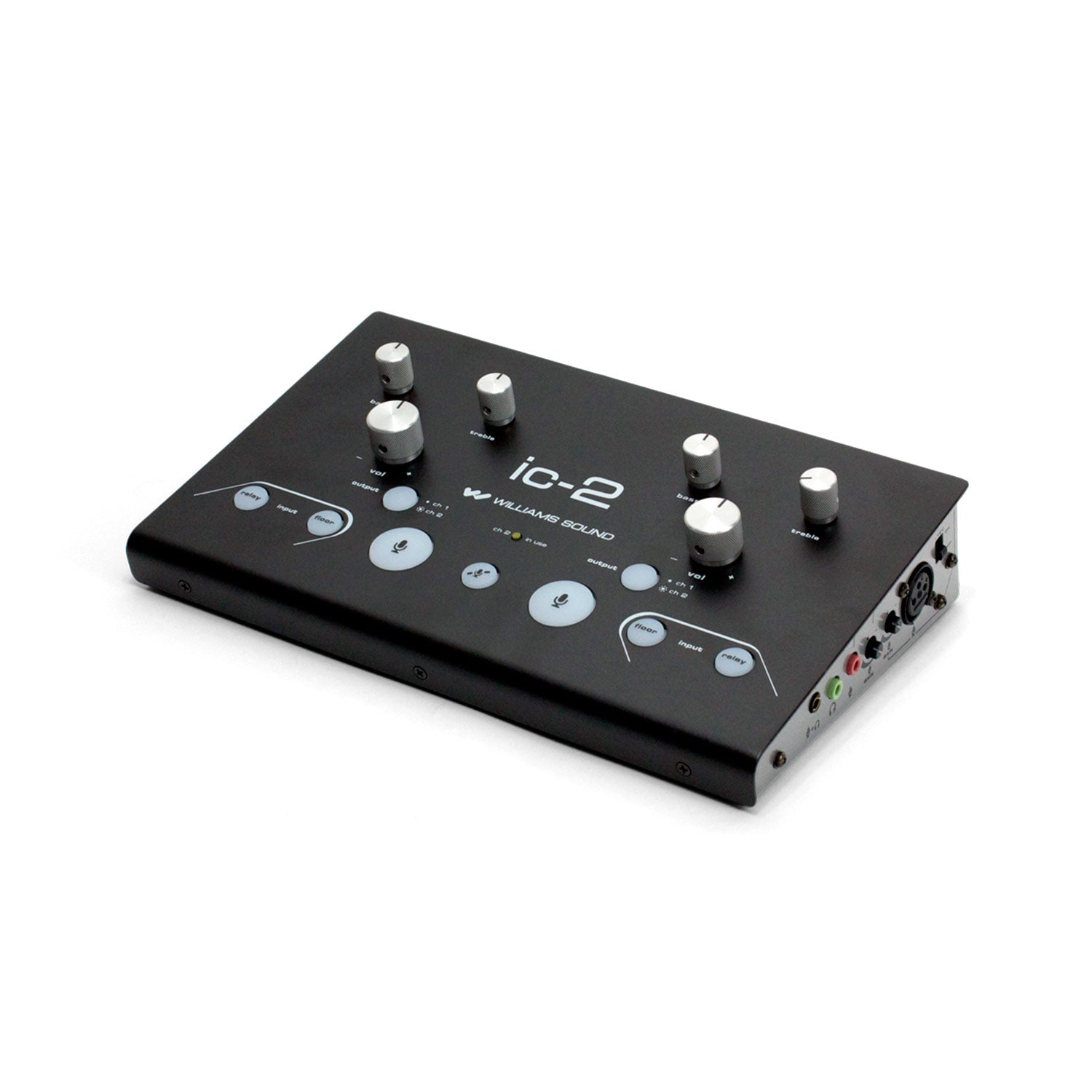

Williams AV IC-2 Interpreter Control Console

Sale price$2,166.00 Regular price$2,404.00
Save $238.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Williams Sound IC-2 is an audio control center for simultaneous interpretation of one or more languages. As a stand-alone unit, it allows one or two interpreters to monitor floor or relay sources, activate microphone inputs, and route the interpretation signal to one of two language groups. Ideal for presentation-style conferences of up to 14 languages, where a floor and a single relay language are used. Can be used with Williams Sound FM, infrared and Digi-Wave™ transmitters for portable or fixed installations. Designed to meet international standards for portable interpretation consoles.

    Features:

    • New CAT 5 audio offers simplified cabling and easy cascading to support additional interpreters.
    • Built-in distribution amplifier and mini mixer reduce the need for external equipment and greatly simplify setup.
    • Floor language feed-through
    • Interlocking microphone and relay output functions
    • Enhanced flexibility, providing each interpreter with multiple microphone and headset options
    • Five-year warranty

    Dimensions/Weight/Color

    10” (25.4cm) x 6.35” (6.2cm) x 2.45” (6.2cm) / 3.4 lbs (1.5 kg) / Black and Silver

    Power

    External Power Supply, 18VDC Desktop Style Switching Inverter, 110-240VAC, 50-60Hz, 1A

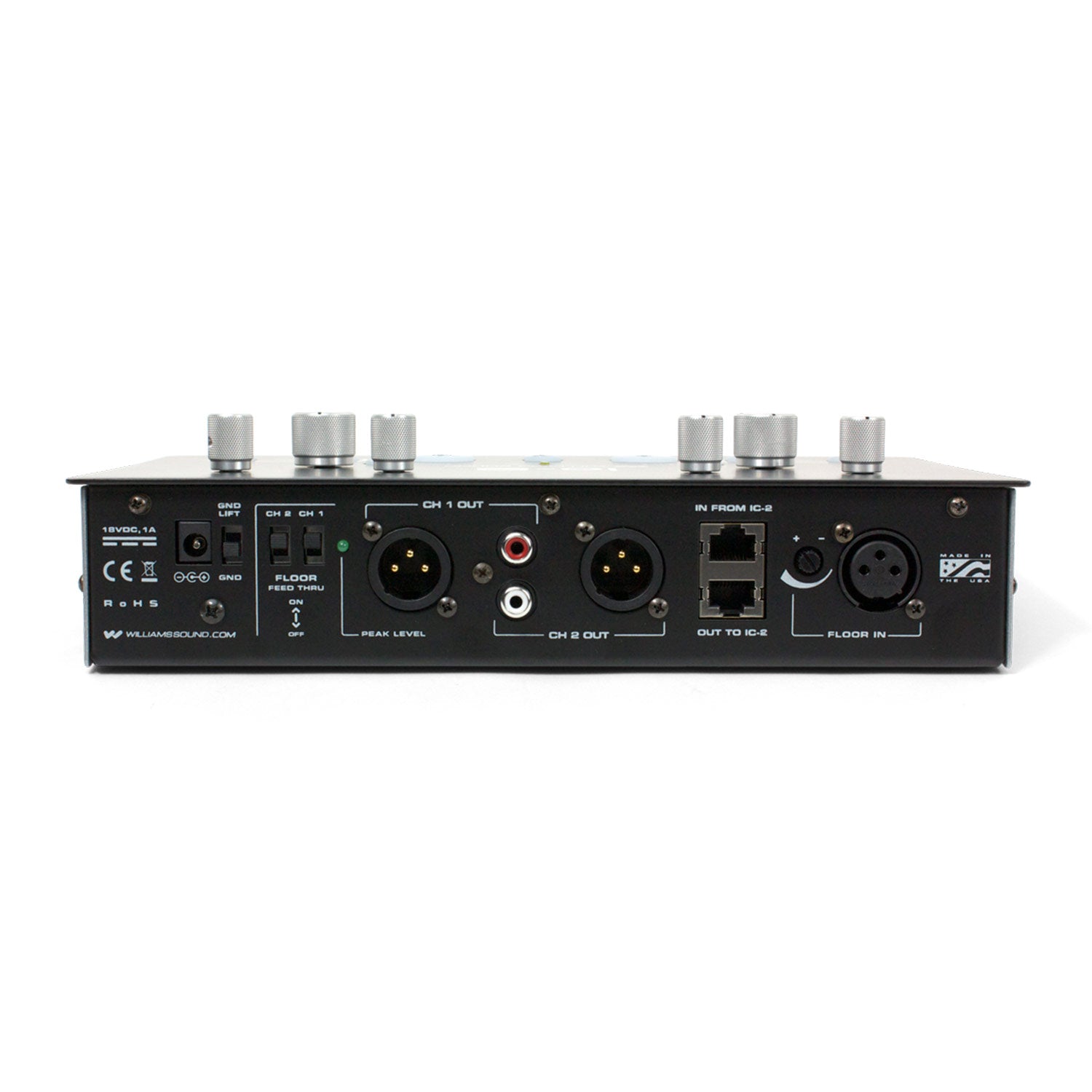

    INPUTS / OUTPUTS

    Floor In

    3-pin XLR female jack, balanced (or unbalanced) input with 24k differential input impedance, max balanced input is +19dBu

    IC-2 Bus In / Out

    CAT5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another IC-2

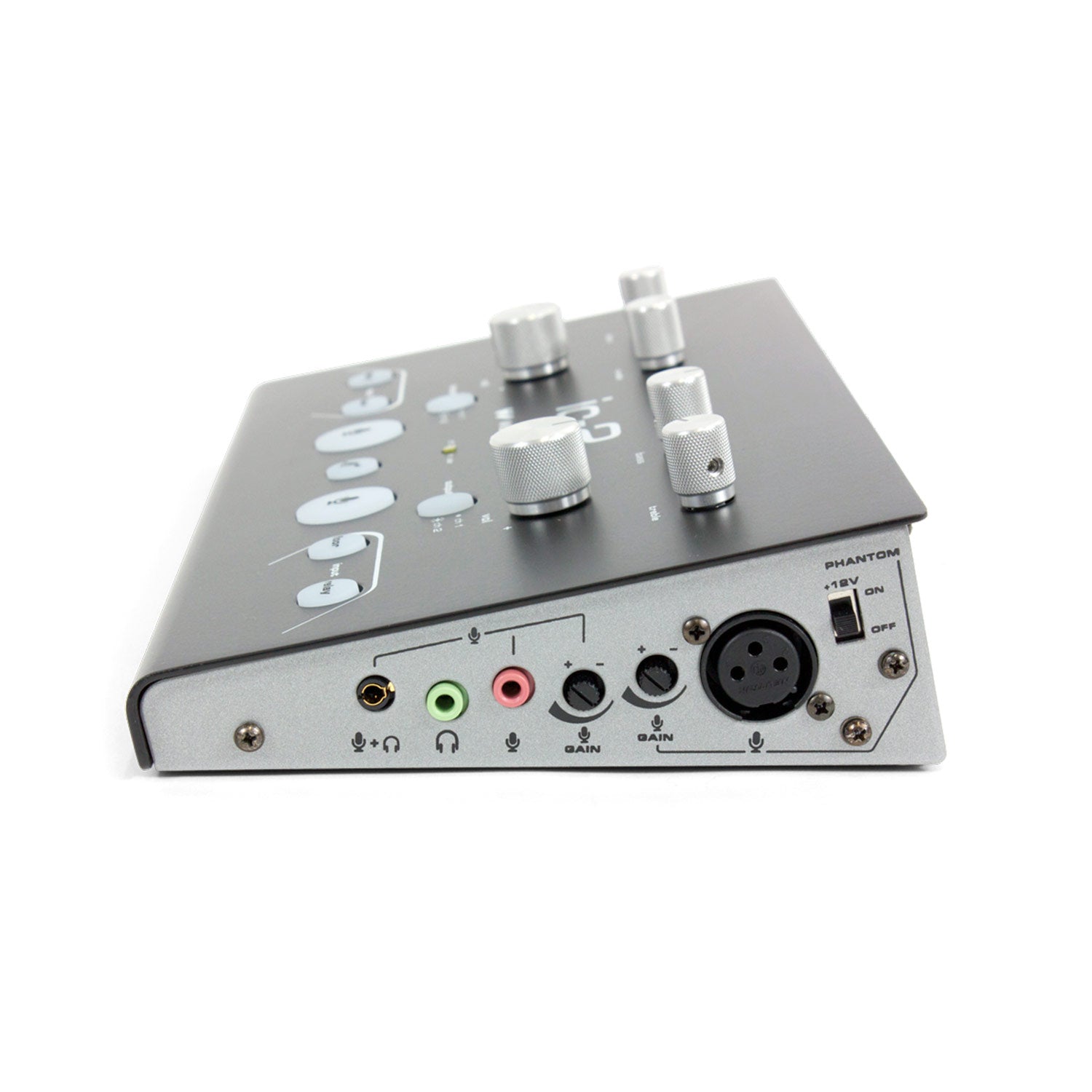

    XLR Microphone Inputs

    3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58 dB, 2.4k balanced input impedance, maximum balanced input is +19 dBu

    3.5mm Microphone Inputs

    Stereo 3.5 mm TRS phone jack, pink, and stereo 3.5mm TRRS phone jack, black, unbalanced (r,s) for electret condenser mics, variable gain of 40dB. Bias is 3.7VDC through 2.7k

    3.5mm TRRS Headphone Output

    3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW max power into 32 stereo headset.

    3.5mm Headphone Output

    3.5mm TRS phone jack, mono or stereo headphone, 8 minimum. 190mW max power into 32 stereo headset.

    Norm Out, Relay Out

    3-pin XLR male jack, balanced output. Max output is +19dBu into 600 balanced load impedance.

    CONTROLS

    Volume

    Left and Right rotary, controls headphone volume

    Bass and Treble Tone

    Left and right rotary with center detent, controls headphone bass and treble tone levels.

    Mute

    Push button, backlit red, mutes left and right mics while pressed.

    Mic On

    Push button, backlit bright red, activates microphone. Right and left Mic On buttons are interlocked; mic can only be turned on if the other is off.

    Floor Input, Relay Input

    Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other.

    Relay Output

    Push button, backlit yellow, selects microphone output language group: light on = Relay Out, light off = Norm Out.

    Gain Adjust

    Rotary gain pots control level of microphone and Floor audio.

    Phantom Power

    Slide switch enables 12VDC Simplex power to XLR microphone.

    Norm Feedthrough

    Slide switch enables Floor feedthrough to Norm Out XLR jack.

    Relay Feedthrough

    Slide switch enables Floor feedthrough to Relay Out XLR jack.

    Ground Lift

    Slide switch disconnects Chassis and Audio Grounds internal to the console.

    INDICATOR

    Peak Level Indicator

    Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking.

    Relay Output in Use Indicator

    Yellow LED on front panel indicates when Relay Output is in use.

    AUDIO OUTPUT

    Frequency Response

    45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble

    Distortion at 1kHz

    <0.5% THD @ full power

    Signal to Noise Ratio

    >82dB @ 1kHz

    Crosstalk Attenuation

    >63dB @ 1kHz

    Tone Controls

    Bass: +12dB Boost or -12dB Cut @ 100Hz

    Treble: +12dB Boost or -12dB Cut @ 10kHz

    Approvals and Declarations

    CE, FCC, Industry Canada, RoHS, C-Tick, CB

    Warranty

    5 years, parts and labor (90 days on accessories)

    The Williams Sound IC-2 is an audio control center for simultaneous interpretation of one or more languages. As a stand-alone unit, it allows one or two interpreters to monitor floor or relay sources, activate microphone inputs, and route the interpretation signal to one of two language groups. Ideal for presentation-style conferences of up to 14 languages, where a floor and a single relay language are used. Can be used with Williams Sound FM, infrared and Digi-Wave™ transmitters for portable or fixed installations. Designed to meet international standards for portable interpretation consoles.

    Features:

    • New CAT 5 audio offers simplified cabling and easy cascading to support additional interpreters.
    • Built-in distribution amplifier and mini mixer reduce the need for external equipment and greatly simplify setup.
    • Floor language feed-through
    • Interlocking microphone and relay output functions
    • Enhanced flexibility, providing each interpreter with multiple microphone and headset options
    • Five-year warranty

    Dimensions/Weight/Color

    10” (25.4cm) x 6.35” (6.2cm) x 2.45” (6.2cm) / 3.4 lbs (1.5 kg) / Black and Silver

    Power

    External Power Supply, 18VDC Desktop Style Switching Inverter, 110-240VAC, 50-60Hz, 1A

    INPUTS / OUTPUTS

    Floor In

    3-pin XLR female jack, balanced (or unbalanced) input with 24k differential input impedance, max balanced input is +19dBu

    IC-2 Bus In / Out

    CAT5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another IC-2

    XLR Microphone Inputs

    3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58 dB, 2.4k balanced input impedance, maximum balanced input is +19 dBu

    3.5mm Microphone Inputs

    Stereo 3.5 mm TRS phone jack, pink, and stereo 3.5mm TRRS phone jack, black, unbalanced (r,s) for electret condenser mics, variable gain of 40dB. Bias is 3.7VDC through 2.7k

    3.5mm TRRS Headphone Output

    3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW max power into 32 stereo headset.

    3.5mm Headphone Output

    3.5mm TRS phone jack, mono or stereo headphone, 8 minimum. 190mW max power into 32 stereo headset.

    Norm Out, Relay Out

    3-pin XLR male jack, balanced output. Max output is +19dBu into 600 balanced load impedance.

    CONTROLS

    Volume

    Left and Right rotary, controls headphone volume

    Bass and Treble Tone

    Left and right rotary with center detent, controls headphone bass and treble tone levels.

    Mute

    Push button, backlit red, mutes left and right mics while pressed.

    Mic On

    Push button, backlit bright red, activates microphone. Right and left Mic On buttons are interlocked; mic can only be turned on if the other is off.

    Floor Input, Relay Input

    Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other.

    Relay Output

    Push button, backlit yellow, selects microphone output language group: light on = Relay Out, light off = Norm Out.

    Gain Adjust

    Rotary gain pots control level of microphone and Floor audio.

    Phantom Power

    Slide switch enables 12VDC Simplex power to XLR microphone.

    Norm Feedthrough

    Slide switch enables Floor feedthrough to Norm Out XLR jack.

    Relay Feedthrough

    Slide switch enables Floor feedthrough to Relay Out XLR jack.

    Ground Lift

    Slide switch disconnects Chassis and Audio Grounds internal to the console.

    INDICATOR

    Peak Level Indicator

    Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking.

    Relay Output in Use Indicator

    Yellow LED on front panel indicates when Relay Output is in use.

    AUDIO OUTPUT

    Frequency Response

    45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble

    Distortion at 1kHz

    <0.5% THD @ full power

    Signal to Noise Ratio

    >82dB @ 1kHz

    Crosstalk Attenuation

    >63dB @ 1kHz

    Tone Controls

    Bass: +12dB Boost or -12dB Cut @ 100Hz

    Treble: +12dB Boost or -12dB Cut @ 10kHz

    Approvals and Declarations

    CE, FCC, Industry Canada, RoHS, C-Tick, CB

    Warranty

    5 years, parts and labor (90 days on accessories)
