Williams AV IR SY1 Small-Area Infrared System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Williams AV IR SY1 Small-Area Infrared System
Sale price$823.00
Regular price$912.00
Description
Small-area infrared system ideal for use as a small-area assistive listening system or for private TV listening in small conference rooms, hospital rooms, assisted living facilities, medical treatment centers and/or jury deliberation rooms. High-efficiency LEDs display power status and audio input. Power with A/C power supply or standard USB port on a TV. Plug-and-play install with 3.5MM audio input. One- or two-channel operation (2.3 and 2.8 Mhz). Provides coverage area of up to 1300 square feet.

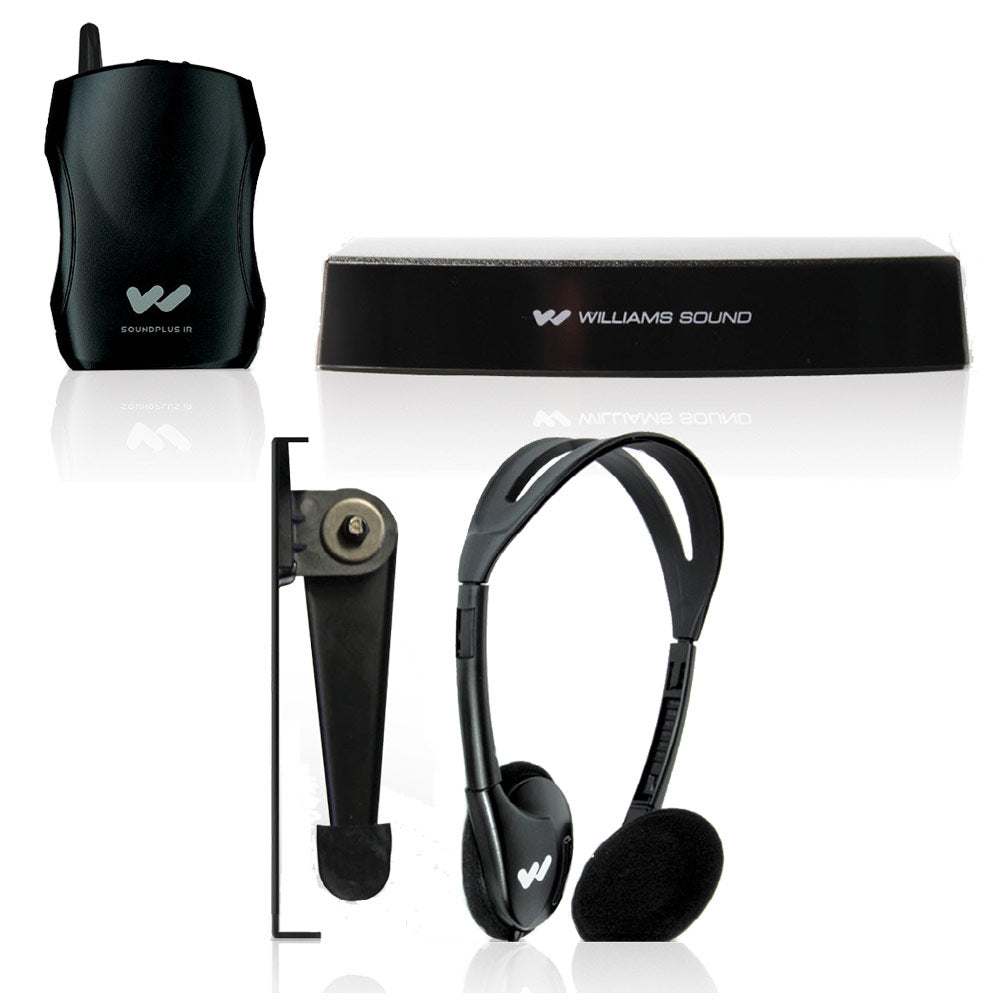

System Includes:

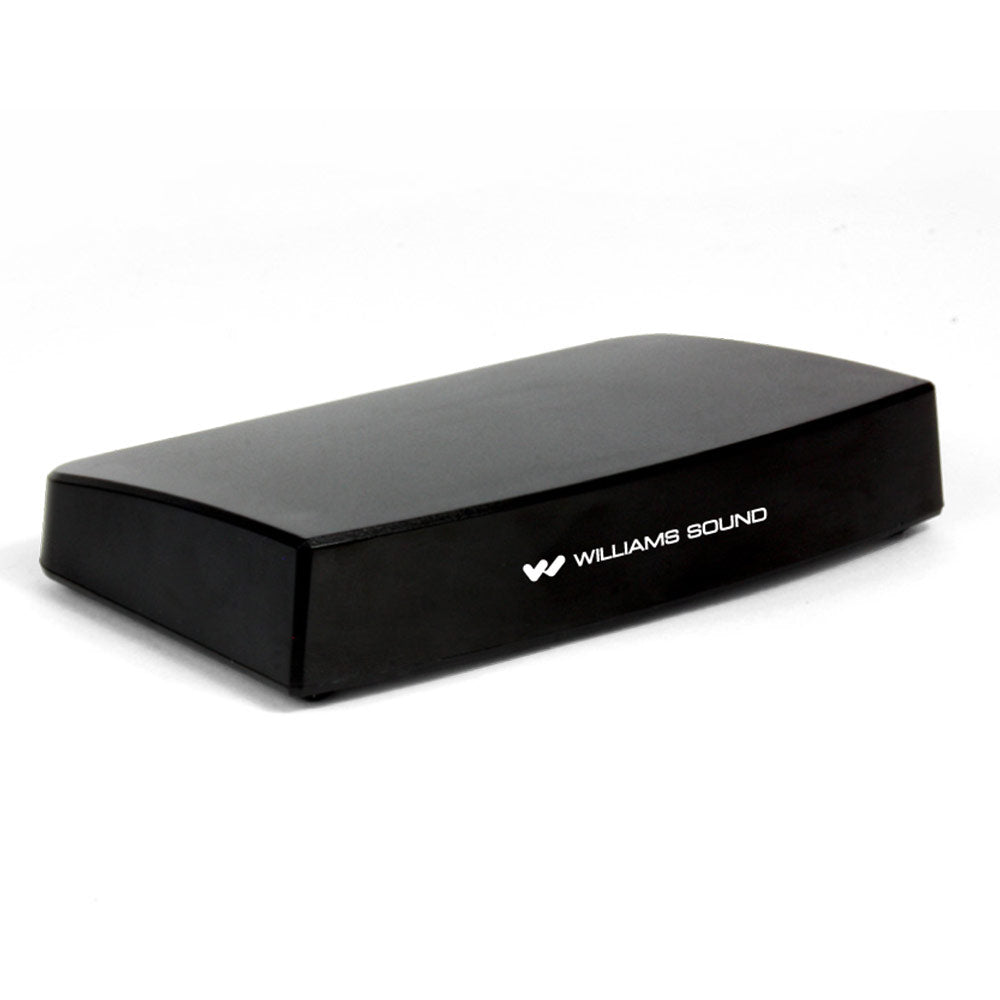

- (1) IR T1 small-area infrared transmitter
- (1) TFP 055 power supply

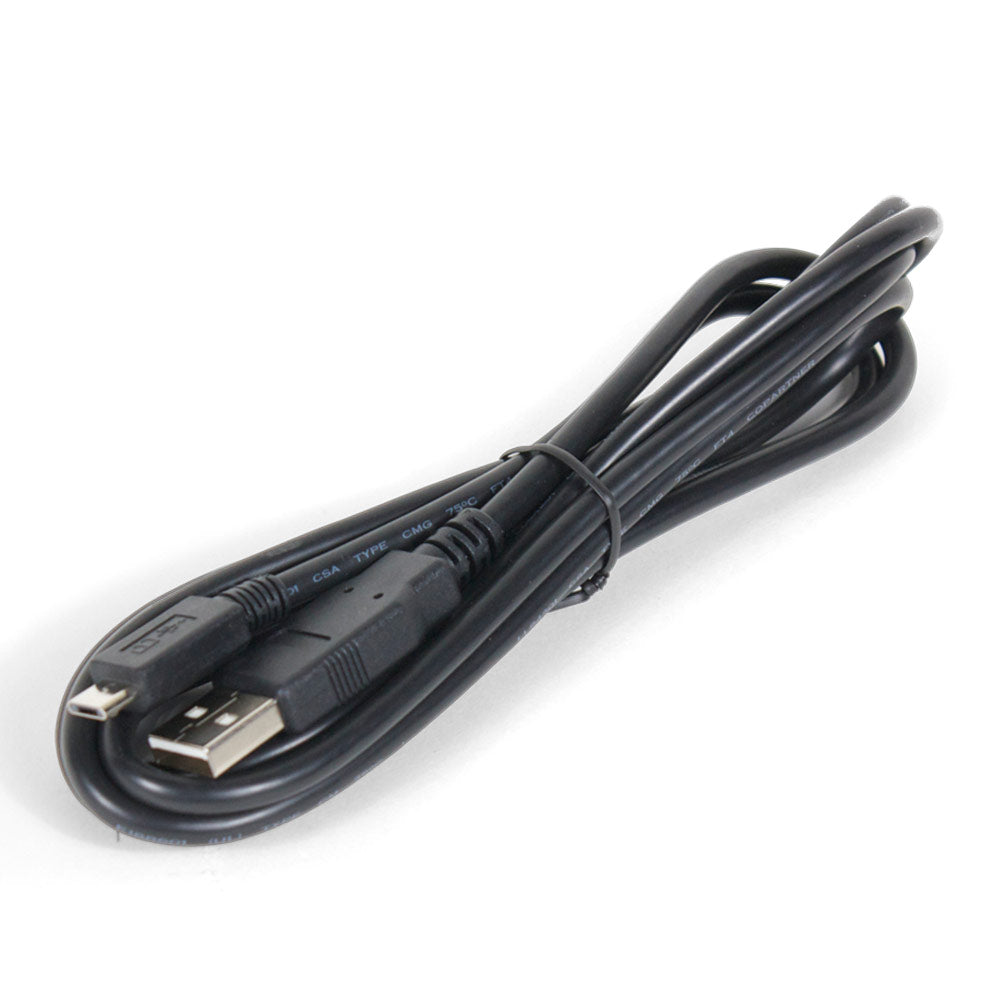

- (1) WCA 106 USB micro cable, 6 ft. (USB 2.0 to USB micro)
- (1) WCA 124 adapter cable (3.5mm F to RCA)

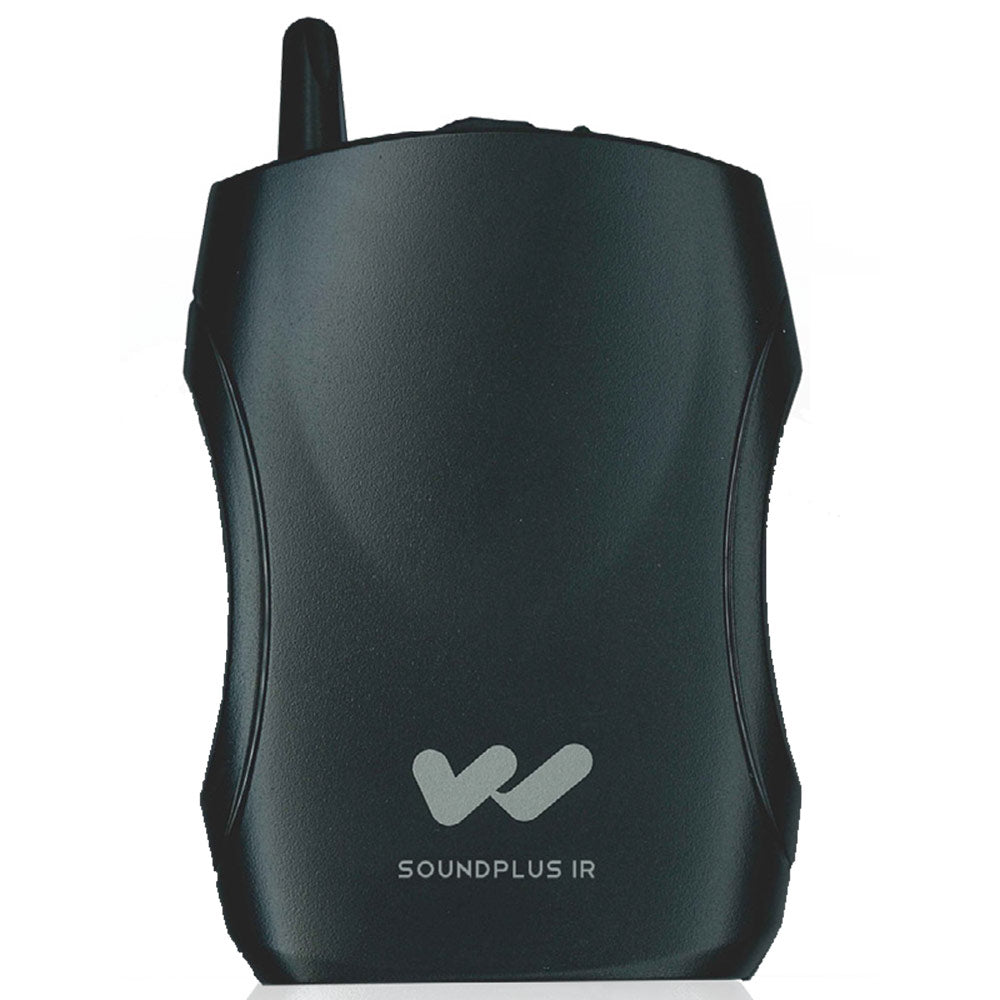

- (1) WIR RX22-4N infrared receiver

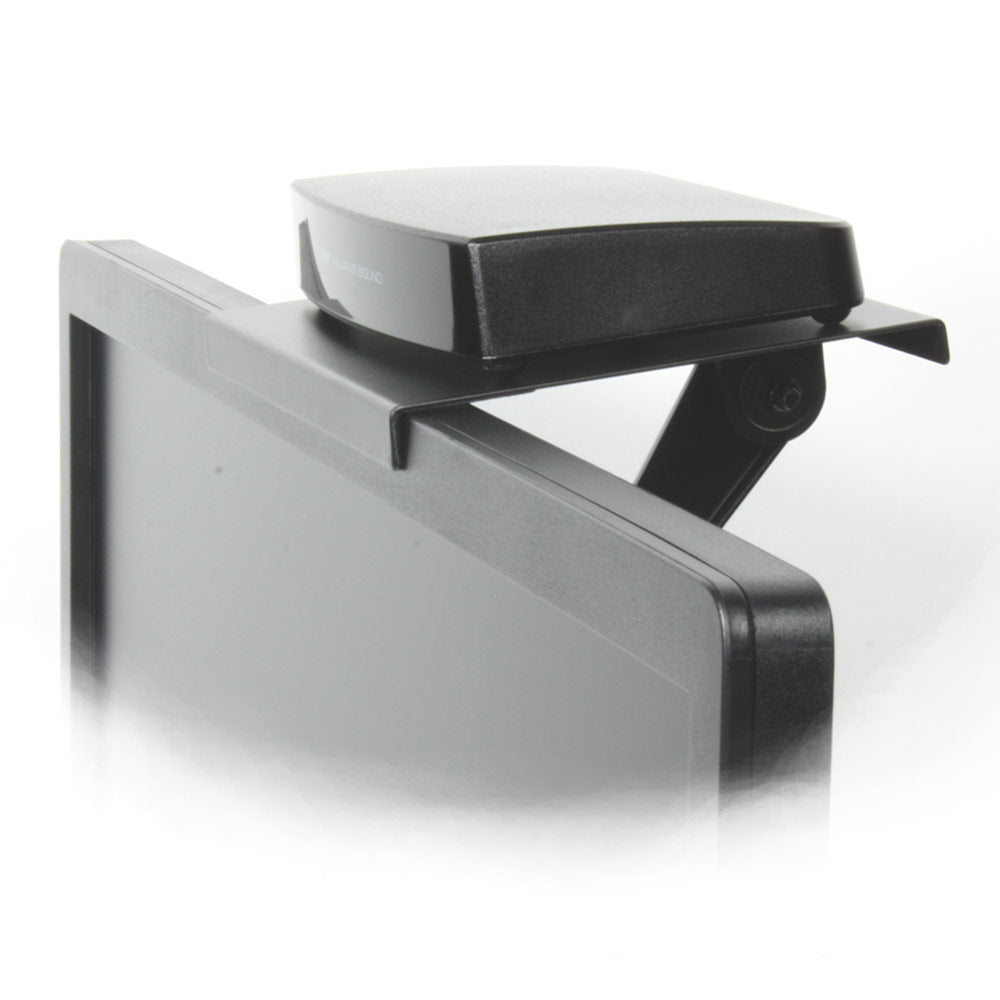

- (1) STD 008 flat-panel TV mounting bracket

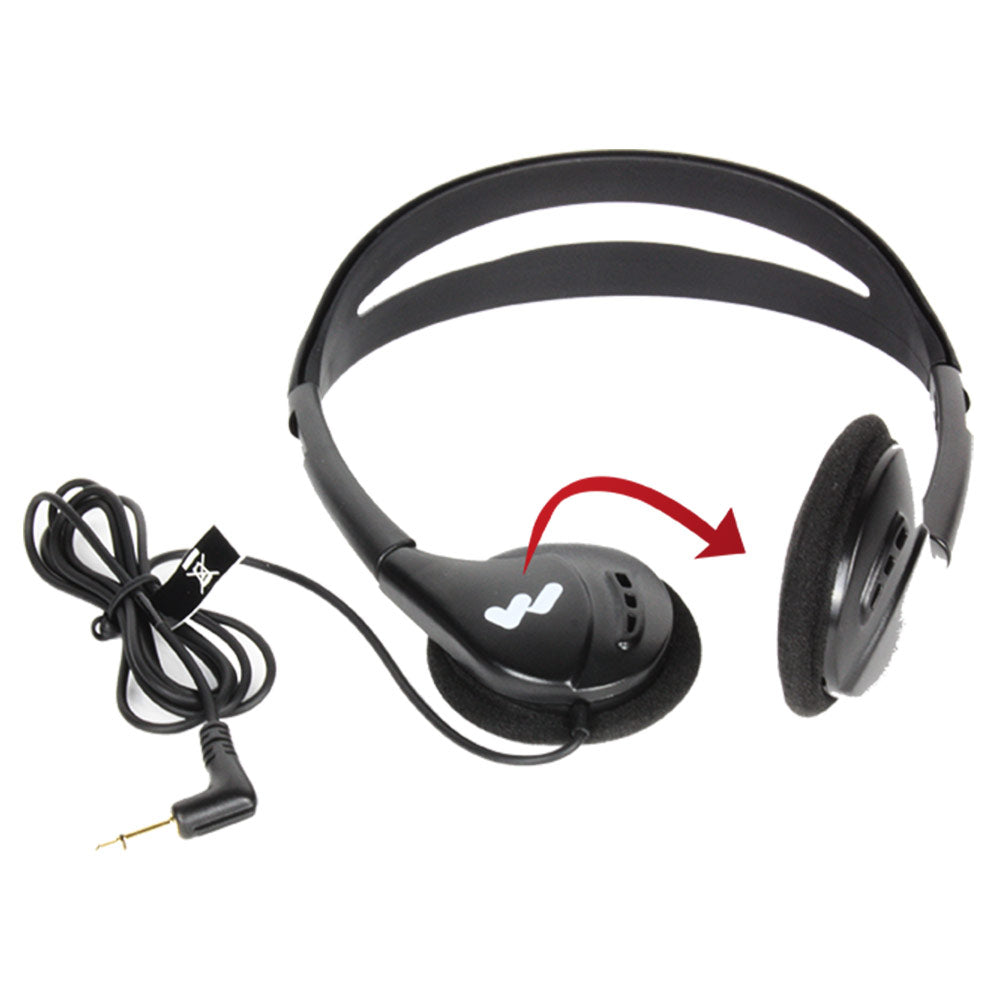

- (1) HED 021 folding headphones

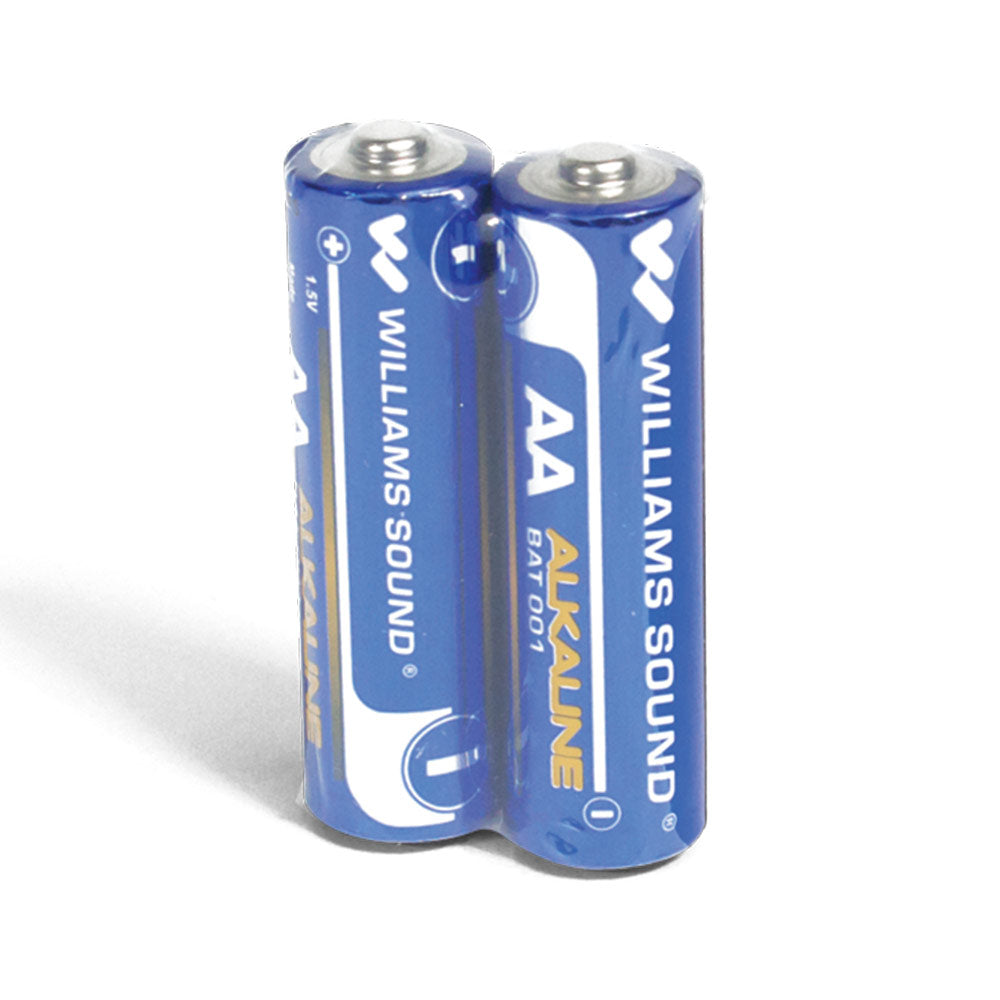

- (1) BAT 001-2 AA alkaline batteries
Features:
- High-efficiency LEDs display power status and audio input
- Power with A/C power supply or standard USB port on a TV
- Plug-and-play install with 3.5MM audio input
- One- or two-channel operation (2.3 and 2.8 MHz)
- Provides coverage area of up to 1300 square feet
| BAT 001-2 | |
| Alkaline, 1.2 Volt | |
| HED 021 | |
| Style | Mono, folding headphone |
| Plug | 3.5 mm mono |
| Cord | 39" |
| Driver Size | 30 mm |
| Nominal Impedance | 32? |
| Freq. Response | 20 - 20kHz |
| Weight | 52g |
| Max Power Input | 100mW |
| Sensitivity | N/A100dB @ 1kHz |
| Replacement Pads | HED 023 (one pair) |
| IR T1 | |
| Dimensions | Width: 5.65"(14.4 cm), Depth: 3.65"(9.3 cm), Height: 1.15"(2.9 cm) |
| Weight | 8.3 oz (235 g) |
| Color | Black |
| Power Supply | TFP 055 - 100-240VAC 50/60Hz Input; 5VDC, 1A USB Output, Universal Supply with international adapters Other USB Power Supply (must be at least 5VDC, 0.2A) |
| Power Cable | USB to micro USB cable |
| DC Power Input | Micro USB connector, 5VDC, 0.2A |
| Power Indicator | Green LED |
| Sleep/Power Save Mode | Shuts off carrier when no audio present for 12 minutes |
| Modulation | FM Wideband, ±50 kHz deviation max, 50 ?S pre-emphasis |
| Carrier Frequencies | 2.3MHz (Ch 1) and 2.8MHz (Ch 2) Default at power on = carriers off. Carriers are automatically enabled upon presence of audio. |
| Coverage Area | 1,000 sq. ft (96 sq. m.) |
| Audio Inputs | N/A3.5mm stereo line level input jack, Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve |
| Audio Indicators | One yellow LED per channel. Lights up and stay on steady with minimum audio level. |
| Signal-to-Noise Ratio | 70 dB at onset of limiting |
| Frequency Response | 100 - 12,000 Hz |
| Operating Requirements | 32¡-122¡F (0-50¡C) |
| Mounting Kit | Optional: STD 008 TV Top Shelf Mounting Kit Optional: BKT 024 Omnidirectional mount for wall or ceiling mounting |
| Compatible Receivers | WIR RX22-4, WIR RX18 |
| Warranty | 2 years |
| Approvals/Regulatory Compliance | CE, RCM, FCC, Industry Canada, PSE, CUL, WEEE, RoHS, CB Scheme |

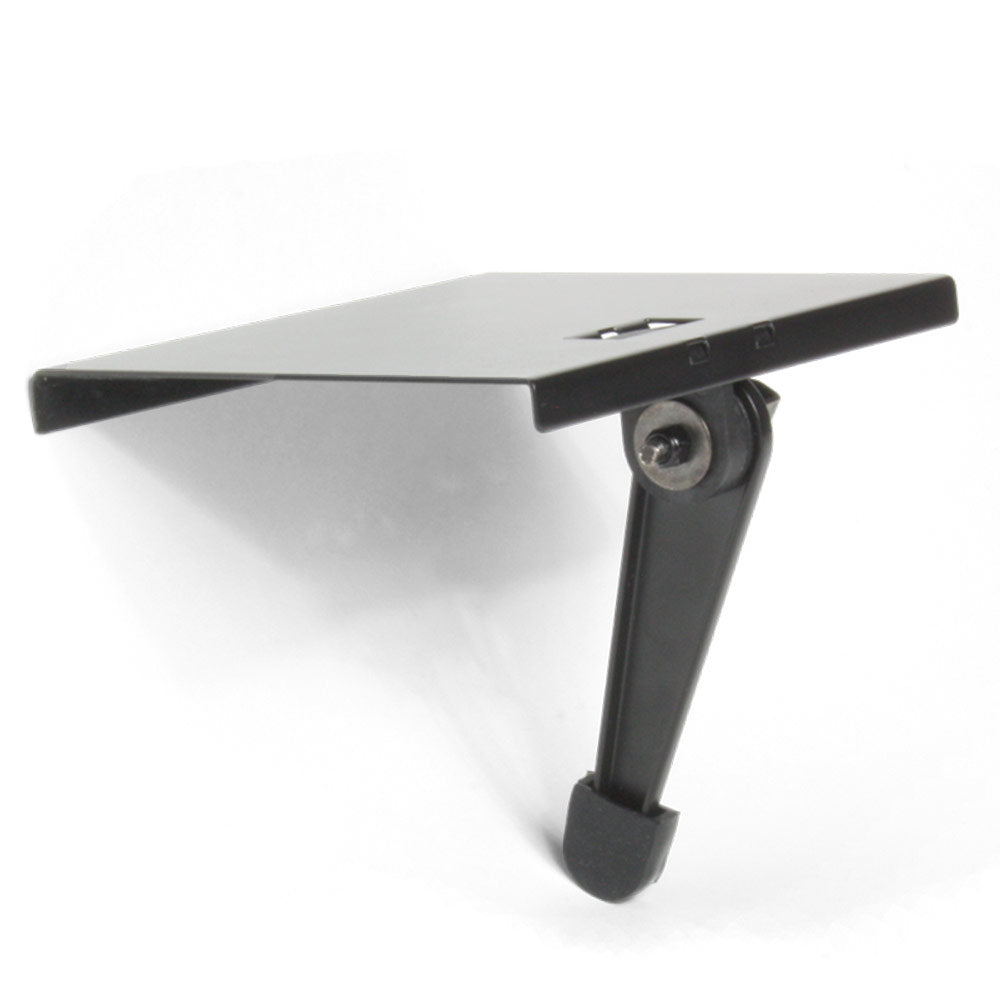

| STD 008 | |
| Weight | 0.6 lb (272 g) |
| Dimensions | 6" W x 4.75" D (15 cm W x 12 cm D) |
| Material | Painted Steel |
| Color | Flat Black |
| Shelf support | Front padded lip rests on TV. Adjustable arm with swivel lock supports rear of shelf. |
| WCA 106 | |
| 0.05 lbs. | |
| WIR RX22-4N | |
| Receiver Style | Body-Pack, dual-lens detector, lanyard |
| Size | 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm) |
| Weight | 4.5 oz (127 g) with batteries |
| Color and Material | Black |
| Lanyard | 3 ft (0.91 m), allows receiver to be worn around the neck |
| Operating Temperature | -10¡ C to +50¡ C |
| Battery Type | 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2) |
| Battery Life | Alkaline: 60 hours, NiMH: 30 hours/charge |
| Battery Drain | 25 mA, nominal |
| Charging Contacts | For use only with CHG 3512 |
| Carrier Frequency | Channel 1: 2.3 MHz, Channel 2: 2.8 MHz Channel 3: 3.3 MHz, Channel 4: 3.8 MHz |
| De-Emphasis | 50 uS |
| FM Deviation | ±50 kHz |
| Signal-to-Noise Ratio | 60 dB min. |
| Squelch | Receiver squelches (mutes) at 28 dB S/N ratio |
| Frequency Response | 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response |
| Total Harmonic Distortion | Less than 1%, electrical response |
| Controls | ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch |
| Indicators | Red LED "ON" indicator, flashes to indicate Low battery |
| Audio Output Jacks | 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug |
| Audio Output Power | 15 mW max at 32 ? |
| Acoustic Output | 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013 |
| Sensitivity | Better than 1 nW/cm2 for 40 dB signal-to-noise ratio |
| Approvals | CE, FCC, RoHS, WEEE |
| Warranty | 5 years on receiver, 90 days on accessories |
| Compatible Headphones/Earphones | Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001 |
