Williams AV IR SY2 Small-Area Infrared System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Williams AV IR SY2 Small-Area Infrared System
Sale price$1,285.50
Regular price$1,424.50
Description
Small-area infrared system ideal for use as a small-area assistive listening system or for private TV listening in small conference rooms, hospital rooms, assisted living facilities, medical treatment centers and/or jury deliberation rooms. High-efficiency LEDs display power status and audio input. Power with A/C power supply or standard USB port on a TV. Plug-and-play install with 3.5MM audio input. One- or two-channel operation (2.3 and 2.8 Mhz). Provides coverage area of up to 1300 square feet.

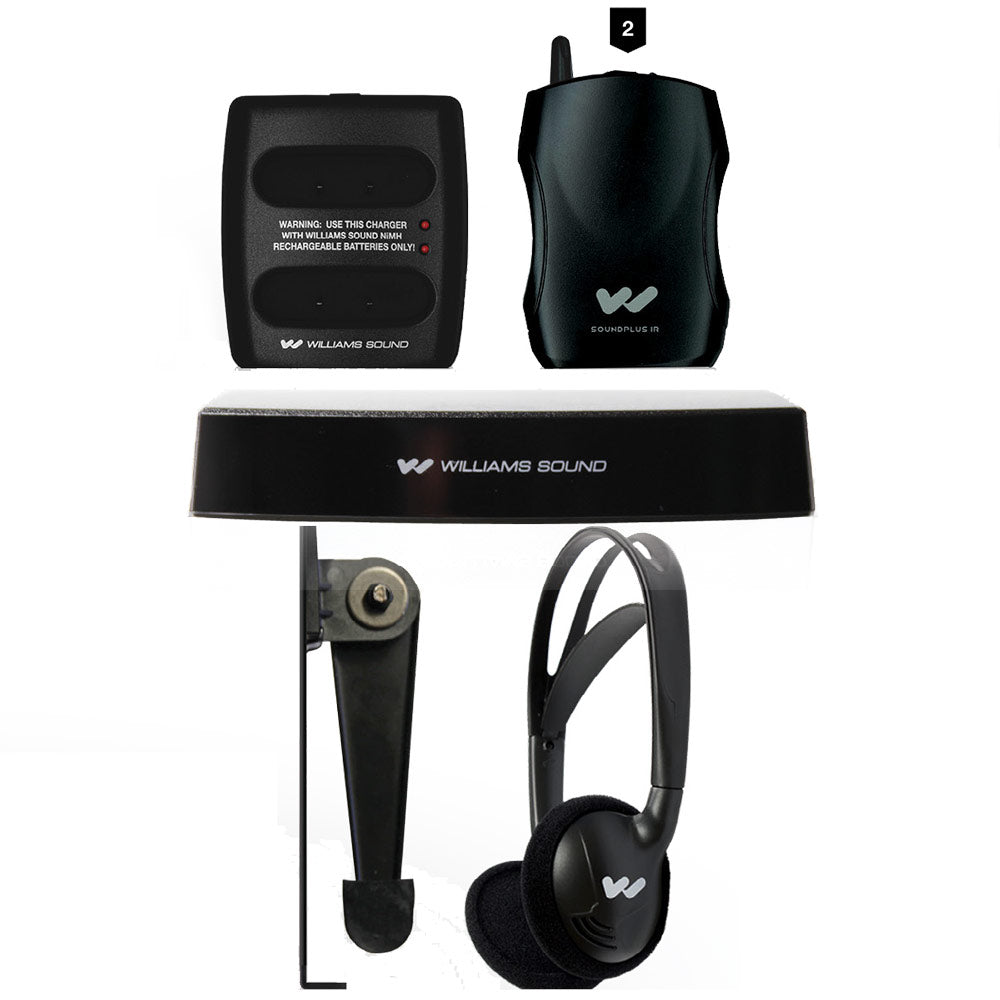

System Includes:

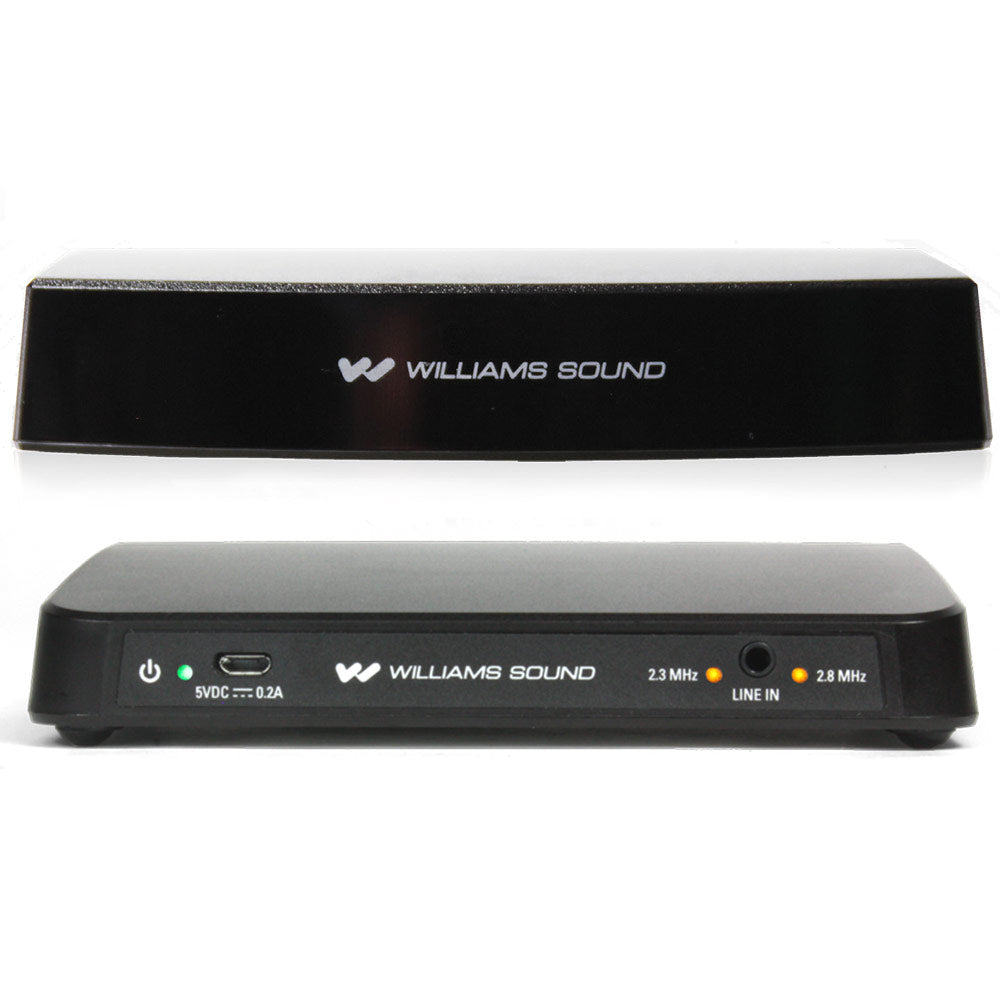

- (1) IR T1 small-area infrared transmitter
- (1) TFP 055 power supply
- (1) WCA 106 USB micro cable, 6 ft. (USB 2.0 to USB micro)
- (1) WCA 124 adapter cable (3.5mm F to RCA)
- (2) WIR RX22-4N infrared receivers
- (1) STD 008 flat-panel TV mounting bracket
- (2) HED 027 heavy-duty, folding, mono headphones

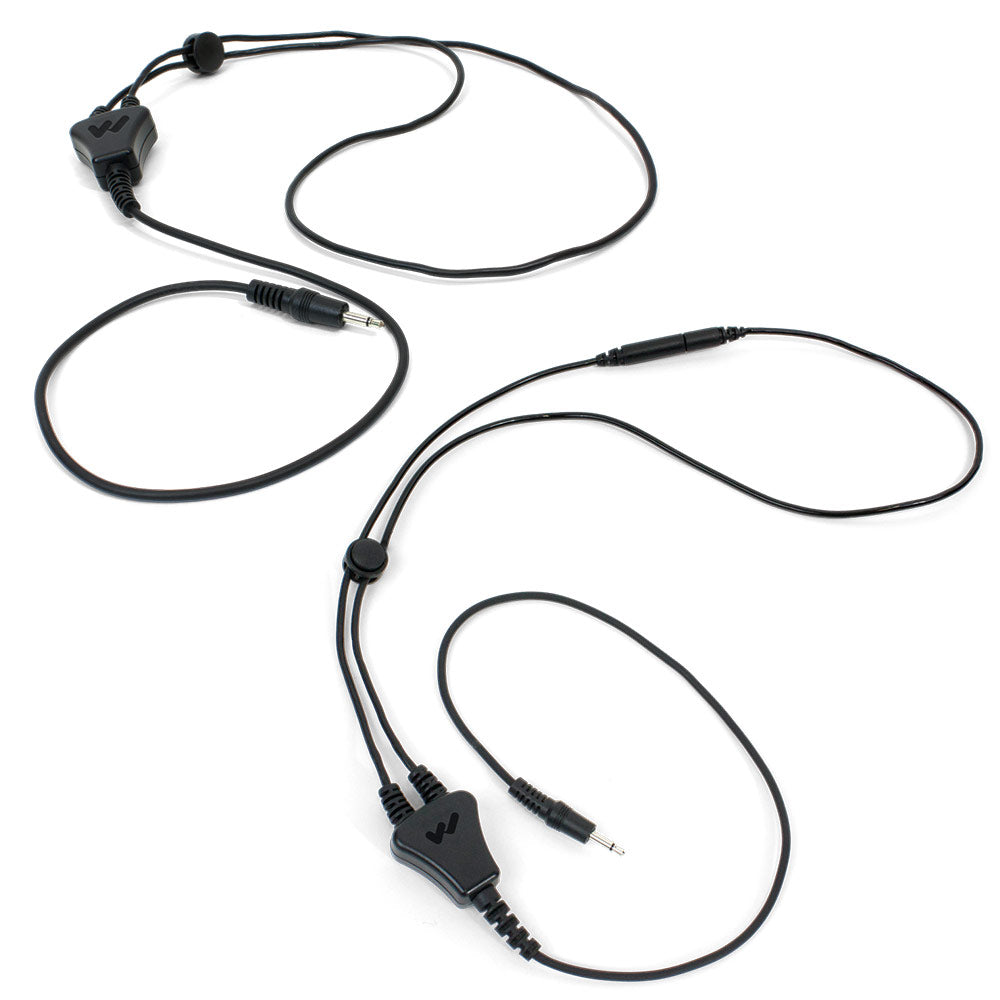

- (1) NKL 001 Neckloop
- (1) CHG 3502 two-bay body-pack charger
- (2) BAT 026-2 AA NiMH batteries
Features:
- High-efficiency LEDs display power status and audio input
- Power with A/C power supply or standard USB port on a TV
- Plug-and-play install with 3.5MM audio input
- One- or two-channel operation (2.3 and 2.8 MHz)
- Provides coverage area of up to 1300 square feet
| BAT 026-2 | |
| NiMH, 1.2 Volt, 1500 mAh | |

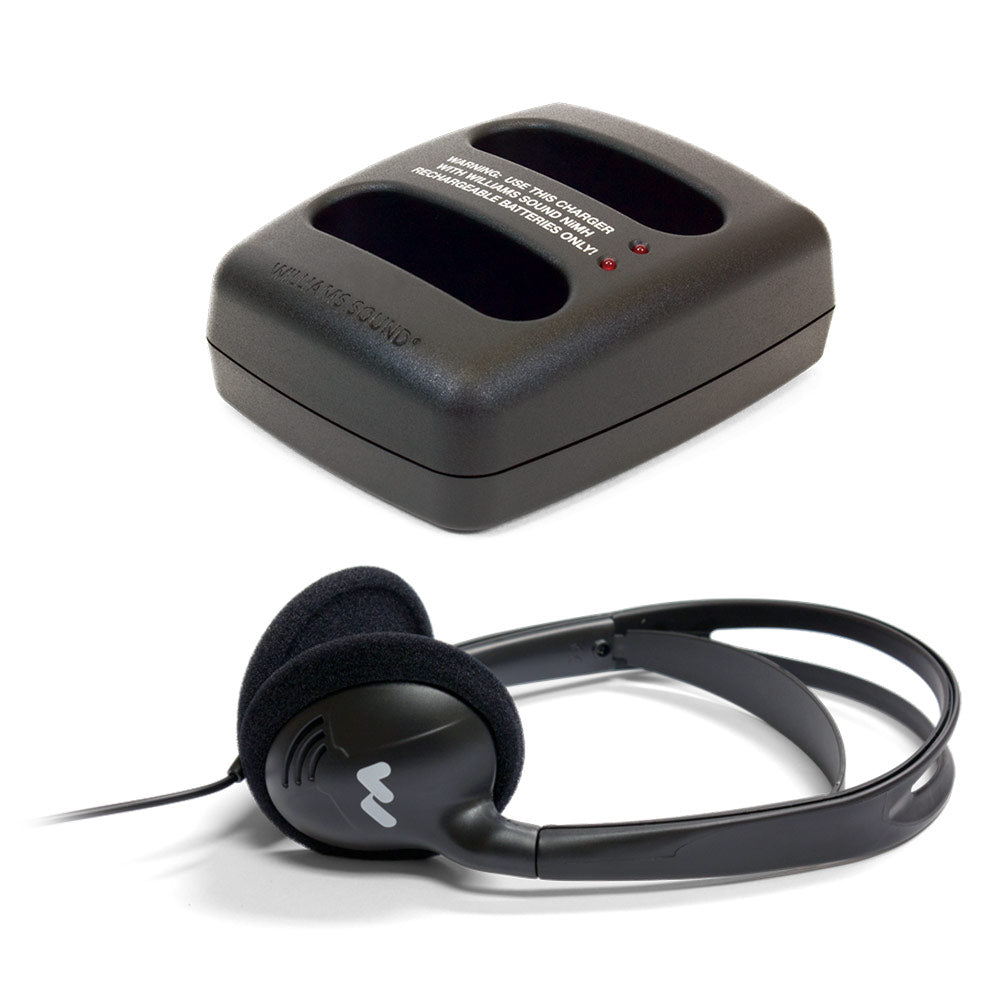

| CHG 3502 | |
| Dimensions | 4-7/8"L x 3-7/8"W x 2"H (12.4 cm L x 9.8 cm W x 5.1 cm) |
| Shipping Weight | 1.1 lbs (0.5 kg) |
| Enclosure | Black, ABS plastic |
| Charger Power | Input: 6 VDC, 300mA, Center Positive. Output: 100mA per bay. |
| Power Supply | Williams Sound TFP 041 (US) or TFP 030 (International). Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A Output: 6 VDC, 1.5 A. |
| Charging Time | 16 hours nominal |
| Unit Capacity | 2 Units |
| Indicators | 2 Red LEDs - one for each bay. LEDs are lit when charging. |
| Warranty | 90 days |
| Approvals | CE, FCC, RoHS |
| HED 027 | |
| Style | Heavy-duty, folding, mono headphones |
| Plug | 3.5 mm mono |
| Cord | 39" |
| Driver Size | 40 mm |
| Nominal Impedance | 16? |
| Freq. Response | 20 - 20kHz |
| Weight | 102g |
| Max Power Input | 100mW |
| Sensitivity | N/A96 dB @ 1kHz |
| Replacement Pads | EAR 035 (one pair) |

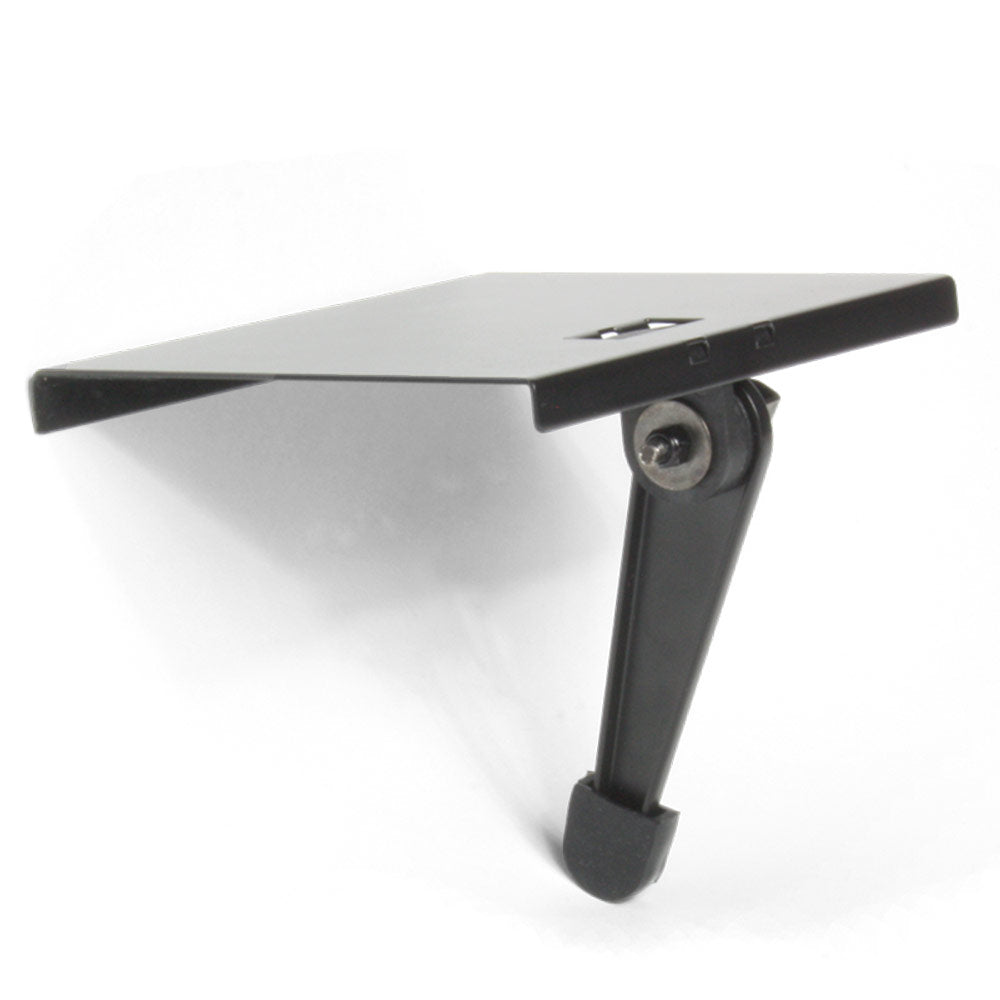

| STD 008 | |
| Weight | 0.6 lb (272 g) |
| Dimensions | 6" W x 4.75" D (15 cm W x 12 cm D) |
| Material | Painted Steel |
| Color | Flat Black |

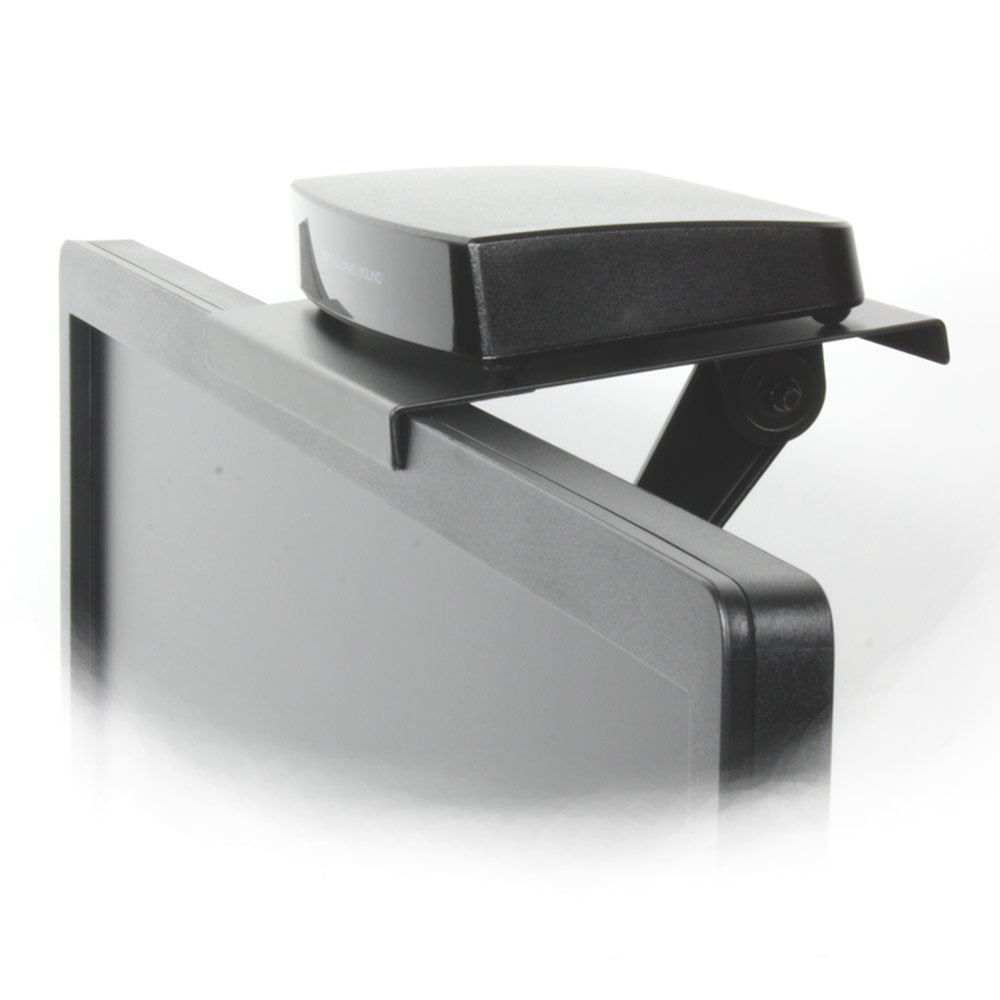

| Shelf support | Front padded lip rests on TV. Adjustable arm with swivel lock supports rear of shelf. |

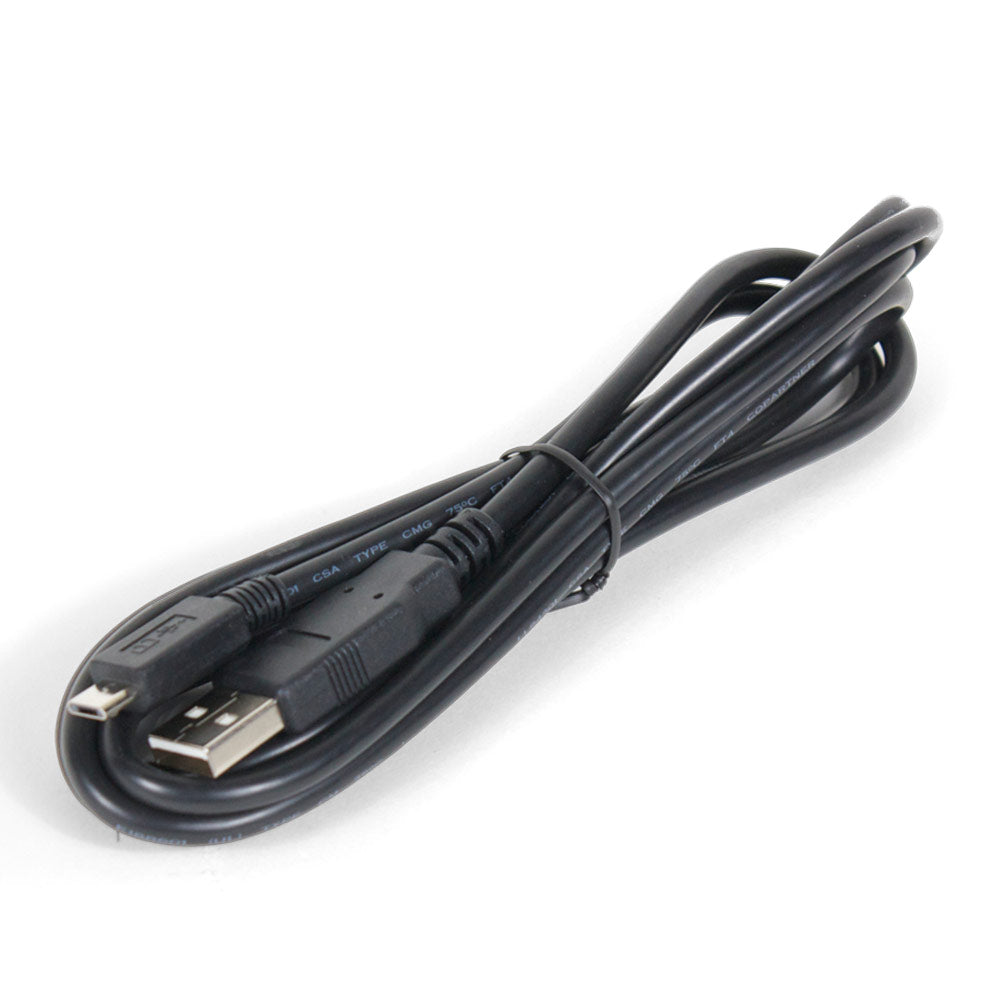

| WCA 106 | |
| 0.05 lbs. | |

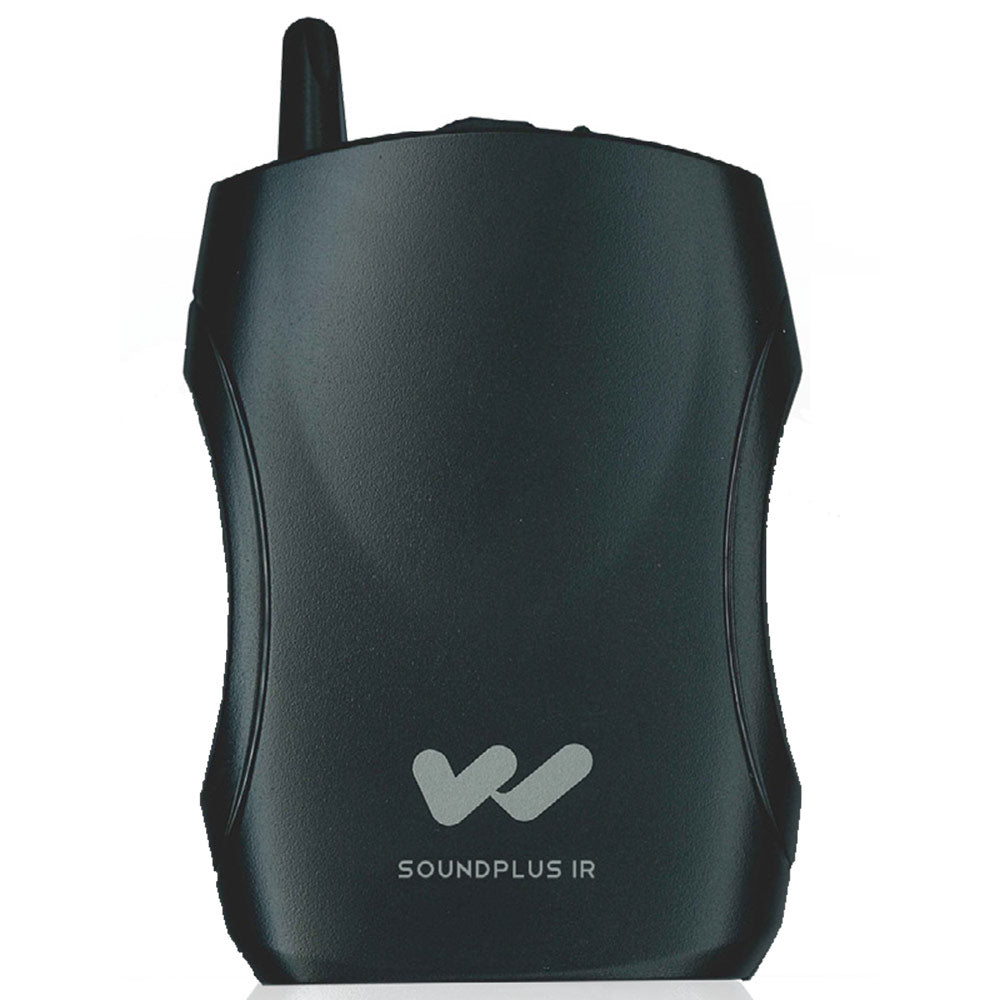

| WIR RX22-4N | |
| Receiver Style | Body-Pack, dual-lens detector, lanyard |
| Size | 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm) |
| Weight | 4.5 oz (127 g) with batteries |
| Color and Material | Black |
| Lanyard | 3 ft (0.91 m), allows receiver to be worn around the neck |
| Operating Temperature | -10¡ C to +50¡ C |

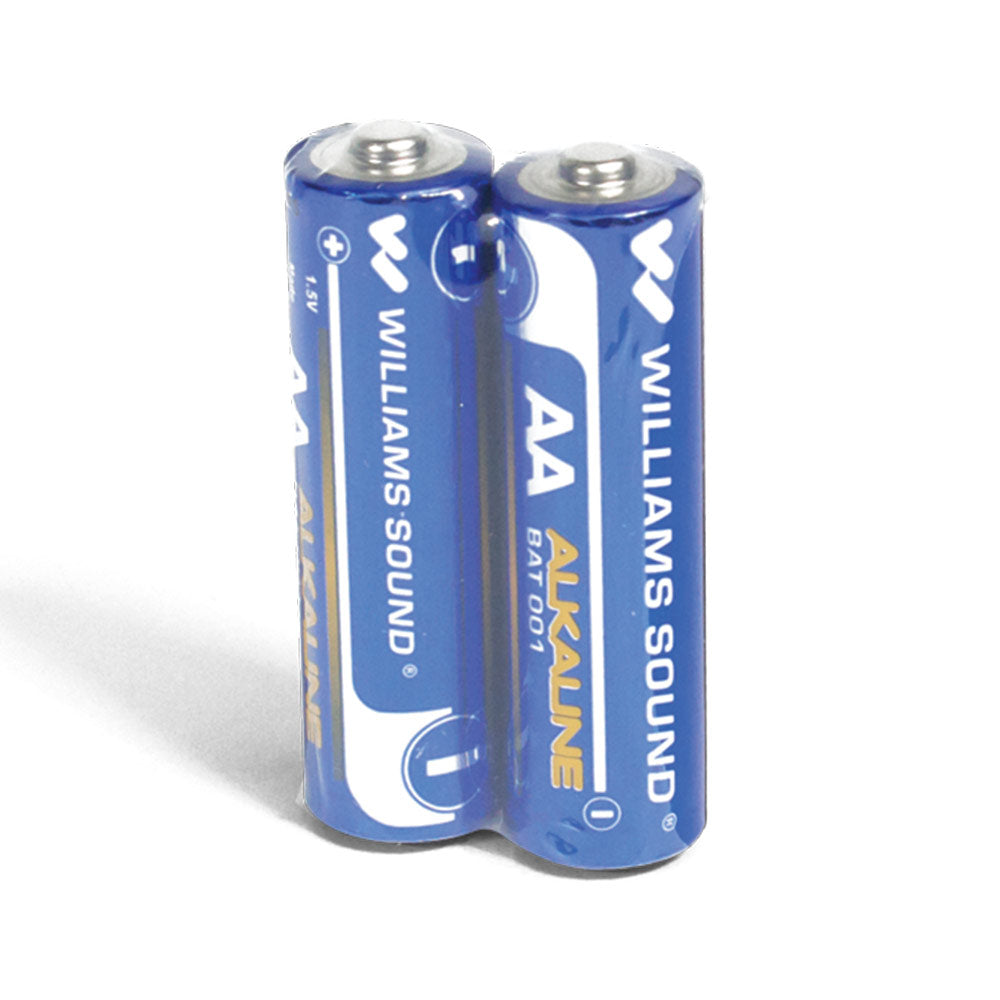

| Battery Type | 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2) |
| Battery Life | Alkaline: 60 hours, NiMH: 30 hours/charge |
| Battery Drain | 25 mA, nominal |
| Charging Contacts | For use only with CHG 3512 |
| Carrier Frequency | Channel 1: 2.3 MHz, Channel 2: 2.8 MHz Channel 3: 3.3 MHz, Channel 4: 3.8 MHz |
| De-Emphasis | 50 uS |
| FM Deviation | ±50 kHz |
| Signal-to-Noise Ratio | 60 dB min. |
| Squelch | Receiver squelches (mutes) at 28 dB S/N ratio |
| Frequency Response | 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response |
| Total Harmonic Distortion | Less than 1%, electrical response |
| Controls | ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch |
| Indicators | Red LED "ON" indicator, flashes to indicate Low battery |
| Audio Output Jacks | 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug |
| Audio Output Power | 15 mW max at 32 ? |
| Acoustic Output | 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013 |
| Sensitivity | Better than 1 nW/cm2 for 40 dB signal-to-noise ratio |
| Approvals | CE, FCC, RoHS, WEEE |
| Warranty | 5 years on receiver, 90 days on accessories |
| Compatible Headphones/Earphones | Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001 |
