Williams AV PFM PRO Personal FM System (72-76 Mhz)

  • Dale #:

    WISO-PFMPRO
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The PFM PRO and rechargeable PFM PRO RCH deliver superior audio directly to the ear, enhancing sound at home, work, or school - anywhere background noise or distance from the source makes listening difficult. Each system features 17 selectable channels on the 72-76 MHz band and has an operating r... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PFM PRO and rechargeable PFM PRO RCH deliver superior audio directly to the ear, enhancing sound at home, work, or school - anywhere background noise or distance from the source makes listening difficult. Each system features 17 selectable channels on the 72-76 MHz band and has an operating range of up to 150 feet. A versatile 3.5mm jack allows for a variety of earphones and headphone options, and is compatible with neckloops and telecoil-equipped hearing aids (not included with system).

DISCLAIMER: FCC rules limit use of this equipment to auditory assistance.

NOTE: The PFM PRO and PFM PRO RCH systems are approved by the FCC for operation in U.S. markets. These systems cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.

System Includes:

  • (1) FM Body-pack Transmitter (PPA T46)
  • (1) FM Body-pack Receiver (PPA R37)
  • (1) Single Mini Earphone (EAR 041)
  • (1) Folding Headphone (HED 021)

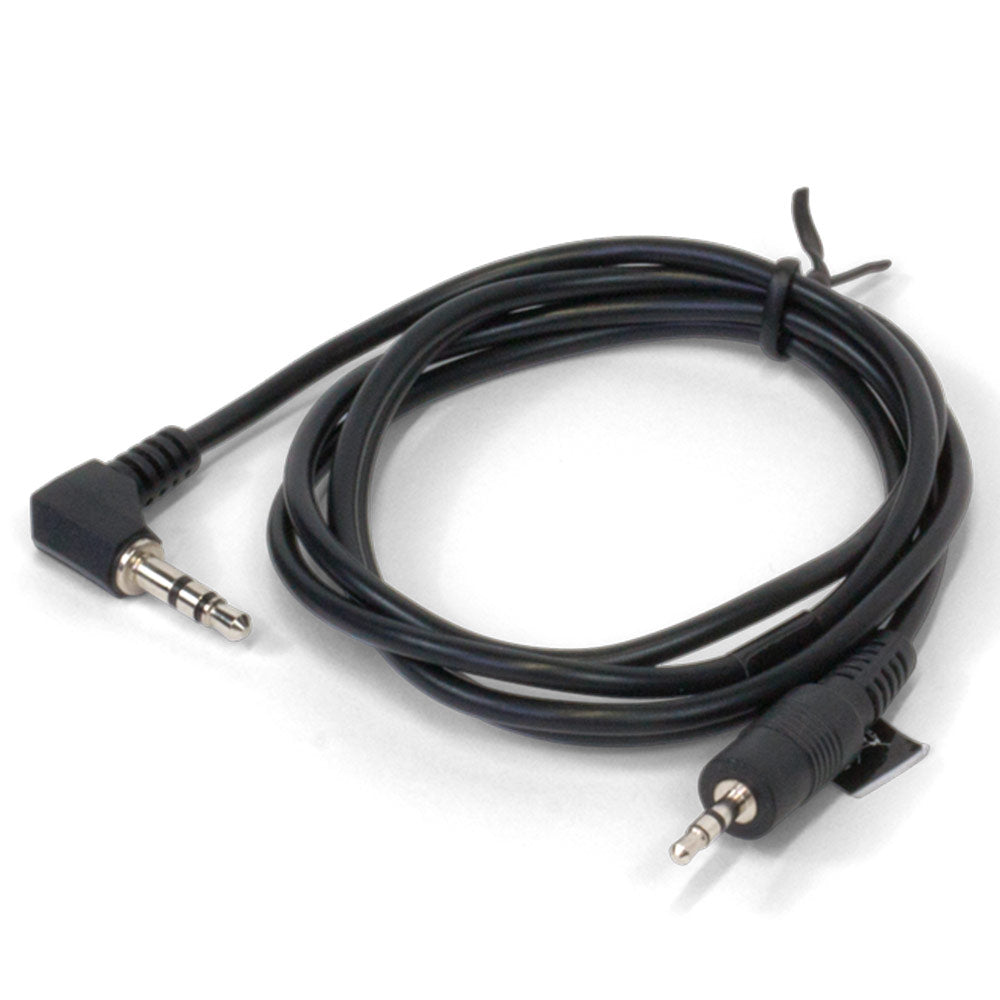

  • (1) Audio Input Cable (WCA 087)
  • (1) Lavalier Microphone (MIC 090)
  • (2) AA Alkaline Batteries (BAT 001-2)

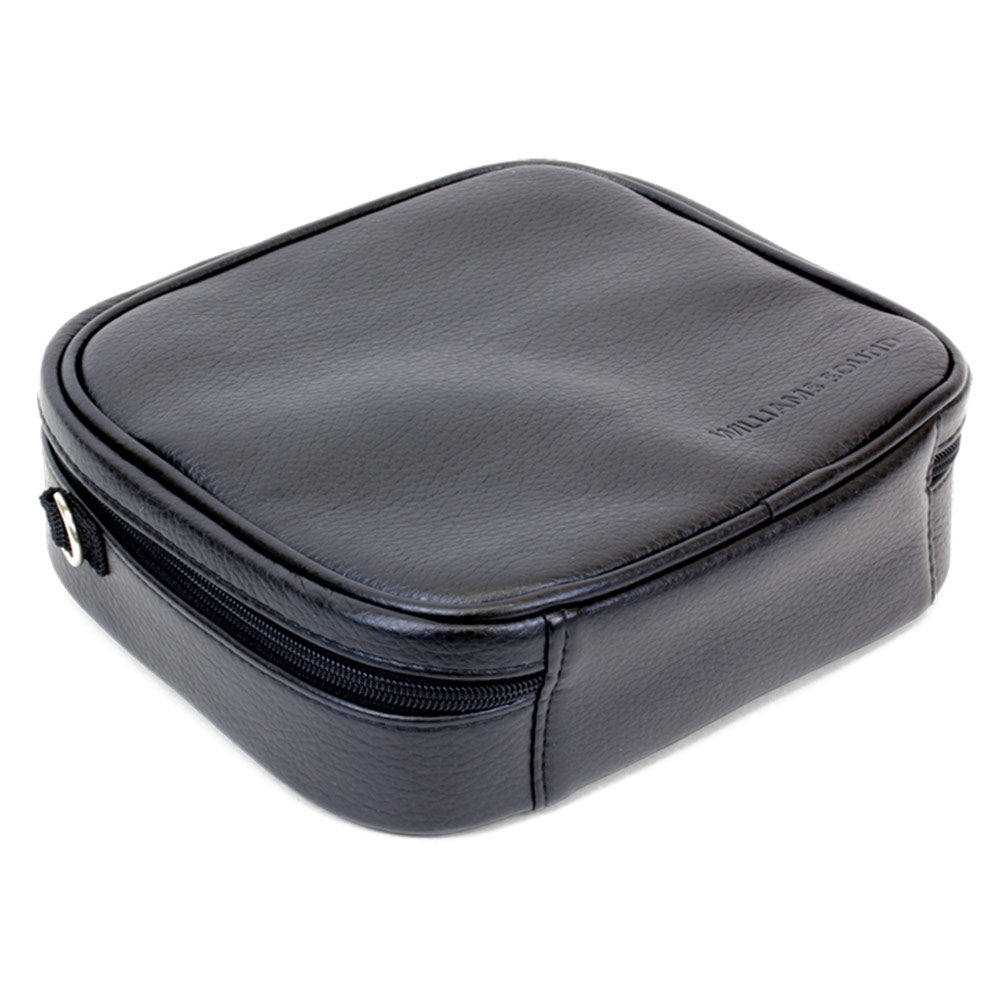

  • (1) System Carry Case (CCS 043)

Features:

  • 17 selectable channels
  • 72-76 MHz
  • Auxiliary input -- broadcast any audio source
  • FM signal, compression, mute control
  • Operates up to 150’ (46 m)
  • Improves listening for individuals or groups
  • Lifetime PLUS Limited Warranty

More +

Product Specs

N/AN/A

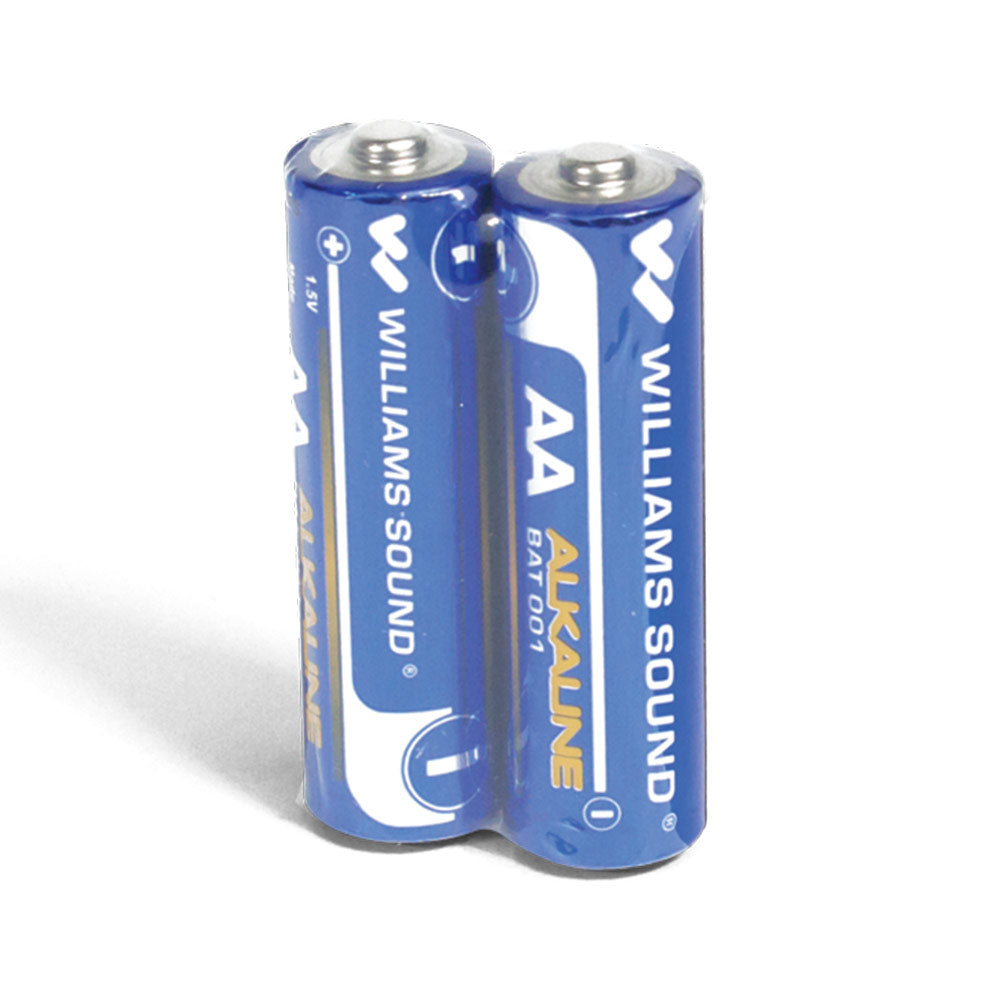

BAT 001-2
Alkaline, 1.2 Volt

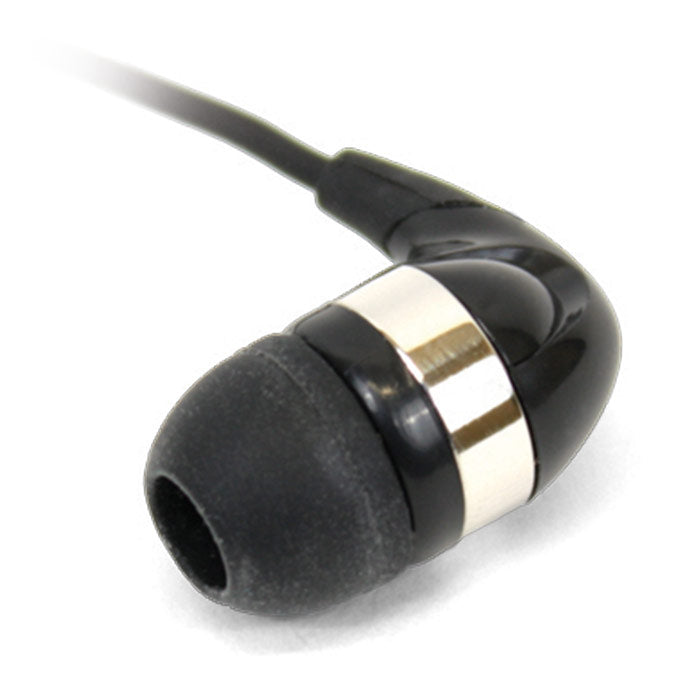

EAR 041
StyleSingle, in-ear, isolation earphone
Plug3.5 mm mono
Cord39"
Driver Size10 mm
Nominal Impedance16?
Freq. Response20 - 20kHz
Weight6g
Max Power Input5 mW
Sensitivity104 dB @ 1kHz
Replacement PadsEAR 043 (One pair)

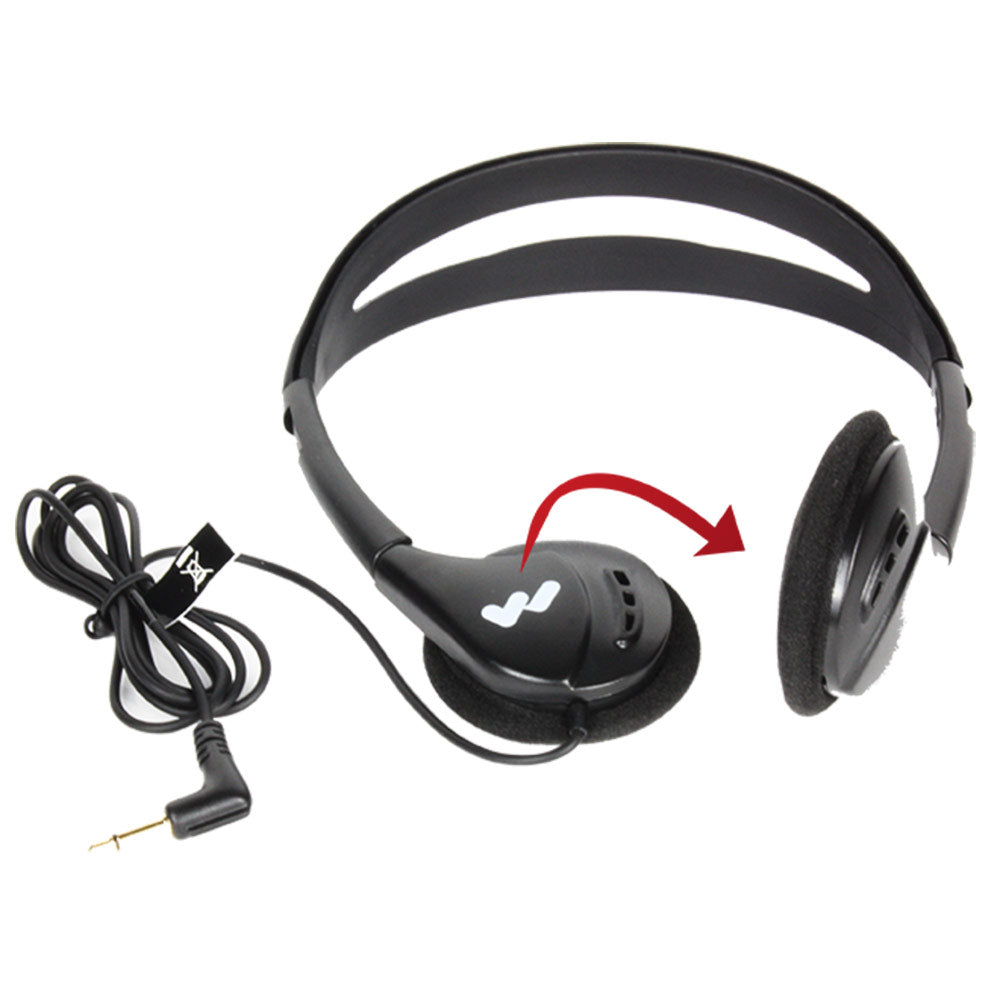

HED 021
StyleMono, folding headphone
Plug3.5 mm mono
Cord39"
Driver Size30 mm
Nominal Impedance32?
Freq. Response20 - 20kHz
Weight52g
Max Power Input100 mW
Sensitivity110 dB @ 1kHz
Replacement PadsHED 023 (one pair)

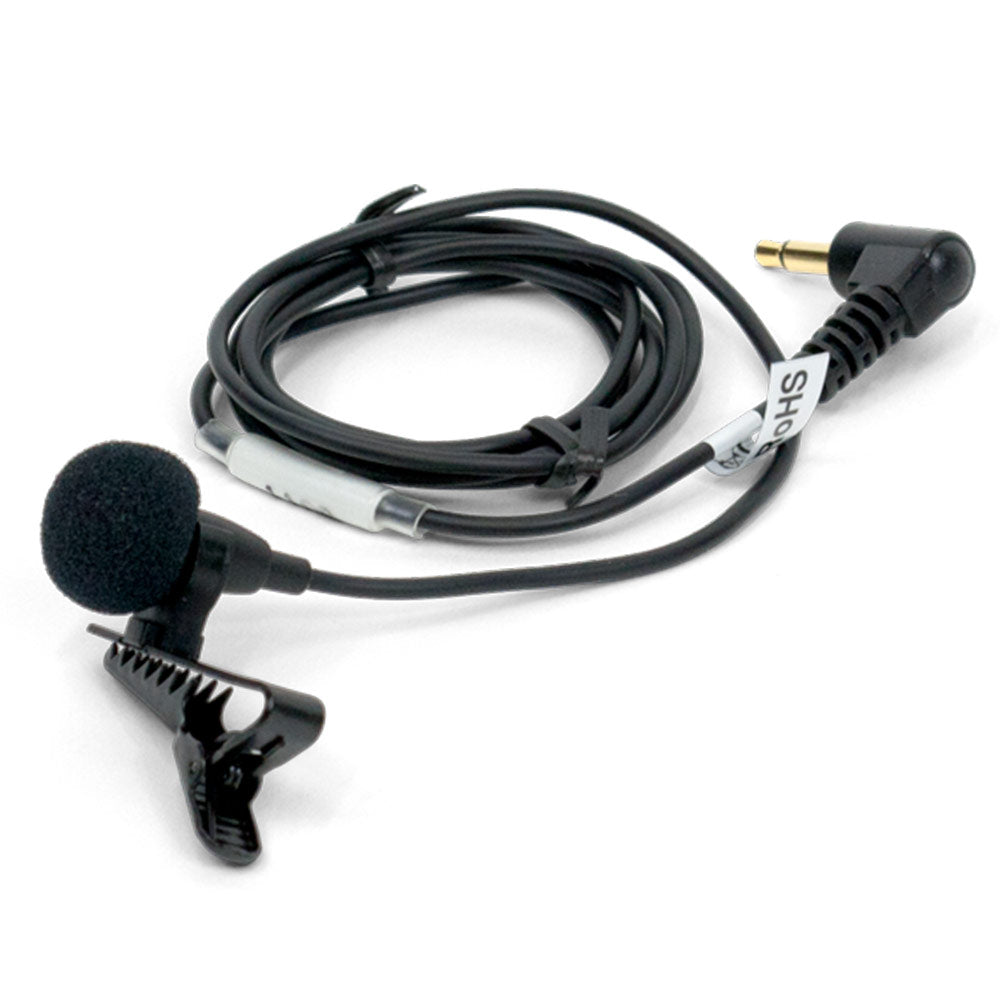

MIC 090
ElementElectret-Condenser
Pick-Up PatternOmni-directional
Phantom PoweredNo
Impedance1.5 k?
Frequency Response20 Hz - 18 kHz
Dynamic Range79 dB
Sensitivity56 ± 3 dB
Signal-to-Noise Ratio63 dB
Plug3.5 mm, right-angle
Cord Length39"
ColorBlack
Weight0.05 lbs
Replacement WindscreenWND 006
Replacement ClipCLP 090
ApprovalsRoHS
Warranty90 days
PPA R37
Dimensions4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
Weight4.6oz (130g) with batteries. 2.6oz (73g) without batteries
ColorBlack
Battery Type(2) AA Alkaline or 2 x AA NiMH
Battery Life(2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
Current Consumption52mA nominal
Temperature Range - 0 to 50C
Channels17, accessed via seek button in battery compartment
Operating Freq.72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
Intermediate Freq.75 kHz
FM Deviation75 µS
De-Emphasis75 µS
LED IndicatorPower: Green; Low Battery: Flashes Green
AFC Range± 120 kHz
Sensitivity2 µV at 12 dB Sinad with squelch defeated
Input Overload100 mV
Frequency Response200 - 15 kHz
ModulationFM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio65 dB min @ 100 uV
Receive AntennaIntegral with earphone/headphone cord
Audio Output35 mW max, peak into 16 ohms
Output Connector3.5 mm stereo/mono phone jack
EarphoneEarbud-type with foam cushion, 3.5 mm plug, 32 ?
Auto Shut-offEnters sleep mode after approx 6 mins of no RF signal
ApprovalsFCC, Industry Canada, RoHS, WEEE
WarrantyLifetime PLUS Limited Warranty, 90 Days on most accessories.

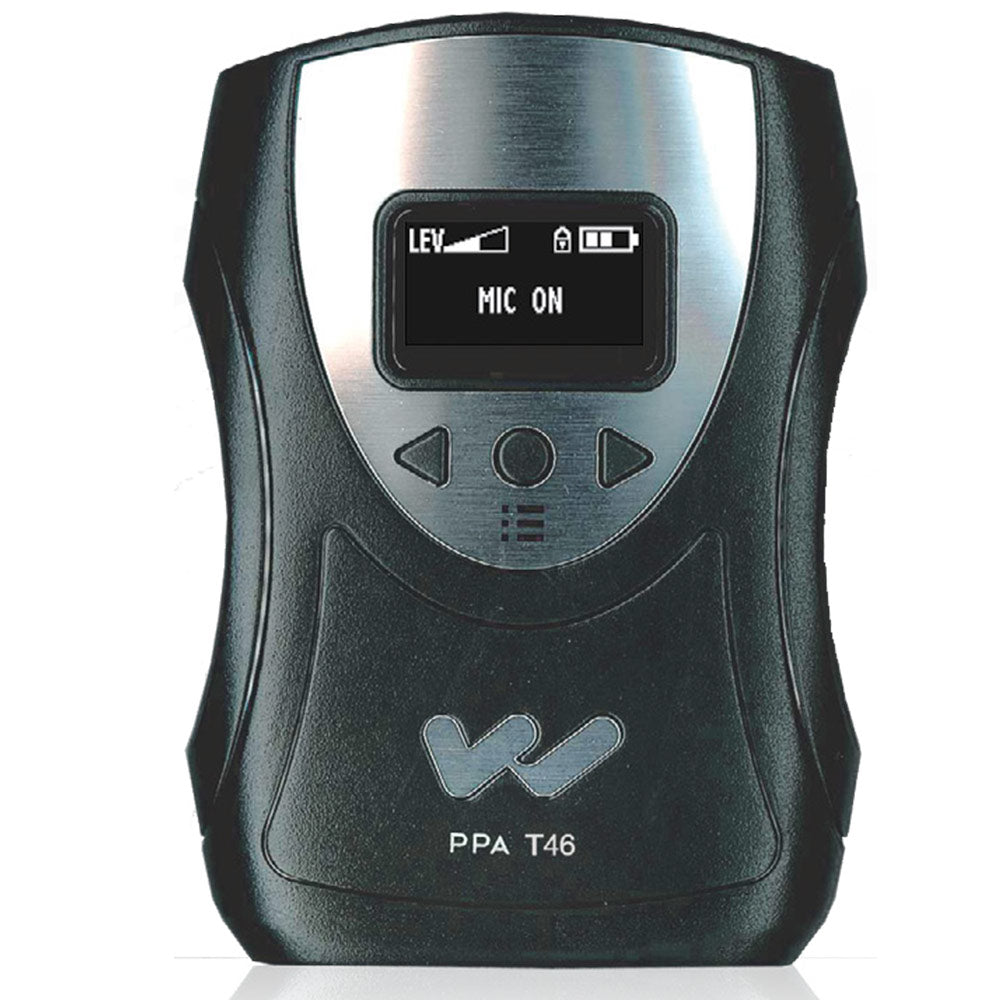

PPA T46
Dimensions4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm)
Weight2.6 oz (74 g), no batteries
ColorBlack/Silver
Enclosure MaterialShatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
Battery Type OptionsTwo (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life
Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 - 16 hours, uses CHG 3502 or CHG 3512 Charger
Operating FrequenciesSelectable, 17 channels, 72.1 - 75.9 MHz. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
Stability± .005%, frequency synthesized, crystal reference, PLL
ModulationWide-band FM, 75 kHz peak, 75 µS pre-emphasis
RF Output80 mV/m at 3 m (max. allowed by FCC rules)
Range150 ft/45 m
Frequency Response180 Hz to 13 kHz, ± 3 dB at 1% max. THD
Signal-to-Noise Ratio65 dB (typical) transmitted
Transmit AntennaIntegral with microphone cord
MicrophoneElectret type, 3.5 mm mono plug
External DisplayOLED for status and menu information.
Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode.
Menu: Ch/Freq display mode select, Volume, Aux Input, Compression,
17 or 8-channel mode, screen time out, screen brightness, restore default settings
External ControlsMomentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door
External IndicatorsPower LED - Green, flashes when battery is low
Mic Input3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
Aux Input2.5 mm stereo jack, adjustable gain with 60 dB range
Audio Compression1:1 (off) or 2:1 (on) selectable in menu
Compatible ReceiversPFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600
Approvals/DirectivesFCC, Industry Canada, RoHS, WEEE
WarrantyLifetime PLUS Limited Warranty, 90 Days on most accessories

The PPA T46 is FCC Part 15 compliant.

Effective July 11, 2016, the FCC has mandated tighter emissions limits on auditory assistance transmitters (72-76 MHz) manufactured or imported after this date to help avoid interference with and/or degradation of other airborne signals (All products manufactured prior to July 11, 2016, are compliant). Williams Sound FM transmitters - PPA T46, PPA T27 and PPA T45 (all models) - all have received a Grant of Certification from the FCC and are fully compliant/approved under this new mandate.
