Williams AV PFM PRO RCH Rechargeable Personal FM System (72-76 Mhz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PFM PRO and rechargeable PFM PRO RCH deliver superior audio directly to the ear, enhancing sound at home, work, or school - anywhere background noise or distance from the source makes listening difficult. Each system features 17 selectable channels on the 72-76 MHz band and has an operating range of up to 150 feet. A versatile 3.5mm jack allows for a variety of earphones and headphone options, and is compatible with neckloops and telecoil-equipped hearing aids (not included with system).
DISCLAIMER: FCC rules limit use of this equipment to auditory assistance.
NOTE: The PFM PRO and PFM PRO RCH systems are approved by the FCC for operation in U.S. markets. These systems cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.
Applications:
- Classrooms
- Small-group listening
- Employee training
- Consultations
- One-on-one conversations

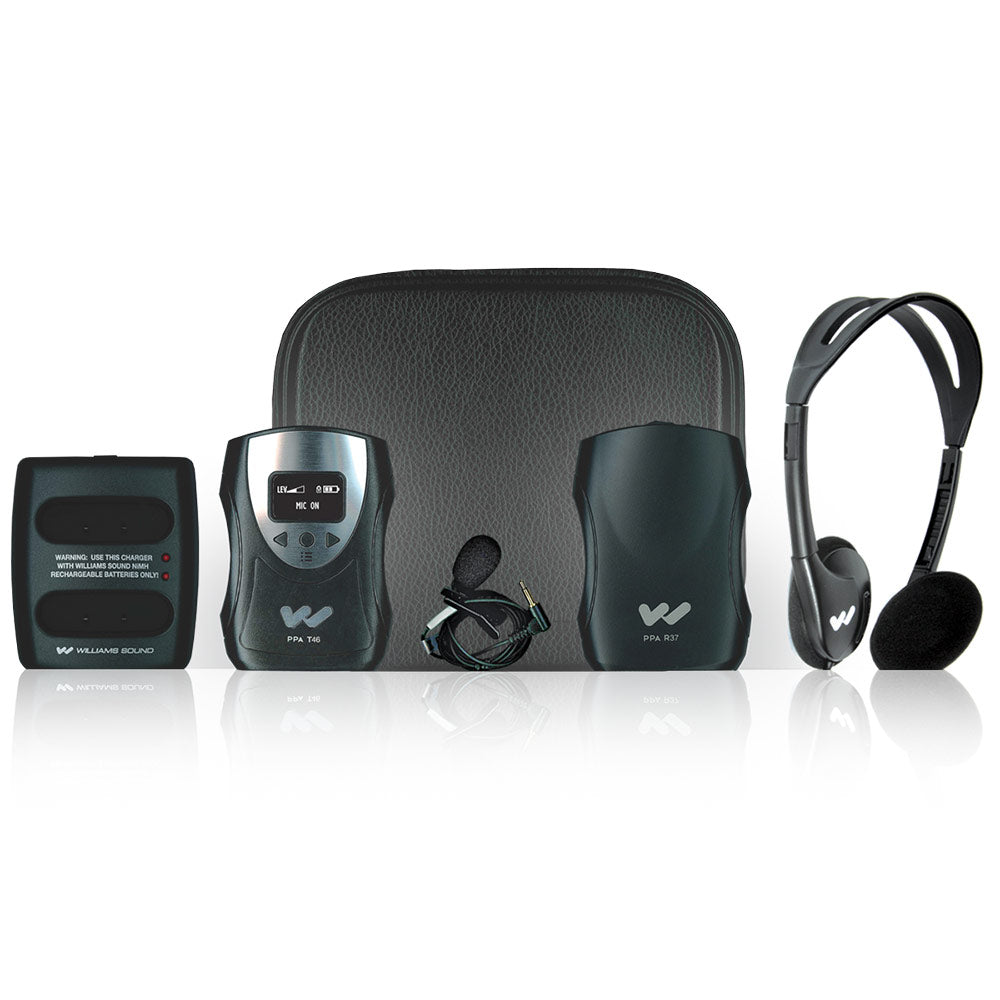

System Includes:
- (1) FM Body-pack Transmitter (PPA T46)
- (1) FM Body-pack Receiver (PPA R37)
- (1) Single Mini Earphone (EAR 041)
- (1) Folding Headphone (HED 021)

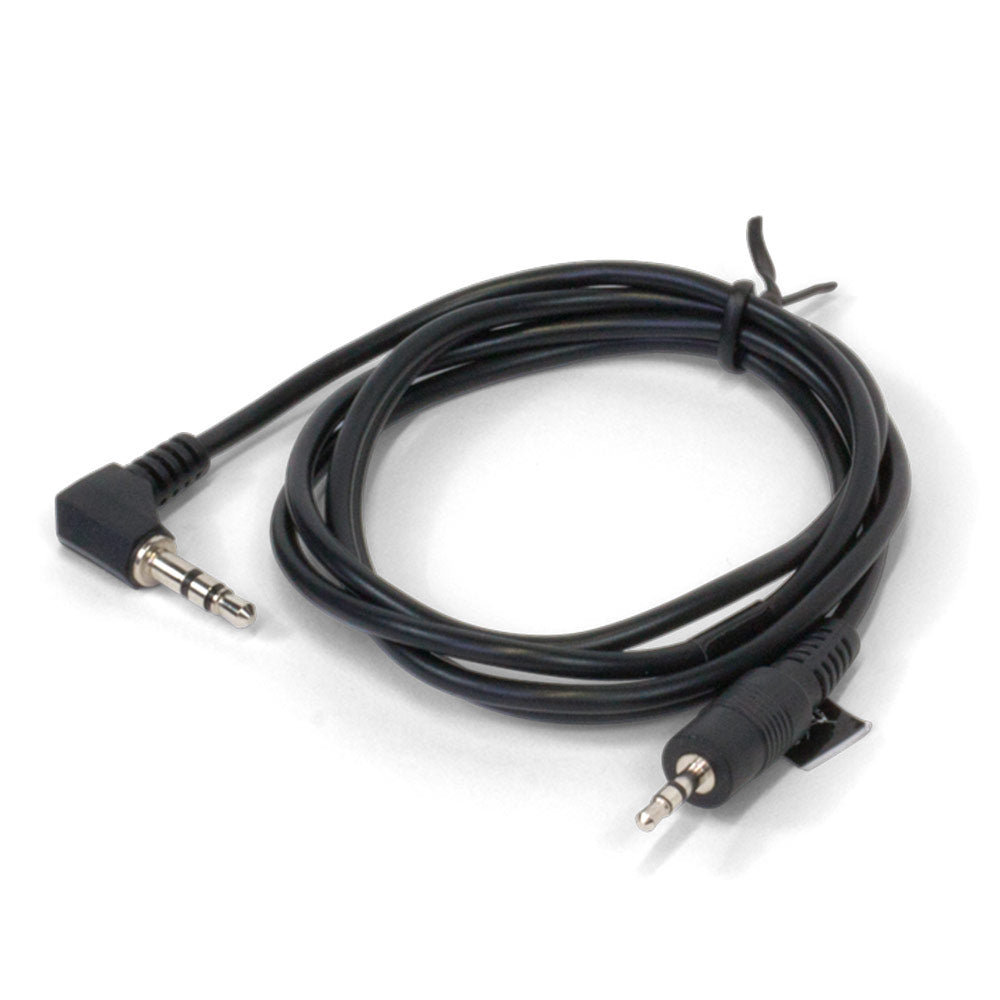

- (1) Audio Input Cable (WCA 087)
- (1) Lavalier Microphone (MIC 090)

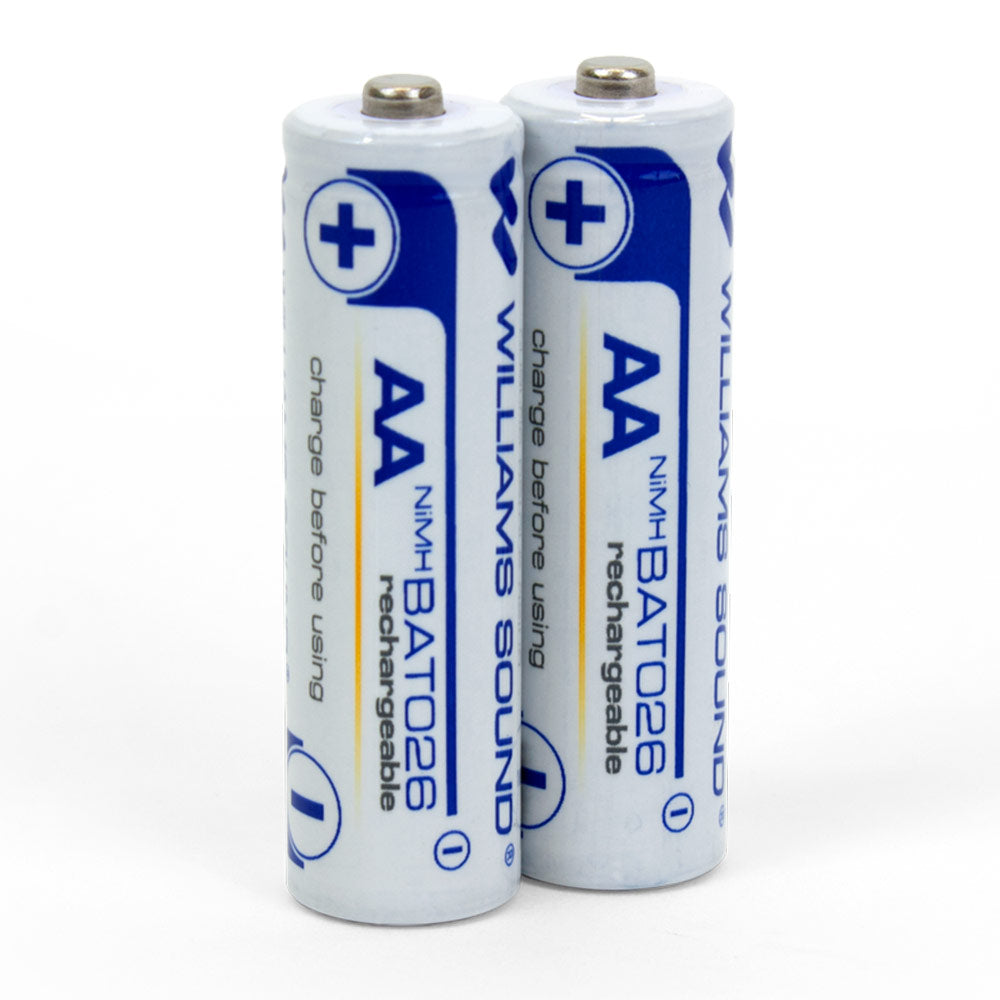

- (2) AA Rechargeable NiMH Batteries (BAT 026-2)

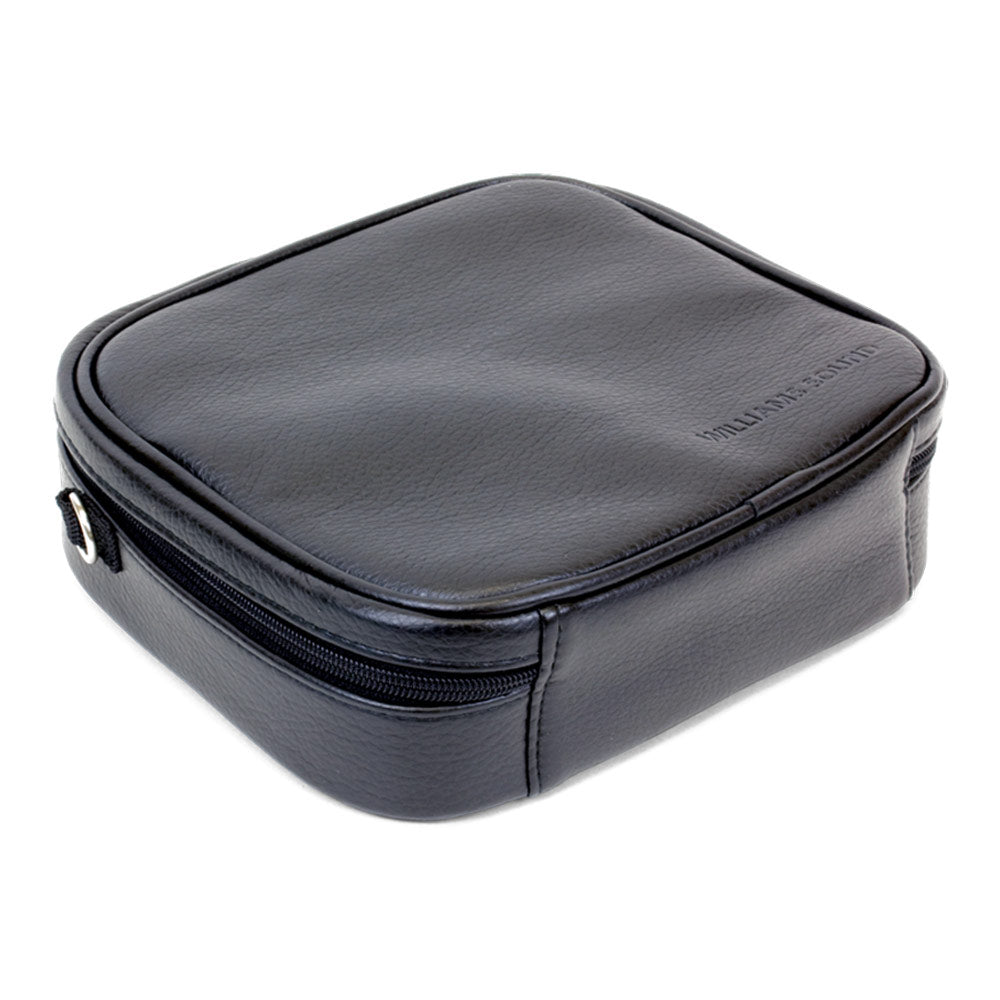

- (1) System Carry Case (CCS 043)
- (1) Dual Drop-in Charger (CHG 3502)
Features:
- 17 selectable channels 72-76 MHz
- Auxiliary input -- broadcast any audio source
- FM signal, compression, mute control
- Improves listening for individuals or groups
- Lifetime PLUS Limited Warranty
| BAT 001-2 | |
| Alkaline, 1.2 Volt | |

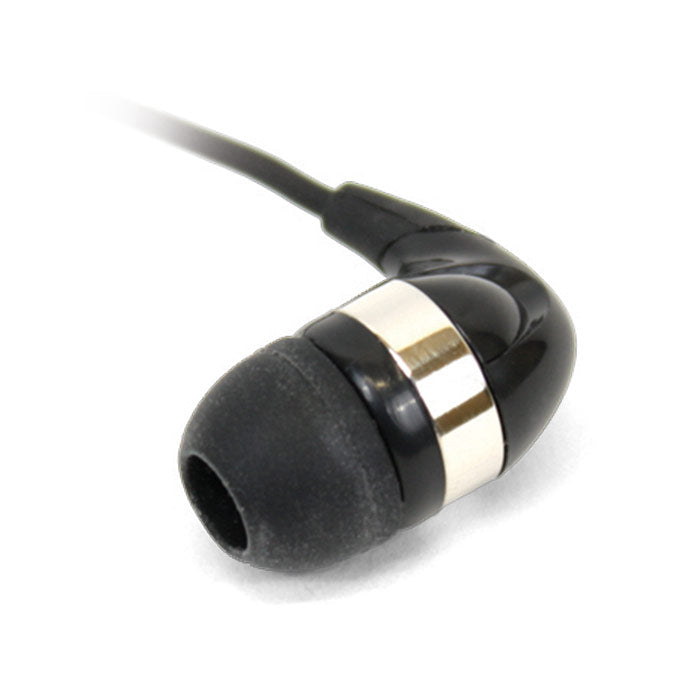

| EAR 041 | |
| Style | Single, in-ear, isolation earphone |
| Plug | 3.5 mm mono |
| Cord | 39" |
| Driver Size | 10 mm |
| Nominal Impedance | 16? |
| Freq. Response | 20 - 20kHz |
| Weight | 6g |
| Max Power Input | 5 mW |
| Sensitivity | N/A104 dB @ 1kHz |
| Replacement Pads | EAR 043 (One pair) |

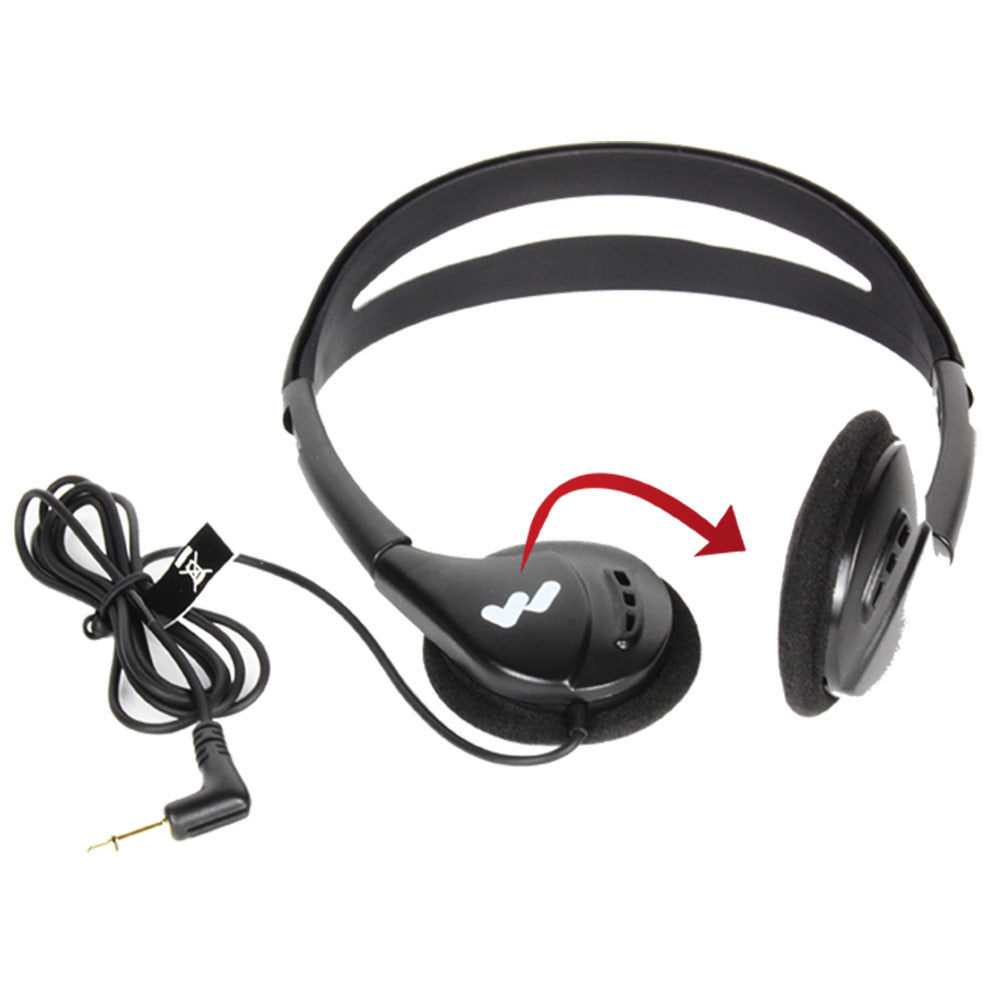

| HED 021 | |
| Style | Mono, folding headphone |
| Plug | 3.5 mm mono |
| Cord | 39" |
| Driver Size | 30 mm |
| Nominal Impedance | 32? |
| Freq. Response | 20 - 20kHz |
| Weight | 52g |
| Max Power Input | 100 mW |
| Sensitivity | N/A110 dB @ 1kHz |
| Replacement Pads | HED 023 (one pair) |

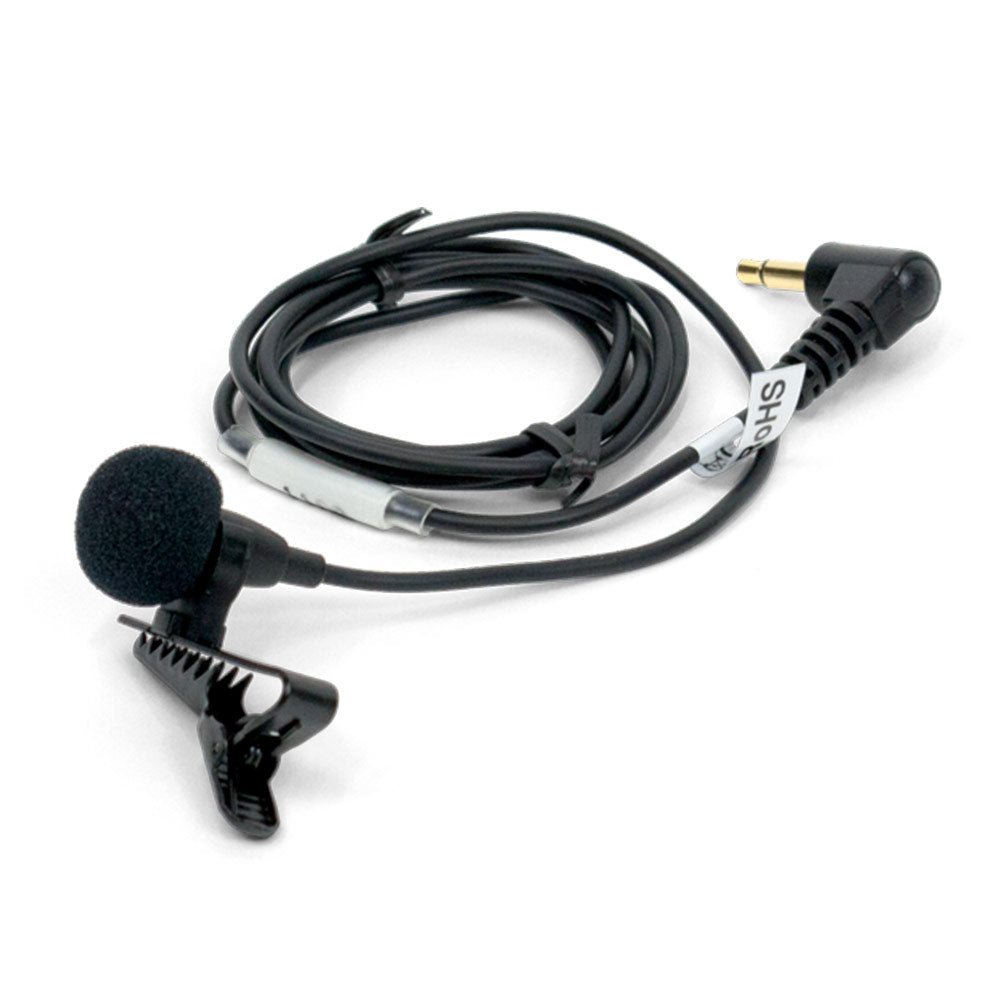

| MIC 090 | |
| Element | Electret-Condenser |
| Pick-Up Pattern | Omni-directional |
| Phantom Powered | No |
| Impedance | 1.5 k? |
| Frequency Response | 20 Hz - 18 kHz |
| Dynamic Range | 79 dB |
| Sensitivity | 56 ± 3 dB |
| Signal-to-Noise Ratio | 63 dB |
| Plug | 3.5 mm, right-angle |
| Cord Length | 39" |
| Color | Black |
| Weight | 0.05 lbs |
| Replacement Windscreen | WND 006 |
| Replacement Clip | CLP 090 |
| Approvals | RoHS |
| Warranty | 90 days |

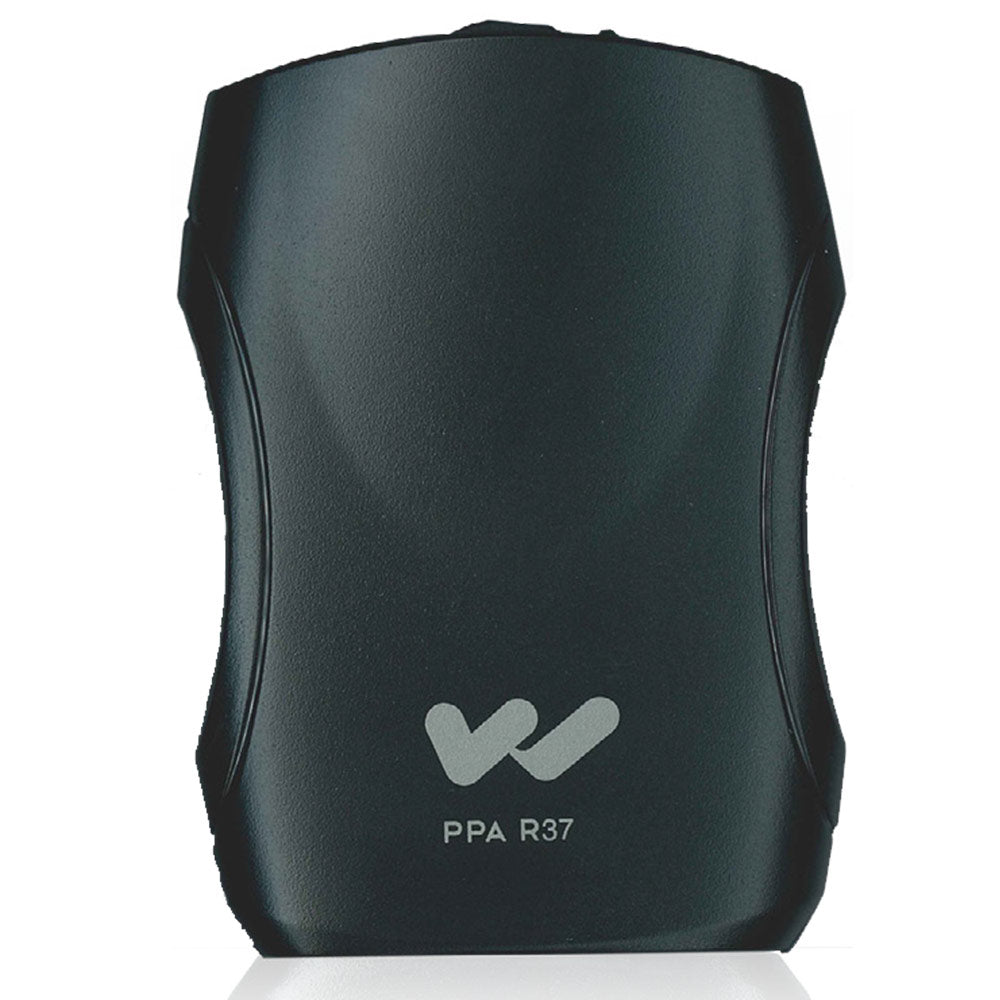

| PPA R37 | |
| Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
| Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color | Black |
| Battery Type | (2) AA Alkaline or 2 x AA NiMH |
| Battery Life | (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs |
| Current Consumption | 52mA nominal |
| Temperature Range | - 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq. | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
| Intermediate Freq. | 75 kHz |
| FM Deviation | 75 µS |
| De-Emphasis | 75 µS |
| LED Indicator | Power: Green; Low Battery: Flashes Green |
| AFC Range | ± 120 kHz |
| Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 - 15 kHz |
| Modulation | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio | 65 dB min @ 100 uV |
| Receive Antenna | Integral with earphone/headphone cord |
| Audio Output | 35 mW max, peak into 16 ohms |
| Output Connector | 3.5 mm stereo/mono phone jack |
| Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 ? |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |

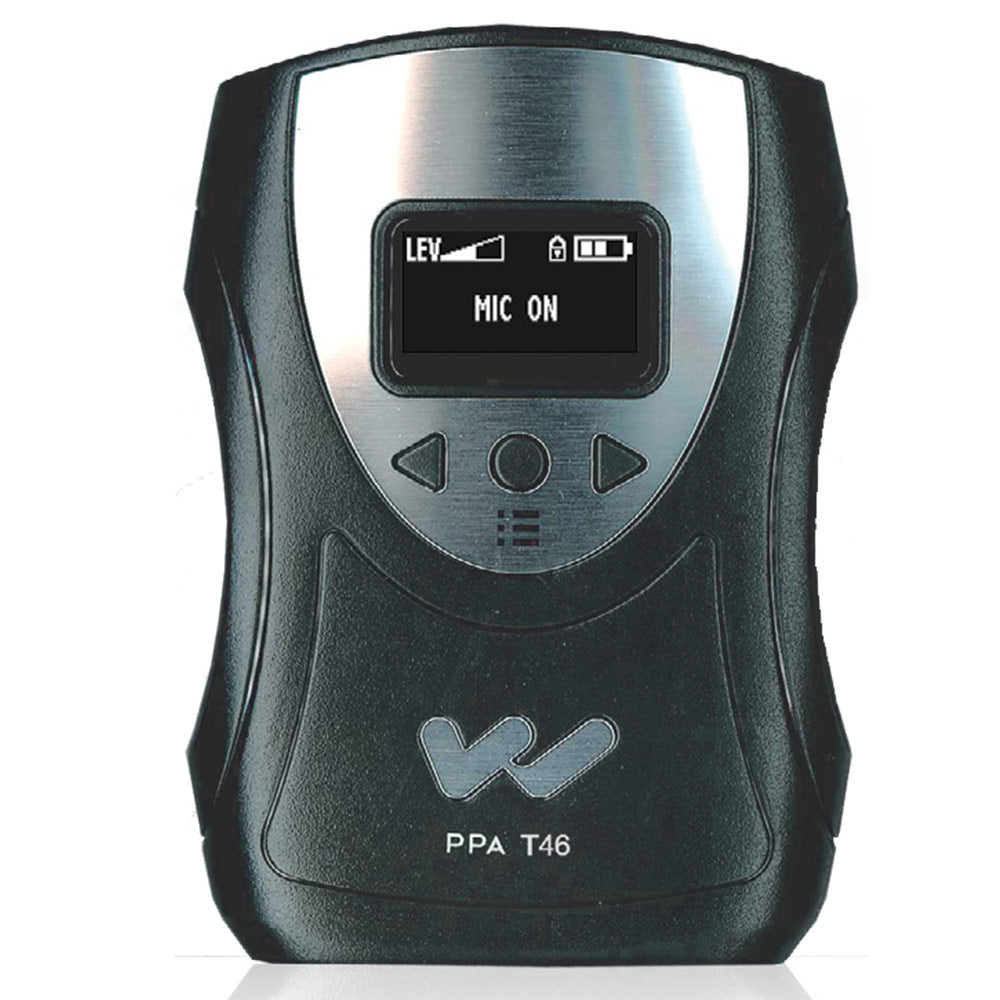

| PPA T46 | Dimensions | 4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm) |
| Weight | 2.6 oz (74 g), no batteries |
| Color | Black/Silver |
| Enclosure Material | Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate |
| Battery Type Options | Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 - 16 hours, uses CHG 3502 or CHG 3512 Charger |
| Operating Frequencies | Selectable, 17 channels, 72.1 - 75.9 MHz. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels) |
| Stability | ± .005%, frequency synthesized, crystal reference, PLL |
| Modulation | Wide-band FM, 75 kHz peak, 75 µS pre-emphasis |
| RF Output | 80 mV/m at 3 m (max. allowed by FCC rules) |
| Range | 150 ft/45 m |
| Frequency Response | 180 Hz to 13 kHz, ± 3 dB at 1% max. THD |
| Signal-to-Noise Ratio | 65 dB (typical) transmitted |
| Transmit Antenna | Integral with microphone cord |
| Microphone | Electret type, 3.5 mm mono plug |
| External Display | OLED for status and menu information. Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode. Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings |
| External Controls | Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door |
| External Indicators | Power LED - Green, flashes when battery is low |
| Mic Input | 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range |
| Aux Input | 2.5 mm stereo jack, adjustable gain with 60 dB range |
| Audio Compression | 1:1 (off) or 2:1 (on) selectable in menu |
| Compatible Receivers | PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600 |
| Approvals/Directives | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
The PPA T46 is FCC Part 15 compliant.
Effective July 11, 2016, the FCC has mandated tighter emissions limits on auditory assistance transmitters (72-76 MHz) manufactured or imported after this date to help avoid interference with and/or degradation of other airborne signals (All products manufactured prior to July 11, 2016, are compliant). Williams Sound FM transmitters - PPA T46, PPA T27 and PPA T45 (all models) - all have received a Grant of Certification from the FCC and are fully compliant/approved under this new mandate.
