Williams AV PLA 90 Portable Induction Counter Loop (Includes Power Supply)
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Description
Public accommodation of individuals at key customer/visitor points of contact.

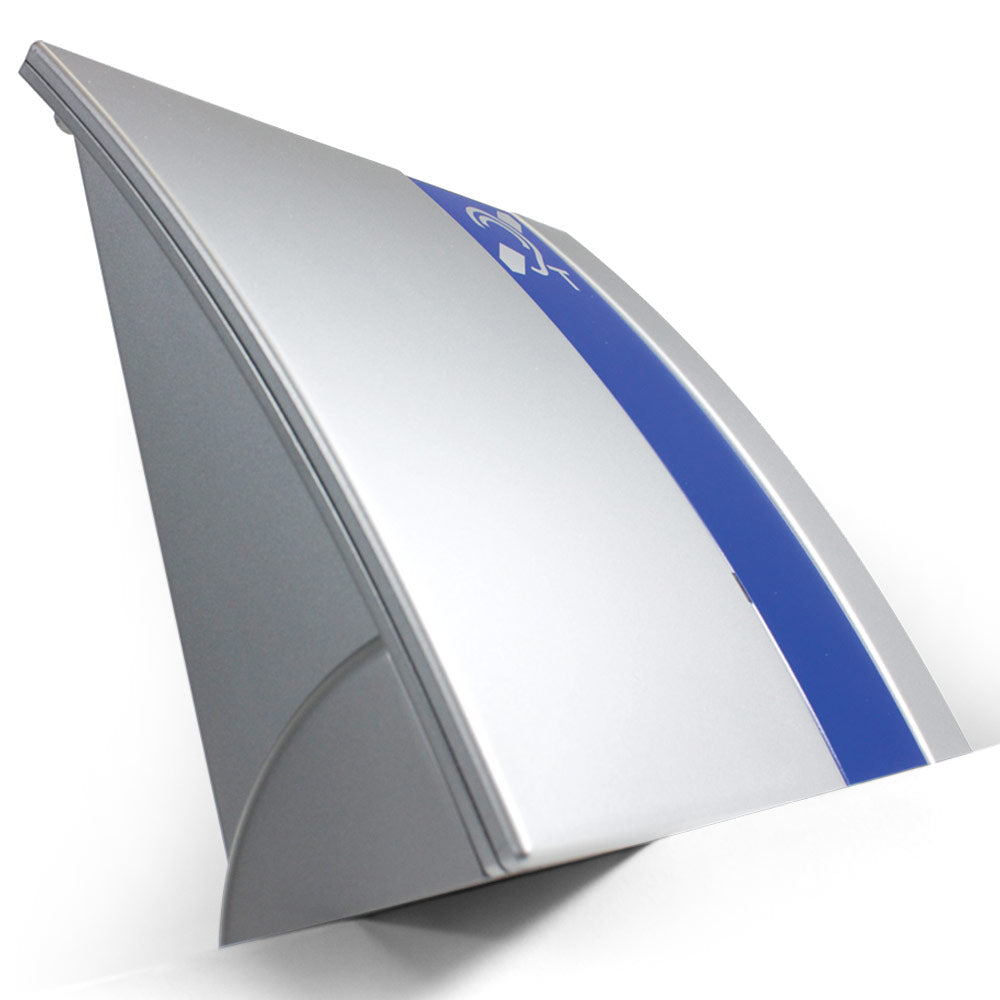

Compact and easy to install, this portable induction loop system readily accommodates individuals with hearing difficulties--at a bank teller window, information desk, store counter or anywhere customers/visitors need to hear what is being said. The PLA 90 picks up external voices with an integrated microphone or with an optional external microphone. The system transmits the spoken word directly and clearly to a listener’s hearing aid equipped with a T-Coil. Designed to meet ADA accessibility requirements. Not available for purchase in all markets.
System Includes:
- (1) Counter Loop
- (1) Rechargeable 10x AA NiMH battery pack
- (1) TFP 044 International Power Supply
Features:
- Users bring their own device (hearing aid with T-Coil)
- No charging or maintaining of receivers by the venue
- Magnetic signal couples directly to hearing aids equipped with telecoils (T-Coils)
- Headphone output for users without a hearing aid
- Can be used with optional loop receivers
- Can be portable or permanently installed
- Built-in microphone
- Optional external microphone
- Battery or AC powered
- 3-4 ft. (1m) range
- Auto shut-off on battery power
- Meets ADA / ADAAG guidelines
| PLA 90 | |
| Enclosure | Silver Plastic |
| Dimensions | H 7.9" (200mm) x W 7.3" (185 mm) x D 2.9" (75 mm) |
| Weight | 1.4lb (635g) with batteries |
| Range | 3 - 4ft (1 meter) |
| Microphone Sensitivity | 60dB for full output (internal microphone) |
| Controls | Power on and power off Rotary microphone gain for external mic. Three position Microphone selector switch, internal, external or internal plus external microphones |
| Auto Power Off | 2 minute timeout if no audio from internal or external mic while using battery only |
| Indicators | Red LED flashing indicates charging battery Green LED indicates system operating Amber LED indicates audio input is being received |
| Input | 3.5mm mono jack for external microphone |
| Output | 3.5 mm stereo headphone |
| Power Supply | Universal 100 - 240VAC 50/60Hz input, 16VDC, 1A output, center positive |
| Battery | 12VDC, 1300mA/h NiMH (10 AA cell pack) |
| Battery life | 6hrs with full 4 hr recharge time |
| Loop output power | Max 10W, internal loop coil |
| Approvals | CE, RoHS, WEEE |
| Warranty | 2 years parts and labor (90 days on most accessories) |
