Description

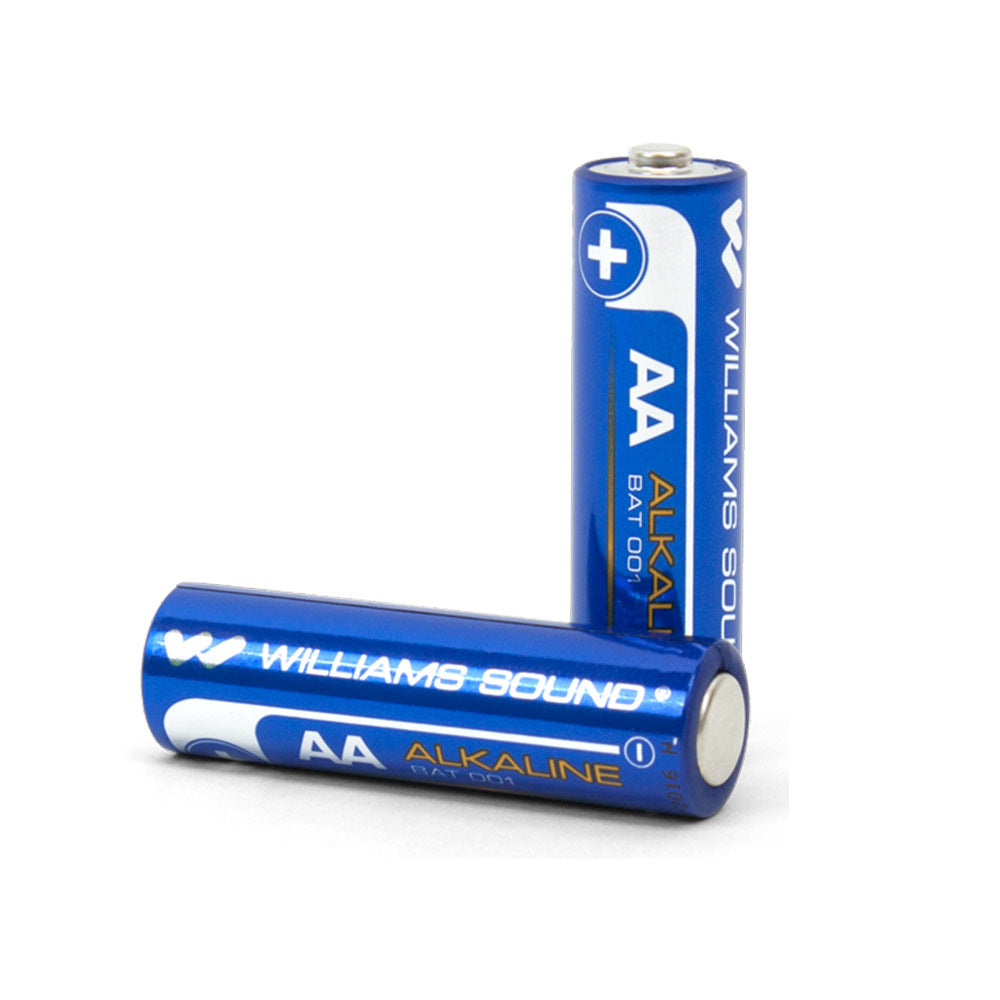

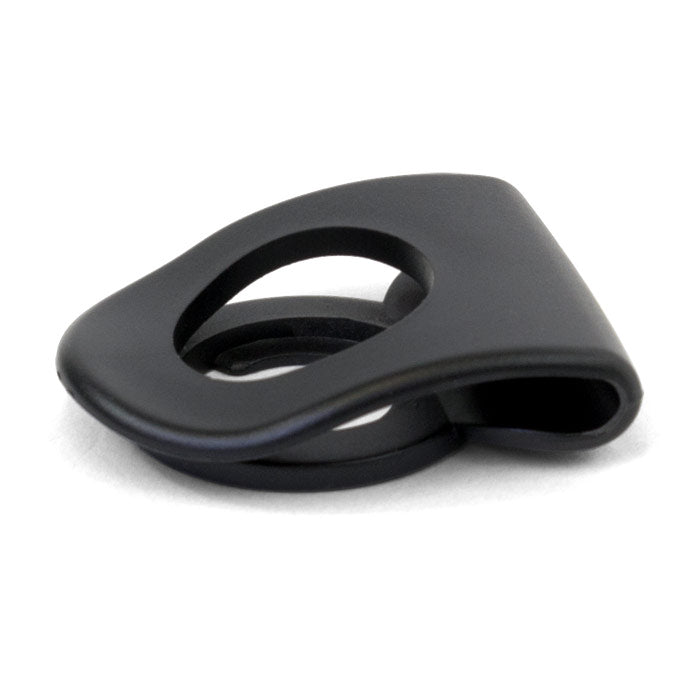

PPA R37-00: Receiver, batteries (BAT 001-2) and Belt Clip (CLP 023) (No earphones)

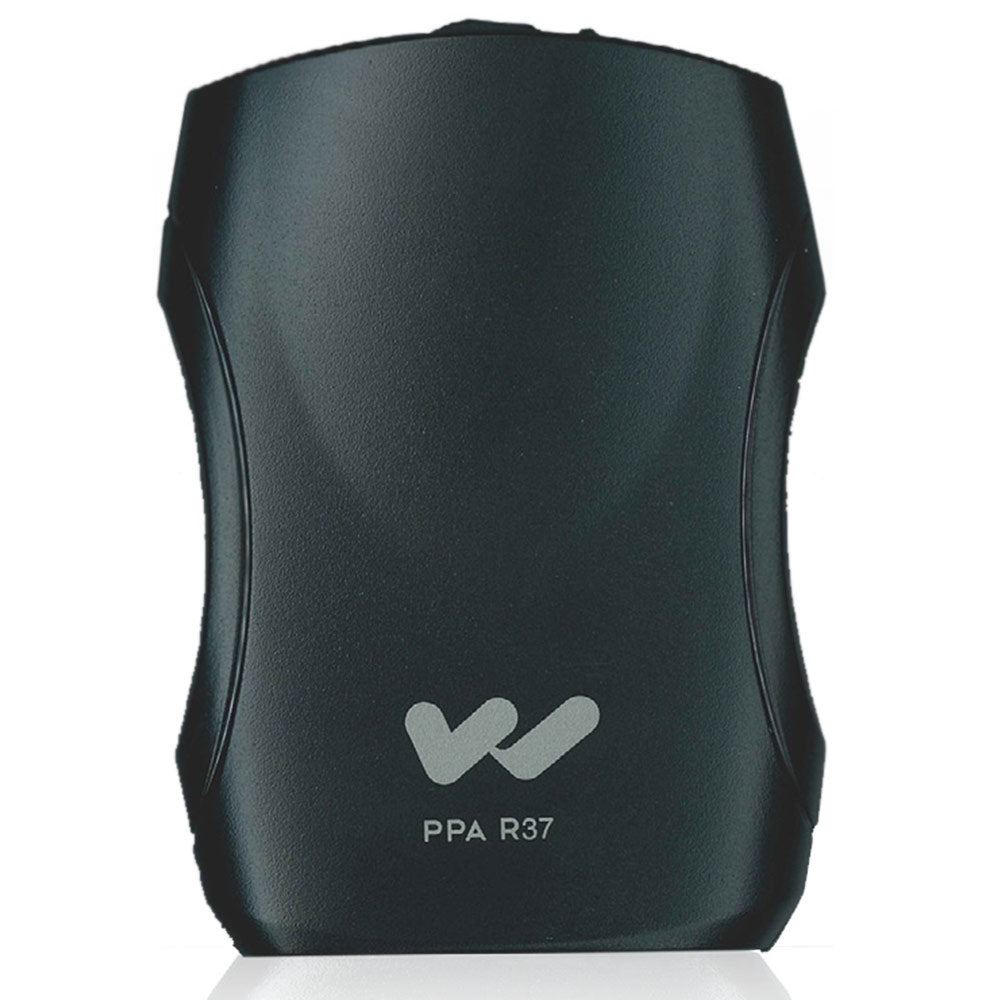

Flexible and simple. The PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with the following Williams Sound transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
Features:
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable
Dimensions: | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
Weight: | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
Color: | Black |
Battery Type: | (2) AA Alkaline or 2 x AA NiMH |
Battery Life: | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs |
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs | |
Current Consumption: | 52mA nominal |
Temperature Range: | Ð 0 to 50C |
Channels | 17, accessed via seek button in battery compartment |
Operating Freq.: | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
Intermediate Freq.: | 75 kHz |
FM Deviation: | 75 kHz |
De-Emphasis: | 75 µS |
LED Indicator: | Power: Green; Low Battery: Flashes Green |
AFC Range: | ± 120 kHz |
Sensitivity: | 2 µV at 12 dB Sinad with squelch defeated |
Input Overload: | 100 mV |
Frequency Response: | 200 Ð 15 kHz |
Modulation: | FM, +/- 75 kHz peak deviation |
Signal-to-Noise Ratio: | 65 dB min @ 100 uV |
Receive Antenna: | Integral with earphone/headphone cord |
Audio Output: | 35 mW max, peak into 16 ohms |
Output Connector: | 3.5 mm stereo/mono phone jack |
Earphone: | Earbud-type with foam cushion, 3.5 mm plug, 32 ½ |
Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
Approvals: | FCC, Industry Canada, RoHS, WEEE |
Warranty: | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
PPA R37-00: Receiver, batteries (BAT 001-2) and Belt Clip (CLP 023) (No earphones)
Flexible and simple. The PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with the following Williams Sound transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
Features:
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable
Dimensions: | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
Weight: | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
Color: | Black |
Battery Type: | (2) AA Alkaline or 2 x AA NiMH |
Battery Life: | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs |
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs | |
Current Consumption: | 52mA nominal |
Temperature Range: | Ð 0 to 50C |
Channels | 17, accessed via seek button in battery compartment |
Operating Freq.: | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
Intermediate Freq.: | 75 kHz |
FM Deviation: | 75 kHz |
De-Emphasis: | 75 µS |
LED Indicator: | Power: Green; Low Battery: Flashes Green |
AFC Range: | ± 120 kHz |
Sensitivity: | 2 µV at 12 dB Sinad with squelch defeated |
Input Overload: | 100 mV |
Frequency Response: | 200 Ð 15 kHz |
Modulation: | FM, +/- 75 kHz peak deviation |
Signal-to-Noise Ratio: | 65 dB min @ 100 uV |
Receive Antenna: | Integral with earphone/headphone cord |
Audio Output: | 35 mW max, peak into 16 ohms |
Output Connector: | 3.5 mm stereo/mono phone jack |
Earphone: | Earbud-type with foam cushion, 3.5 mm plug, 32 ½ |
Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
Approvals: | FCC, Industry Canada, RoHS, WEEE |
Warranty: | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
