Williams AV PPA R37-12 PRO FM Receiver Kit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Flexible and simple. The FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with Williams Sound 72-76 MHz transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
NOTE: The Receiver requires a transmitter operating on 72-76 MHz. The Receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.

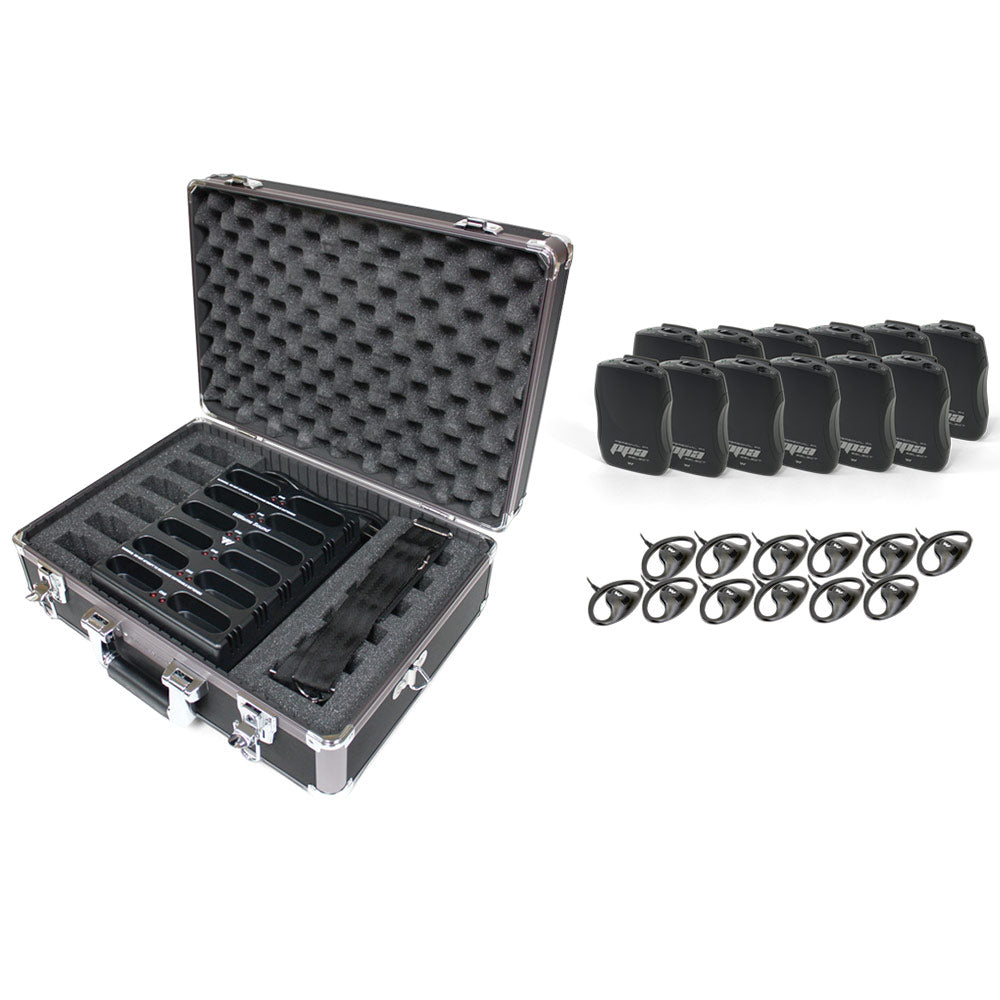

System Includes:
- (12) PPA R37N Receivers
- (12) BAT 026-2 AA NiMH Rechargeable Batteries
- (12) EAR 022 Surround Earphones
- (1) CHG 3512 PRO Charger
All items can be purchased individually.
Features:
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable

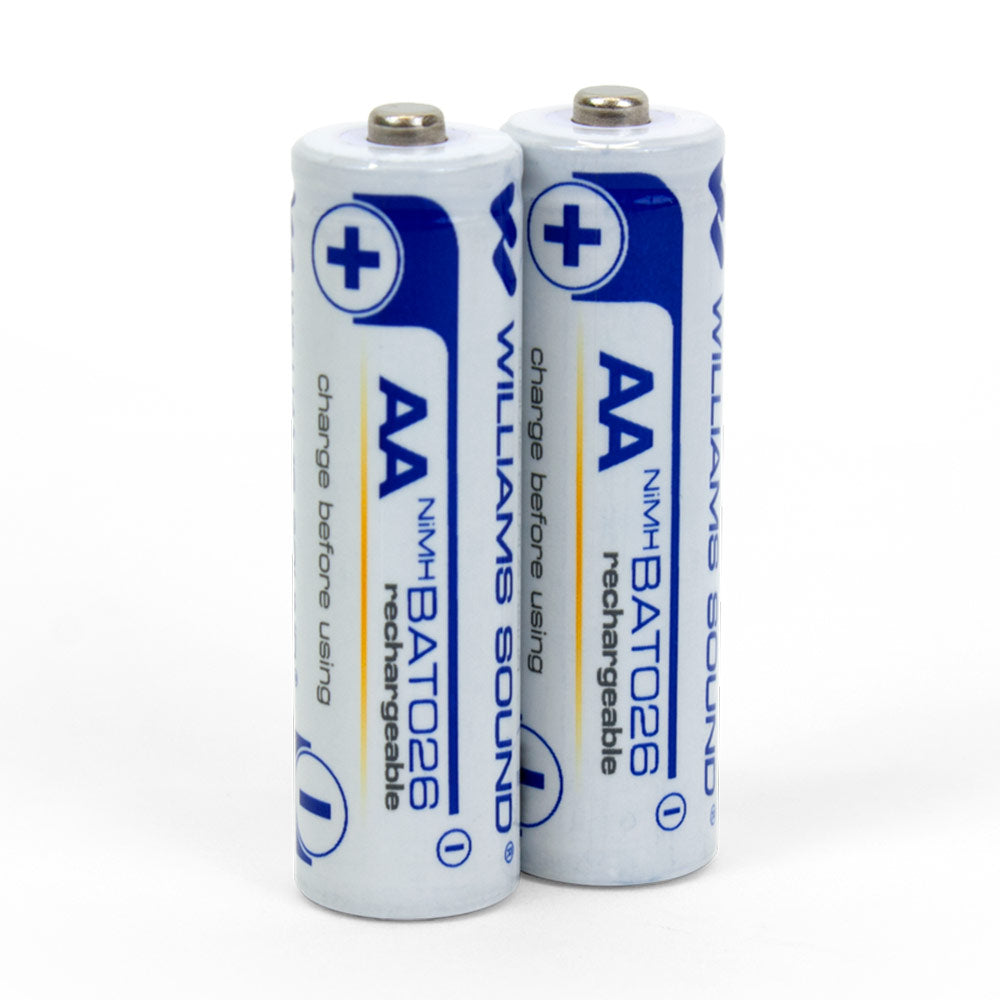

| BAT 026-2 | |
| NiMH, 1.2 Volt, 1500 mAh | |
| CHG 3512 PRO | |
| Charger Only | |
| Size | 18"L x 14"W x 6.75"H (45.7 cm L x 35.5 cm W x 17.1 cm H) |
| Weight | 10.7 lbs (4.85 kg) |
| Color | Black ABS |
| Power Supply Input | 90 - 240 VAC input |
| Power Supply | TFP 037 Switching AC adapter, 5 VDC - 4A output |
| Charging Rate | 16 Hour Charge: 140 mA Pulse/Maintain: 140 mA |
| Charging Time | 16 hours nominal |
| Unit Capacity | 12 Units |
| Indicators | Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged |
| Warranty | 1 year (cables and power supply warrantied for 90 days) |
| Approvals | CE, WEEE, RoHS |
| Case | |
| Interior Dimensions | 13.0" W x 18.0" L x 6.7"H (33 cm W x 46 cm L x 17 cm H) |
| Exterior Dimensions | 15.7" W x 19.7" L x 7.2" H (40 cm W x 50 cm L x 18 cm H) |
| Lid Inner Depth | 1.5" (4 cm) |
| Bottom Inner Depth | N/A5.2" (13 cm) |
| Approx. weight (empty) | 6.6 lbs (3 kg) |
| Material | Copolymer |
| Minimum Temperature | -40¼F (-40¼C) |
| Maximum Temperature | 160¼F (71.1¼C) |
| Warranty | Limited Lifetime |

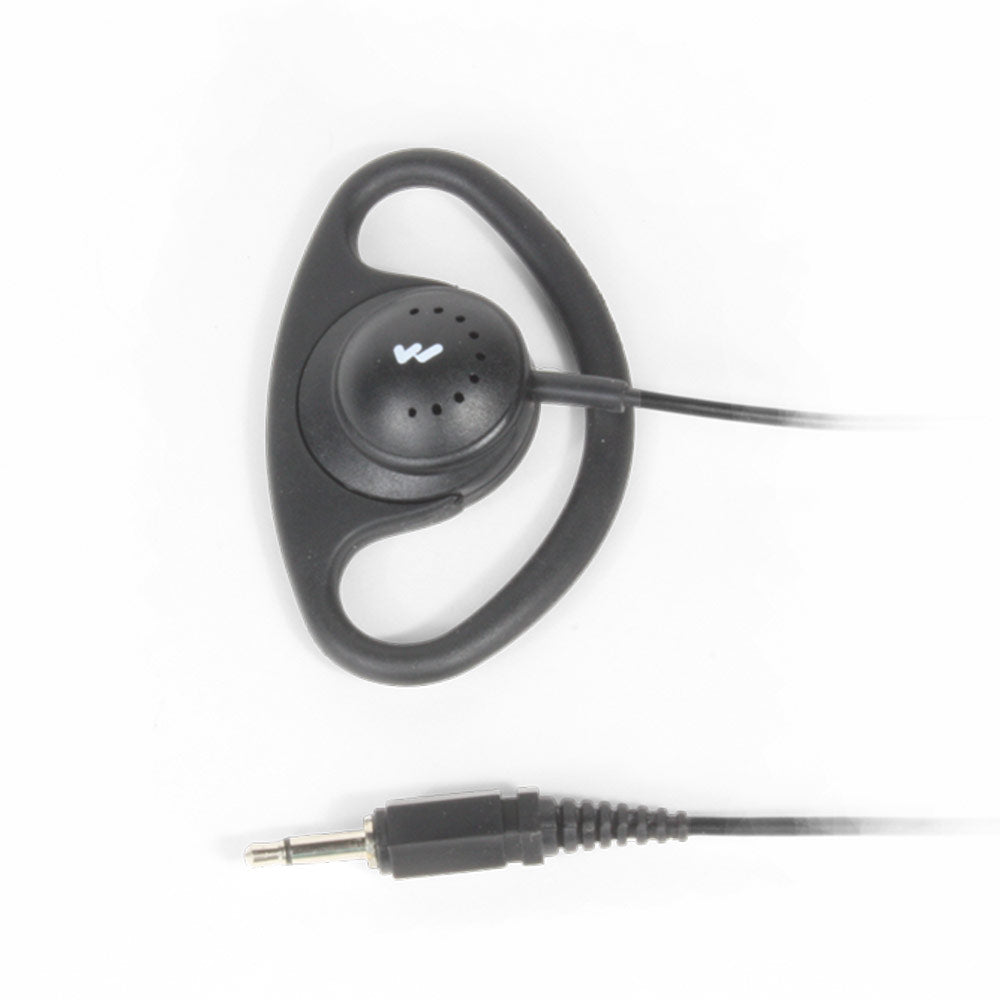

| EAR 022 | |
| Style | Around-ear speaker |
| Plug | 3.5 mm mono |
| Cord | 39" |
| Driver Size | 23 mm |
| Nominal Impedance | 32? |
| Freq. Response | 20 - 20kHz |
| Weight | 15g |
| Max Power Input | 30 mW |
| Sensitivity | N/A118 dB @ 1kHz |

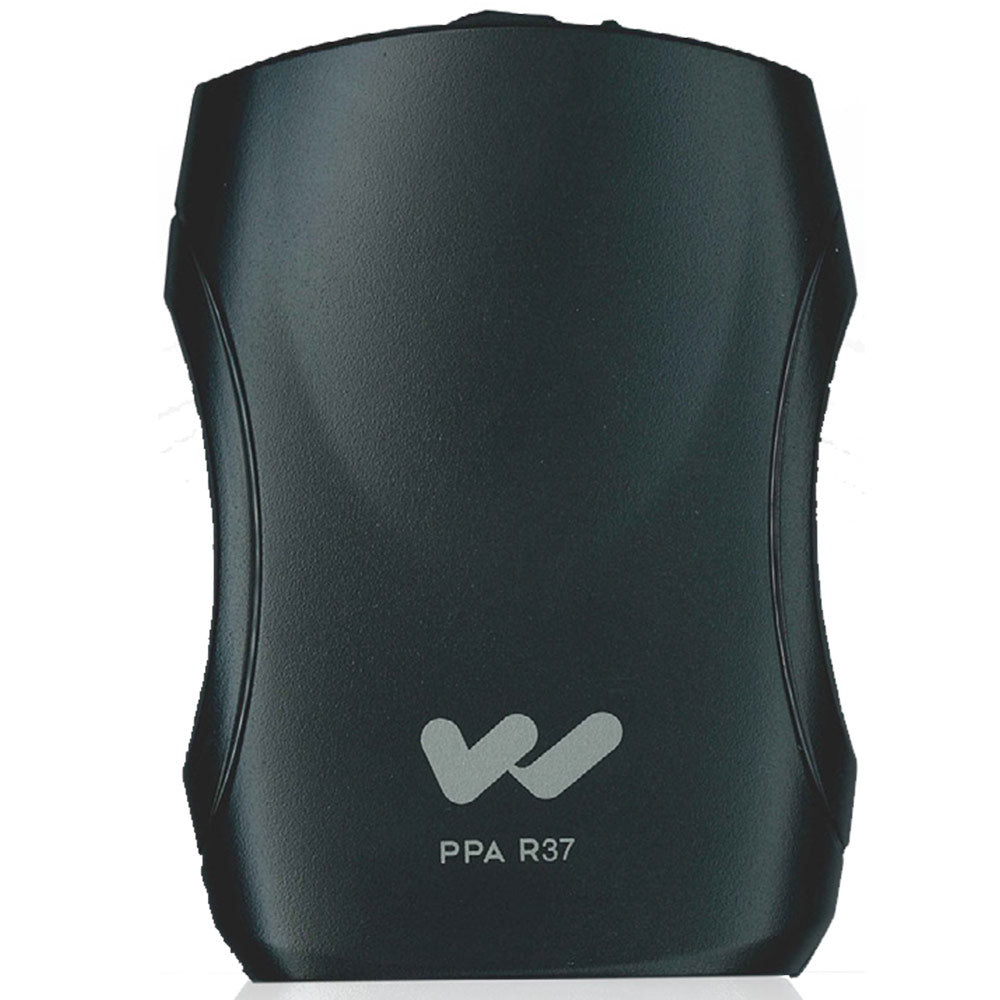

| PPA R37 | |
| Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
| Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color | Black |
| Battery Type | (2) AA Alkaline or 2 x AA NiMH |
| Battery Life | (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs |
| Current Consumption | 52mA nominal |
| Temperature Range | - 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq. | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
| Intermediate Freq. | 75 kHz |
| FM Deviation | 75 µS |
| De-Emphasis | 75 µS |
| LED Indicator | Power: Green; Low Battery: Flashes Green |
| AFC Range | ± 120 kHz |
| Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 - 15 kHz |
| Modulation | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio | 65 dB min @ 100 uV |
| Receive Antenna | Integral with earphone/headphone cord |
| Audio Output | 35 mW max, peak into 16 ohms |
| Output Connector | 3.5 mm stereo/mono phone jack |
| Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 ? |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
