Description

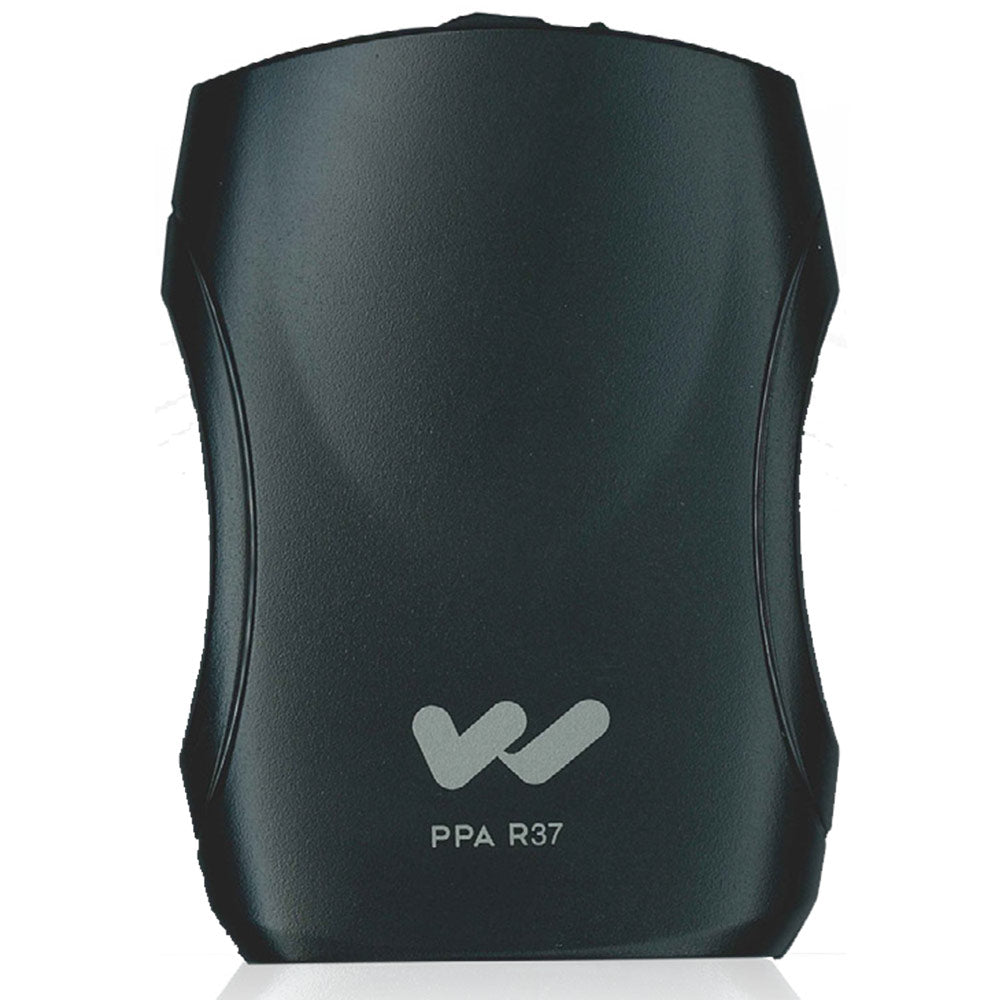

Flexible and simple. The FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with the following Williams Sound transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
Includes HED 021 headphone.
NOTE: The PPA R37-8 FM Receiver requires a transmitter operating on 72-76 MHz. The receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.
System Includes:
- (1) PPA R37N Receiver
- (1) BAT 001-2 AA Alkaline Batteries
- (1) HED 021 headphone
- Low-battery indicator
*All items can also be purchased separately
Can also be ordered as:
- PPA R37N: Receiver and Belt Clip (CLP 023) (No batteries or earphones)
- PPA R37-00: Receiver, batteries (BAT 001-2) and Belt Clip (CLP 023) (No earphones)
- PPA R37 HD: Receiver, batteries (BAT 001-2), Belt Clip (CLP 023) and headphones (HED 021)
Features:
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable
PPA R37 HD | |
Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35 mm) |
Weight | 4.6 oz (130 g) with batteries. 2.6 oz (73 g) without batteries |
Color | Black |
Battery Type | (2) AA Alkaline or (2) x AA NiMH |
Battery Life | Two AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs, or Two AA rechargeable NiMH batteries (BAT 026-2), 1500 mAh, approx. 32 hrs |
Current Consumption | 52 mA nominal |
Temperature Range | - 0 to 50 ¡C |
Channels | 17, accessed via seek button in battery compartment |
Operating Freq | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
Intermediate Freq | 75 kHz |
FM Deviation | N/A75 kHz |
De-Emphasis | 75 µS |
LED Indicator | Power: Green; Low Battery: Flashes Green |
AFC Range | ± 120 kHz |
Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
Input Overload | 100 mV |
Frequency Response | 200 - 15 kHz |
Modulation | FM, +/- 75 kHz peak deviation |
Signal-to-Noise Ratio | 65 dB min @ 100 uV |
Receive Antenna | Integral with earphone/headphone cord |
Audio Output | 35 mW max, peak into 16 ? |
Output Connector | 3.5 mm stereo/mono phone jack |
Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 ? |
Auto Shut-off | Enters sleep mode after approximately 6 mins of no RF signal |
Approvals | FCC, Industry Canada, RoHS, WEEE |
Warranty | Lifetime PLUS Limited Warranty (90 Days on most accessories) |
