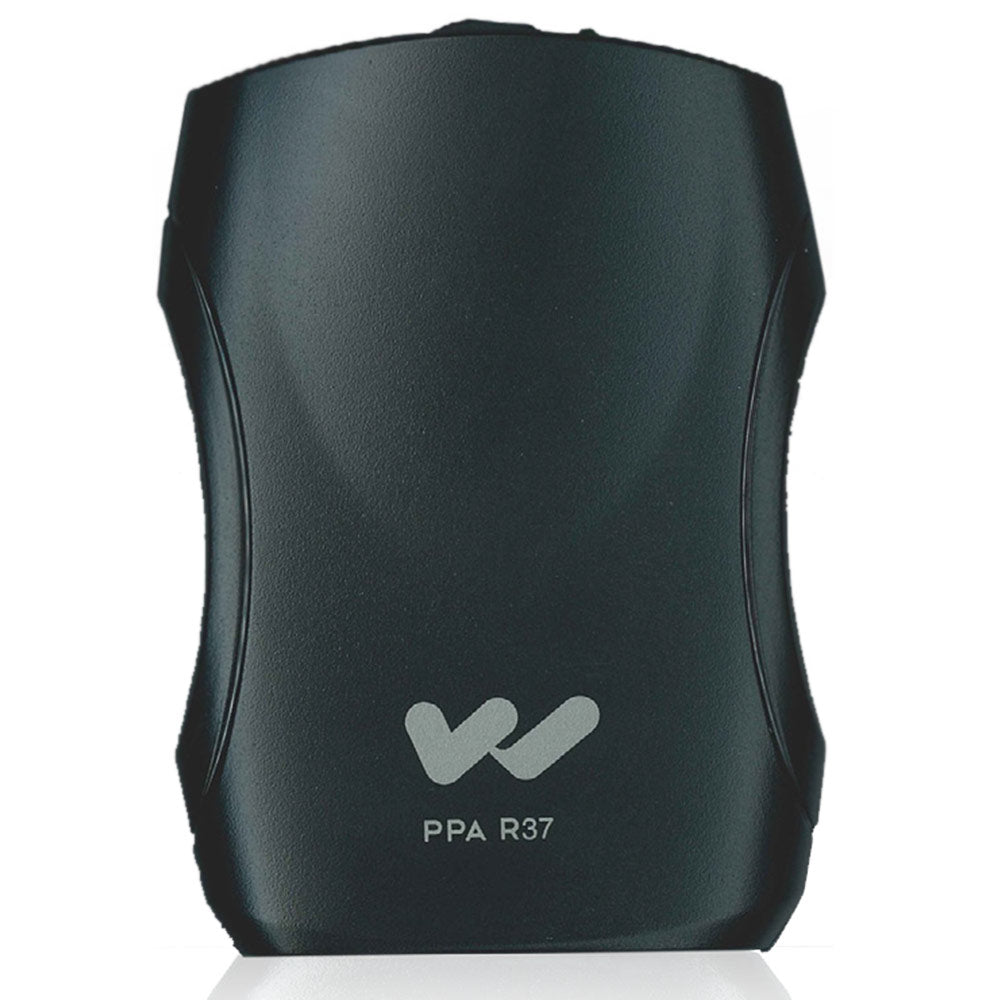

Williams AV PPA R37 Personal PA Select FM Receiver
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Flexible and simple. The PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with the following Williams Sound transmitters: PPA T35, PPA T27, PPA T32 and PPA T36. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
Features:
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable
| Dimensions: | 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) |
| Weight: | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color: | Black |
| Battery Type: | (2) AA Alkaline or 2 x AA NiMH |

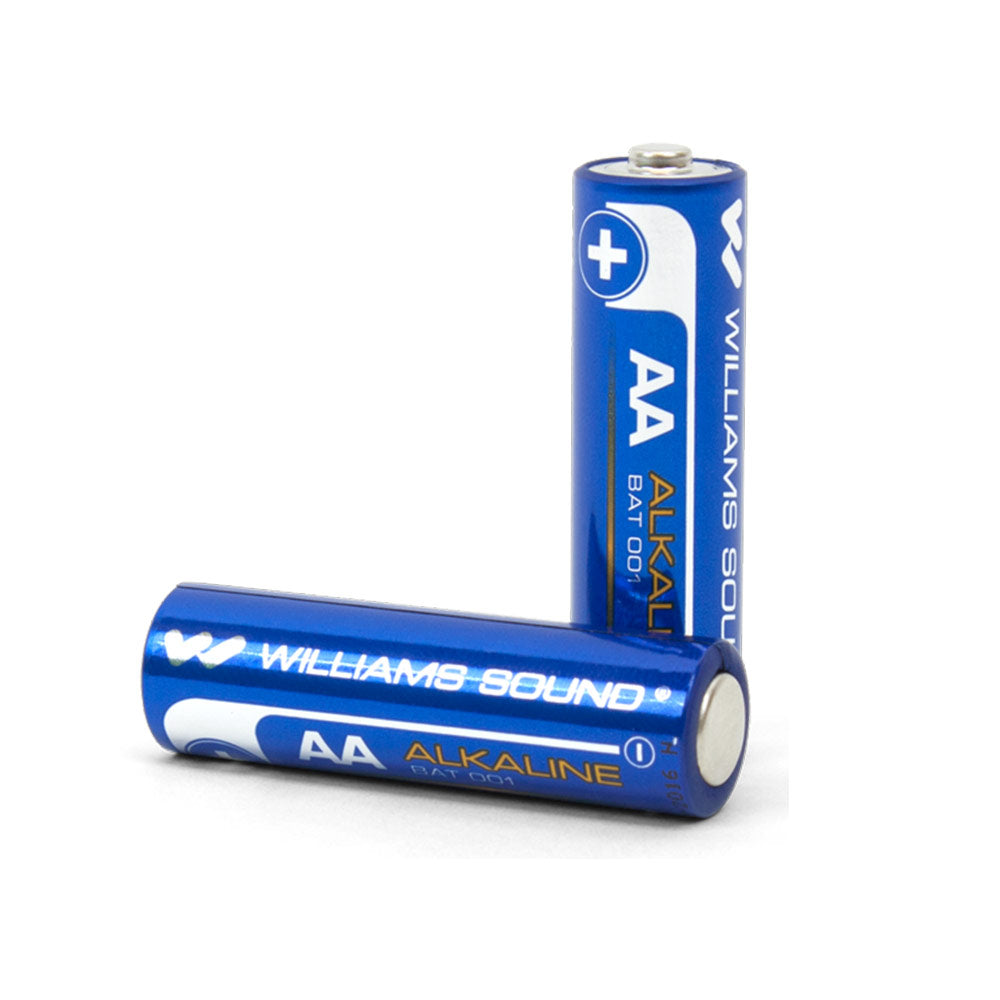

| Battery Life: | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs |
| (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs | |
| Current Consumption: | 52mA nominal |
| Temperature Range: | Ð 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq.: | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
| Intermediate Freq.: | 75 kHz |
| FM Deviation: | 75 kHz |
| De-Emphasis: | 75 µS |
| LED Indicator: | Power: Green; Low Battery: Flashes Green |
| AFC Range: | ± 120 kHz |
| Sensitivity: | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload: | 100 mV |
| Frequency Response: | 200 Ð 15 kHz |
| Modulation: | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio: | 65 dB min @ 100 uV |
| Receive Antenna: | Integral with earphone/headphone cord |
| Audio Output: | 35 mW max, peak into 16 ohms |
| Output Connector: | 3.5 mm stereo/mono phone jack |
| Earphone: | Earbud-type with foam cushion, 3.5 mm plug, 32 |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals: | FCC, Industry Canada, RoHS, WEEE |
| Warranty: | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
Flexible and simple. The PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with the following Williams Sound transmitters: PPA T35, PPA T27, PPA T32 and PPA T36. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
Features:
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable
| Dimensions: | 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) |
| Weight: | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color: | Black |
| Battery Type: | (2) AA Alkaline or 2 x AA NiMH |
| Battery Life: | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs |
| (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs | |
| Current Consumption: | 52mA nominal |
| Temperature Range: | Ð 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq.: | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
| Intermediate Freq.: | 75 kHz |
| FM Deviation: | 75 kHz |
| De-Emphasis: | 75 µS |
| LED Indicator: | Power: Green; Low Battery: Flashes Green |
| AFC Range: | ± 120 kHz |
| Sensitivity: | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload: | 100 mV |
| Frequency Response: | 200 Ð 15 kHz |
| Modulation: | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio: | 65 dB min @ 100 uV |
| Receive Antenna: | Integral with earphone/headphone cord |
| Audio Output: | 35 mW max, peak into 16 ohms |
| Output Connector: | 3.5 mm stereo/mono phone jack |
| Earphone: | Earbud-type with foam cushion, 3.5 mm plug, 32 |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals: | FCC, Industry Canada, RoHS, WEEE |
| Warranty: | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
