Williams AV PPA R38-20 FM Receiver Kit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Flexible and simple. The FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with Williams Sound 72-76 MHz transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
NOTE: The PPA R37-8 FM Receiver requires a transmitter operating on 72-76 MHz. The receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.

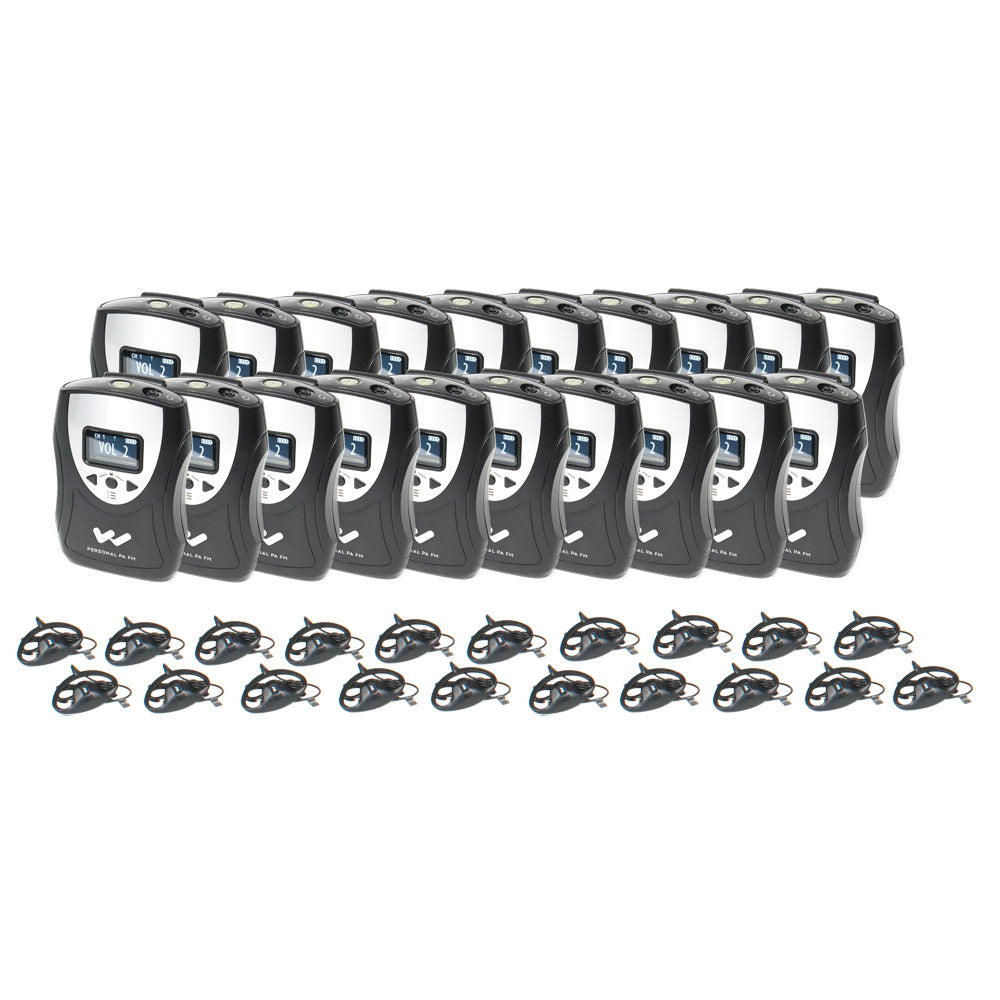

System Includes:
- (20) PPA R38N Receivers
- (20) BAT 001-2 AA Alkaline Batteries
- (20) EAR 022 Surround Earphones
All items can be purchased individually
Features:
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable

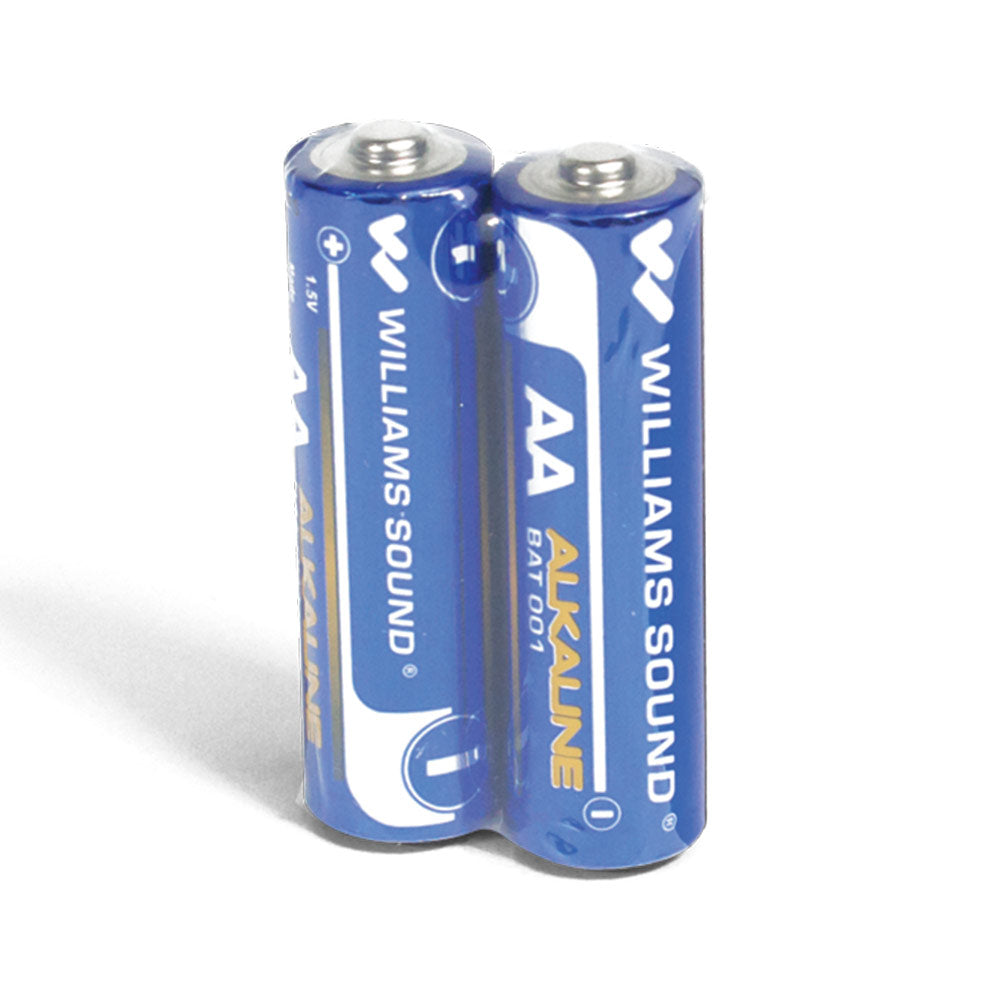

| BAT 001-2 | |
| Alkaline, 1.2 Volt | |

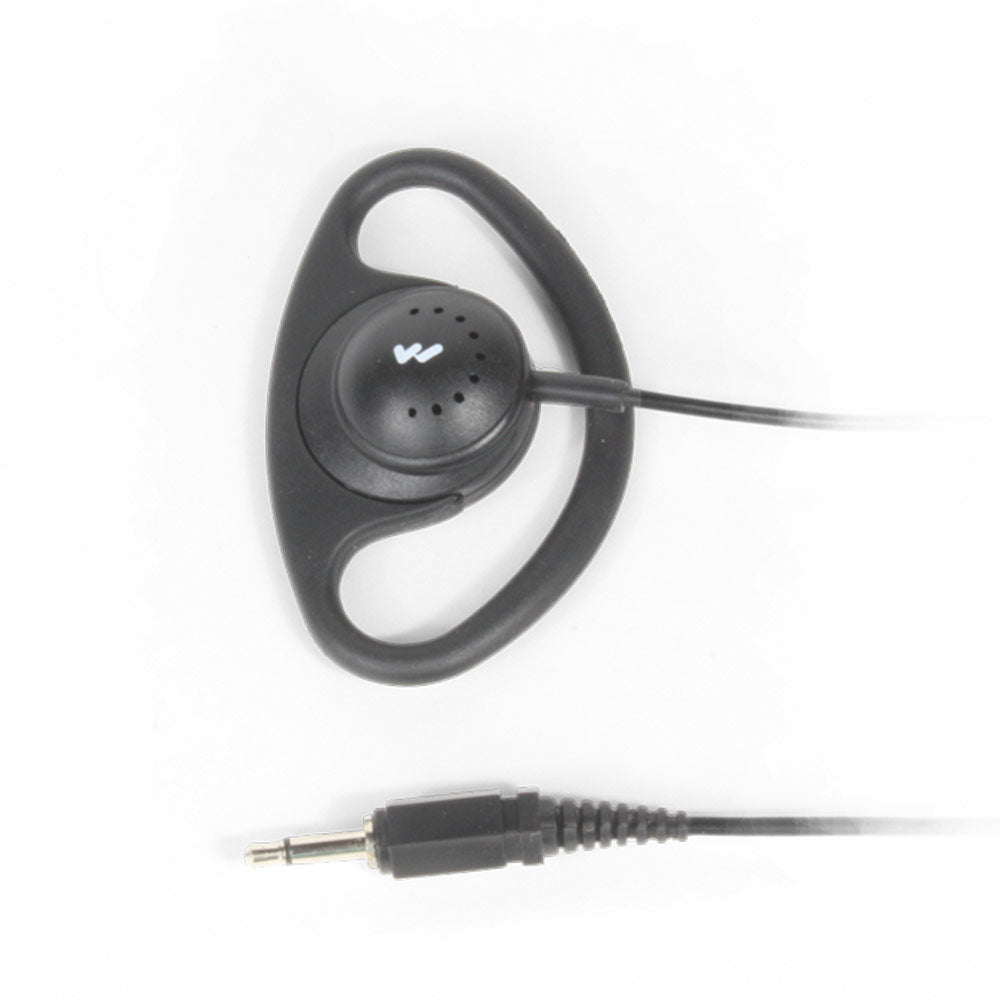

| EAR 022 | |
| Style | Around-ear speaker |
| Plug | 3.5mm mono |
| Cord | 39" |
| Driver Size | 23 mm |
| Normal Impedance | 32? |
| Freq. Response | 20-20kHz |
| Weight | 15g |
| Max Power Input | 30 mW |
| Sensitivity | 118 dB @ 1kHz |
| PPA R38N | |
| Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
| Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color | Black/Silver. Black ABS Plastic case with Aluminum faceplate |
| Battery Type | (2) AA Alkaline or (2) AA NiMH Rechargeable |
| Battery Life | (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs. |
| Current Consumption | 52mA normal |
| Operating Temp. Range | 32¡ - 122¡F (0¡ to 50¡C) |
| Channels | 17 Wideband, accessed via menu |
| Operating Frequencies | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
| FM Deviation | 75 kHz |
| De-Emphasis | 75 µS |
| Display Screen | 1" OLED |
| Power Indication | Power button, backlit green. Good battery strength - glows solid. Low battery - flashes |
| Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 Hz - 15 kHz, ±3dB |
| Modulation | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio | Minimum 65 dB @ 1.0V |
| Receive Antenna | ntegral with earphone/headphone cord |
| Audio Output | 5 mW max at 16 ? |
| Headphone Connector | 3.5 mm stereo jack, mono output for stereo or mono earphones/headphones |
| Supplied Earphone | Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 ? |
| Power Save Mode | Enters sleep mode after approximately 3 minutes of no RF signal |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
