DALE SKU # WISO-PPAR38N

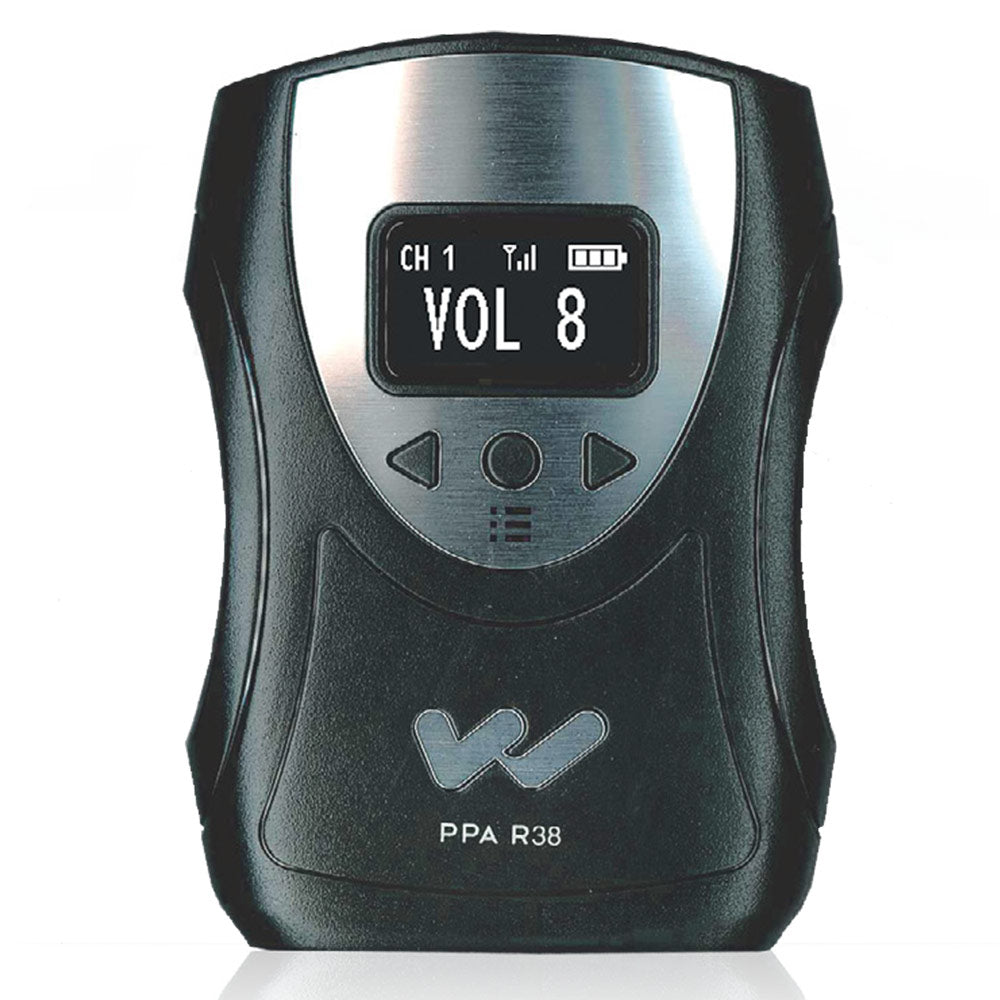

Williams AV PPA R38N SelectView FM Receiver

Sale price$206.50 Regular price$229.50
Save $23.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    PPA SelectView™ (PPA R38N) FM Receiver.  High-resolution OLED screen.  Quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wideband frequencies (72-76 MHz). Digitally synthesized for exceptional audio clarity and stability.  Digital tuning, digital squelch and battery-saving sleep mode. New stereo jack paired with the mono jack adds compatibility with variety of earphones/headphones. Rechargeable.

    Features:

    • OLED high-resolution screen - easy to read and provides a quick view of receiver status.
    • All user settings are accessible via the on-screen menu – including all 17 wideband channels.
    • Stylish new design
    • Now features stereo headphone jack
    • Rechargeable or non-rechargeable batteries
    • Digital Volume Controls
    • 4-step battery level indication
    • Display shows channel or frequency
    • Step/seek function allows user to increment channel manually, or seek to the next active channel
    • Sleep Mode/Auto-Off saves battery power
    • Soft Audio Turn-On

    Dimensions:

    4.1” x 2.85” x 1.38” (104 x 72 x 35mm)

    Weight:Ê

    4.6oz (130g) with batteries. 2.6oz (73g) without batteries

    Color:Ê

    Black/Silver. Black ABS Plastic case with Aluminum faceplate.

    Battery Type:Ê

    (2) AA Alkaline or (2) AA NiMH Rechargeable

    Battery Life:Ê

    (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.

    (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.

    Current Consumption:Ê

    52mA nominal

    Operating Temp. Range:Ê

    32¡ Ð 122¡F (0¡ to 50¡C)

    Channels:Ê

    17 Wideband, accessed via menu

    Operating Frequencies:Ê

    72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*

    FM Deviation:Ê

    75 kHz

    De-Emphasis:Ê

    75 µS

    Display Screen:Ê

    1 OLED

    Power Indication:Ê

    Power button, backlit green.

    Good battery strength - glows solid. Low battery - flashes.

    Sensitivity:Ê

    2 µV at 12 dB Sinad with squelch defeated

    Input Overload:Ê

    100 mV

    Frequency Response:Ê

    200 Hz Ð 15 kHz, ±3dB

    Modulation:Ê

    FM, +/- 75 kHz peak deviation

    Signal-to-Noise Ratio:Ê

    Minimum 65 dB @ 1.0V

    Receive Antenna:Ê

    Integral with earphone/headphone cord

    Audio Output:Ê

    35 mW max at 16

    Headphone Connector:Ê

    3.5 mm stereo jack, mono output for stereo or mono earphones/headphones

    PPA SelectView™ (PPA R38N) FM Receiver.  High-resolution OLED screen.  Quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wideband frequencies (72-76 MHz). Digitally synthesized for exceptional audio clarity and stability.  Digital tuning, digital squelch and battery-saving sleep mode. New stereo jack paired with the mono jack adds compatibility with variety of earphones/headphones. Rechargeable.

    Features:

    • OLED high-resolution screen - easy to read and provides a quick view of receiver status.
    • All user settings are accessible via the on-screen menu – including all 17 wideband channels.
    • Stylish new design
    • Now features stereo headphone jack
    • Rechargeable or non-rechargeable batteries
    • Digital Volume Controls
    • 4-step battery level indication
    • Display shows channel or frequency
    • Step/seek function allows user to increment channel manually, or seek to the next active channel
    • Sleep Mode/Auto-Off saves battery power
    • Soft Audio Turn-On

    Dimensions:

    4.1” x 2.85” x 1.38” (104 x 72 x 35mm)

    Weight:Ê

    4.6oz (130g) with batteries. 2.6oz (73g) without batteries

    Color:Ê

    Black/Silver. Black ABS Plastic case with Aluminum faceplate.

    Battery Type:Ê

    (2) AA Alkaline or (2) AA NiMH Rechargeable

    Battery Life:Ê

    (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.

    (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.

    Current Consumption:Ê

    52mA nominal

    Operating Temp. Range:Ê

    32¡ Ð 122¡F (0¡ to 50¡C)

    Channels:Ê

    17 Wideband, accessed via menu

    Operating Frequencies:Ê

    72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*

    FM Deviation:Ê

    75 kHz

    De-Emphasis:Ê

    75 µS

    Display Screen:Ê

    1 OLED

    Power Indication:Ê

    Power button, backlit green.

    Good battery strength - glows solid. Low battery - flashes.

    Sensitivity:Ê

    2 µV at 12 dB Sinad with squelch defeated

    Input Overload:Ê

    100 mV

    Frequency Response:Ê

    200 Hz Ð 15 kHz, ±3dB

    Modulation:Ê

    FM, +/- 75 kHz peak deviation

    Signal-to-Noise Ratio:Ê

    Minimum 65 dB @ 1.0V

    Receive Antenna:Ê

    Integral with earphone/headphone cord

    Audio Output:Ê

    35 mW max at 16

    Headphone Connector:Ê

    3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
