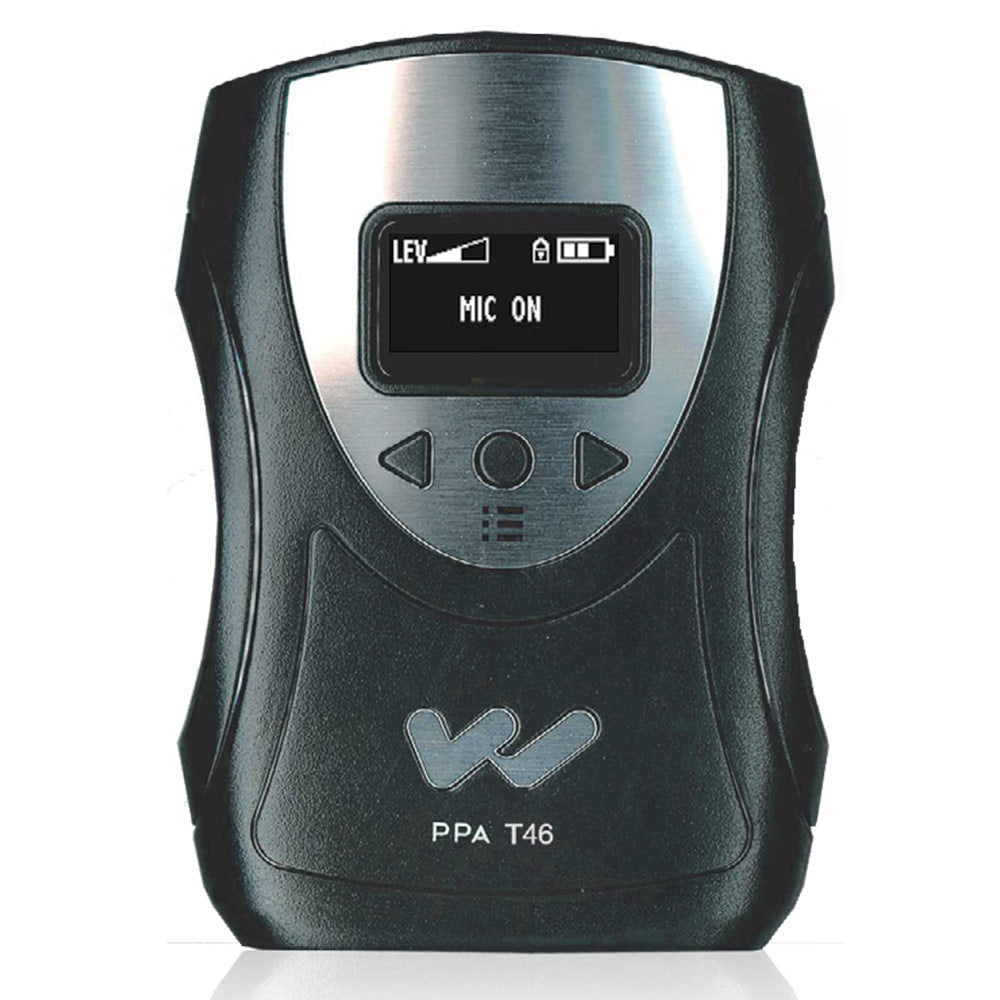

Williams AV PPA T46 FM Body-Pack Transmitter w/ OLED Display
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PPA T46 transmitter will broadcast a speaker’s voice or audio program on one of 17 available channels, 72-76 MHz, to listeners using PPA R38 or PPA R37 receivers. The unit features flexible microphone and auxiliary input jacks, push-button on/off/mute controls, channel lock and selectable compression. The T46 has the ability to operate in dual channel mode, allowing the user to easily switch between two different transmitting channels, each with its own set up parameters. An OLED screen displays current operating status and menu information. The PPA T46 operates up to 30 hours on two (2) AA Alkaline batteries, and up to 20 hours with two (2) NiMH batteries. It has recharge capability when used with Williams Sound drop-in chargers. Lightweight and portable, the PPA T46 will operate at a range of up to 150 feet (46m) from the listening audience. Ideal for providing hearing assistance to students in the classroom, tour group participants, employee training, business meetings and more.
NOTE: The PPA R37-8 FM Receiver requires a transmitter operating on 72-76 MHz. The receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.
System Includes:
- (1) PPA T46 Transmitter
- (1) BAT 001-2 (2) AA Batteries
- (1) CLP 023 Belt Clip
- (1) WCA 087 Auxiliary Input Cable
Microphone sold separately
All items can be purchased separately
Features:
- Sleek, ergonomic design
- 17-channel selectable, 72-76 MHz
- Digitally synthesized frequencies
- 1.25" OLED interface displays:
- master and aux volume level
- mic mute
- settings lock
- battery level
- Easy-to-use menu-access controls:
- microphone and auxiliary levels
- 8- or 17-channel mode selection
- current frequency/channel number
- compression (1.1 or 2.1)
- display settings
- MIC input accepts electret mic with 3.5 mm mono plug
- AUX audio input accepts 2.5 mm stereo plug (i.e for MP3 or CD player)
- Range of up to 150’ (with PPA R37 receiver)
- FCC Part 15 compliant
- Belt clip for hands-free operation
- Meets ADA guidelines
- Made in the USA
- Lifetime PLUS Limited Warranty (90 days on accessories)
| Dimensions | 4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm) |
| Weight | 2.6 oz (74 g), no batteries |
| Color | Black/Silver |
| Enclosure Material | Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate |
| Battery Type Options | Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 - 16 hours, uses CHG 3502 or CHG 3512 Charger |
| Operating Frequencies | Selectable, 17 channels, 72.1 - 75.9 MHz. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels) |
| Stability | ± .005%, frequency synthesized, crystal reference, PLL |
| Modulation | Wide-band FM, 75 kHz peak, 75 µS pre-emphasis |
| RF Output | 80 mV/m at 3 m (max. allowed by FCC rules) |
| Range | 150 ft/45 m |
| Frequency Response | 180 Hz to 13 kHz, ± 3 dB at 1% max. THD |
| Signal-to-Noise Ratio | 65 dB (typical) transmitted |
| Transmit Antenna | Integral with microphone cord |
| Microphone | Electret type, 3.5 mm mono plug |
| External Display | OLED for status and menu information. Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode. Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings |
| External Controls | Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door |
| External Indicators | Power LED - Green, flashes when battery is low |
| Mic Input | 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range |
| Aux Input | 2.5 mm stereo jack, adjustable gain with 60 dB range |
| Audio Compression | 1:1 (off) or 2:1 (on) selectable in menu |
| Compatible Receivers | PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600 |
| Approvals/Directives | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
The PPA T46 is FCC Part 15 compliant.
Effective July 11, 2016, the FCC has mandated tighter emissions limits on auditory assistance transmitters (72-76 MHz) manufactured or imported after this date to help avoid interference with and/or degradation of other airborne signals (All products manufactured prior to July 11, 2016, are compliant). Williams Sound FM transmitters - PPA T46, PPA T27 and PPA T45 (all models) - all have received a Grant of Certification from the FCC and are fully compliant/approved under this new mandate.
The PPA T46 transmitter will broadcast a speaker’s voice or audio program on one of 17 available channels, 72-76 MHz, to listeners using PPA R38 or PPA R37 receivers. The unit features flexible microphone and auxiliary input jacks, push-button on/off/mute controls, channel lock and selectable compression. The T46 has the ability to operate in dual channel mode, allowing the user to easily switch between two different transmitting channels, each with its own set up parameters. An OLED screen displays current operating status and menu information. The PPA T46 operates up to 30 hours on two (2) AA Alkaline batteries, and up to 20 hours with two (2) NiMH batteries. It has recharge capability when used with Williams Sound drop-in chargers. Lightweight and portable, the PPA T46 will operate at a range of up to 150 feet (46m) from the listening audience. Ideal for providing hearing assistance to students in the classroom, tour group participants, employee training, business meetings and more.
NOTE: The PPA R37-8 FM Receiver requires a transmitter operating on 72-76 MHz. The receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.
System Includes:
- (1) PPA T46 Transmitter
- (1) BAT 001-2 (2) AA Batteries
- (1) CLP 023 Belt Clip
- (1) WCA 087 Auxiliary Input Cable
Microphone sold separately
All items can be purchased separately
Features:
- Sleek, ergonomic design
- 17-channel selectable, 72-76 MHz
- Digitally synthesized frequencies
- 1.25" OLED interface displays:
- master and aux volume level
- mic mute
- settings lock
- battery level
- Easy-to-use menu-access controls:
- microphone and auxiliary levels
- 8- or 17-channel mode selection
- current frequency/channel number
- compression (1.1 or 2.1)
- display settings
- MIC input accepts electret mic with 3.5 mm mono plug
- AUX audio input accepts 2.5 mm stereo plug (i.e for MP3 or CD player)
- Range of up to 150’ (with PPA R37 receiver)
- FCC Part 15 compliant
- Belt clip for hands-free operation
- Meets ADA guidelines
- Made in the USA
- Lifetime PLUS Limited Warranty (90 days on accessories)
| Dimensions | 4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm) |
| Weight | 2.6 oz (74 g), no batteries |
| Color | Black/Silver |
| Enclosure Material | Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate |
| Battery Type Options | Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 - 16 hours, uses CHG 3502 or CHG 3512 Charger |
| Operating Frequencies | Selectable, 17 channels, 72.1 - 75.9 MHz. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels) |
| Stability | ± .005%, frequency synthesized, crystal reference, PLL |
| Modulation | Wide-band FM, 75 kHz peak, 75 µS pre-emphasis |
| RF Output | 80 mV/m at 3 m (max. allowed by FCC rules) |
| Range | 150 ft/45 m |
| Frequency Response | 180 Hz to 13 kHz, ± 3 dB at 1% max. THD |
| Signal-to-Noise Ratio | 65 dB (typical) transmitted |
| Transmit Antenna | Integral with microphone cord |
| Microphone | Electret type, 3.5 mm mono plug |
| External Display | OLED for status and menu information. Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode. Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings |
| External Controls | Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door |
| External Indicators | Power LED - Green, flashes when battery is low |
| Mic Input | 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range |
| Aux Input | 2.5 mm stereo jack, adjustable gain with 60 dB range |
| Audio Compression | 1:1 (off) or 2:1 (on) selectable in menu |
| Compatible Receivers | PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600 |
| Approvals/Directives | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
The PPA T46 is FCC Part 15 compliant.
Effective July 11, 2016, the FCC has mandated tighter emissions limits on auditory assistance transmitters (72-76 MHz) manufactured or imported after this date to help avoid interference with and/or degradation of other airborne signals (All products manufactured prior to July 11, 2016, are compliant). Williams Sound FM transmitters - PPA T46, PPA T27 and PPA T45 (all models) - all have received a Grant of Certification from the FCC and are fully compliant/approved under this new mandate.
