Williams AV TGS PRO 737 Personal PA Tour Guide System



  • Dale #:

    WISO-TGSPRO737

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The TGS Pro 737 is a lightweight, single-channel system that helps tour participants with hearing difficulties listen directly to the tour guide and control their own volume. Ensures wireless/effortless communication between guide and participants. Combines superior audio with easy-to-use control... Read More

Retail Price: $2,625.00 Our Price: $2,367.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The TGS Pro 737 is a lightweight, single-channel system that helps tour participants with hearing difficulties listen directly to the tour guide and control their own volume. Ensures wireless/effortless communication between guide and participants. Combines superior audio with easy-to-use controls. No installation required--save time and money. Designed to meet Americans with Disabilities Act (ADA) accessibility requirements.

Features:

  • Allows full freedom of movement for tour group
  • Easy set-up, simple operation
  • Single-channel, field-tunable receiver
  • Auxiliary input—broadcast any audio source
  • Belt clips included for hands-free operation
  • 5-year warranty (90 days on accessories)

More +

Product Specs

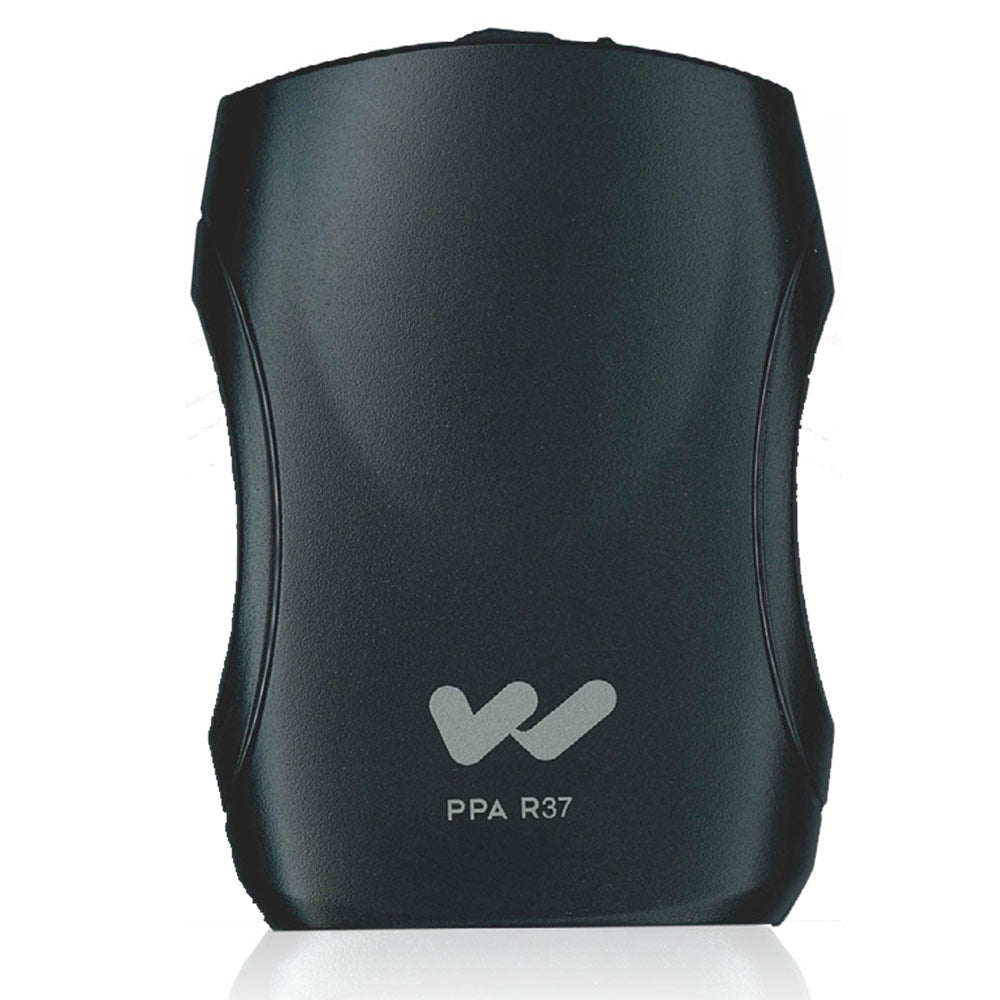

PPA R37
Dimensions4.1” x 2.85” x 1.38” (104 x 72 x 35mm)
Weight4.6oz (130g) with batteries. 2.6oz (73g) without batteries
ColorBlack
Battery Type(2) AA Alkaline or 2 x AA NiMH
Battery LifeTwo (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
Current Consumption52mA nominal
Temperature Range– 0 to 50C
Channels17, accessed via seek button in battery compartment
Operating Freq.72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
Intermediate Freq.75 kHz
FM Deviation75 kHz
De-Emphasis75 µS
LED IndicatorPower: Green; Low Battery: Flashes Green
AFC Range± 120 kHz
Sensitivity2 µV at 12 dB Sinad with squelch defeated
Input Overload100 mV
Frequency Response200 – 15 kHz
ModulationFM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio65 dB min @ 100 uV
Receive AntennaIntegral with earphone/headphone cord
Audio Output35 mW max, peak into 16 ohms
Output Connector3.5 mm stereo/mono phone jack
EarphoneEarbud-type with foam cushion, 3.5 mm plug, 32 Ω
Auto Shut-offEnters sleep mode after approx 6 mins of no RF signal
ApprovalsFCC, Industry Canada, RoHS, WEEE
WarrantyLifetime PLUS Limited Warranty, 90 Days on most accessories.
PPA T36
Dimensions4.1” L x 2.8” W x 1.1” H (104 mm x 71 mm x 28 mm)
Weight2.6 oz (74 g), no batteries
ColorBlack, shatter-resistant PC/ABS plastic
Battery TypeTwo (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx. life
Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026), 70 mA nominal current drain, 20 hours per charge approx., recharges in 14–16 hours, uses CHG 3502 or CHG 3512 Charger
Operating FrequenciesSelectable, 16 channels, 72.1 – 75.9 MHz* (channels 1-8 correspond with R35-8 receiver channels and PPA R1600)
Stability± .005%, frequency synthesized, crystal reference, PLL
ModulationWide-band FM, 75 kHz pk, 75 µS pre-emphasis
RF Output80 mV/m at 3 m (max. allowed by FCC rules)
Frequency Response200 Hz to 13 kHz, ± 3 dB at 1% max. THD
Signal-to-Noise Ratio65 dB (typical) transmitted
Transmit AntennaIntegral with microphone cord
MicrophoneElectret type, 3.5 mm mono phone plug
External ControlsMomentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off; Rotary sixteen channel switch (with internal channel lock switch)
Mic Input3.5 mm mono phone jack with electret mic bias, internal adjustable gain with 25 dB range
Aux Input2.5 mm stereo phone jack, internal adjustable gain with 60 dB range
Audio Compression1:1 or 2:1 ratio selected with internal slide switch
Compatible ReceiversPFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R35-8, PPA R1600
Approvals/DirectivesFCC, Industry Canada, RoHS, WEEE
WarrantyLifetime PLUS Limited Warranty, 90 Days on most accessories.
