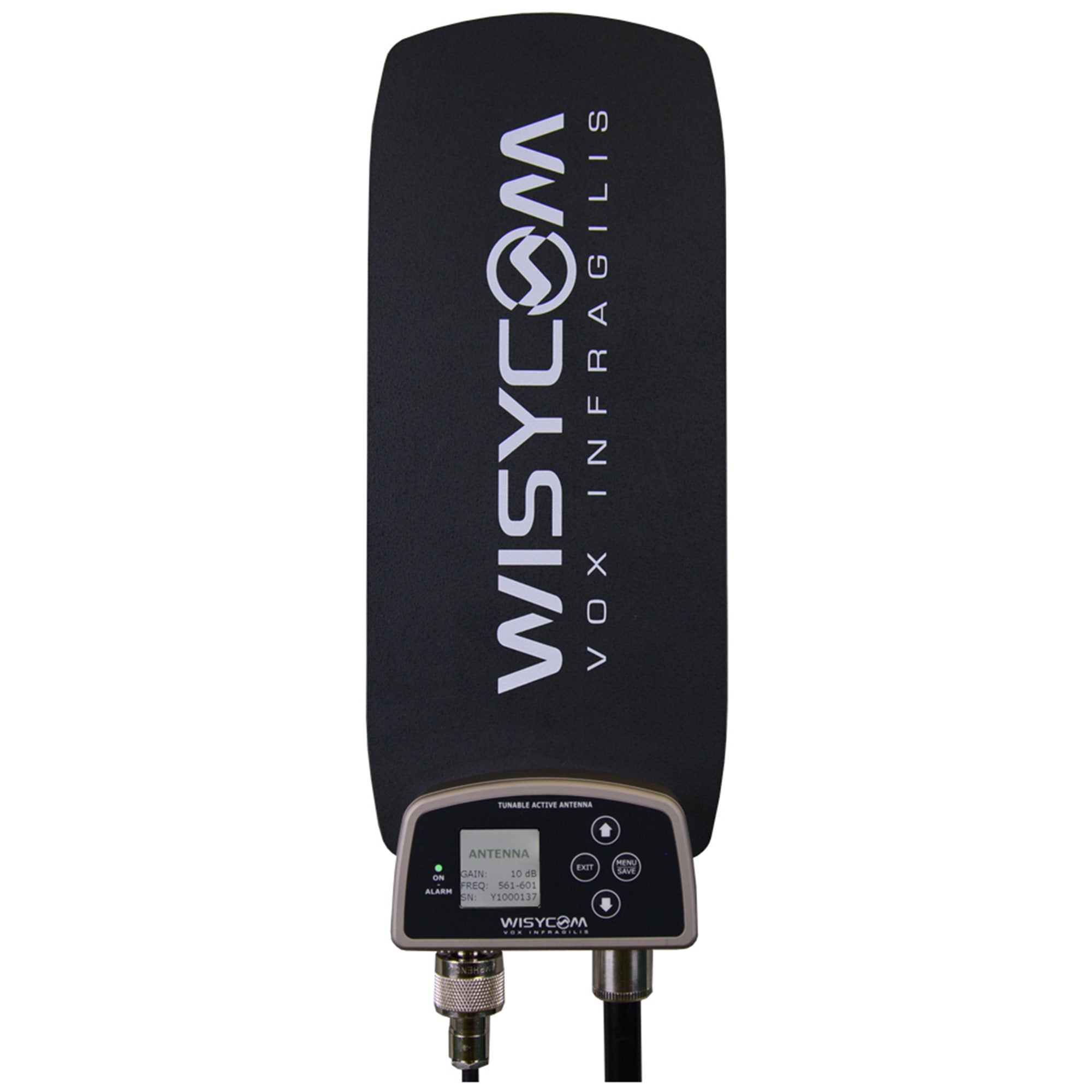

Wisycom ADFA-B-F2 - Omnidirectional Wideband Antenna with Tunable Filter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ADFA is an omnidirectional antenna with a unique design to achieve an ultrawideband of 430 -1160 MHz. ADFA integrate a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable. Using the latest Wisycom filter technology, ADFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.
Features:
- Huge reception band: 430-1160 MHz
- Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216)
- RF gain from -12 to +27 dBu (1 dB step)
- Easy configuration thru a TFT display
- Tunable filter for interference control
- Antenna off for RF zone disabling
- Fixed band saw filter
- 3 High Pass and 3 Low Pass filters
- Waterproof with gasket sealing
| Frequency ranges | 430 Ö 1160 MHz |
| Filter range | ¥ Tunable: 430 Ö 730 MHz (UHF), 40MHz of BW ¥ Fixed: 940 Ö 960 MHz or 1240 Ö 1260MHz ¥ Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option) |
| Polarization | Vertical |
| Radiation | Omnidirectional |
| Connector | N or BNC |
| Impedance | 50 ? |
| Booster Gain: | -12 Ö 27 dB typical (1 dB step selection) 0.8 dB attenuation (bypassed) |
| Booster Gain flatness | ± 1 dB, in the whole working window |
| Display | TFT Ð transflective (176 x 176 pixels, RGB) |
| Power supply | +12 V, 100mA |
| Operating voltage range | 9.5 Ö 16 Vdc |
| Material | epoxy fiberglass with skeletal design |
| Finishing | black matte textured weather resistance coating |
| Mounting | 5/8" with worth or 3/8" with adapter |
| Dimensions | 305x 111 x 28 mm (HxWxD) |
| Weight | 315 g (BNC), 365 g (N) |
ADFA is an omnidirectional antenna with a unique design to achieve an ultrawideband of 430 -1160 MHz. ADFA integrate a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable. Using the latest Wisycom filter technology, ADFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.
Features:
- Huge reception band: 430-1160 MHz
- Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216)
- RF gain from -12 to +27 dBu (1 dB step)
- Easy configuration thru a TFT display
- Tunable filter for interference control
- Antenna off for RF zone disabling
- Fixed band saw filter
- 3 High Pass and 3 Low Pass filters
- Waterproof with gasket sealing
| Frequency ranges | 430 Ö 1160 MHz |
| Filter range | ¥ Tunable: 430 Ö 730 MHz (UHF), 40MHz of BW ¥ Fixed: 940 Ö 960 MHz or 1240 Ö 1260MHz ¥ Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option) |
| Polarization | Vertical |
| Radiation | Omnidirectional |
| Connector | N or BNC |
| Impedance | 50 ? |
| Booster Gain: | -12 Ö 27 dB typical (1 dB step selection) 0.8 dB attenuation (bypassed) |
| Booster Gain flatness | ± 1 dB, in the whole working window |
| Display | TFT Ð transflective (176 x 176 pixels, RGB) |
| Power supply | +12 V, 100mA |
| Operating voltage range | 9.5 Ö 16 Vdc |
| Material | epoxy fiberglass with skeletal design |
| Finishing | black matte textured weather resistance coating |
| Mounting | 5/8" with worth or 3/8" with adapter |
| Dimensions | 305x 111 x 28 mm (HxWxD) |
| Weight | 315 g (BNC), 365 g (N) |
