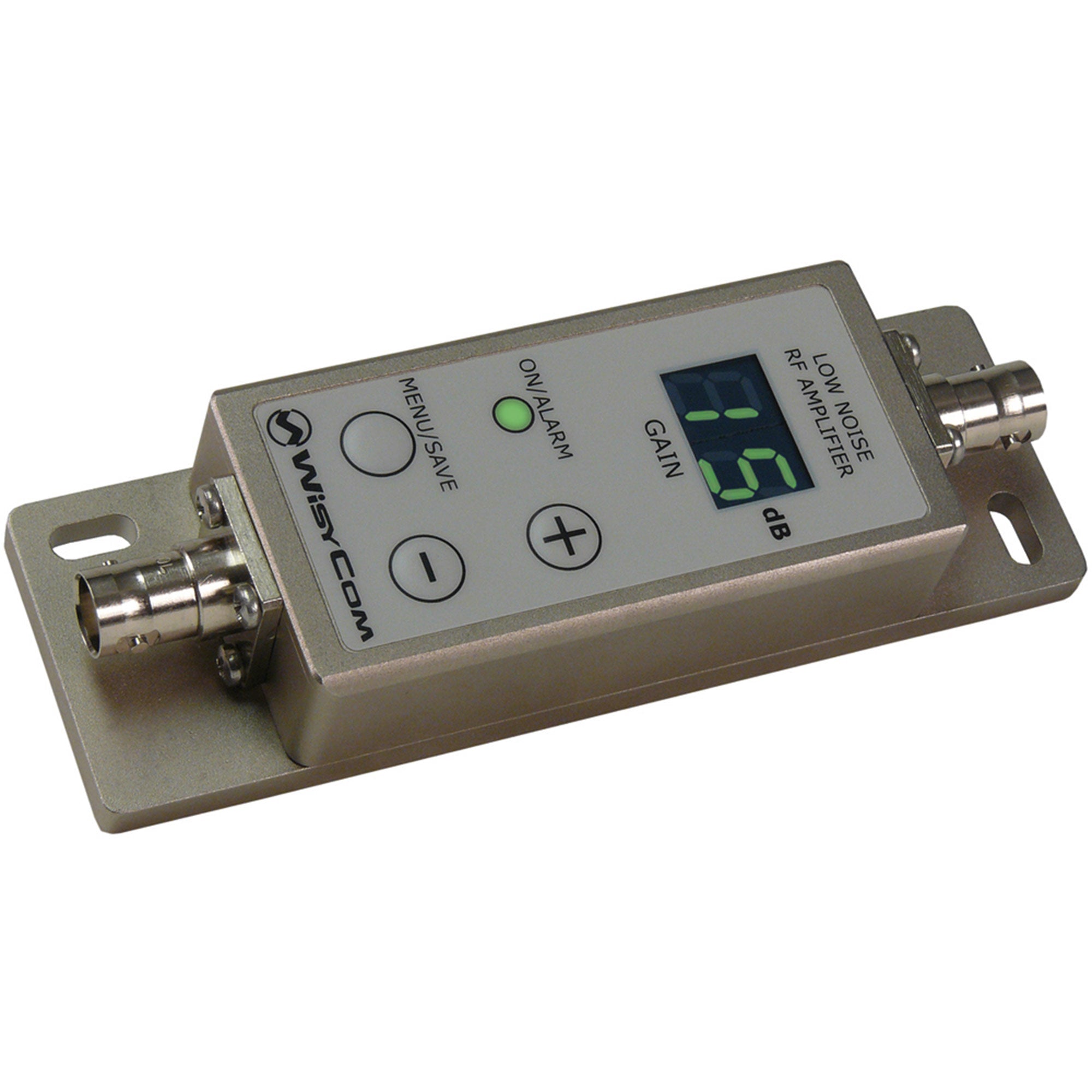

Wisycom BAA - Wideband Antenna Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BAA is a wideband antenna booster especially designed to allow to use long cables with broadband wireless receiver system working in 470 – 870 MHz (TV ch 21/70) thanks to a very high OIP3 of 40 dBm.
Features:
- Broadband operations 470-870 MHz
- Very high linearity (OIP3 of over 40 dBm)
- Up to 16 dB gain settable in one dB step
- Powered thru cable
- Power feedthrough selectable for cascade operation of several BAAs
| Frequency ranges | 470 Ö 870 MHz |
| SWR | < 1:1.5; typ. = 1:1.4 |
| Connector | BNC-female type |
| Impedance | 50 ? |
| Booster Gain: | 0 Ö 15 dB (typical), selectable in step of 1 dB (+/- button) |
| Booster Gain flatness | ± 1 dB, in the whole working window |
| OIP3 | +43 dBm (Output 3¡ order Intercept Point) typical. |
| Display | multi-colored (RGB) led |
| Power supply | +12 V, 100mA+100mA ( if power input activated) [MAX: 12V/300mA] |
| Material | ruggedized aluminum, with waterproof sealing (suitable for outdoor installations) |
| Mounting | 2 holes for wall-installation (M4 screw type) |
| Dimensions | 120 x 39 x 24 mm (HxWxD) |
| Weight | 160g |
The BAA is a wideband antenna booster especially designed to allow to use long cables with broadband wireless receiver system working in 470 – 870 MHz (TV ch 21/70) thanks to a very high OIP3 of 40 dBm.
Features:
- Broadband operations 470-870 MHz
- Very high linearity (OIP3 of over 40 dBm)
- Up to 16 dB gain settable in one dB step
- Powered thru cable
- Power feedthrough selectable for cascade operation of several BAAs
| Frequency ranges | 470 Ö 870 MHz |
| SWR | < 1:1.5; typ. = 1:1.4 |
| Connector | BNC-female type |
| Impedance | 50 ? |
| Booster Gain: | 0 Ö 15 dB (typical), selectable in step of 1 dB (+/- button) |
| Booster Gain flatness | ± 1 dB, in the whole working window |
| OIP3 | +43 dBm (Output 3¡ order Intercept Point) typical. |
| Display | multi-colored (RGB) led |
| Power supply | +12 V, 100mA+100mA ( if power input activated) [MAX: 12V/300mA] |
| Material | ruggedized aluminum, with waterproof sealing (suitable for outdoor installations) |
| Mounting | 2 holes for wall-installation (M4 screw type) |
| Dimensions | 120 x 39 x 24 mm (HxWxD) |
| Weight | 160g |
