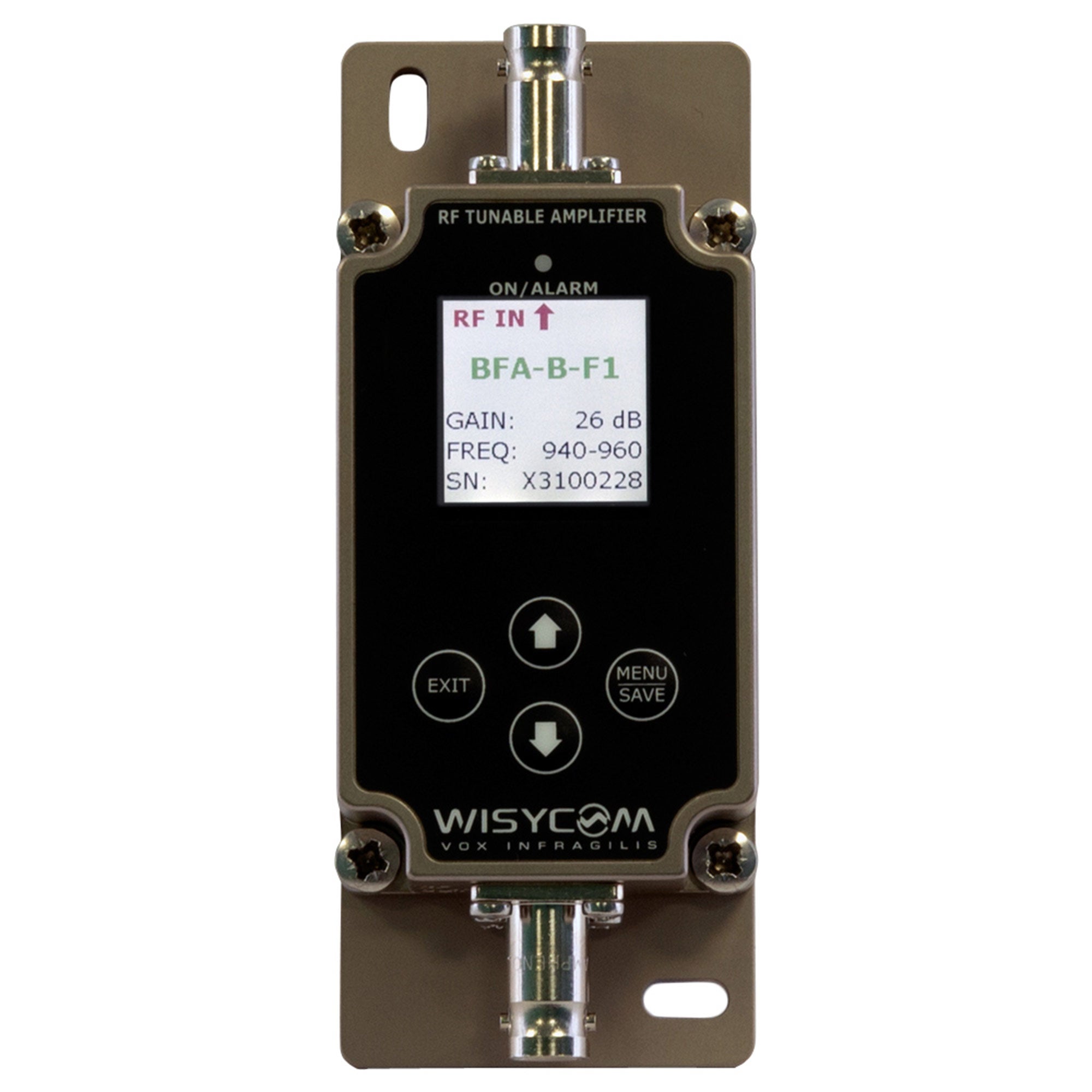

Wisycom BFA - Wideband Active Amplifier with Remote Controlled Filters
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BFA integrates a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable. Using the latest Wisycom filter technology, BFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.
Features:
- Huge reception band: 410-1300 MHz
- Remote controllable thru coax cable
- RF gain from -12 to +27 dB (1 dB step)
- Easy configuration thru a TFT display
- Tunable filter for interference control
- Antenna off for RF zone disabling
- Fixed band saw filter
- Pass thru DC selectable for device cascading
- 3 High Pass and 3 Low Pass filters
- Waterproof with gasket sealing
| Frequency ranges | 410 Ö 1300 MHz |
| Filter range | ¥ Tunable: 430 Ö 730 MHz (UHF), 40MHz of BW ¥ Fixed: 940 Ö 960 MHz or 1240 Ö 1260MHz ¥ Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option) |
| Connector | N or BNC |
| Impedance | 50 ? |
| Booster Gain: | -12 Ö 27 dB typical (1 dB step selection) 0.8 dB attenuation (bypassed) and RF OFF function |
| Booster Gain flatness | ± 1 dB, in the whole working window |
| Display | TFT Ð transflective (176 x 176 pixels, RGB) |
| Power supply | +12 V, 100mA |
| Operating voltage range | 9.5 Ö 16 Vdc |
| Weight | 250 g |
The BFA integrates a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable. Using the latest Wisycom filter technology, BFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.
Features:
- Huge reception band: 410-1300 MHz
- Remote controllable thru coax cable
- RF gain from -12 to +27 dB (1 dB step)
- Easy configuration thru a TFT display
- Tunable filter for interference control
- Antenna off for RF zone disabling
- Fixed band saw filter
- Pass thru DC selectable for device cascading
- 3 High Pass and 3 Low Pass filters
- Waterproof with gasket sealing
| Frequency ranges | 410 Ö 1300 MHz |
| Filter range | ¥ Tunable: 430 Ö 730 MHz (UHF), 40MHz of BW ¥ Fixed: 940 Ö 960 MHz or 1240 Ö 1260MHz ¥ Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option) |
| Connector | N or BNC |
| Impedance | 50 ? |
| Booster Gain: | -12 Ö 27 dB typical (1 dB step selection) 0.8 dB attenuation (bypassed) and RF OFF function |
| Booster Gain flatness | ± 1 dB, in the whole working window |
| Display | TFT Ð transflective (176 x 176 pixels, RGB) |
| Power supply | +12 V, 100mA |
| Operating voltage range | 9.5 Ö 16 Vdc |
| Weight | 250 g |
