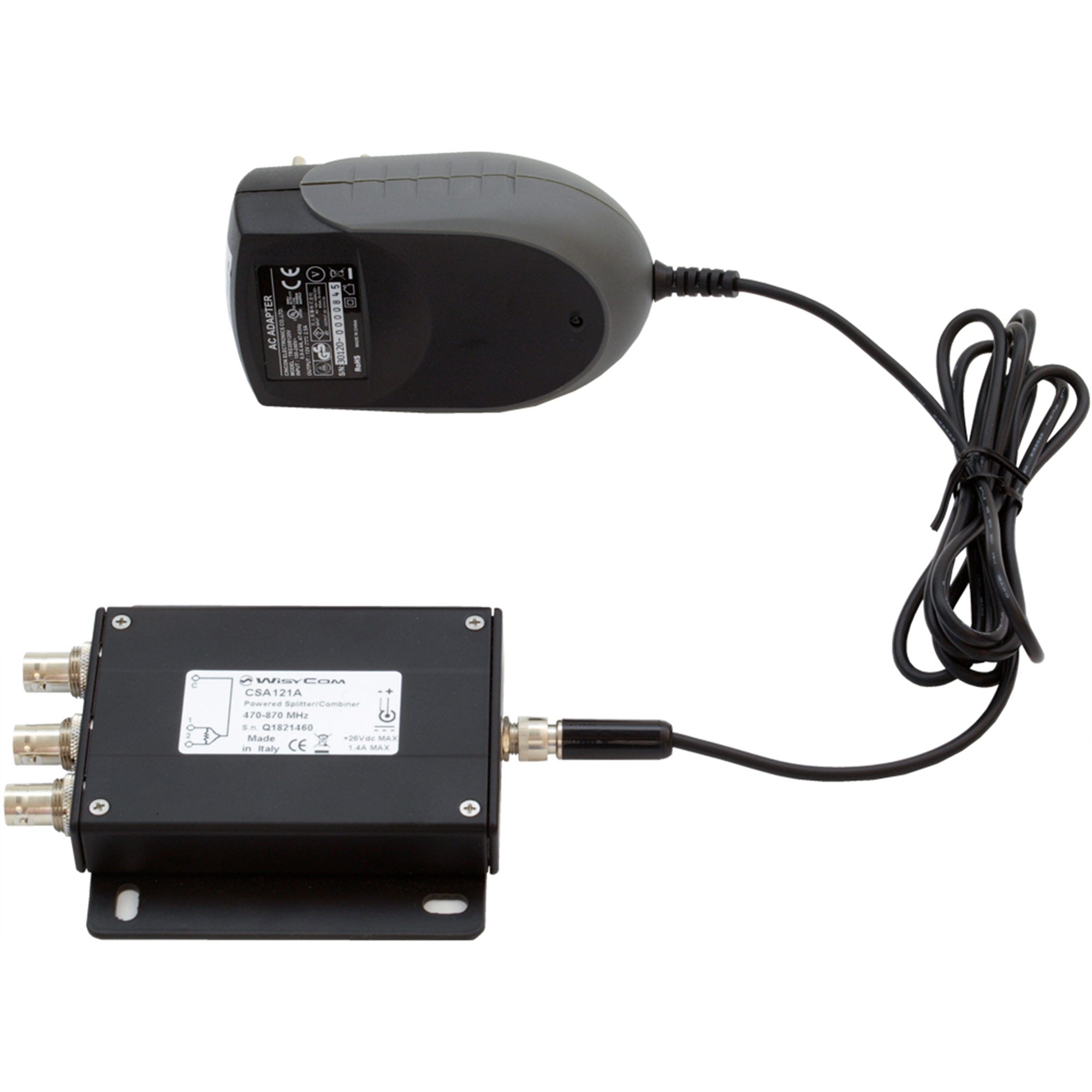

Wisycom CSA121-A - Active Wideband Antenna Combiner / Splitter
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
CSA121A is designed to combine different areas, covered by antennas in diversity configuration. CSA121A is DC-coupled for use with antenna booster: it can handle up to 1.5 Amp without saturation for high power booster (BAW) powering. Mounting plate hole M5. It is supplied with a power supply for the booster voltage. In case a booster voltage is not needed, use the CSA221 to have a double splitter combiner.
Features:
- Small and compact splitter/combiner, stripline construction
- Wide band operation
- Supplied with 230/110 Vac power supply with locking connector (only CSA121A)
| Frequency ranges | 470 - 960 MHz (CSA121A) 470 - 870 MHz (CSA121B and CSA121T) |
| Splitter/Combiner loss | 4dB |
| Max Input power | 125mW (CSA121A) 2W (CSA121B) 3W (CSA121T) |
| Connector | 3 BNC-F |
| Impedance | 50 ? |
| Power supply | 230/110 Vac (CSA121A) |
| Max current thru port | 1,5A (CSA121A) |
| Material | aluminum |
| Finishing | black varnish |
| Mounting | mounting plate holes (M5 screw type) |
| Dimensions | 20 x 100 x 125 mm (HxWxD) |
| Weight | 170 g (CSA121A), 220g (CSA121B), 235g (CSA121T) |
CSA121A is designed to combine different areas, covered by antennas in diversity configuration. CSA121A is DC-coupled for use with antenna booster: it can handle up to 1.5 Amp without saturation for high power booster (BAW) powering. Mounting plate hole M5. It is supplied with a power supply for the booster voltage. In case a booster voltage is not needed, use the CSA221 to have a double splitter combiner.
Features:
- Small and compact splitter/combiner, stripline construction
- Wide band operation
- Supplied with 230/110 Vac power supply with locking connector (only CSA121A)
| Frequency ranges | 470 - 960 MHz (CSA121A) 470 - 870 MHz (CSA121B and CSA121T) |
| Splitter/Combiner loss | 4dB |
| Max Input power | 125mW (CSA121A) 2W (CSA121B) 3W (CSA121T) |
| Connector | 3 BNC-F |
| Impedance | 50 ? |
| Power supply | 230/110 Vac (CSA121A) |
| Max current thru port | 1,5A (CSA121A) |
| Material | aluminum |
| Finishing | black varnish |
| Mounting | mounting plate holes (M5 screw type) |
| Dimensions | 20 x 100 x 125 mm (HxWxD) |
| Weight | 170 g (CSA121A), 220g (CSA121B), 235g (CSA121T) |
