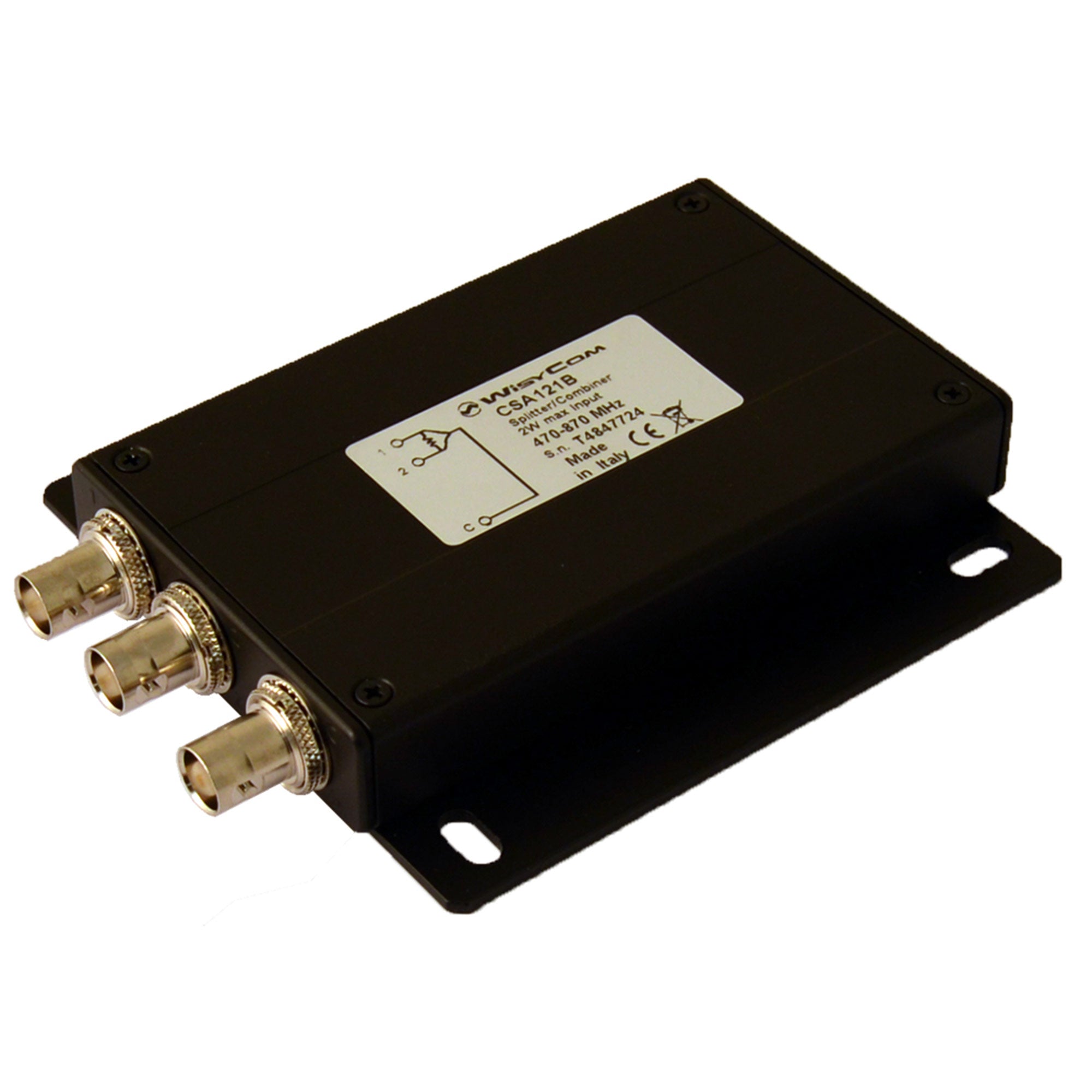

Wisycom CSA121-B - Passive Wideband Antenna Combiner / Splitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Wisycom CSA121-B - Passive Wideband Antenna Combiner / Splitter
Sale price$324.00
Regular price$360.00
Description
CSA121B is a passive wideband splitter/combiner designed to work up to 2W of power.
Features:
- Small and compact splitter/combiner, stripline construction
- Wide band operation
- High input power up to 2W (CSA121B)
| Frequency ranges | 470 - 960 MHz (CSA121A) 470 - 870 MHz (CSA121B and CSA121T) |
| Splitter/Combiner loss | 4dB |
| Max Input power | 125mW (CSA121A) 2W (CSA121B) 3W (CSA121T) |
| Connector | 3 BNC-F |
| Impedance | 50 ? |
| Power supply | 230/110 Vac (CSA121A) |
| Max current thru port | 1,5A (CSA121A) |
| Material | aluminum |
| Finishing | black varnish |
| Mounting | mounting plate holes (M5 screw type) |
| Dimensions | 20 x 100 x 125 mm (HxWxD) |
| Weight | 170 g (CSA121A), 220g (CSA121B), 235g (CSA121T) |
