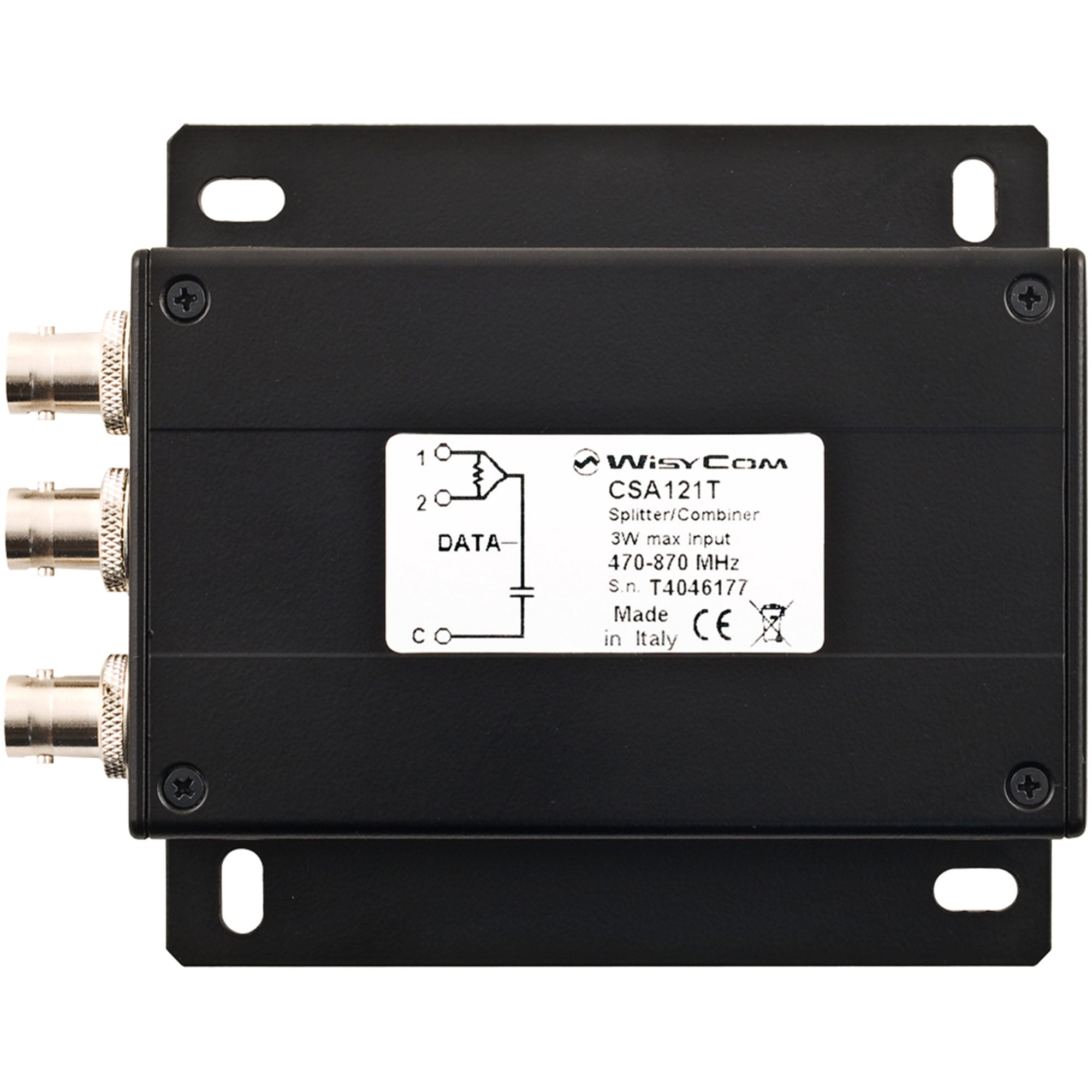

Wisycom CSA121-T = Passive Wideband Antenna Combiner / Splitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CSA121T is a passive wideband splitter/combiner designed to work up to 3W of power. CSA121T becomes a smart combiner when used with Wisycom transmitter MTK952N: thanks to which the combiner loss is recovered.
Features:
- Small and compact splitter/combiner, stripline construction
- Wide band operation
- High input power up to 3 W (CSA121T)
- Used with MTK952N, permits to recover the combiner loss (only CSA121T)
| Frequency ranges | 470 - 960 MHz (CSA121A) 470 - 870 MHz (CSA121B and CSA121T) |
| Splitter/Combiner loss | 4dB |
| Max Input power | 125mW (CSA121A) 2W (CSA121B) 3W (CSA121T) |
| Connector | 3 BNC-F |
| Impedance | 50 ? |
| Power supply | 230/110 Vac (CSA121A) |
| Max current thru port | 1,5A (CSA121A) |
| Material | aluminum |
| Finishing | black varnish |
| Mounting | mounting plate holes (M5 screw type) |
| Dimensions | 20 x 100 x 125 mm (HxWxD) |
| Weight | 170 g (CSA121A), 220g (CSA121B), 235g (CSA121T) |
