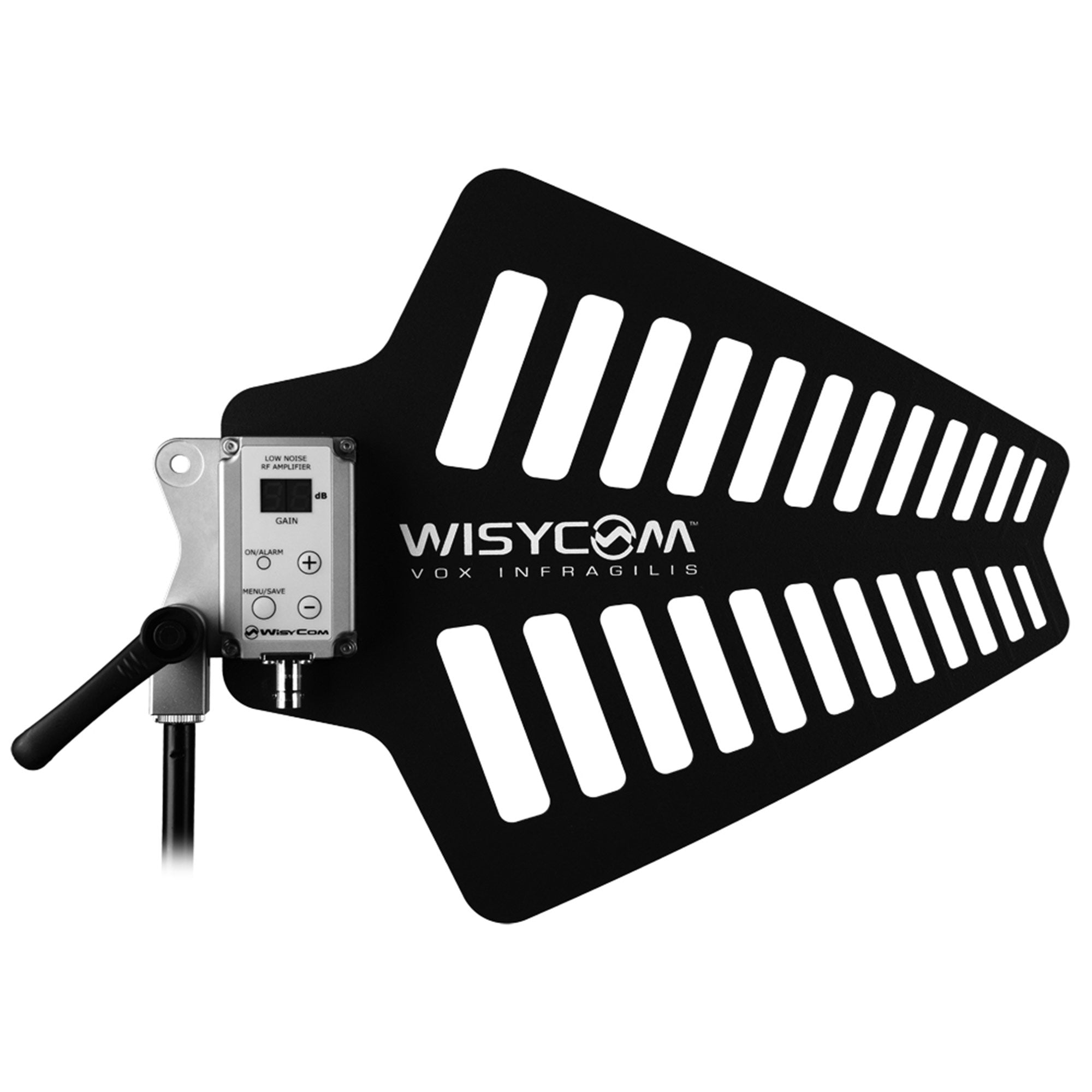

Wisycom LBNA2 - Directional Wideband Active Antenna with BNC Connector



  • Dale #:

    WISY-LBNA2

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

LBNA2/LNNA2 is a wideband UHF antenna LPDA (log periodic dipole Array). It enhances reception providing approx. 6dB gain with a typical beam-width of 90 degrees. Features: AGILE: working bandwidth of 470-870 MHz EASY AND QUICK TO USE: LED display and function buttons RUGGEDIZED: sturd... Read More

Retail Price: $644.00 Our Price: $580.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

LBNA2/LNNA2 is a wideband UHF antenna LPDA (log periodic dipole Array). It enhances reception providing approx. 6dB gain with a typical beam-width of 90 degrees.

Features:

  • AGILE: working bandwidth of 470-870 MHz
  • EASY AND QUICK TO USE: LED display and function buttons
  • RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints
  • HIGH-PERFORMANCES: optimized 6dB gain with a typical beam-width of 90 degrees
  • INTEGRATED BOOSTER: very high linear booster (OIP3 40 dBm) with 15 dB gain settable in one step dB step

More +

Product Specs

Frequency ranges 470 ÷ 870 MHz (420 ÷ 1300 MHz bypassed)
SWR 1:1.5; typ. = 1:1.4
Polarization Vertical
Radiation Directional
Connector N type (BNC adapter available)
Impedance 50 ?
Booster Gain: 0 ÷ 15 dB (typical), selectable in step of 1 dB (+/- button)
Booster Gain flatness ± 1 dB, in the whole working window
OIP3 +43 dBm (Output 3° order Intercept Point) typical
Power supply +12 V, 100mA
Material epoxy fiberglass (copper – clad)
Finishing black matte
Mounting 5/8" with worth or 3/8" with adapter
Dimensions 276 x 336 x 61 mm (HxWxD)
Weight 535 g (LBNA2), 585 g (LNNA2)
