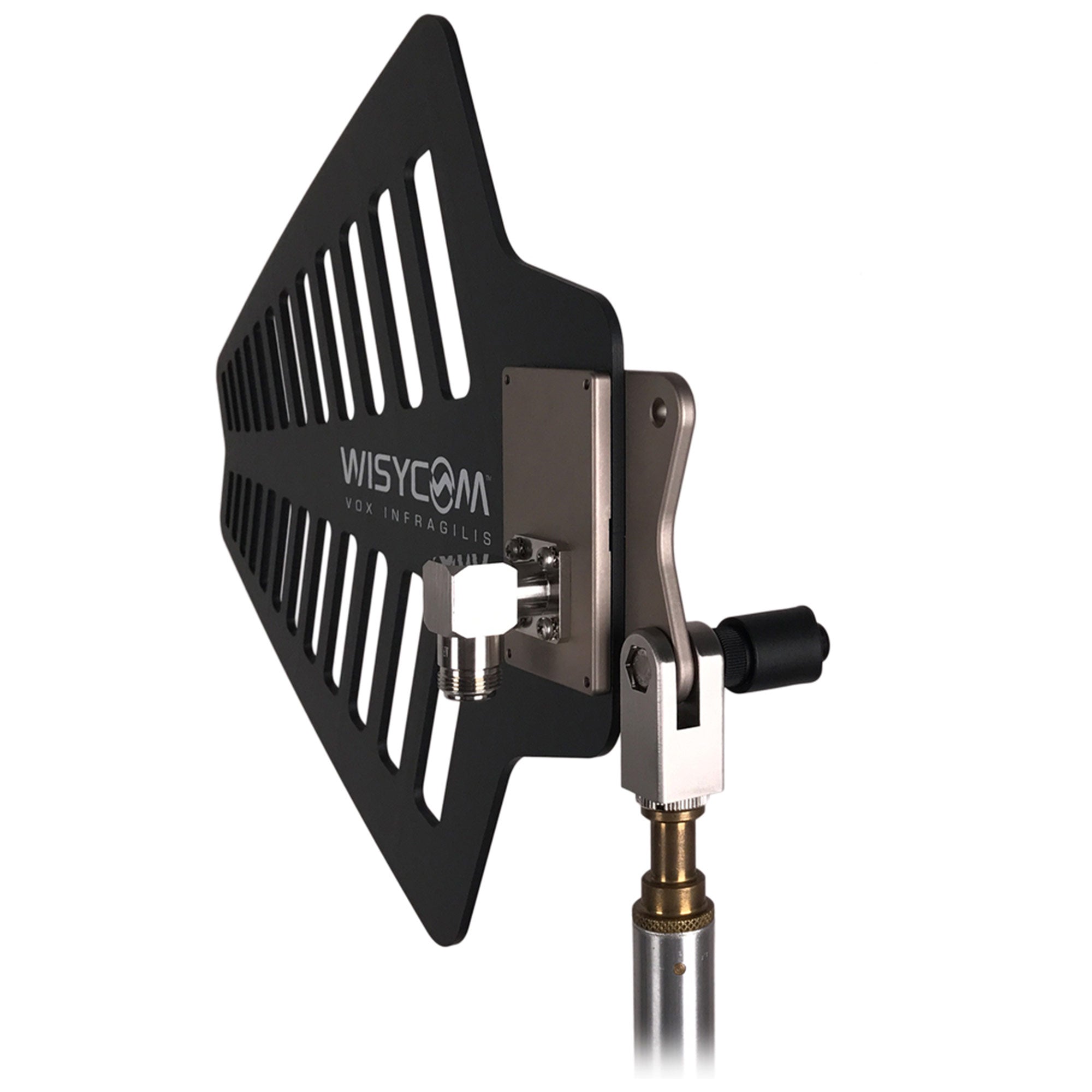

Wisycom LNN2 - Directional Wideband Passive Antenna with N Connector
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

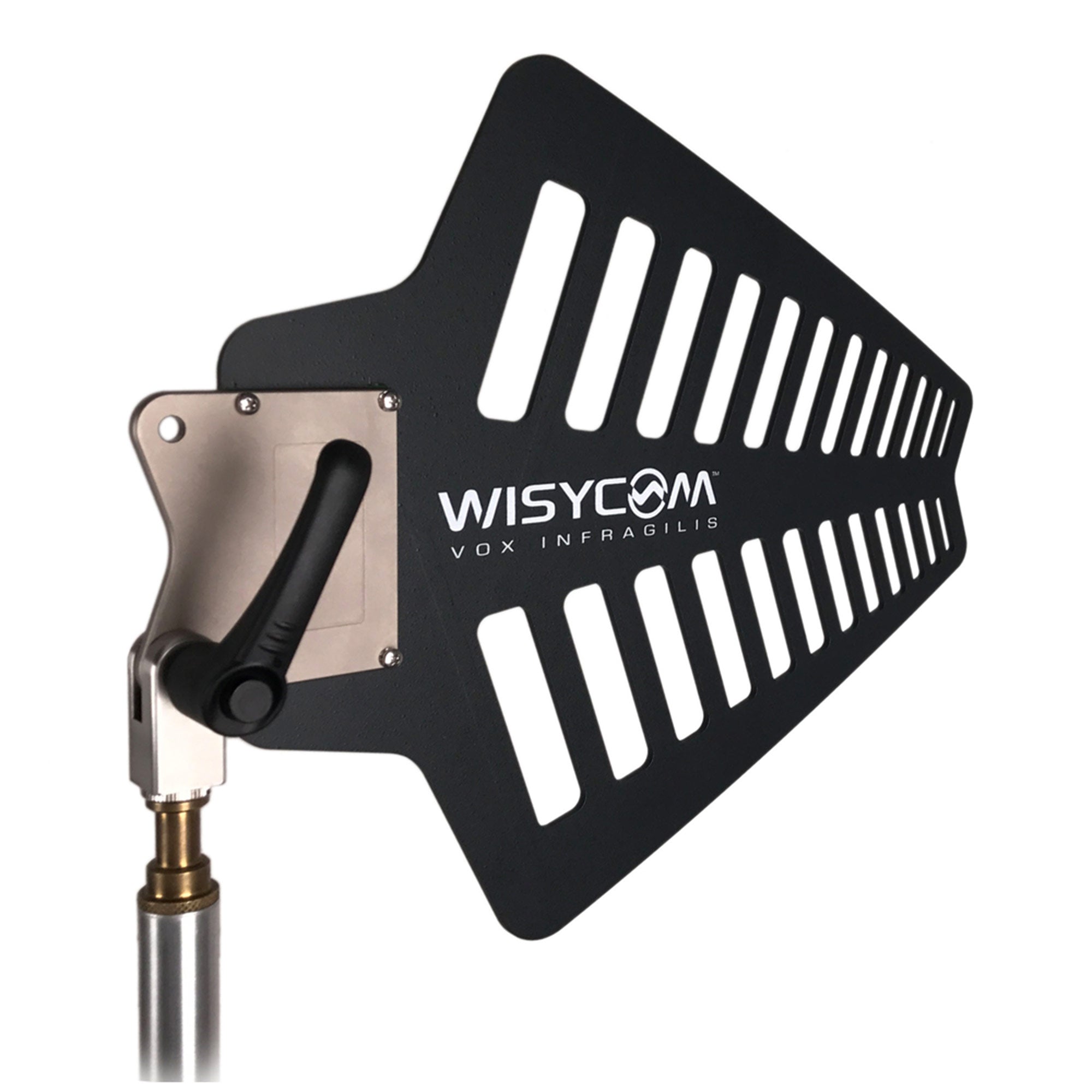

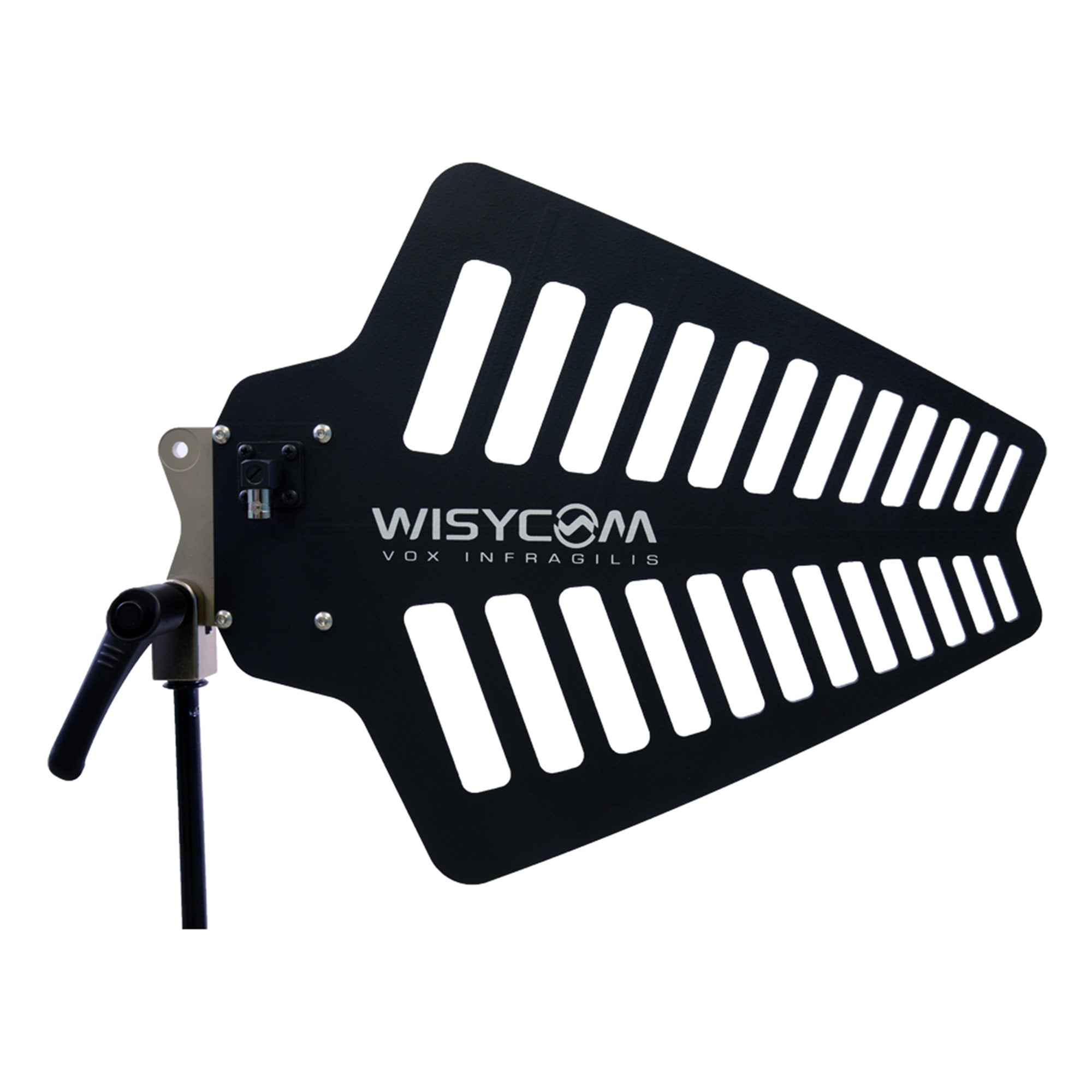

LBN2/LNN2 is a wideband UHF antenna LPDA (log periodic dipole Array). It enhances reception providing approx. 6 dBi gain with a typical beam-width of 140 degrees. LBN2 is provided with BNC connector, or LNN2 is provided with N connector.
Features:
- Skeletal Design for Minimal Wind Loading
- Bend elements for maximal directionality with minimum size (6 dBi gain)
- Future proof huge reception bandwidth 420-1300 GHz
- Robust metal support with fine slope tuning
- Full metal support and mounting base
- Textured Weather-Resistant Coating
- Waterproof with gasket sealing
- BNC or N connector available
| Frequency ranges | 420 Ö 1300 MHz |
| SWR | 1:1.5; typ. = 1:1.4 |
| Polarization | Vertical |
| Radiation | Directional |
| Connector | N type (BNC adapter available) |
| Impedance | 50 ? |
| Material | epoxy fiberglass (copper Ð clad) |
| Finishing | black matte |
| Mounting | 5/8" with worth or 3/8" with adapter |
| Dimensions | 276 x 336 x 61 mm (HxWxD) |
| Weight | 500g (LBN2), 550g (LNN2) |
LBN2/LNN2 is a wideband UHF antenna LPDA (log periodic dipole Array). It enhances reception providing approx. 6 dBi gain with a typical beam-width of 140 degrees. LBN2 is provided with BNC connector, or LNN2 is provided with N connector.
Features:
- Skeletal Design for Minimal Wind Loading
- Bend elements for maximal directionality with minimum size (6 dBi gain)
- Future proof huge reception bandwidth 420-1300 GHz
- Robust metal support with fine slope tuning
- Full metal support and mounting base
- Textured Weather-Resistant Coating
- Waterproof with gasket sealing
- BNC or N connector available
| Frequency ranges | 420 Ö 1300 MHz |
| SWR | 1:1.5; typ. = 1:1.4 |
| Polarization | Vertical |
| Radiation | Directional |
| Connector | N type (BNC adapter available) |
| Impedance | 50 ? |
| Material | epoxy fiberglass (copper Ð clad) |
| Finishing | black matte |
| Mounting | 5/8" with worth or 3/8" with adapter |
| Dimensions | 276 x 336 x 61 mm (HxWxD) |
| Weight | 500g (LBN2), 550g (LNN2) |
