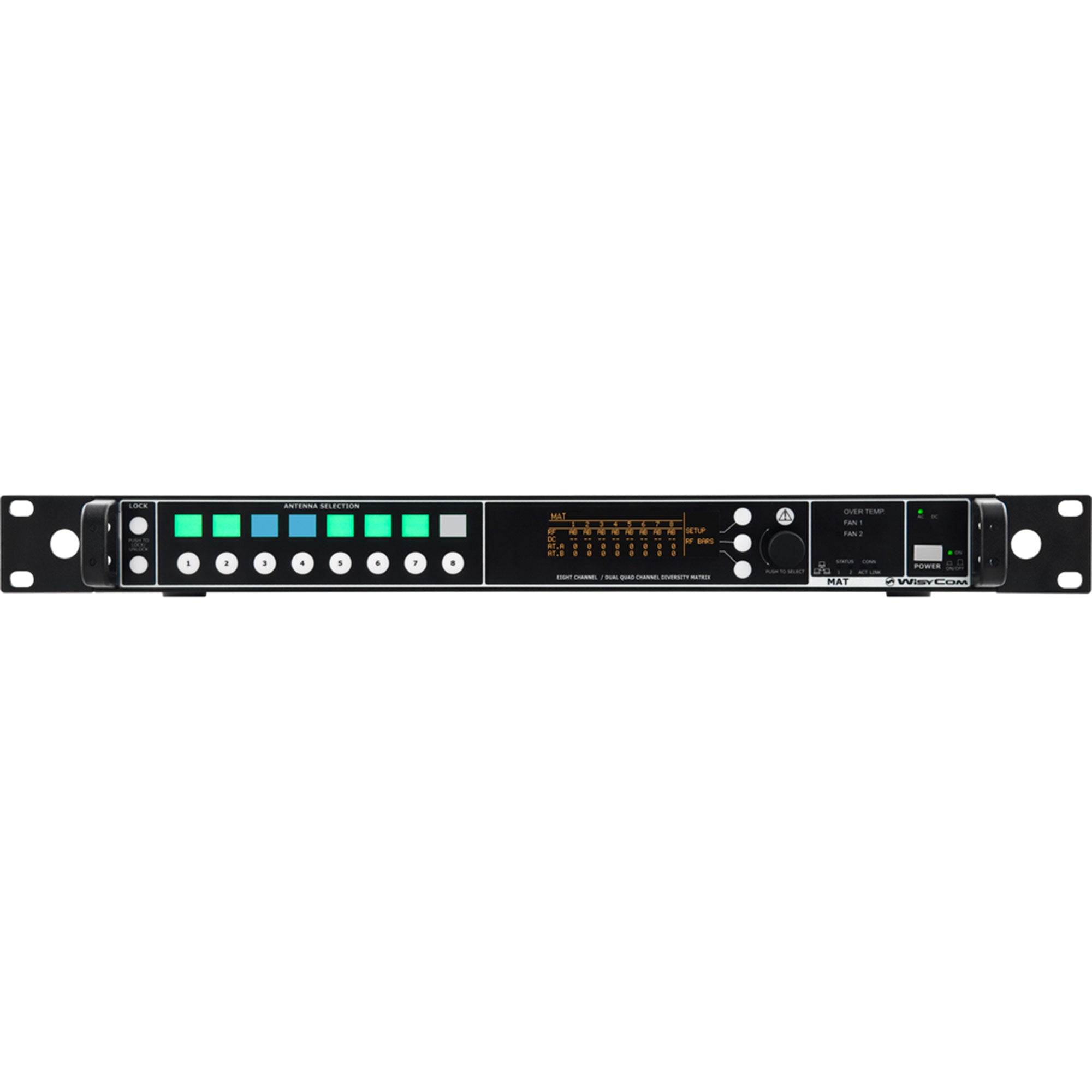

Wisycom MAT244-X1-DC - Wideband Programmable Diversity Matrix / Combiner


  • Dale #:

    WISY-MAT244X1DC
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

MAT288 WIDEBAND DIVERSITY MATRIX/COMBINER: 150-1160 MHz, Matrix selections include 8:1 or 8:4 or 2 x 4:1 (diversity). Programmable input attenuators. Manage Wisycom Smart Antennas with DC input, Redundant power supply sold separately (AL1265XF) MAT244 is very flexible combiner especially designe... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

MAT288 WIDEBAND DIVERSITY MATRIX/COMBINER: 150-1160 MHz, Matrix selections include 8:1 or 8:4 or 2 x 4:1 (diversity). Programmable input attenuators. Manage Wisycom Smart Antennas with DC input, Redundant power supply sold separately (AL1265XF)

MAT244 is very flexible combiner especially designed to manage RF in a multi-site production environment.
It can:
– route RF in several possible configurations
– control antenna remotely,
– manage attenuation/boost for the different areas,
– monitor RF and interferences thru and integrated RF meter.
All of this can be done remotely thanks to an Ethernet interface and a very intuitive PC software.
MAT244 can be configure locally of by SW as a diversity combiner 4:2 with 6dB gain or in a non-diversity combiner 8:4 / 8:1

Features:

  • Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)
  • Wide bandwidth 150-1160 MHz operation
  • Remote management and monitor of alarms thru Ethernet 10/100 base TX
  • Antenna booster supply toggled on each input independently
  • Voltage and current monitoring on each booster supply with alarm
  • Programmable attenuators on each inputs
  • Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
  • light window where the user can enter their own text to identify the 8 areas

More +

Product Specs

Frequency ranges 150 - 840 MHz (MAT244)
150 - 960 MHz (MAT244X)
Input/output gain 7 dB (Combiner 8:1)
0 dB (Combiner 8:4)
7 dB (Combiner 4:2)
OIP3 30 dBm typ. (Combiner 8:1)
24 dBm typ. (Combiner 8:4)
30 dBm typ. (Combiner 4:2)
Amplifier linearity ± 1 dB (typical)
Noise figure 5.5 dB (each channel)
Antenna booster powering +12Vcc / 800mA MAX for ports 1A, 1B [2x4:2 conf] or for port 1,5 [other configuration]
+12Vcc / 230mA MAX (other ports)
Connector input: 8 BNC-F
output: 4 BNC-F
Impedance 50 ?
Managing interface 10/100 Base TX Ethernet port
Display 64 x 256 OLED (yellow)
Power supply AC connector 90÷264Vac /47÷63Hz, (fuse protected) T2A-50W max
Temperature range -25 ÷ +55 °C
Material aluminum
Finishing black varnish
Dimensions 44 x 483 x 398 mm (HxWxD)
Weight 3,7 Kg
