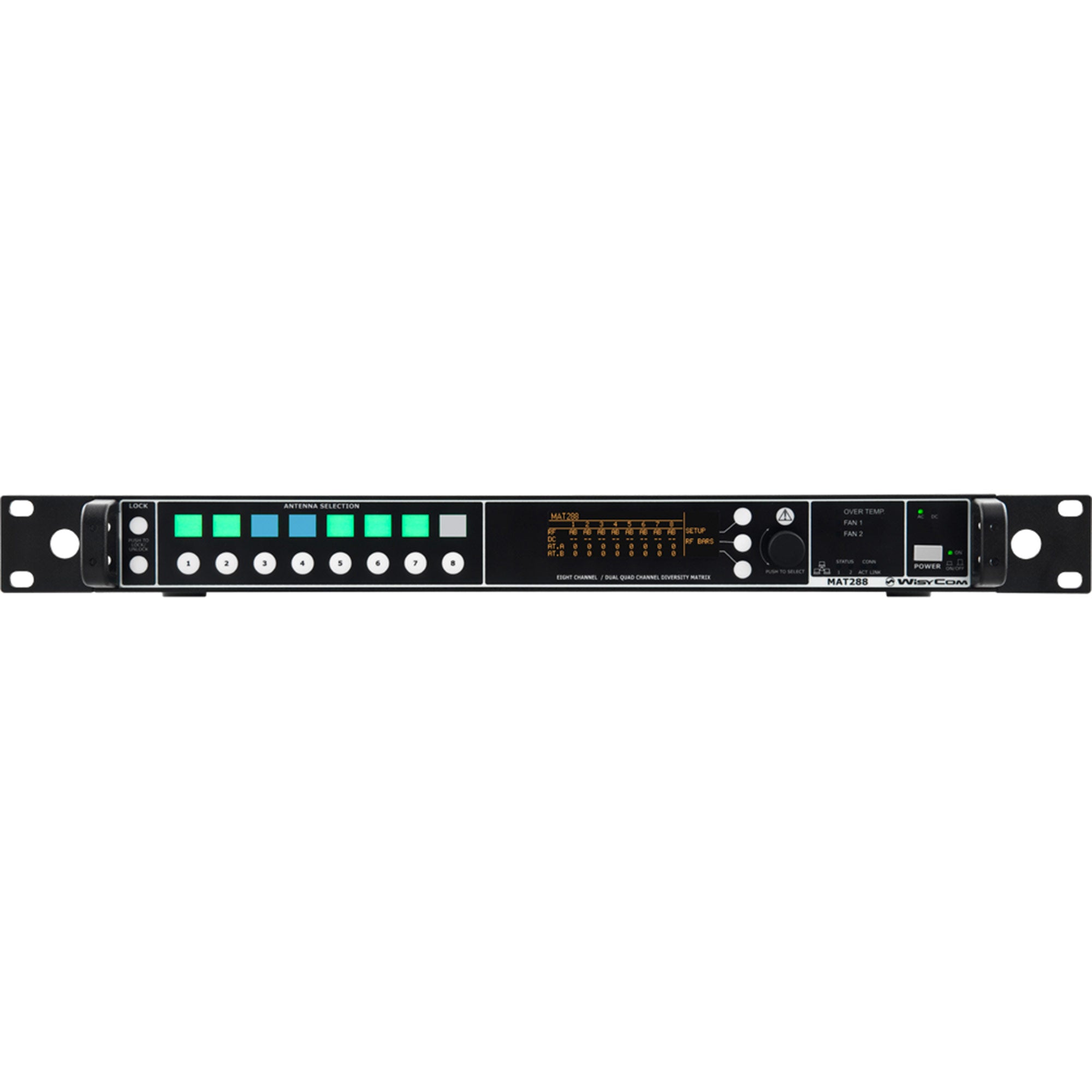

Wisycom MAT288-X1-DC - Diversity Wideband Programmable Matrix Combiner


  • Dale #:

    WISY-MAT288X1DC
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

MAT 288 is a programmable diversity matrix combiner. This unique device allows to combining RF coming from 8 areas (a couple of diversity feeds) on the fly thanks to a matrix of solid-state switches. It is designed to have the greatest reliability, with a redundant power supply (AC and DC). All o... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

MAT 288 is a programmable diversity matrix combiner. This unique device allows to combining RF coming from 8 areas (a couple of diversity feeds) on the fly thanks to a matrix of solid-state switches. It is designed to have the greatest reliability, with a redundant power supply (AC and DC). All operations can be remote with Ethernet. Typical applications are a production center where a control room has to work with several STUDIOs also at the same time or a THEATRE that needs from time to time to combine the main stage, foyer, or lobby. Also, your ENG or OB-Van facility will benefit from this freedom to manage different RF areas. This flexibility along with the possibility to work in wideband allows also an easy deployment of your wireless audio infrastructure and also to optimizes your overall CAPEX (i.e. sharing resources like wireless microphones).

Features:

  • Diversity combiner 8:1 or 8:4 or 2 x 4:2 (sw configurable)
  • Wide bandwidth 150-1160 MHz operation
  • Redundant power supply, AC and DC powered
  • Remote management and monitoring of alarms thru Ethernet 10/100 base TX
  • Antenna booster supply toggled on each input independently
  • Voltage and current monitoring on each booster supply with alarm
  • Programmable attenuators on each input
  • Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
  • Light window where the user can enter their own text to identify the 8 areas

More +

Product Specs

Frequency ranges 150 ÷ 840 MHz (MAT288)
150 ÷ 960 MHz (MAT288X)
Input/output gain 7 dB (Combiner 8:1)
0 dB (Combiner 8:4)
7 dB (Combiner 2 x 4:2)
OIP3 30 dBm typ. (Combiner 8:1)
24 dBm typ. (Combiner 8:4)
30 dBm typ. (Combiner 2 x 4:2)
Amplifier linearity ± 1 dB (typical)
Noise figure 5.5 dB (each channel)
Antenna booster powering +12Vcc / 800mA MAX for ports 1A, 1B and 5A, 5B
+12Vcc / 230mA MAX (other ports)
Connector input: 8+8 BNC-F
output: 8 BNC-F
Impedance 50 ?
Managing interface 10/100 Base TX Ethernet port
Display 64 x 256 OLED (yellow)
Power supply AC: 90÷264Vac /47÷63Hz, (fuse protected) T2A-50W max
DC (optional): 10÷ 28 Vdc (fuse protected) 12A max
Power consumption 120W max
Temperature range -25 ÷ +55 °C
Material aluminum
Finishing black varnish
Dimensions 44 x 483 x 398 mm (HxWxD)
Weight 4,4 Kg
