Wisycom MCR54 - Four-Channel Multiband True Diversity Receiver
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Wisycom MCR54 - Four-Channel Multiband True Diversity Receiver
Sale price$4,285.00
Regular price$4,760.00
Description

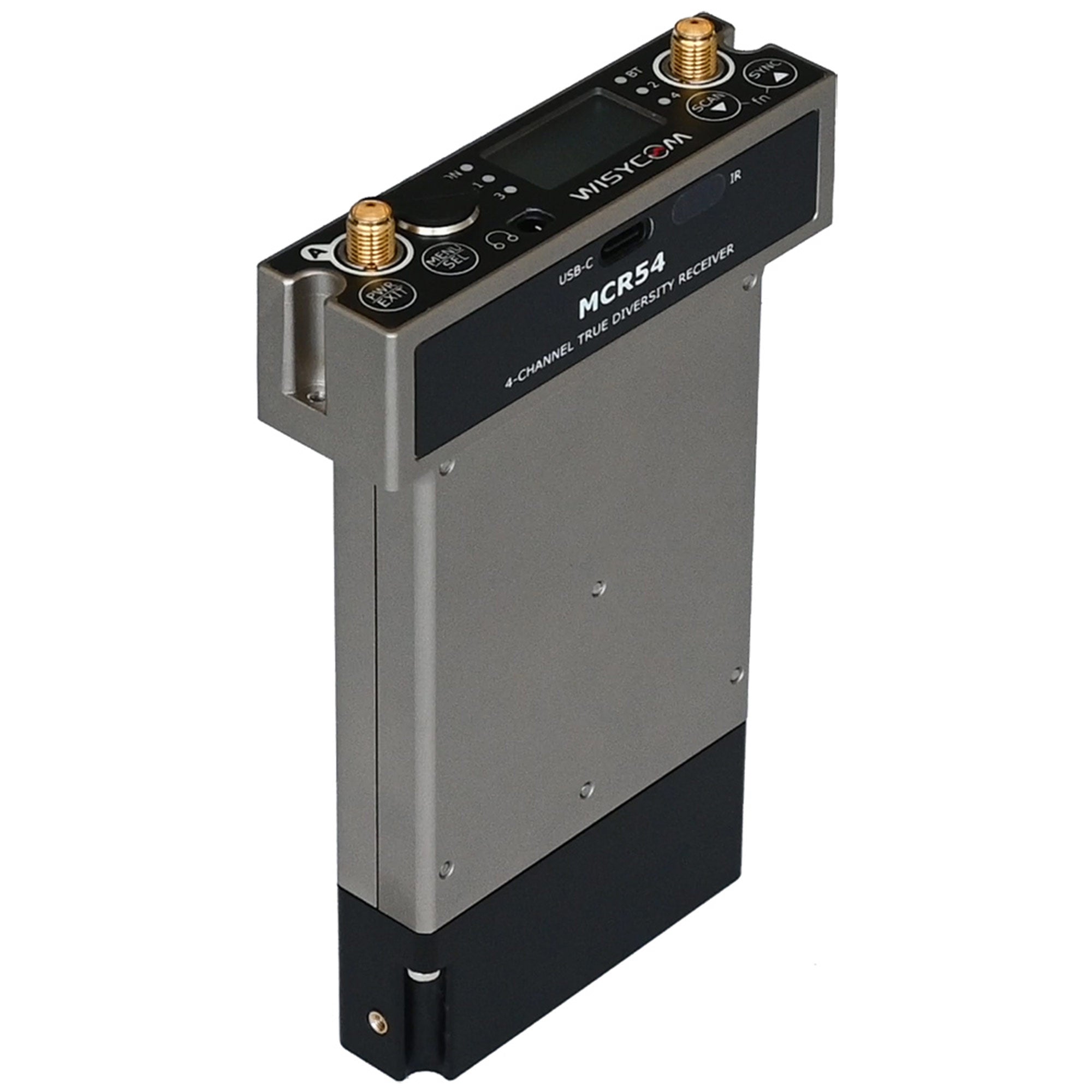

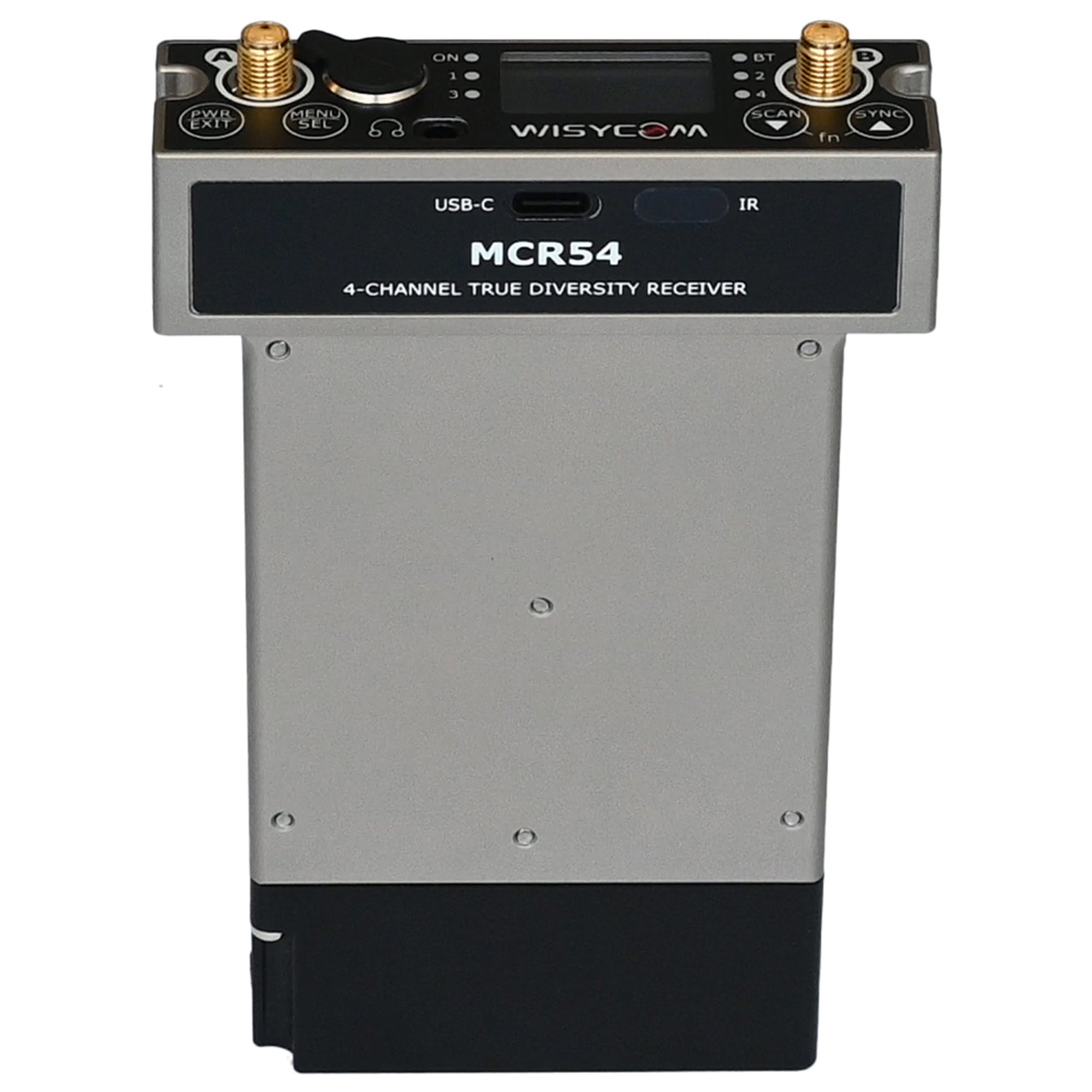

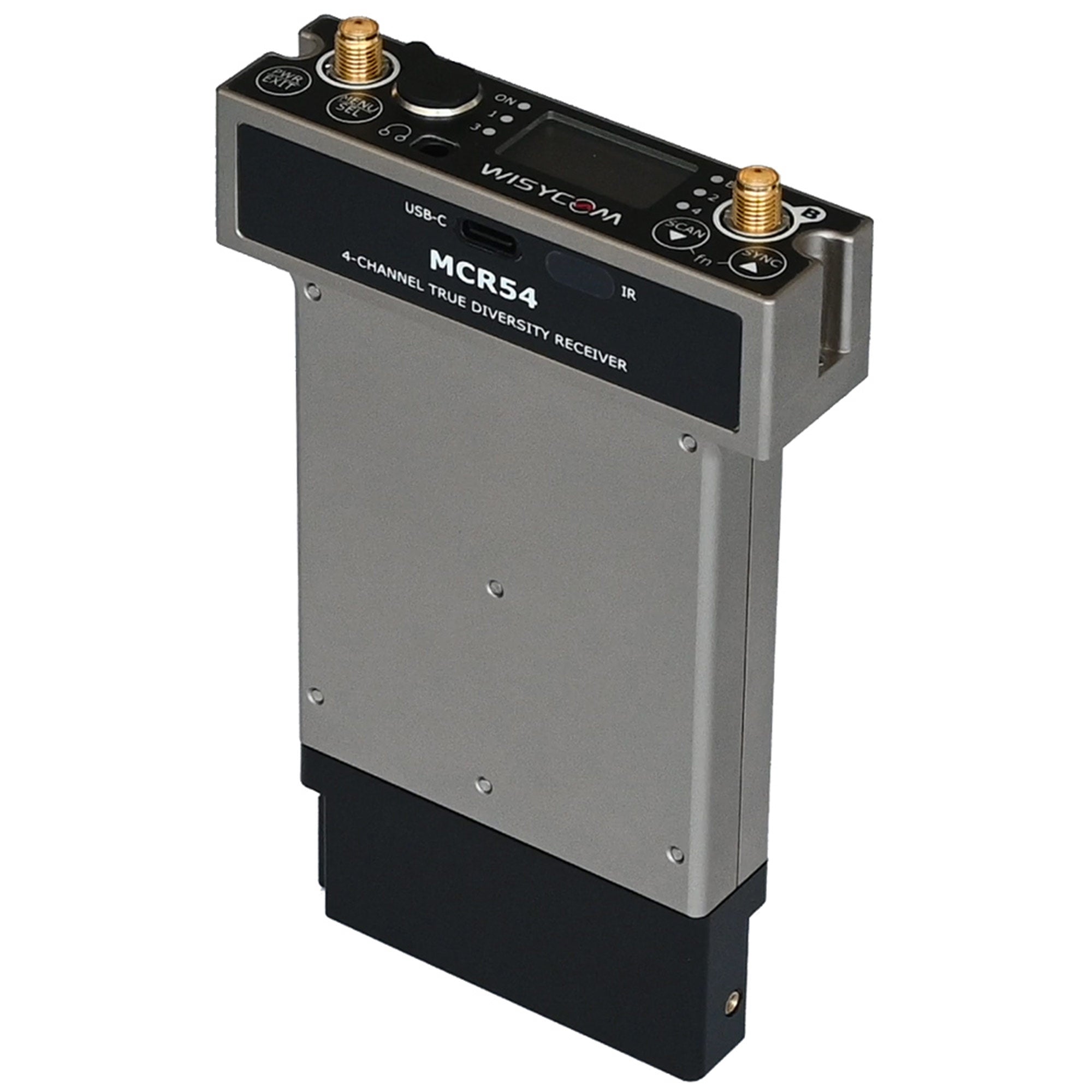

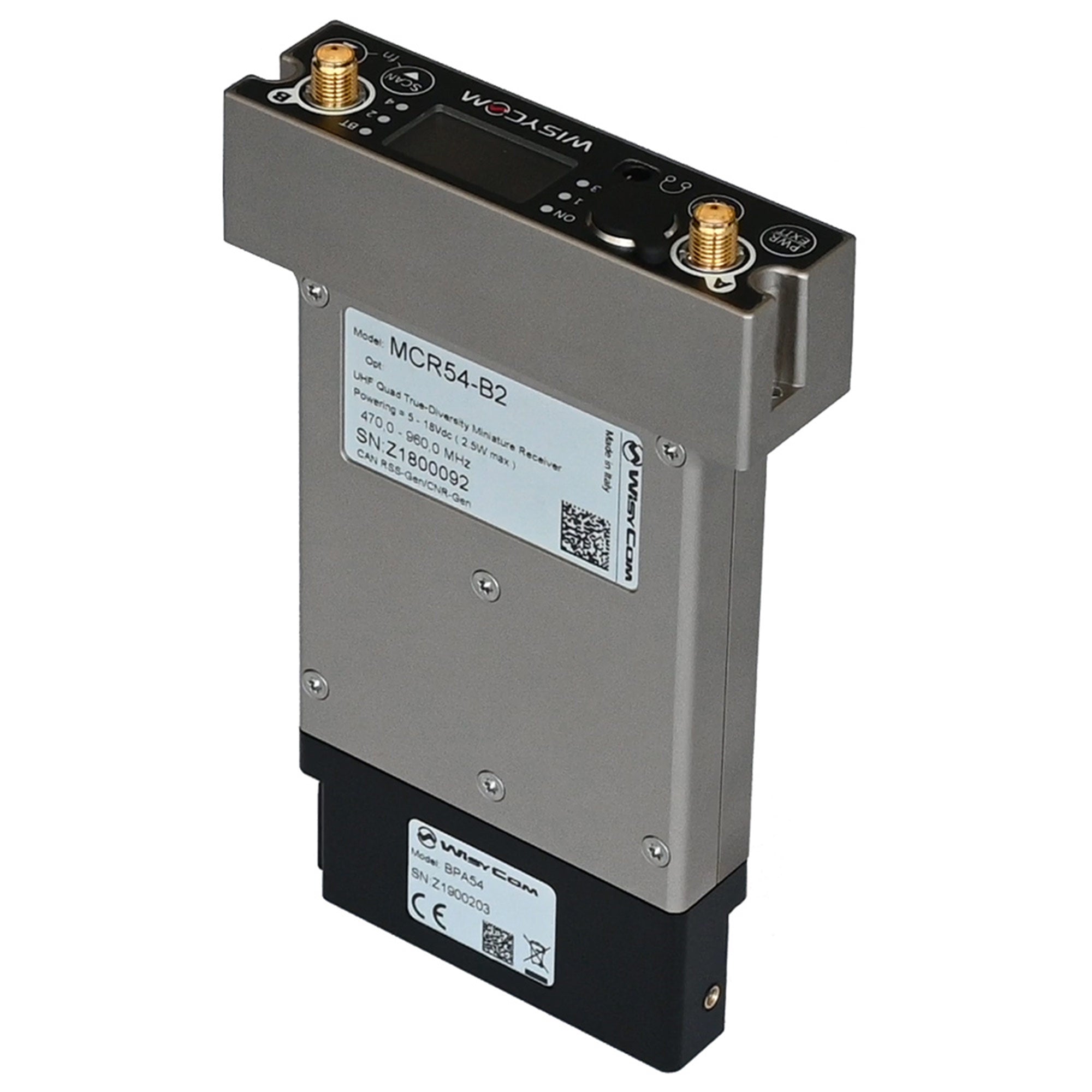

MCR54 is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It's compatible with most camera's slots and "multi-slot" mixer accessories.
Features:
- Four channels True Diversity receiver (8 Receiver boards!)
- Exceptional compactness and high robustness
- DSP Analog and Digital Audio Output (AES3)
- Up to 790 MHz bandwidth in 470/1260 MHz range
- Next Gen Multiband front-end filtering:
- High Q electronically tunable filter in 470-798 MHz
- 1st narrowband filter
- 2nd narrowband filter
- Wideband and Narrowband DSP-FM operation (SW selectable):
- Narrowband allows more 50% band efficiency
- Narrowband allows about 3dB extra sensitivity and noise immunity
- Extreme low noise VCO with ultrafast spectrum scan for optimal quick and easy setup

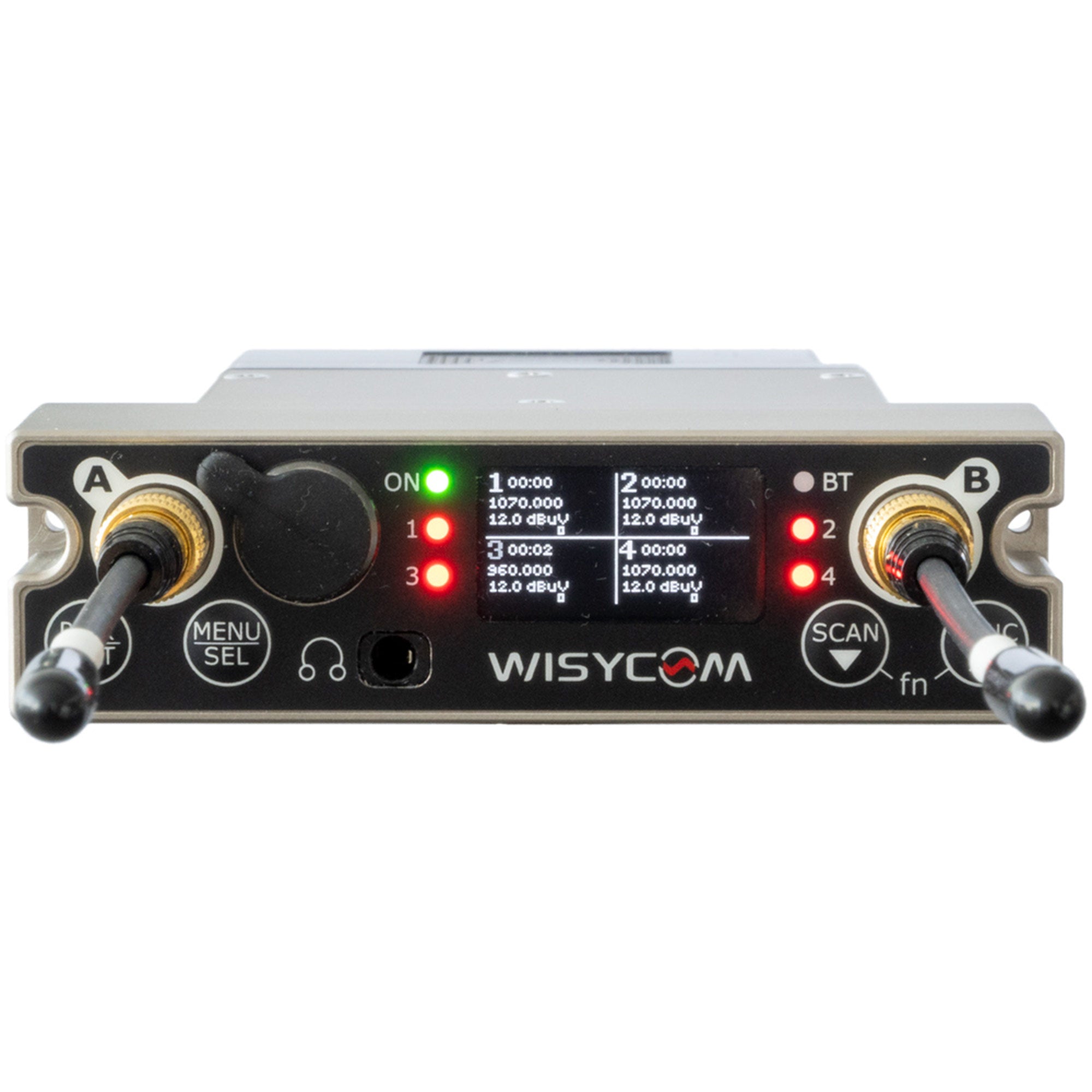

- High contrast OLED display
- Automatic scan and transmitter programming through infrared and Bluetooth 5 long range
- DSP based for extreme flexibility and multi-companding operations
- Monitor and control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
- Rear antenna connectors and micro audio and power adapter
| Frequency ranges | MCR54 B2: 470 - 800 + 823-832 + 940-960 MHz (USA/EU) |
| Switchable channels | 2400 user programmable frequencies, organized in 40 groups of 60 channels |
| Switching-window | up 790 MHz |
| Frequencies | microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step. The frequencies can be easily PC reprogrammed with USB C, Bluetooth 5 (long range) or optional UPKmini Programming |
| Frequency error | ± 2.5 ppm, in the rated temperature range |
| Modulation | FM mono, wideband or narrowband IFB (SW selectable) |
| Peak deviation | ±54 kHz (wideband), ± 40 kHz (narrowband) |
| Antenna input impedance | 50 ohm sma type (SWR 1:2; typ. 1:1.4) |
| Sensitivity | 2 ?V ( 6 dB?V), for SND/N 58 dB; 5 ?V (14 dB?V), for SND/N 98 dB in the whole switching-window* |
| Amplitude response | 0.5 dB (for RF input signal:6 dBµV Ö 100 dBµV) |
| Adjacent chan. selectivity | 80 dB typical (for channel spacing ? 400 kHz) |
| Spurious emissions | 2 nW (typical = 0.1 pW) |
| Noise Reduction system | ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized, with reduced pre-emphasis ENS (for live application) Others, compatible with most systems, thru an internal DSP emulation of SA572, SA575 and Rms envelope compander chip set, fully user programmable |
| AF bandwidth | 30 Hz Ö 20 kHz (wideband), 30 Hz Ö 17 kHz (narrowband) |
| Frequency response | ± 1 dB in the 30 Hz Ö 20 kHz range (wideband), ± 1 dB in the 30 Hz Ö 17 kHz (narrowband) |
| Distortion | 0.3 % typical |
| SND/D ratio (Analogue) | 120 dB typical* |
| SND/D ratio (Digital) | 125 dB typical |
| Audio output | Electronically balanced on 5 pin mini-XLR Female connector analogue or digital (SW selectable) |
| Digital sample rate | AES3 @ 48 kHz |
| Monitor output | headphone 3.5 mm jack socket |
| Managing interface | USB C, Bluetooth 5 |
| LEDs | 2 multicolour RGB LEDs to easy indicates Power / Bluetooth 4 multicolour RGB LEDs to easy indicates the audio status of the 4 RX |
| Display | OLED 128x64 (white) |
| Powering | - External = 6 Ö 18 Vdc (3 W max) - Autonomous. = with optional BCA 54 Battery Module |
| Power consumption | 3 Watt max (with 4 active receivers), 2 Watt max (with 2 active receivers) |
| Temperature range | -10 Ö +55 ¡C |
| Dimensions | 104 x 85 x 25 mm (H x W x D) |
| Weight | 230g |
| *RMS value, 22 Hz / 22 kHz, unweighted | |
