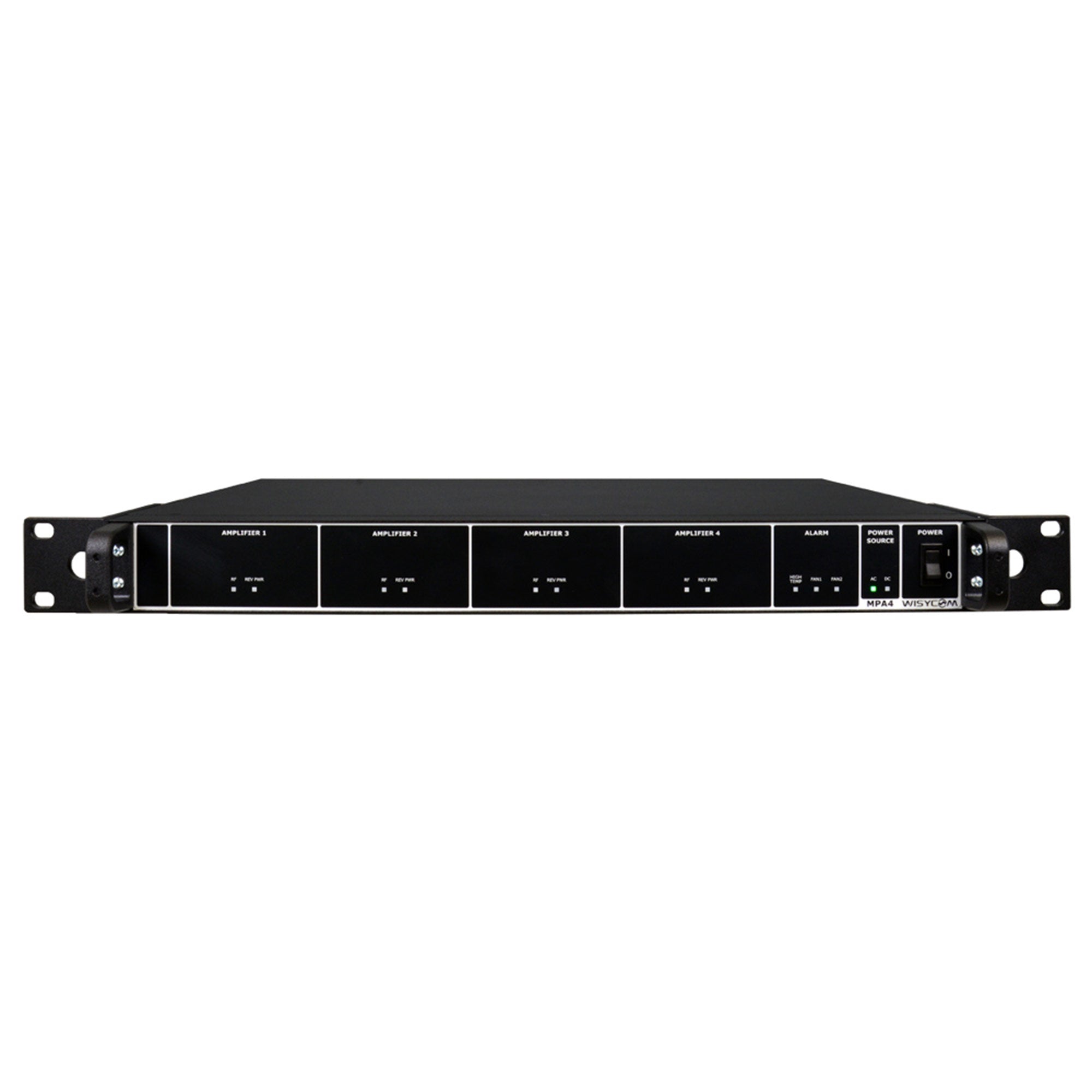

Wisycom MPA4 - Four-Channel RF Power Amplifier (BL Band / 470-620 MHz)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The MPA4 rack is a quadruple power amplifier optimized for extreme linearity. It is perfect match to amplify remote signals or works with Wisycom MFL fiber system to setup a local retransmission. Its extreme linearity allows to amplify multi-carries without facing intermodulation issues.

    Features:

    • Wideband: 470-620 MHz/ 600-800MHz
    • High linearity: OIP3 at over 50dBm
    • Redundant power supply 230/110Vac and 12 VDC
    Frequency ranges 470 Ö 620 MHz or 600 Ö 800 MHz
    Input/output gain 30.5 dB
    OIP3 > 50 dBm
    OP1dB 32dBm
    Amplifier linearity ± 0.5 dB (typical)
    Noise figure 9 dB
    Max Input power 0dBm with 1 carrier, -13dBm with 4 carriers (OIP3 optimize)
    Absolute Max Input Power: +20dBm
    Antenna connector 4 x BNC type female input connectors
    4 x N type female output connectors
    RF impedance 50 ½
    Power supply 90Ö 264 Vac, 47Ö 63 Hz, 1,5A max
    DC options 10Ö28 Vdc, 6A
    Power consumption 60W
    Temperature range -10 Ö +55 ¡C
    Dimensions 44 x 483 x 350 (HxWxD) with brackets
    Weight 5,4 kg (with 4 modules)
