Wohler AMP1-2SDA+ 2-Channel 3G/HD/SDI/AES3/Analog Audio Monitor (with Additional Inputs)


  • Dale #:

    WOHL-AMP12SDAPLUS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

With Wohler’s renowned high quality audio, the AMP1-2SDA+ provides instantaneous selection and monitoring of any available pair of audio from either a 16 channel SDI (with looped output), 1 AES input pair, and either of 2 pairs of Analog inputs (Balanced or Unbalanced).  Analog and AES outputs of... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

With Wohler’s renowned high quality audio, the AMP1-2SDA+ provides instantaneous selection and monitoring of any available pair of audio from either a 16 channel SDI (with looped output), 1 AES input pair, and either of 2 pairs of Analog inputs (Balanced or Unbalanced).  Analog and AES outputs of the selected pair are included. Additional 8 pairs of both Analog and AES on DB-25 inputs.  The unit features adjustable volume and balance controls, clear display of levels on two 26 segment LED meters and an average phase indicator.

Designed with simplicity in mind, the AMP1-2SDA+ provides two rotary controls that allow the user to easily select a source with the first rotary control and move through pairs with the second rotary control.  A large front panel screen clearly displays the selected source and pair and is highly visible to users, even in busy technical areas. Additional features include simple tone controls for adjusting audio output and an audio trim control for altering the analog output levels.

Ultra-compact, the AMP1-2SDA+ fits perfectly in a network facility or OB truck live event and is ideal for a range of applications where basic, but reliable stereo audio monitoring is required.

Features:

  • Wohler quality sound
  • Selectable 2 channel monitoring of 16-channel 3G/HD/SD-SDI, 2 channel AES, and 2 channel Analog (Balanced or Unbalanced)
  • Optional inputs available for an additional 16 channels (8 pairs) of both Analog and AES
  • Additional input of 8 pairs of AES audio on 1 x D-Sub
  • Additional input of 8 pairs of Analog audio on 2 x D-Sub.

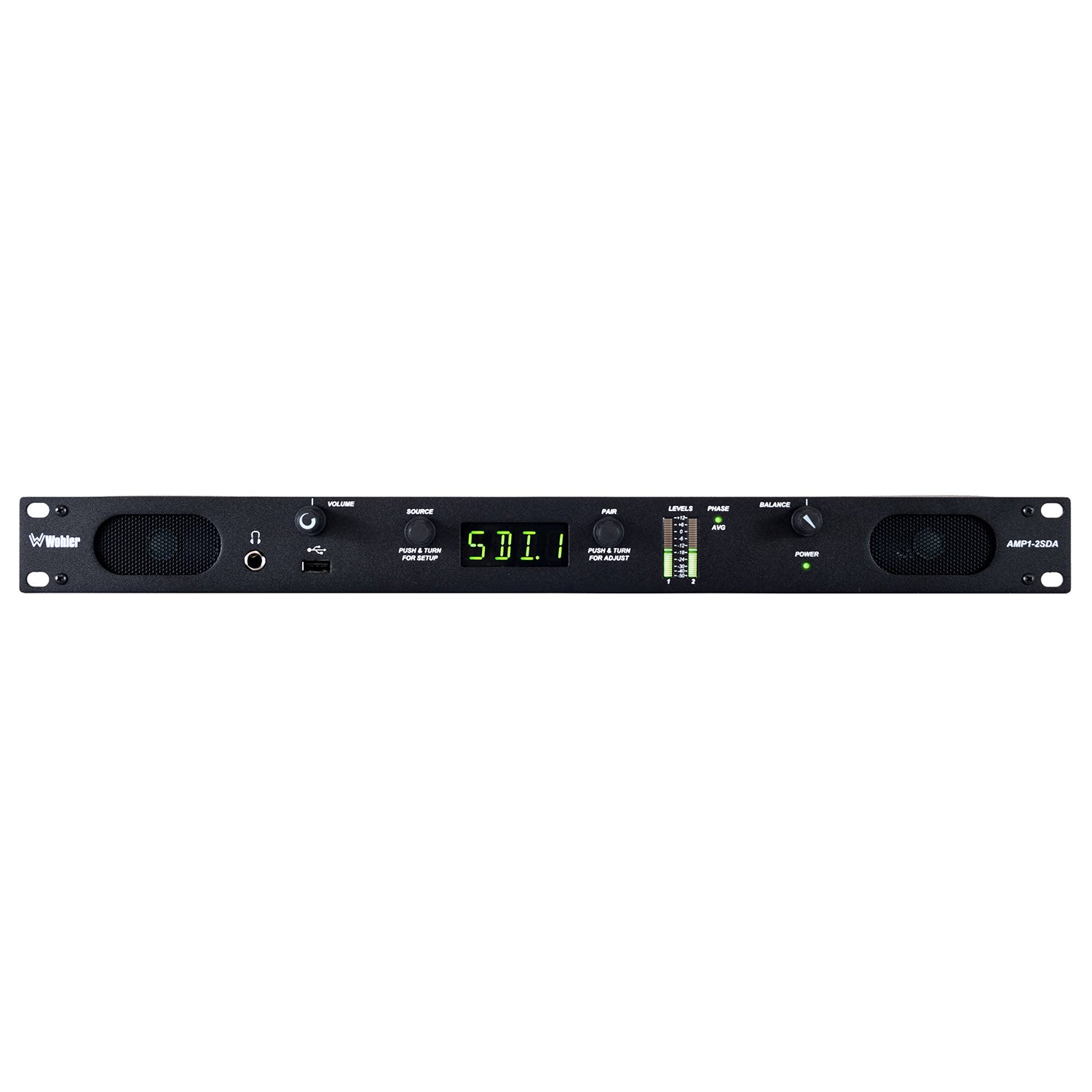

  • Bright, easily visible front panel display
  • Simple uncluttered front panel controls
  • Adjustable Volume and Balance
  • Stereo phase indicator
  • Selectable trim and tone controls
  • Monitor through built-in speakers, headphones and analog outputs
  • Shallow chassis for easy installation in OB vehicles and consoles

More +

Product Specs

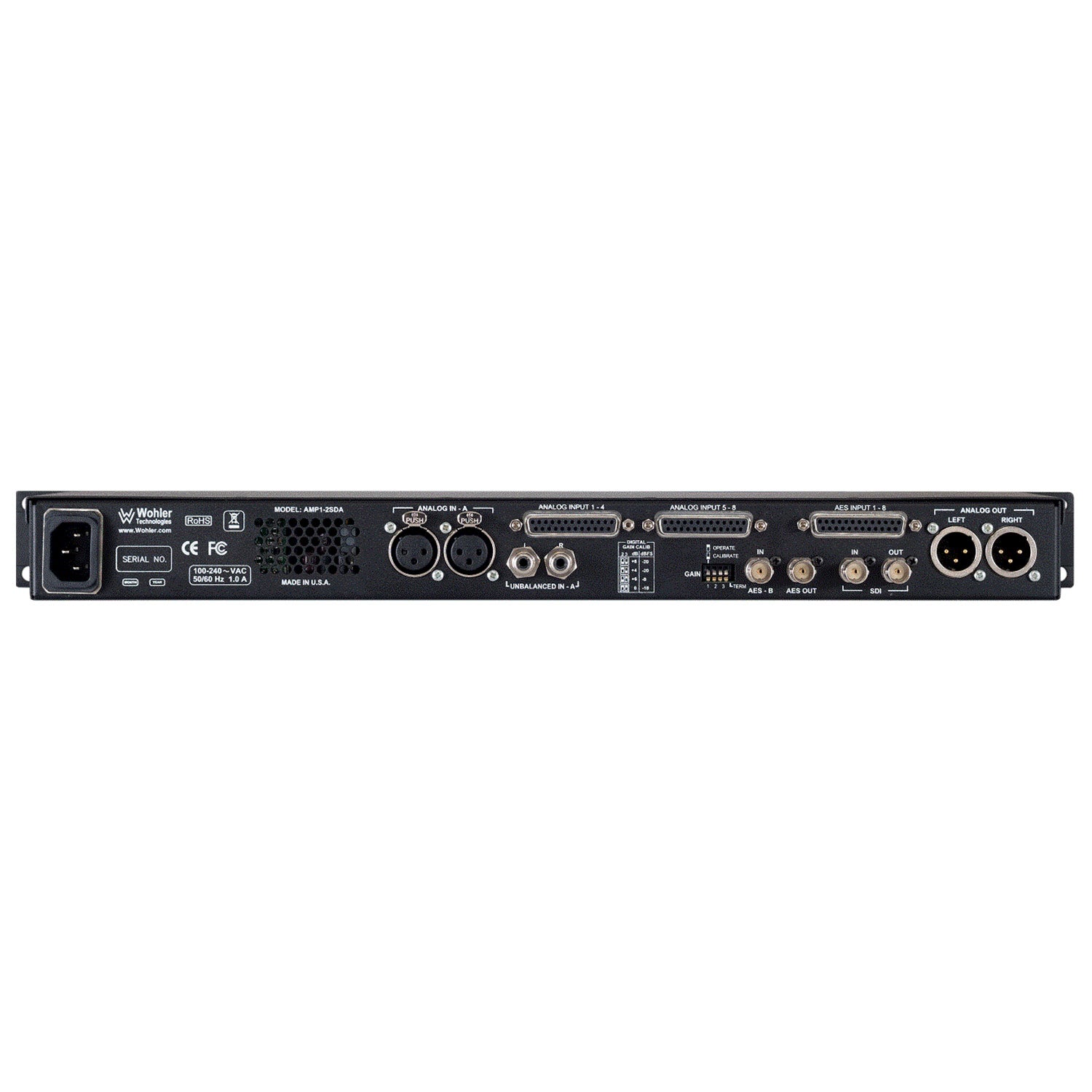

3G/HD/SD-SDI Input 1 3G/HD/SD-SDI on BNC
3G/HD/SD-SDI Output 1 reclocked on BNC
AES3 Input 1 AES Pair on BNC; 8 Pairs of AES on DB-25; 8 Pairs of Analog audio on 2 x DB-25
AES3 Output 1 Pair on BNC of selected audio channel pair
Analog Input 2 on RCA (1 pair), 2 on XLR F
Analog Output 1 Pair on 2 x XLR of selected audio channel pair
Frequency Response 150 Hz to 16 kHz (+/- 5 dB)
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU & PPM
Meter Scale Simultaneous VU & PPM
Peak Acoustic Output @ 2 feet 90 dB SPL at 2 feet
Power Output RMS Each Side: 5W Continuous/12W Peak
Level Meters 2 x 26 Segments (Vertical)
Audio Channels (max) 2
Phase Yes
Front Panel Controls Volume Encoder; Balance Encoder; Signal Select; Pair Select
Headphone Jack Yes
USB Port Yes
Rack Height 1RU
Dimension Width 19.0" (483mm)
Dimension Height 1.75" (45mm)
Speakers Yes
Net Weight 5.0 lbs (2.3 kg)
Shipping Weight 7.0 lbs (3.2 kg)
Power Consumption 60 Watts
Power Supply External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
