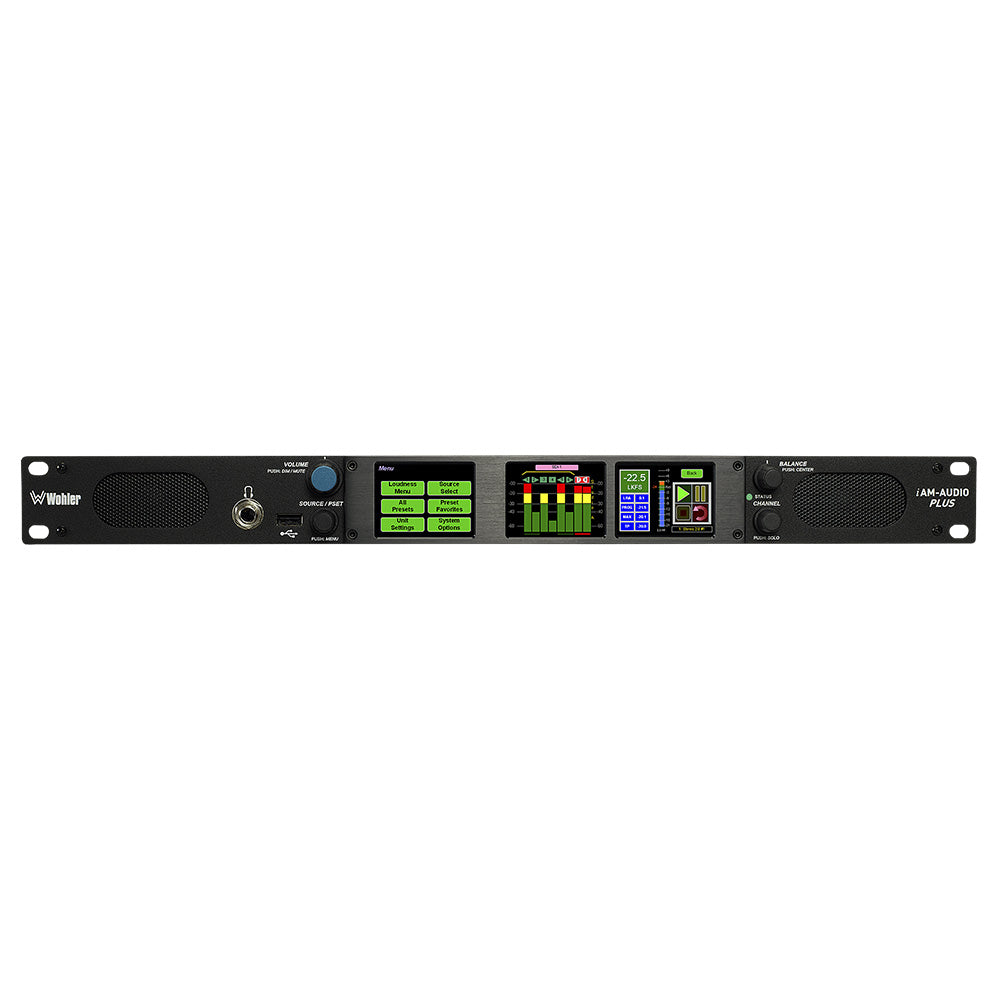

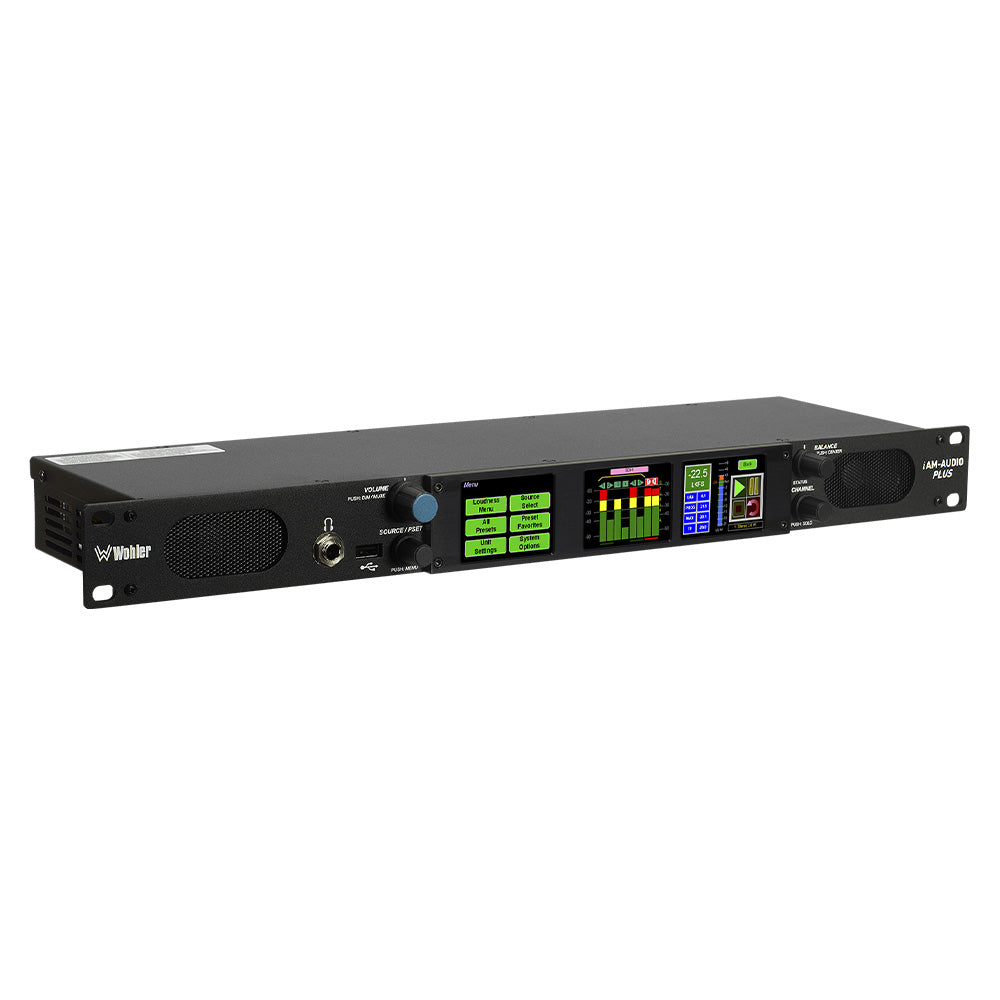

Wohler iAM-AUDIO-1 PLUS - 16-Channel 3G-SDI and Analog Audio Monitor

  • Dale #:

    WOHL-81140400
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The new iAM-AUDIO-1 PLUS is a well featured, easy to use, competitively priced 16 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. Developed as a direct result of customer feedback, it shares many of the same features as our ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The new iAM-AUDIO-1 PLUS is a well featured, easy to use, competitively priced 16 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. Developed as a direct result of customer feedback, it shares many of the same features as our iVAM1-3, but without video monitoring. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.
iAM-AUDIO-1 PLUS is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

Features:

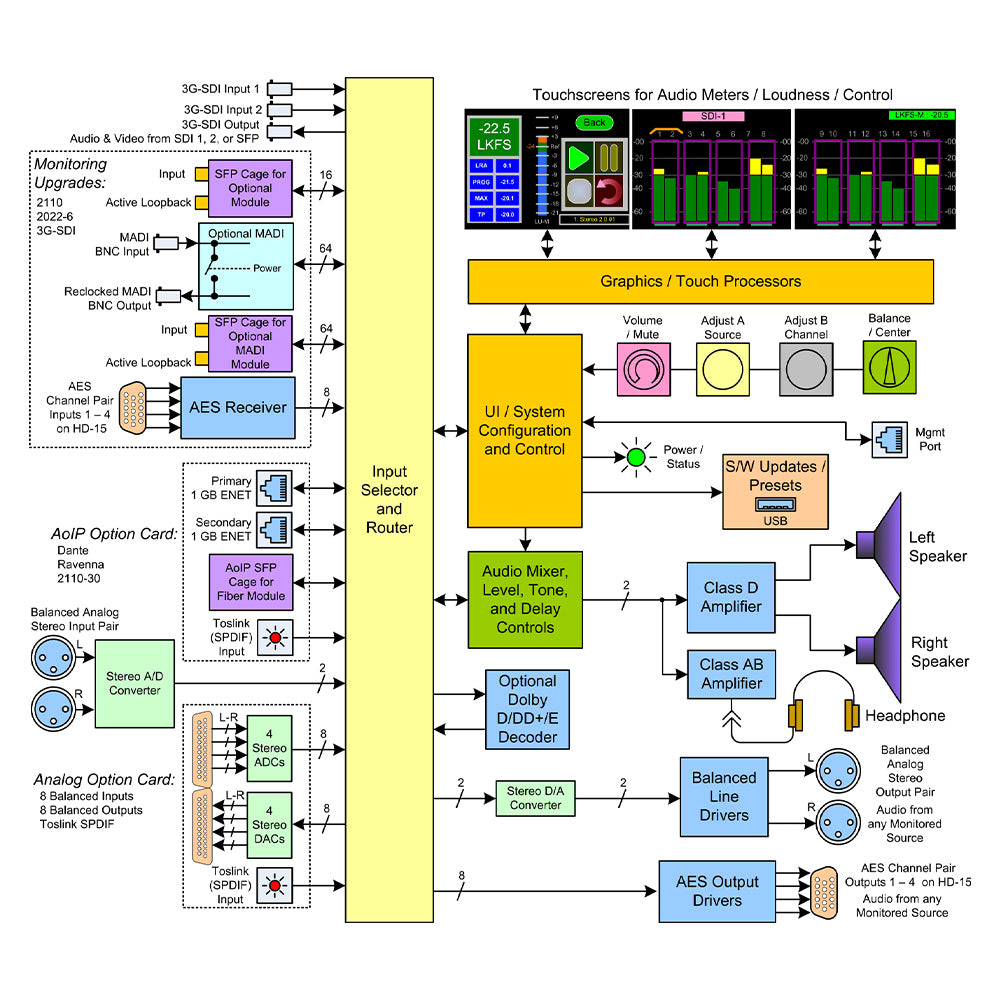

  • Audio monitoring (up to 16 channels) from multiple sources
  • Up to 64 presets
  • Optional Output Routing enables the flexibility to route input signals to various outputs

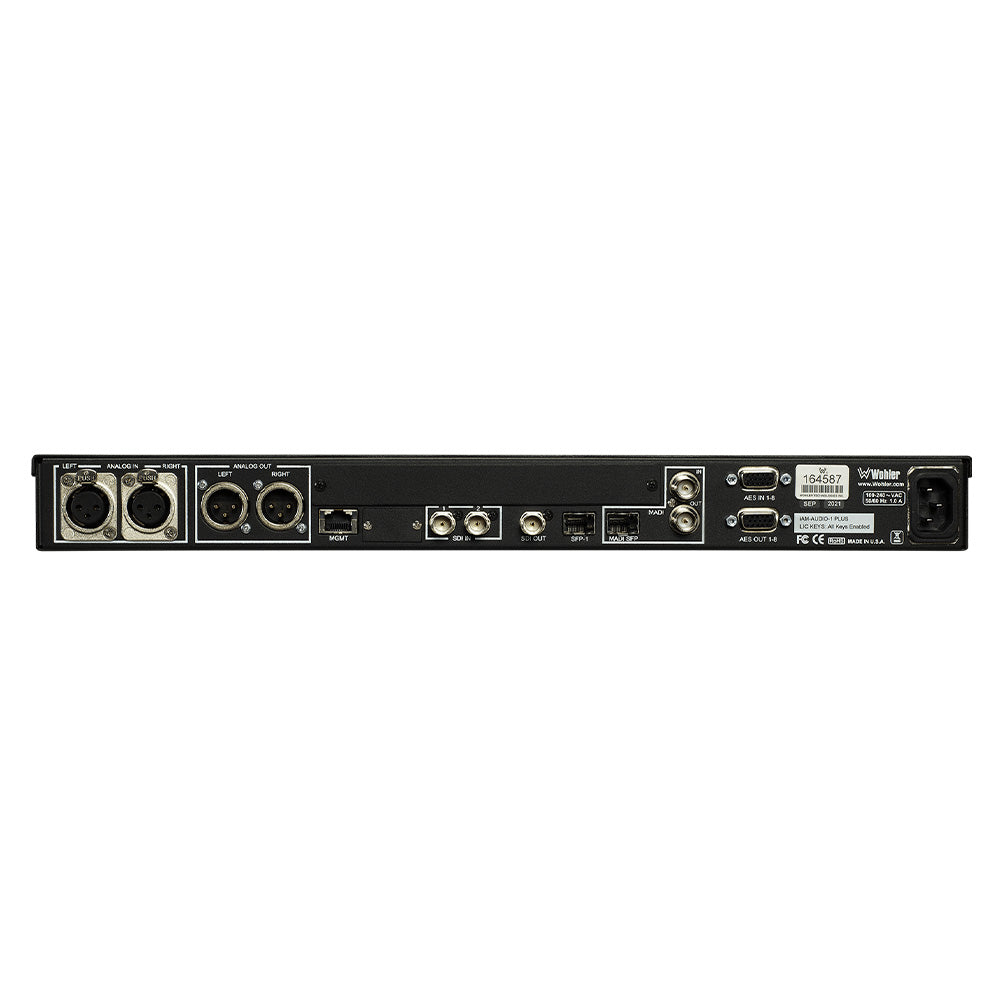

  • 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
  • Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), and MADI via BNC (looped out)
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
  • Software upgrades via USB or network.
  • APIs included for remote control

More +

Product Specs

Spkr Power Output RMS Each Side: 5W Continuous/12W Peak
Peak Acoustic Output @ 2 feet 90 dB SPL @ 2ft
AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU and PPM
Display Type Capacitive LCD Touchscreen x 3
Number of screens 3
Diagonal Display Size 2.4" (60 mm)
Display Resolution (HxV) 320Hx240V
Viewing Angle 160 (H) x 160 (V)
Rack Height 1RU
Power Consumption 65 Watts typical
Power Supply Internal 100-240 VAC ± 10%, 50/60 Hz, CE and UL approved.
Dimension Width 19.0" (483mm)
Dimension Height 1.75" (45mm)
Dimension Depth 5.5" (140mm)
Net Weight 7.5 lbs. (3.4 kg)
Shipping Weight 7.6 lbs (3.4 kg)
Shipping Dimensions 23 × 12 × 6 in (LxWxH)
