Wohler iAM1-12G - 16-Channel 12G-SDI Audio Monitor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The new iAM1-12G is a well featured, easy to use, competitively priced 16 channel IP ready audio monitor which comes standard with 12G-SDI and Analog inputs, loudness monitoring and phase status. Developed as a direct result of customer feedback, it shares many of the same features as the iAM-AUDIO-1 PLUS. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.
iAM1-12G is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.
All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.
Features:
- Audio monitoring (up to 16 channels) from multiple sources
- Up to 64 presets

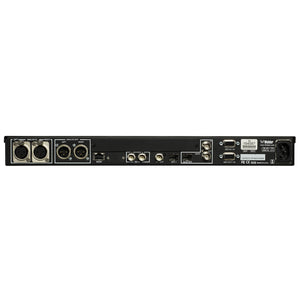

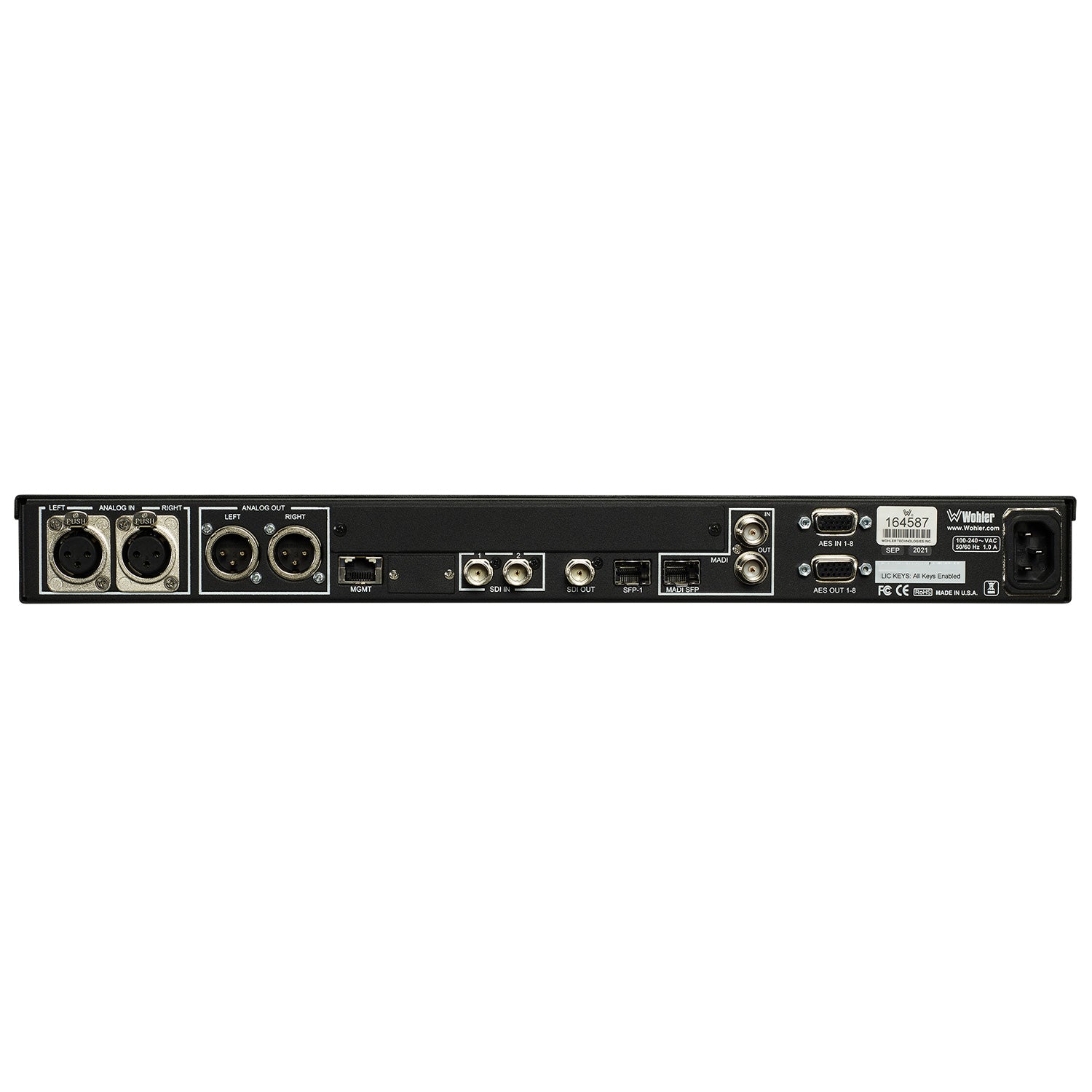

- 2 x 12G-SDI Inputs on BNC; 1 x 12G-SDI Output on BNC + 1 pair Analog in/out on XLR
- Optional Output routing enables the flexibility to route input signals to various outputs
- Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Phase status
- Phase status + Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Software upgradeable via USB or network
- APIs for remote management
| Dimensions (W x H x D) | 1RU in standard 19" rack: 19" x 1.75" x 5.5" (483 mm x 45 mm x 140 mm). Shipping dims: 23"x 6"x 12" |
| Shipping Weight / Net Weight | 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg) |
| Power Consumption / Supply | 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE / UL approved |

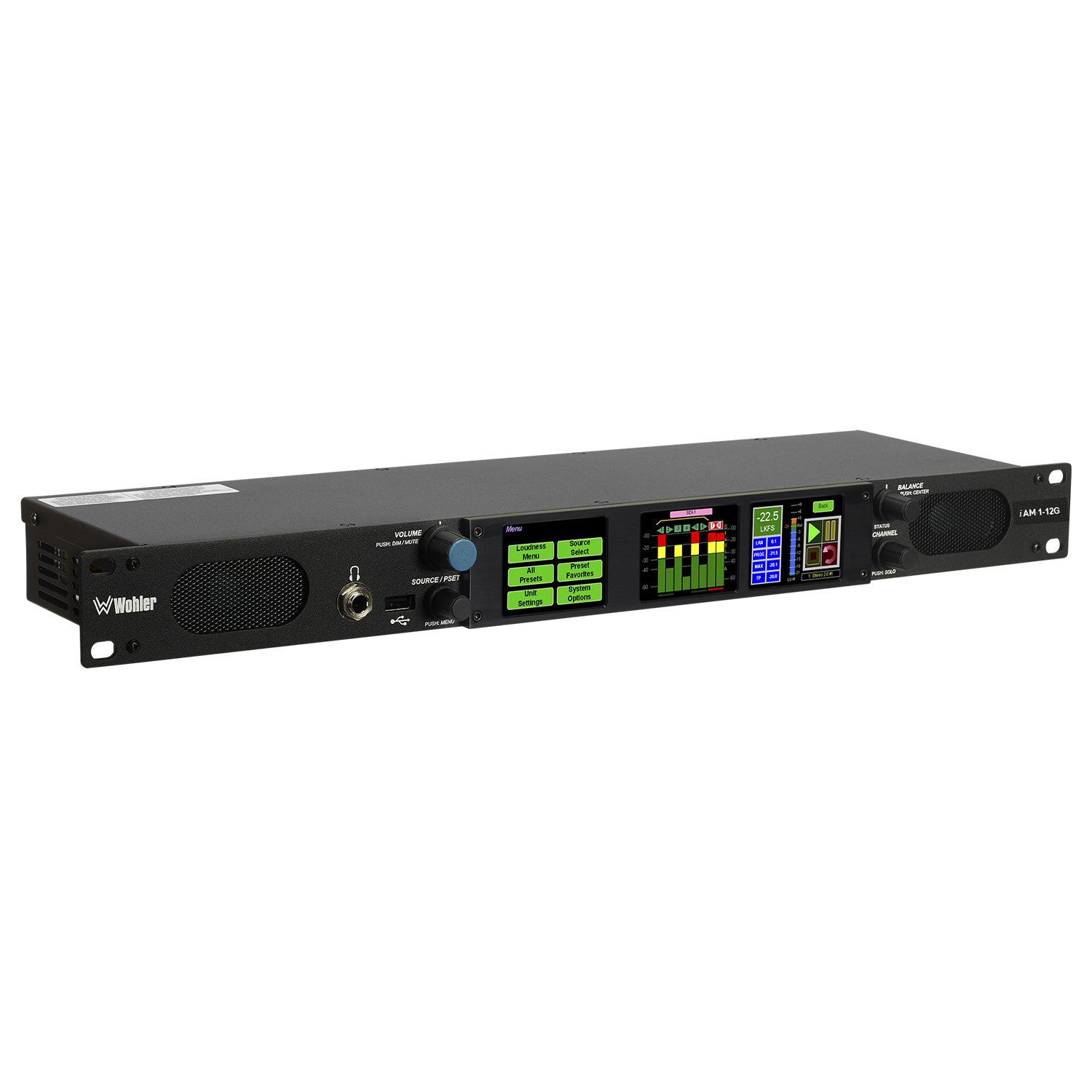

| Display Type / Resolution | 3 x 2.4" (60 mm) LCD Capacitive Touchscreen; 320H x 240V |
| Viewing Angle | 160¡ (H) x 160¡ (V) |
| Audio Channels | 16 Max |
| Hum and Noise | Better than -68 dB below full output |
| Peak Acoustic Output | 90 dB SPL @ 2 feet |
| Speaker Power Output | 5W RMS per side, 12W Peak |
| Upgrades | Via USB or GUI web interface |
| APIs | Provide easy integration with 3rdÊparty control systems |
