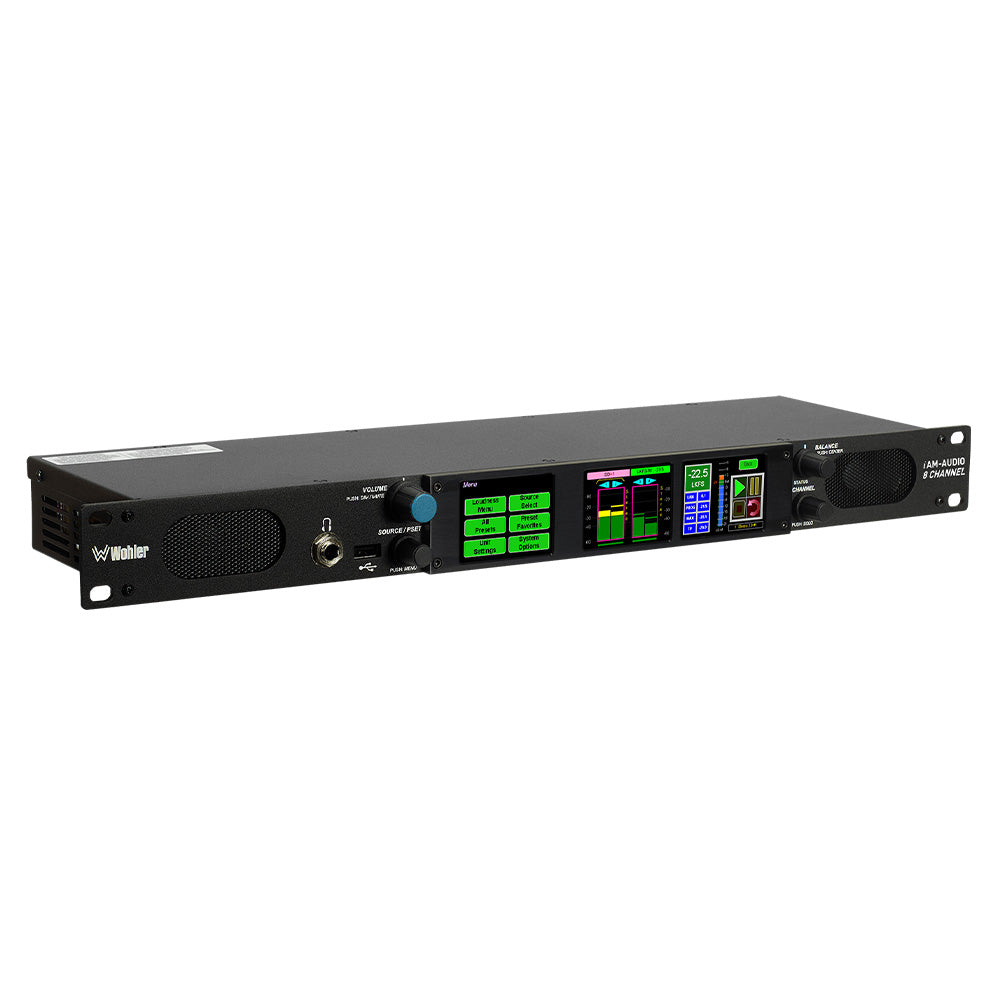

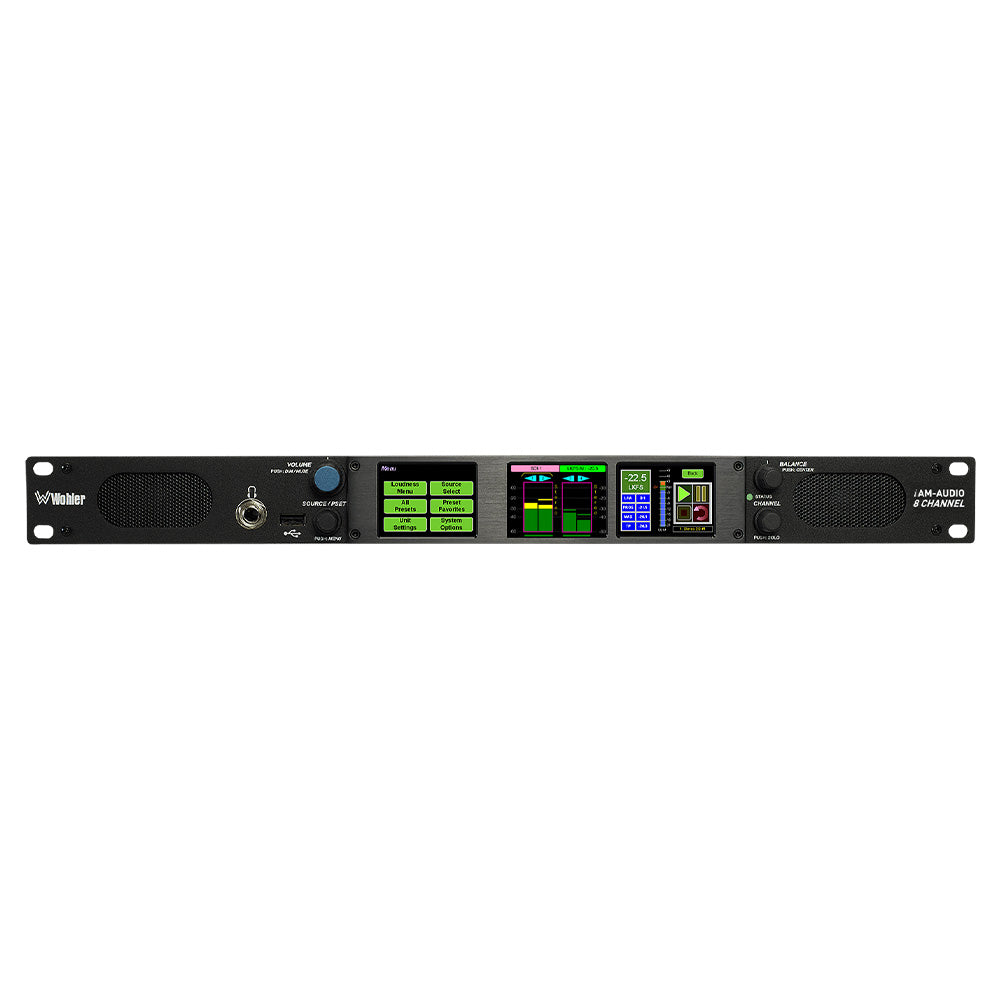

Wohler iAM1-8 - 8-Channel 3G-SDI and Analog Audio Monitor

The new iAM1-8 is an easy to use 8 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. It is intended for those end users who only need 8 channels of monitoring and want a price break from our fuller-featured units. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.

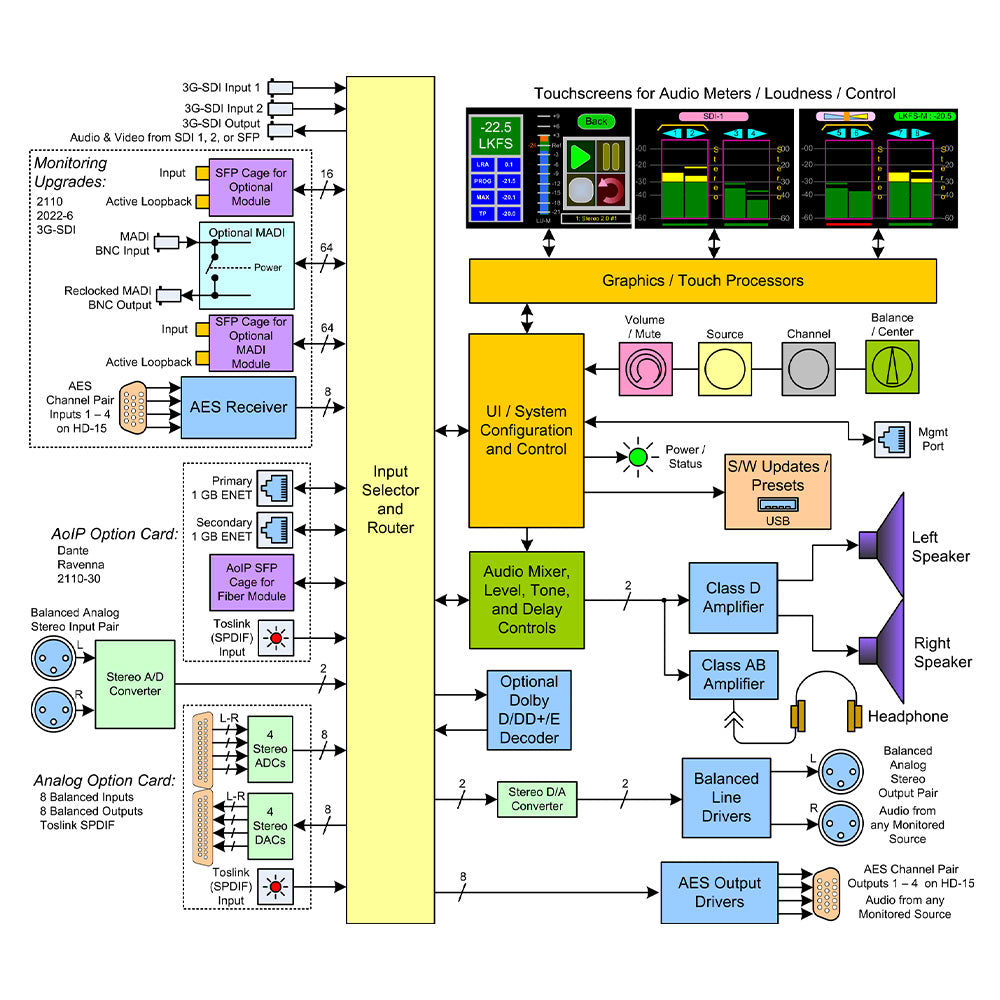

iAM1-8 is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

Features:

• Audio monitoring (up to 8 channels) from multiple sources
• Up to 64 presets
• Optional Output Routing enables the flexibility to route input signals to various outputs

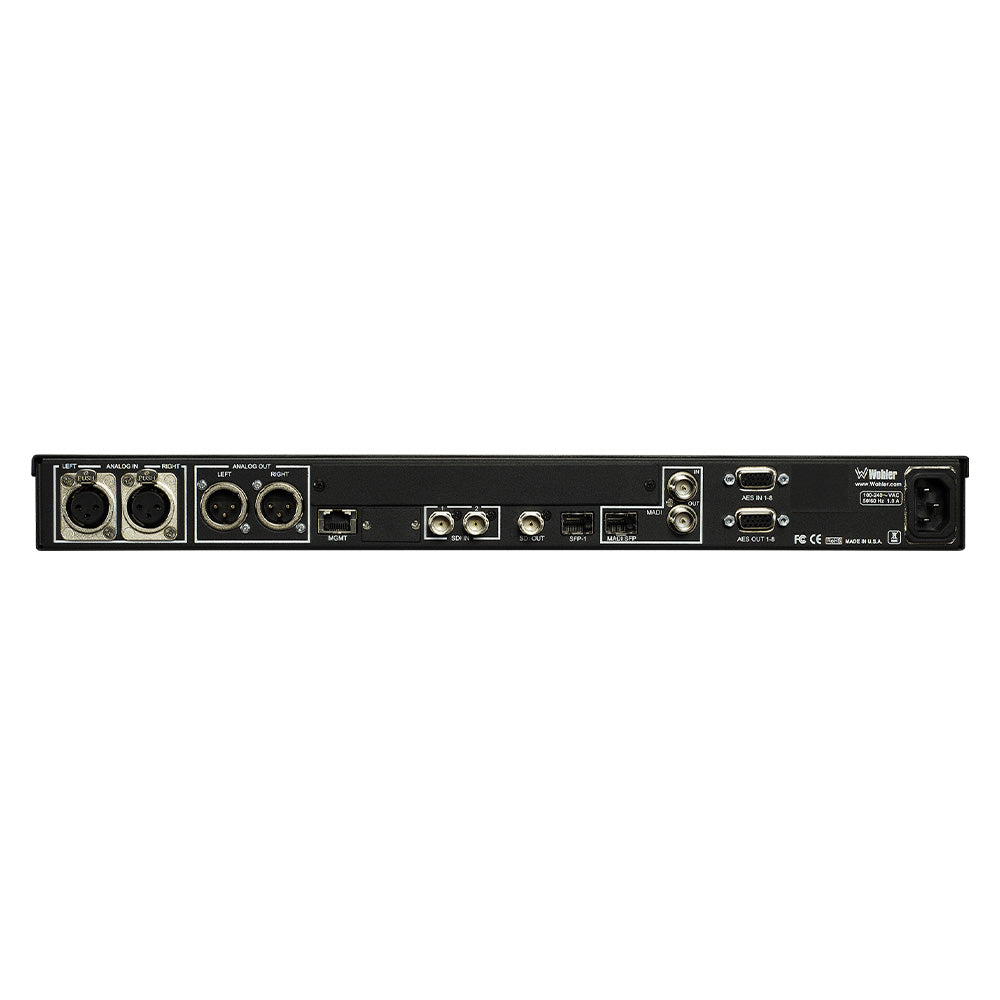

• 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
• Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), and MADI via BNC (looped out)
• Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
• Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
• Software upgrades via USB or network.
• APIs included for remote control
