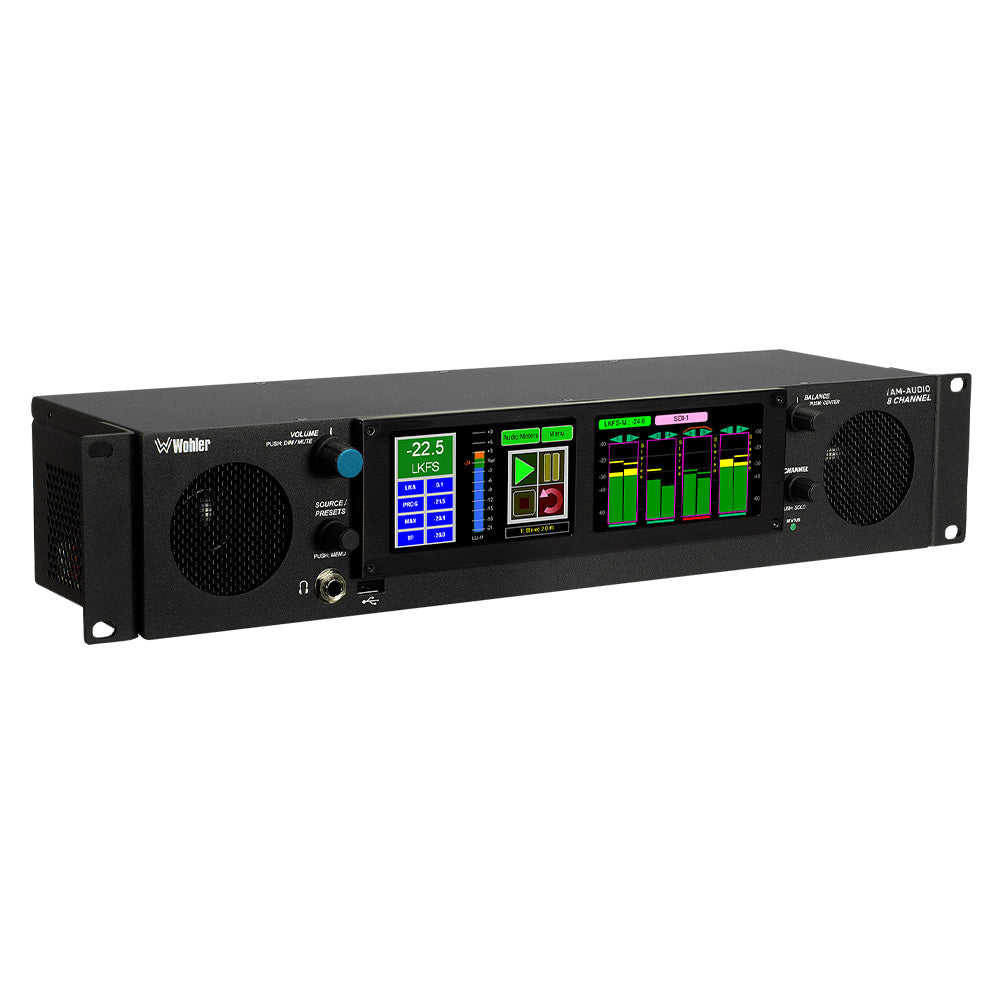

Wohler iAM2-8 - 8-Channel 3G-SDI and Analog Audio Monitor


  • Dale #:

    WOHL-IAM28
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The new iAM2-8 is an easy to use 8 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. It is intended for those end users who only need 8 channels of monitoring and want a price break from our fuller-featured units. License othe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The new iAM2-8 is an easy to use 8 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. It is intended for those end users who only need 8 channels of monitoring and want a price break from our fuller-featured units. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.
iAM2-8 is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

Features:

  • SDI / 2110 video-audio monitor with options for Audio over IP, MADI and 2022.
  • Audio monitoring (up to 8 channels) from multiple sources
  • Up to 64 presets

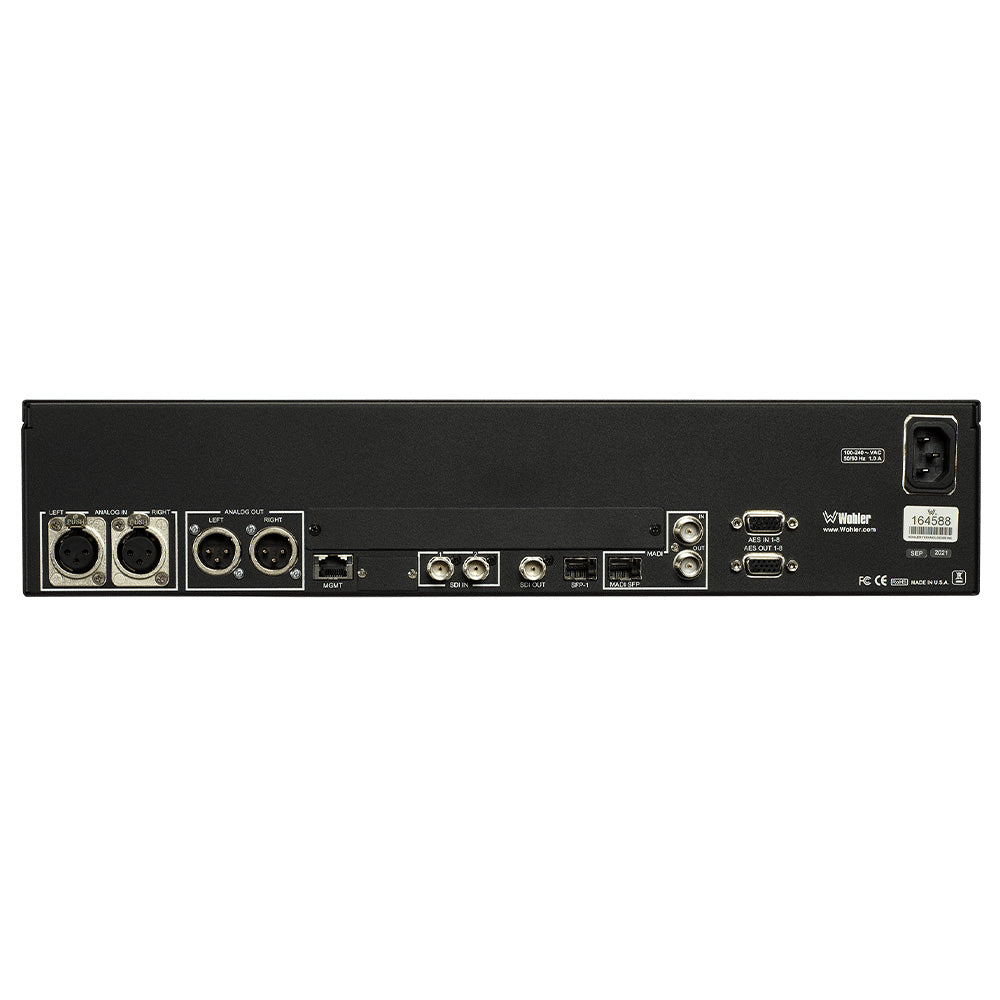

  • 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
  • Optional Output Routing enables the flexibility to route input signals to various outputs
  • Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), and MADI via BNC (looped out)
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
  • Software upgrades via USB or network.
  • APIs included for remote control

More +

Product Specs

Spkr Power Output RMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2ft
AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise Better than -75 dB below full output
Meter Dynamics Simultaneous VU & PPM
Display Type Capacitive LCD Touchscreen
Number of screens 2
Diagonal Display Size 4.3" (109 mm) LCD Capacitive Touchscreen x 2
Display Resolution (HxV) 480Hx272V
Viewing Angle 160 (H) x 160 (V)
Rack Height 2RU
Power Consumption 60 Watts typical
Power Supply Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
Dimension Width 19.0" (483mm)
Dimension Height 3.5" (90mm)
Dimension Depth 5.5" (140mm)
Net Weight 12.0 lbs. (5.5 kg)
Shipping Weight 12.0 lbs (5.5 kg)
Shipping Dimensions 23 × 12 × 7.5 in (LxWxH)
