Wohler iVAM1-3 - 16-Channel 3G-SDI / AES / Analog Audio Monitor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The all new iVAM1-3 represents a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status. License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.
Flexible. Adaptable. Future Proof.

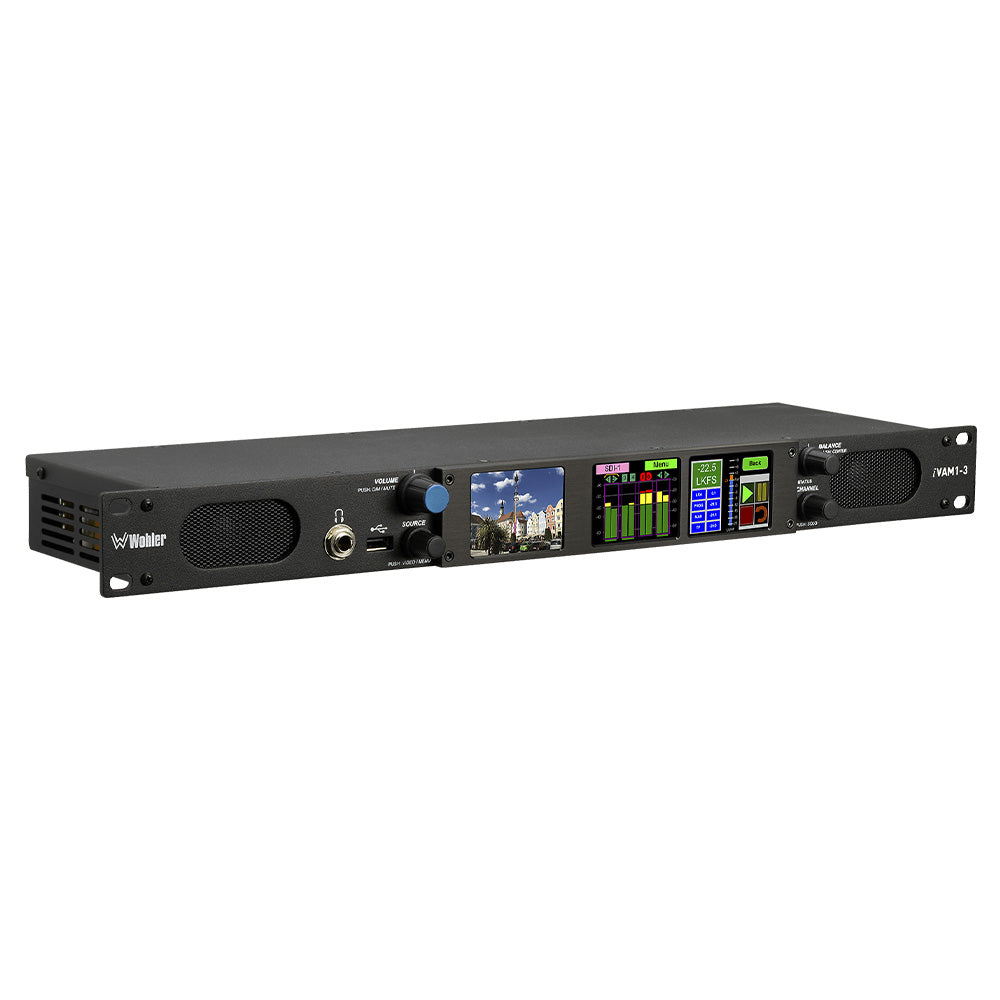

iVAM1-3 is designed to be easy to operate, providing access to both video and meters, as well as loudness and other data. The unit comes standard with Analog and 3G-SDI but has options for additional signals, including ST-2110, ST-2022, AES3, Dante, Ravenna and MADI64. The touch screen front panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose. Four rotary knobs supplement the touch controls and provide fast and easy access to volume, balance, signal source or presets, and channel selection. A front mounted USB port is provided for software updates to support new and emerging technologies. All iAM Series monitors are built with an onboard web server.
The iVAM1-3 is the perfect solution for any application that requires a compact 1U unit and superior performance characteristics for the purpose of monitoring an evolving range of professional signals.
Features:
- Video or audio monitoring (up to 16 channels) from multiple sources
- Up to 64 presets
- Optional Output Routing enables the flexibility to route input signals to various outputs

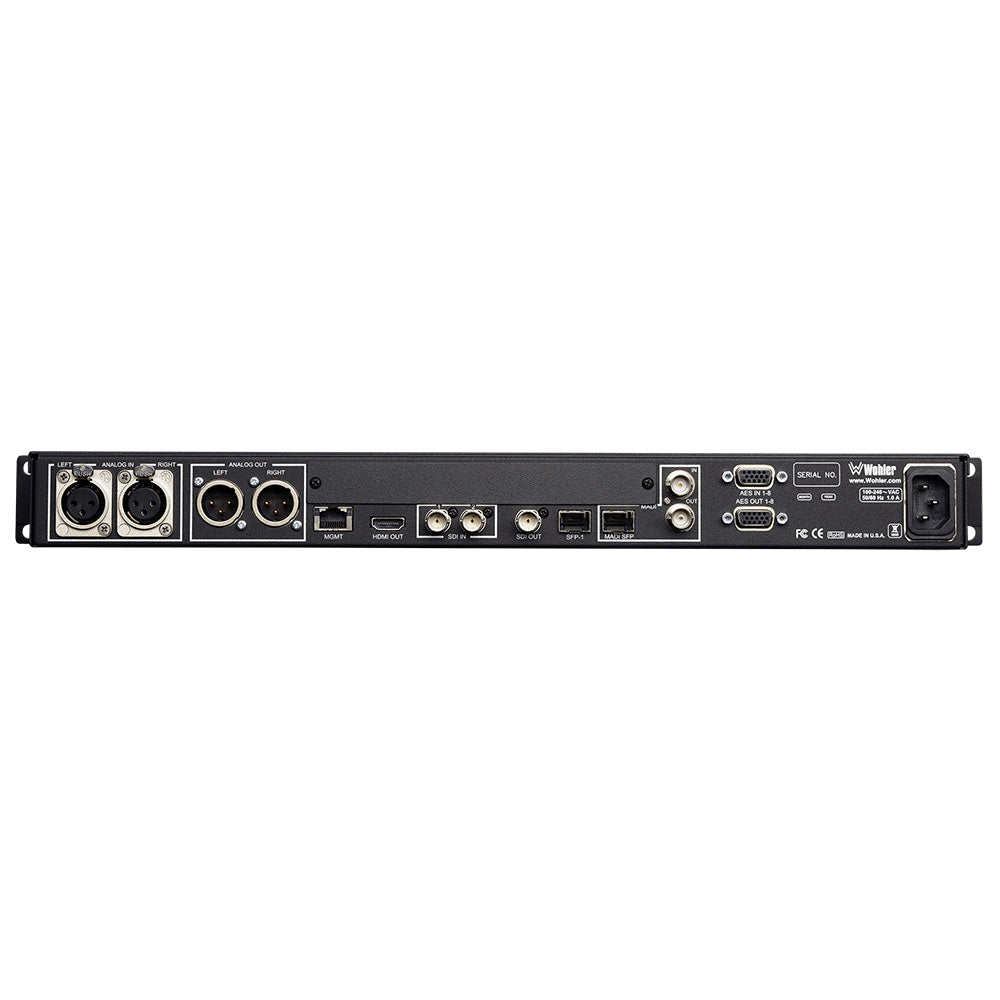

- 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
- Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), and MADI via BNC (looped out)
- HDMI Output of the monitored video source is included as standard
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
- Software upgrades via USB or network.
- APIs included for remote control
| Spkr Power Output | RMS Each Side: 5W Continuous/12W Peak |
| Peak Acoustic Output @ 2 feet | 90 dB SPL @ 2ft |
| AES Input Sampling Rate | 48 kHZ |
| Analog Input Impedance | 40k Ohms balanced |
| Frequency Response | 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical |
| Hum and Noise | Better than -68 dB below full output |
| Meter Dynamics | Simultaneous VU and PPM |
| Display Type | Capacitive LCD Touchscreen x 3 |
| Number of screens | 3 (1 Video/Graphics, 2 Graphics Only) |
| Diagonal Display Size | 2.4" (60 mm) |
| Display Resolution (HxV) | 320Hx240V |
| Viewing Angle | 160 (H) x 160 (V) |
| Rack Height | 1RU |
| Power Consumption | 65 Watts typical |
| Power Supply | Internal 100-240 VAC ± 10%, 50/60 Hz, CE and UL approved. |
| Dimension Width | 19.0" (483mm) |
| Dimension Height | 1.75" (45mm) |
| Dimension Depth | 5.5" (140mm) |
| Net Weight | 7.5 lbs. (3.4 kg) |
| Shipping Weight | 7.6 lbs (3.4 kg) |
| Shipping Dimensions | 23 _ 12 _ 6 in (LxWxH) |
