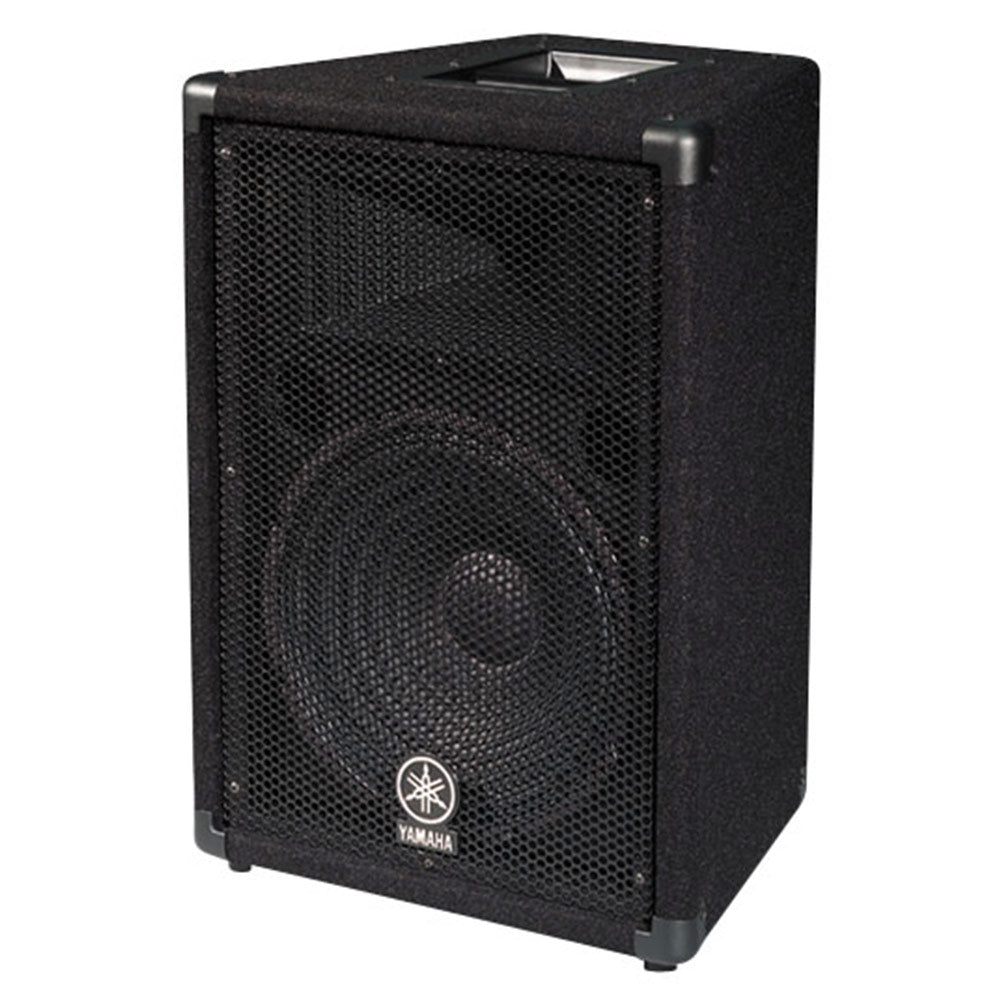

Yamaha BR12 Passive 2-Way 12-Inch Loudspeaker


  • Dale #:

    YAMA-BR12
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

While maintaining the great sound of the Concert Club series, the BR series provides cost-effective speakers in three configurations to match a wide range of applications. Inheriting the excellent portability and placement flexibility that characterized previous models in the series, and featurin... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

While maintaining the great sound of the Concert Club series, the BR series provides cost-effective speakers in three configurations to match a wide range of applications. Inheriting the excellent portability and placement flexibility that characterized previous models in the series, and featuring the same tasteful design and powerful sound, the BR series is a great choice for bands, clubs, halls, rehearsal studios, retail or school events ... anywhere you need great sound in a medium-scale application.

Superior Audio Quality with Titanium HF Drivers
The BR series speakers were developed and are produced in the USA to carry on the proven audio quality and reliability of Yamaha's acclaimed Concert Club series. Using parts and components carefully selected for audio quality and reliability, Yamaha has optimized critical design parameters to achieve astounding sound at a very affordable price. In particular, the excellent low-frequency response produced by the bass-reflex system and the broad 90° x 40° high-frequency coverage provided by the titanium-dome horn tweeter are the result of painstaking tuning that achieves an outstanding balance between portability and size.

Ideal for EMX Series Powered Mixers and P Series Power Amps
The BR series speakers provide dual phone jacks for input and parallel connection. You can set up a simple but high-performance PA system just by connecting a pair of these speakers to an EMX series powered mixer. Or you could use BR series speakers in conjunction with P series power amplifiers and an MG series mixing console to create a range of very versatile live sound systems. The YSP (Yamaha Speaker Processing) switch provided on EMX series mixers and P series amplifiers can be used to achieve optimum matching for significantly enhanced sound.

Simple but Sophisticated Design
The BR series carries on the simple yet sophisticated design of the Concert Club series. The front grille has been enhanced in terms of both design and durability. In addition to a carpeted finish, the tough exterior features steel corner protectors and heavy duty metal handles for improved portability. The BR series was designed for the rigors of daily use in a portable sound reinforcement system.

Speaker Stand Pole Socket on All Models
All models - front as well as foldback - feature pole sockets for use with speaker stands. These units will fit on standard 1-3/8 inch (35 mm) diameter speaker stands for easy positioning in a wide range of applications.

More +

Product Specs

Woofers 12"
Tweeter (diaphragm) 1" titanium
Frequency Response (-10dB) 65Hz-20kHz
Power Handling (noise*, program, peak) (*-EIA RS-426) 150/300/600 Watts
Nominal Impedance 8 ohms
Sensitivity (1 W, 1m) 97dB
Dimensions W x H x D (approx) 22 1/2" x 16" x 13 1/4"
Weight (lbs.) 34.3
