Description

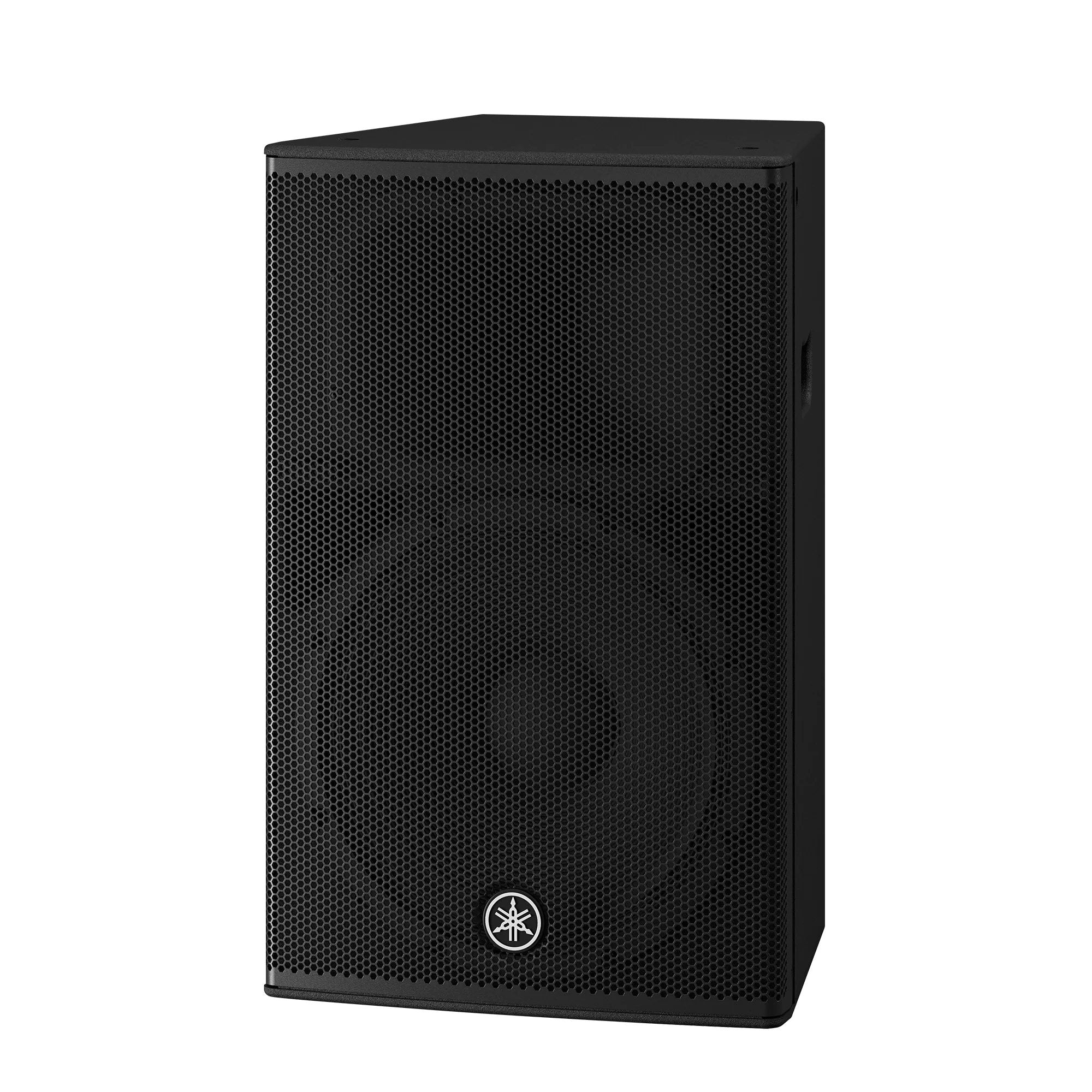

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha's high-end CZR Series, the CHR15 offers best-in-class sound ... Read MoreRetail Price: $876.00 Our Price: $669.99
Shipping Charges Apply
Suggested Accessories
Description
The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha's high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.
Features:
Cabinet designs optimized for a range of audio environments
The CHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10" model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12" model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by a 15" model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.
Custom Designed Transducers

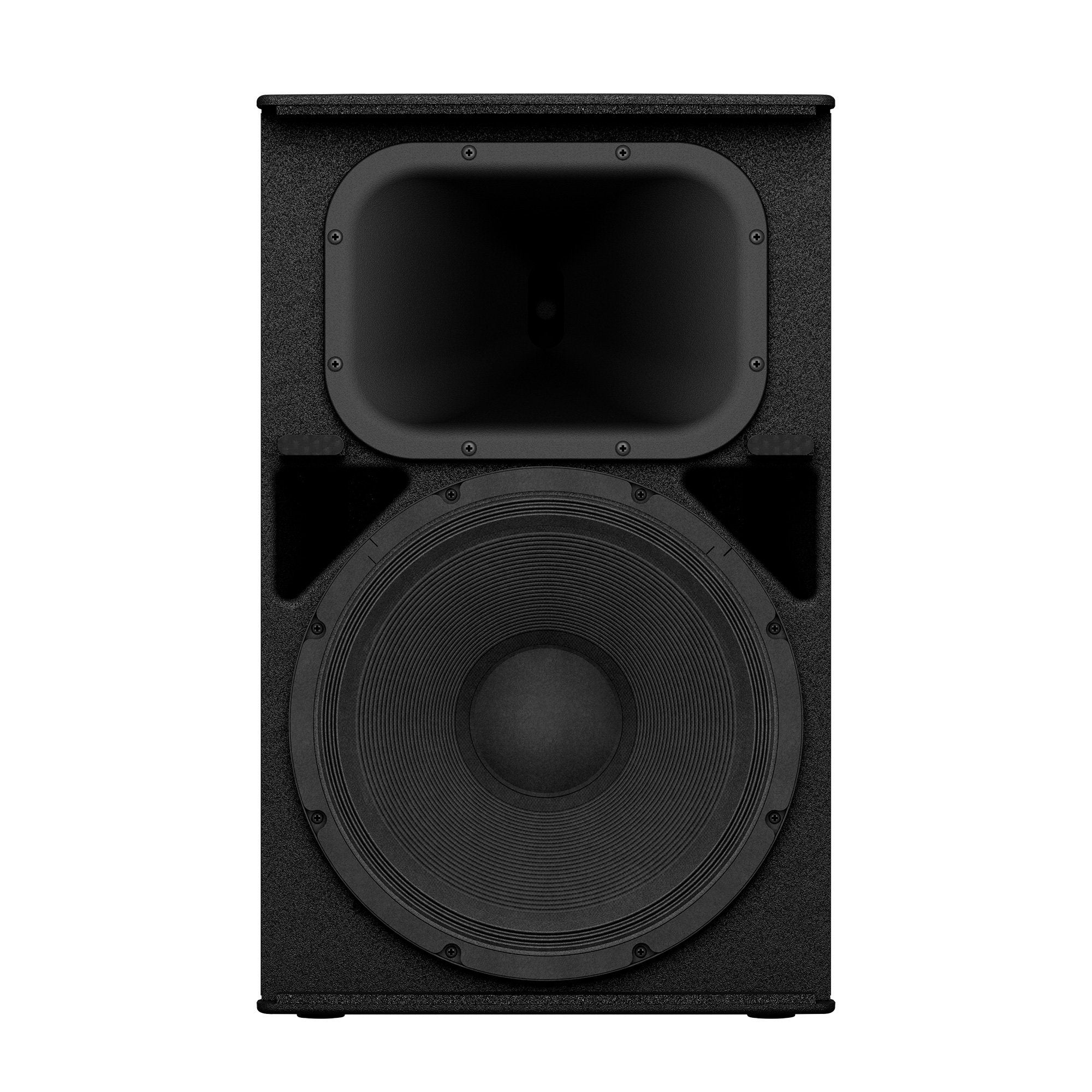

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet
The CHR series feature plywood enclosures like the acclaimed CZR loudspeakers to deliver outstanding durability and acoustic performance.
Intelligent processing to maximize system performance
When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CHR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings.
Dual-Angle Pole Mount Socket (CHR15)
Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The CHR15's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.
More +
Product Specs
Speaker type | 2-way Speaker, Bass-reflex | |
Frequency range (-10dB) | 49 Hz - 20 kHz | |
Coverage area | H90゚ x V60゚ | |
Crossover | 2.0 kHz | |
Nominal impedance | 8 Ω | |
SPL | Sensitivity (1W; 1m on axis) | 95 dB SPL |
Peak (Calculated) | 125 dB SPL | |
Components | LF | Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite |
HF | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite | |
Power rating | NOISE | 250 W |
PGM | 500 W | |
PEAK | 1,000 W | |

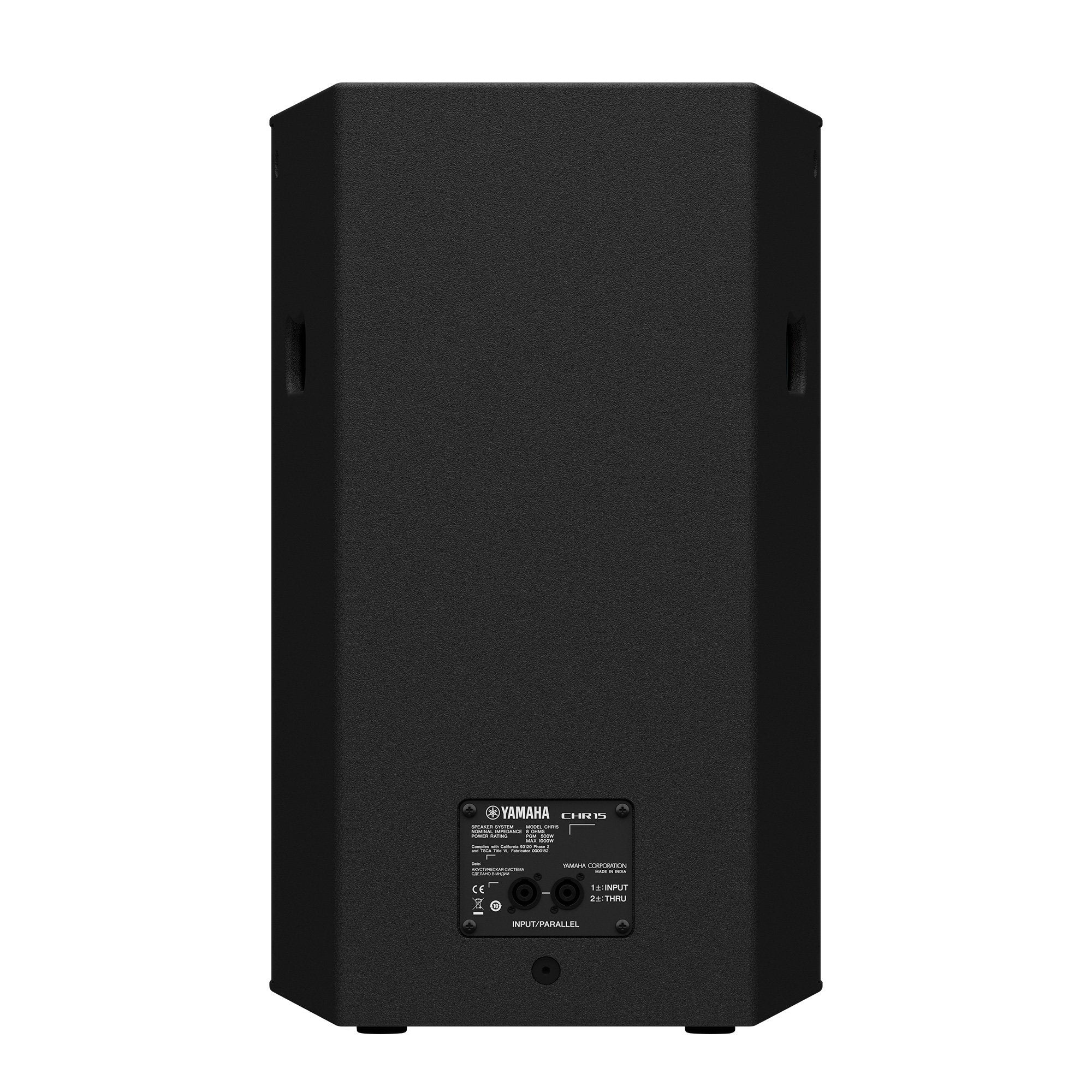

I/O connectors | SpeakON NL4MP x 2 (Parallel) | |
Cabinet material | Plywood | |
Finish | Durable Polyurea Painting, Black | |
Handle | Side x2 | |
Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) | |
Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) | |
Floor Monitor Angle | - | |
Dimensions | W | 432 mm (17.0") |
H | 692 mm (27.2") (with rubber feet) | |
D | 405 mm (15.9") | |
Net weight | 22.0 kg (48.5 lbs) | |
Options | - |
