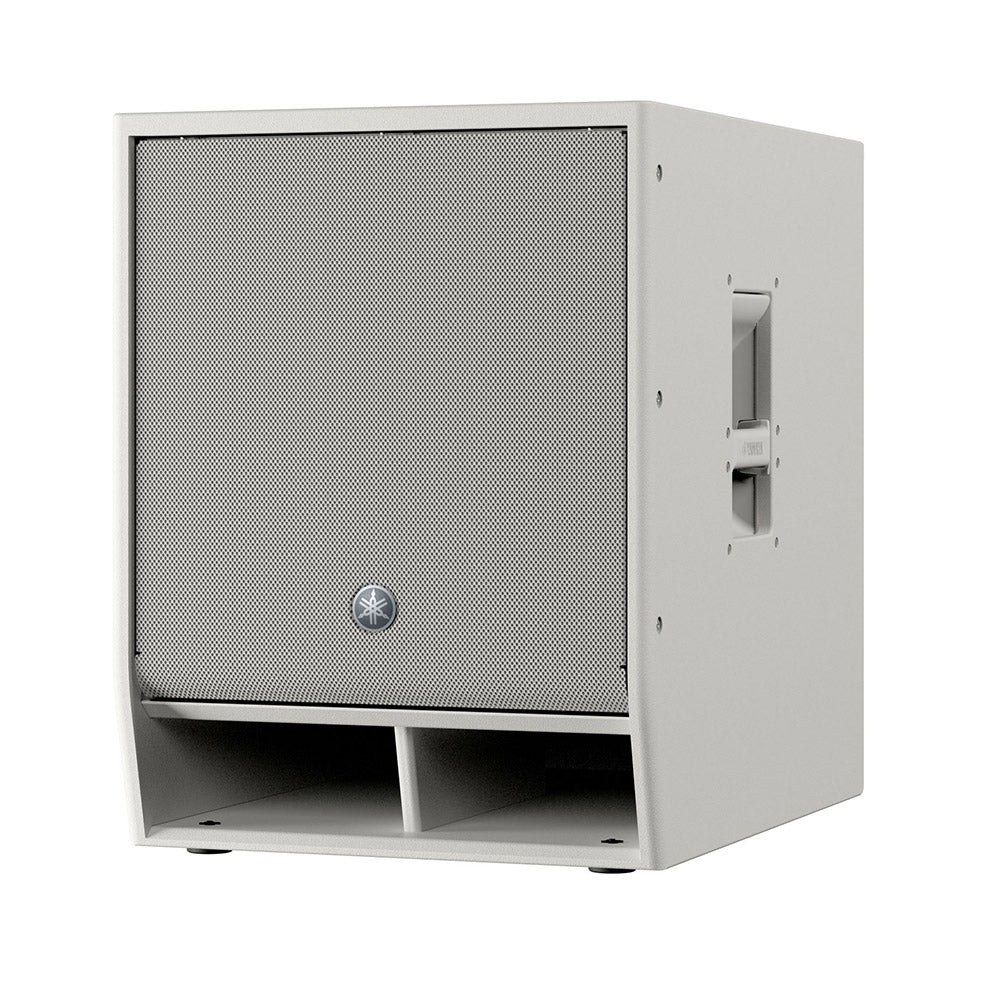

Yamaha CXS15XLFW Passive 15-Inch PA Subwoofer (White)


  • Dale #:

    YAMA-CXS15XLFW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Perfectly suited for use with CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance. The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic pe... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Perfectly suited for use with CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ's in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system's low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that's sure to impress.

Features:

  • 15" subwoofer with 4" Voice Coil
  • High power 800W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • SpeakON NL4MP x 3 (Parallel x2, Output x1)
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

More +

Product Specs

Speaker type Subwoofer, Bass-reflex
Frequency range (-10dB) Passive: 33 Hz - 3.5kHz, Normal (*1): 35 Hz - 150 Hz, Extend (*1): 33 Hz - 150 Hz
Coverage area -
Floor Monitor Angle -
Components LF 15" Cone, 4" Voice Coil, Ferrite magnet
HF -
Crossover -
Power rating NOISE 400 W (EIA 426-A)
PGM 800 W (EIA 426-A)
PEAK 1600 W (EIA 426-A)
Nominal impedance
SPL Sensitivity (1W; 1m on axis) 98dB *2
Peak (Calculated) 130 dB *2
I/O connectors SpeakON NL4MP x 3 (Parallel x2, Output x1)
Handle Aluminium die-cast, Side x2
Pole socket Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
Rigging -
Dimensions W 450 mm (17.7")
H 587 mm (23.1") (with rubber feet)
D 600 mm (23.6")
Net weight 35.6kg (78.5 lbs)
Options Cover: SPCVR-DXS15X, Caster: SPW-1
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
