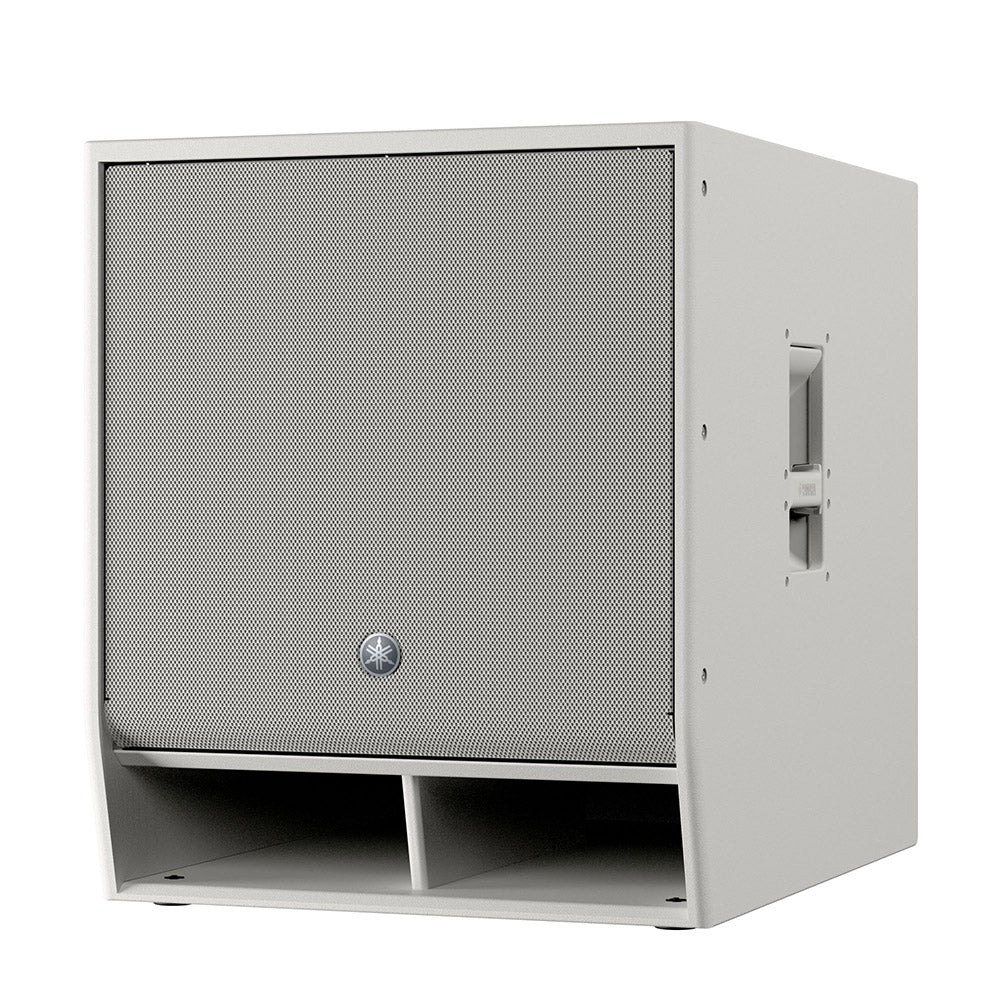

Yamaha CXS18XLFW Passive 18-Inch PA Subwoofer (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.
The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ's in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system's low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that's sure to impress.
Features:
- 18" subwoofer with 4" Voice Coil
- High power 1000W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- SpeakON NL4MP x 3 (Parallel x2, Output x1)
- Dual-pole socket
- Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
| Speaker type | Subwoofer, Bass-reflex | |
| Frequency range (-10dB) | Passive: 32 Hz - 3kHz, Normal (*1): 32 Hz - 150 Hz, Extend (*1): 29 Hz - 150 Hz | |
| Coverage area | - | |
| Floor Monitor Angle | - | |
| Components | LF | 18" Cone, 4" Voice Coil, Ferrite magnet |
| HF | - | |
| Crossover | - | |
| Power rating | NOISE | 500 W (EIA 426-A) |
| PGM | 1000 W (EIA 426-A) | |
| PEAK | 2000 W (EIA 426-A) | |
| Nominal impedance | 8½ | |
| SPL | Sensitivity (1W; 1m on axis) | 100dB *2 |
| Peak (Calculated) | 133 dB *2 | |
| I/O connectors | SpeakON NL4MP x 3 (Parallel x2, Output x1) | |
| Handle | Aluminium die-cast, Side x2 | |
| Pole socket | _35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
| Rigging | - | |
| Dimensions | W | 550 mm (21.6") |
| H | 657 mm (25.9") (with rubber feet) | |
| D | 720 mm (28.4") | |
| Net weight | 43.6kg (96.1 lbs) | |
| Options | Cover: SPCVR-DXS18X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black | |
Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.
The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ's in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system's low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that's sure to impress.
Features:
- 18" subwoofer with 4" Voice Coil
- High power 1000W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- SpeakON NL4MP x 3 (Parallel x2, Output x1)
- Dual-pole socket
- Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
| Speaker type | Subwoofer, Bass-reflex | |
| Frequency range (-10dB) | Passive: 32 Hz - 3kHz, Normal (*1): 32 Hz - 150 Hz, Extend (*1): 29 Hz - 150 Hz | |
| Coverage area | - | |
| Floor Monitor Angle | - | |
| Components | LF | 18" Cone, 4" Voice Coil, Ferrite magnet |
| HF | - | |
| Crossover | - | |
| Power rating | NOISE | 500 W (EIA 426-A) |
| PGM | 1000 W (EIA 426-A) | |
| PEAK | 2000 W (EIA 426-A) | |
| Nominal impedance | 8½ | |
| SPL | Sensitivity (1W; 1m on axis) | 100dB *2 |
| Peak (Calculated) | 133 dB *2 | |
| I/O connectors | SpeakON NL4MP x 3 (Parallel x2, Output x1) | |
| Handle | Aluminium die-cast, Side x2 | |
| Pole socket | _35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
| Rigging | - | |
| Dimensions | W | 550 mm (21.6") |
| H | 657 mm (25.9") (with rubber feet) | |
| D | 720 mm (28.4") | |
| Net weight | 43.6kg (96.1 lbs) | |
| Options | Cover: SPCVR-DXS18X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black | |
