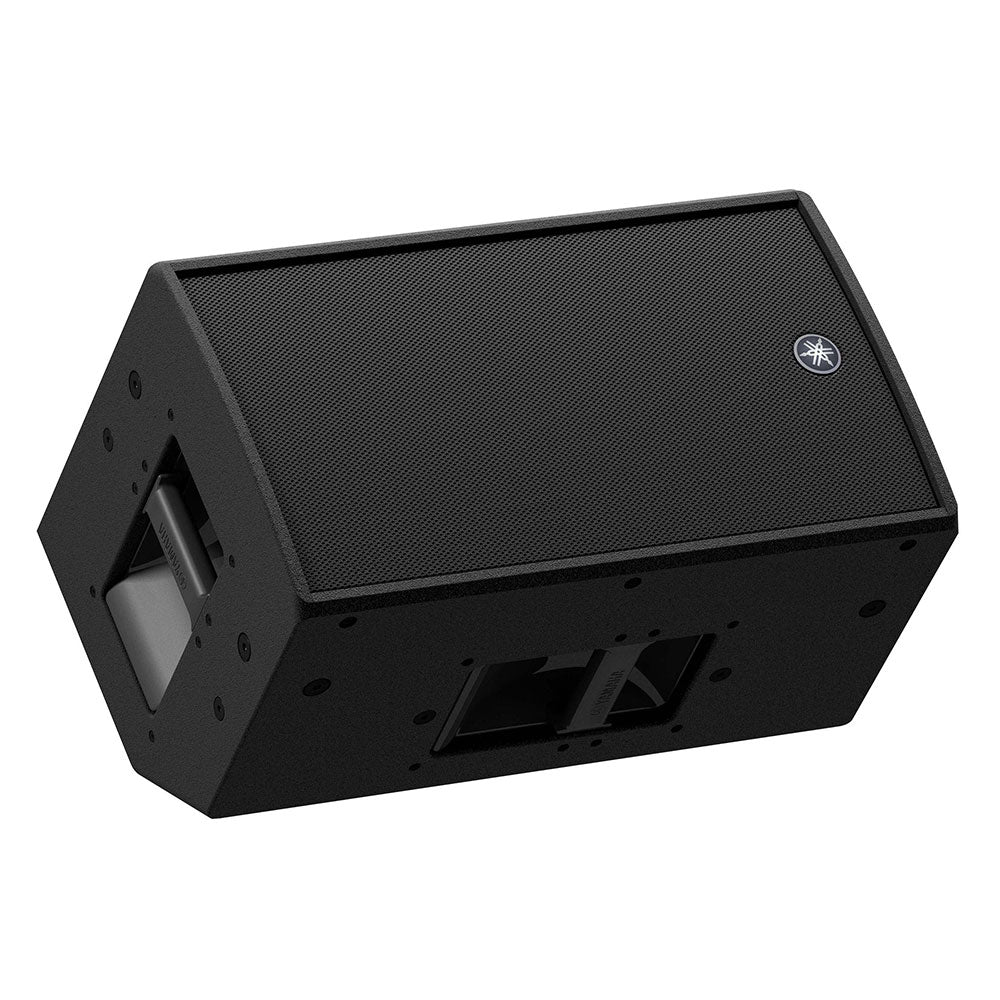

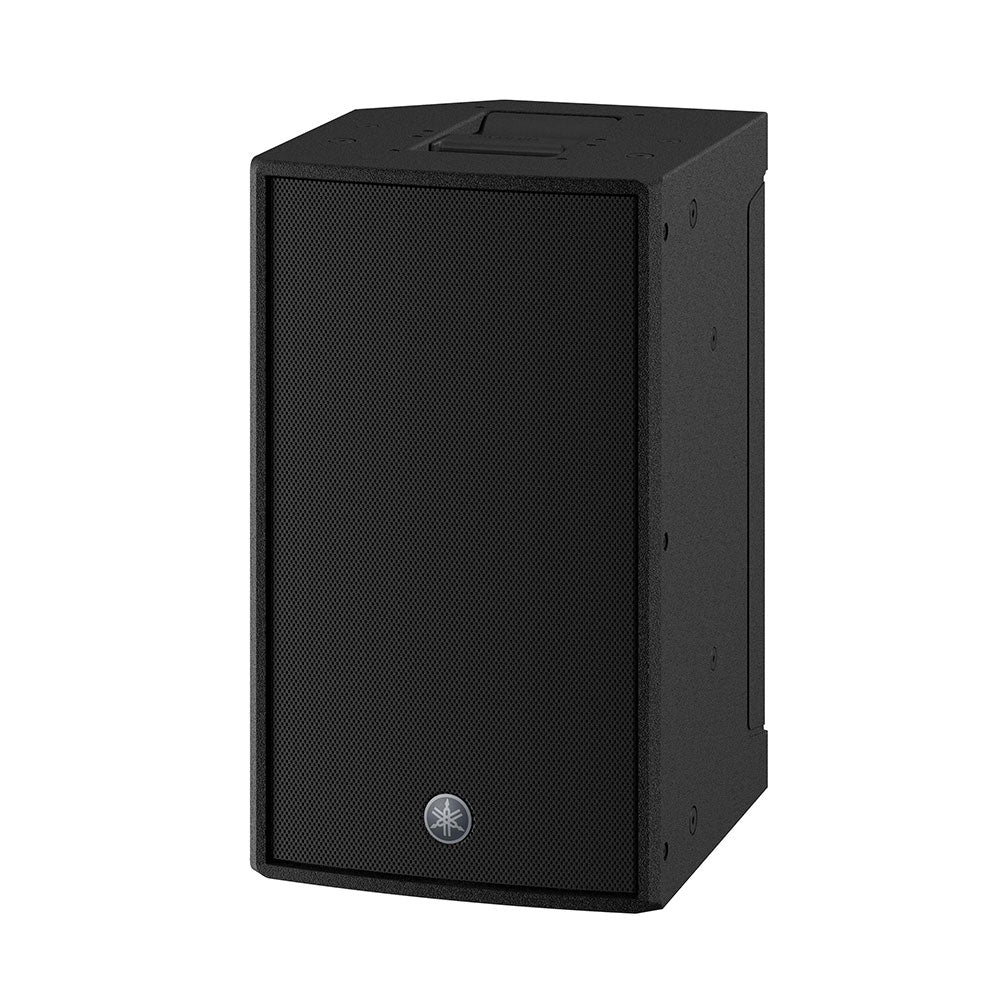

Yamaha CZR10 Passive 2-Way 10-Inch Loudspeaker or Stage Monitor

  • Dale #:

    YAMA-CZR10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for range of live performance and installed sound environments—from live bands a... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ's in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ's in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system's low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that's sure to impress.

Features:

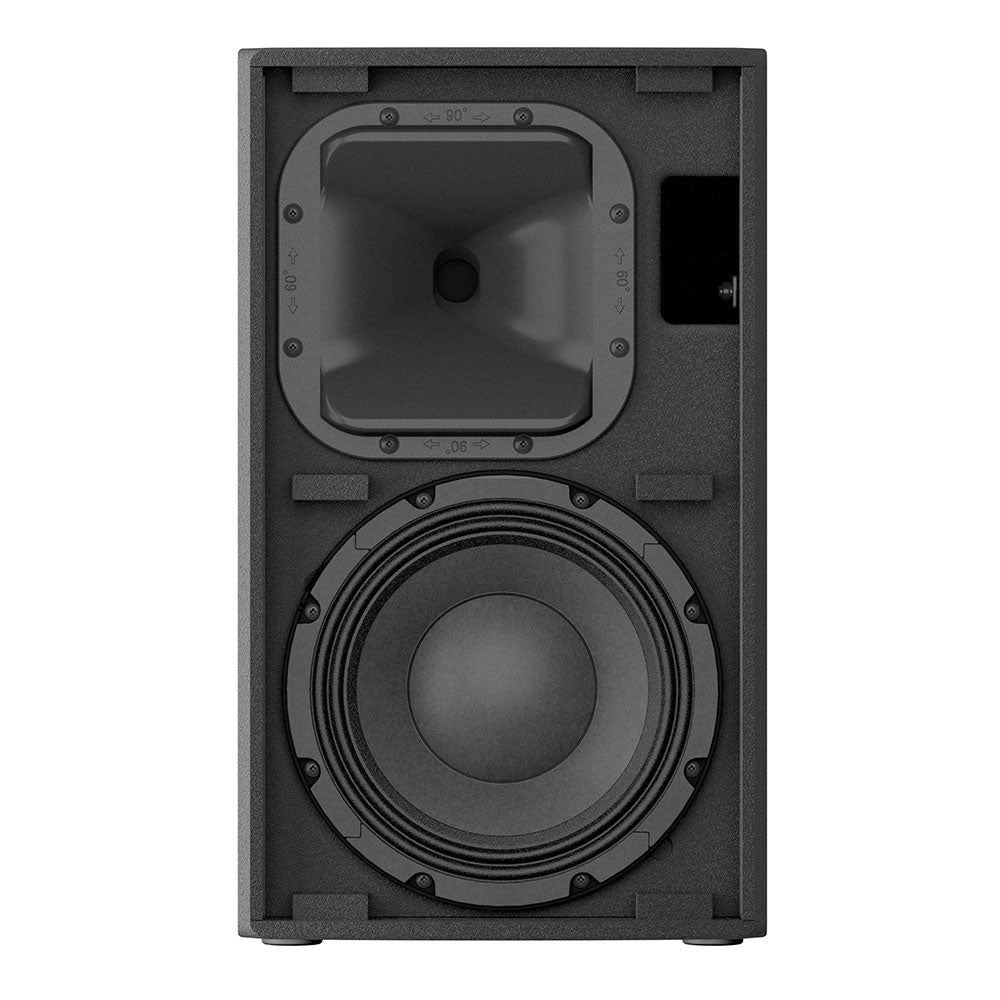

  • 2-way loudspeaker with a 2" HF and a 10" LF
  • Features Yamaha's own Wide Dispersion CD Waveguide Horn
  • High power 700W(PGM) power handling and Bi-amp capable
  • Floor monitoring setting
  • Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
  • Dual-angle pole socket
  • Optional speaker cover (SPCVR-DZR10)
  • Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement

More +

Product Specs

Speaker type 2-way Speaker, Bass-reflex
Frequency range (-10dB) Passive: 43 Hz - 20 kHz, Normal (*1): 46 Hz - 20 kHz, FOH (*1): 43 Hz - 20 kHz
Coverage area H90゚ x V60゚ Rotatable Constant Directivity Horn
Floor Monitor Angle 50°
Components LF 10" Cone, 3" Voice Coil, Neodymium magnet
HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 2.5 kHz
Power rating NOISE Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W
PGM Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
PEAK Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W
Nominal impedance Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPL Sensitivity (1W; 1m on axis) Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL
Peak (Calculated) Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL

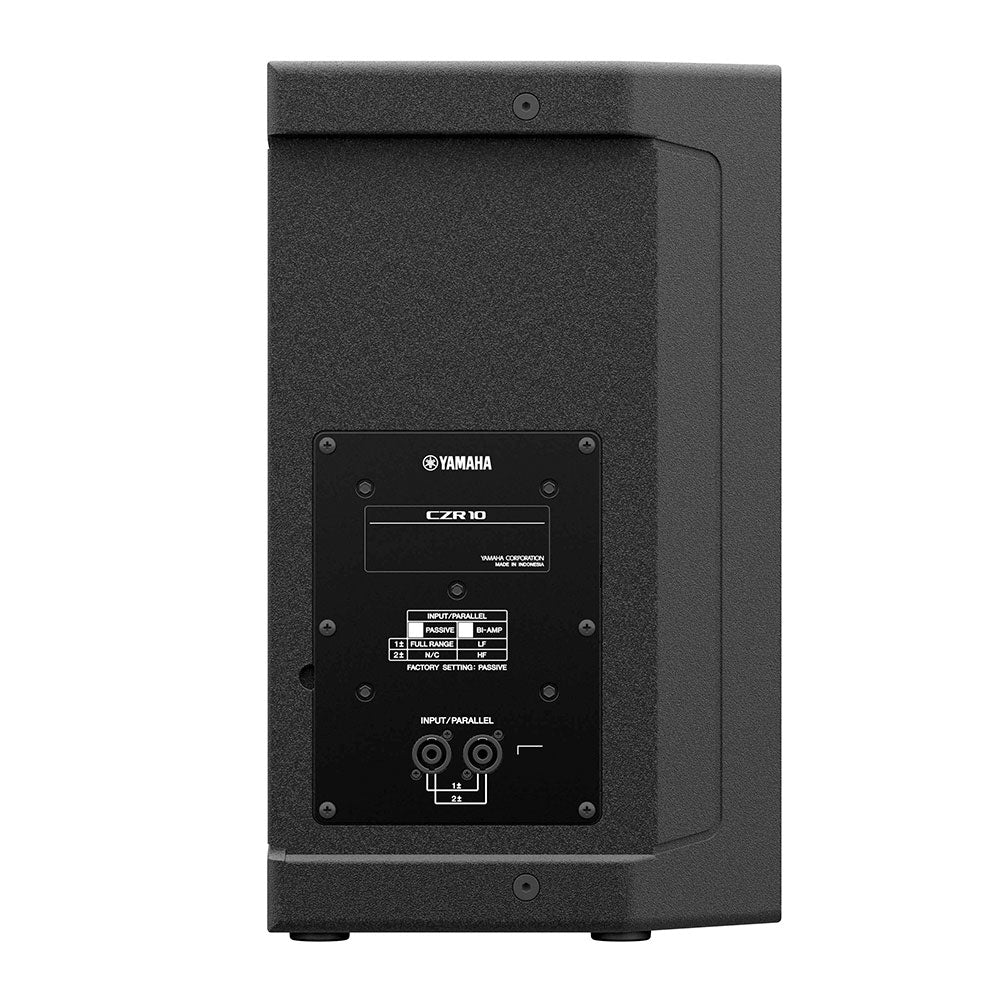

I/O connectors SpeakON NL4MP x 2 (Parallel)
Handle Aluminium die-cast, Top x1, Side x1
Pole socket Φ35 mm x2 (0° or -7°)
Rigging M10 x 8, M8 x 2
Dimensions W 315 mm (12.4")
H 537 mm (21.1") (with rubber feet)
D 345 mm (13.6")
Net weight 14.0 kg (30.9 lbs)
Options Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black

More +
