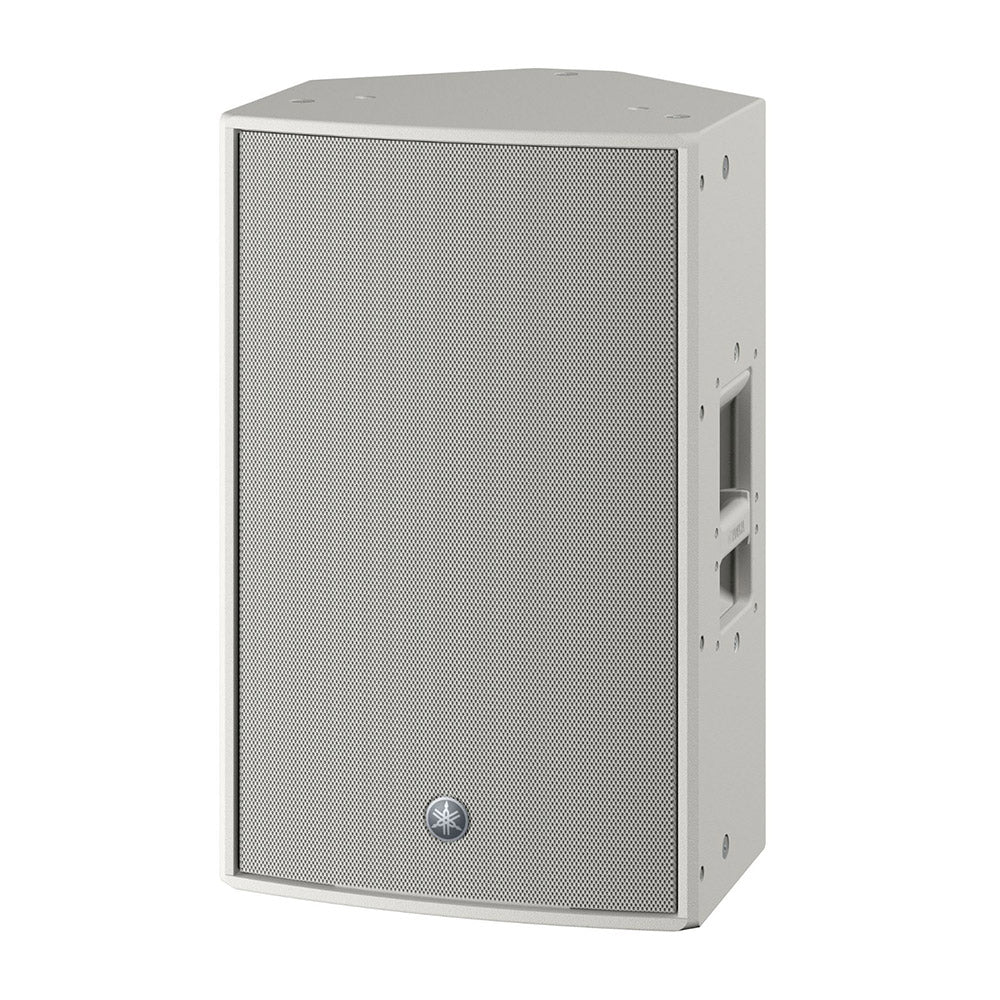

Yamaha CZR12W Passive 2-Way 12-Inch Loudspeaker or Stage Monitor (White)



  • Dale #:

    YAMA-CZR12W

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR12 ideal for range of live performance and installed sound environments—from live bands a... Read More

Retail Price: $1,641.00 Our Price: $1,092.99

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR12 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ's in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments— from live bands at outdoor festivals to DJ's in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system's low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that's sure to impress.

Features:

  • 2-way loudspeaker with a 2" HF and a 12" LF
  • Features Yamaha's own Wide Dispersion CD Waveguide Horn
  • High power 800W(PGM) power handling and Bi-amp capable
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
  • Dual-angle pole socket
  • Optional speaker cover (SPCVR-DZR12)
  • Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement

More +

Product Specs

Speaker type 2-way Speaker, Bass-reflex
Frequency range (-10dB) Passive: 43 Hz - 20 kHz, Normal (*1): 42 Hz - 20 kHz, FOH (*1): 38 Hz - 20 kHz
Coverage area H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn
Floor Monitor Angle 50° Symmetrical
Components LF 12" Cone, 3" Voice Coil, Neodymium magnet
HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 2.0 kHz
Power rating NOISE Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
PGM Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
PEAK Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
Nominal impedance Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPL Sensitivity (1W; 1m on axis) Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
Peak (Calculated) Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL
I/O connectors SpeakON NL4MP x 2 (Parallel)
Handle Aluminium die-cast, Side x2
Pole socket Φ35 mm x2 (0° or -7°)
Rigging M10 x 12
Dimensions W 410 mm (16.1")
H 646 mm (25.4") (with rubber feet)
D 394 mm (15.5")
Net weight 18.0 kg (39.7 lbs)
Options Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black

More +
