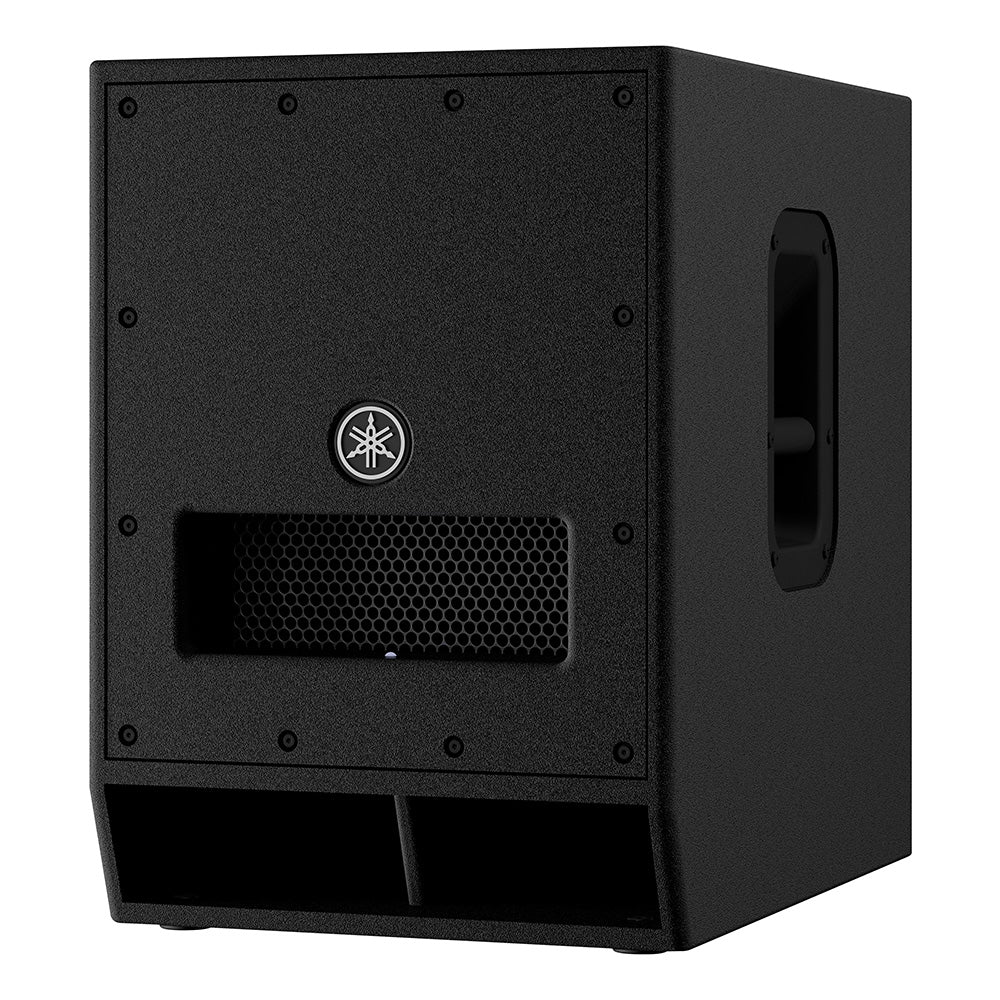

Yamaha DXS12mkII Active 12-Inch Live Sound Subwoofer

  • Dale #:

    YAMA-DXS12MKII
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse. The new DXS12mkII is equipped with an upgraded 1020W power amplifier producing an impressive 134dB and reaching as low as 42Hz producing cl... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse. The new DXS12mkII is equipped with an upgraded 1020W power amplifier producing an impressive 134dB and reaching as low as 42Hz producing clean, clear, heart-stopping bass that defies its lightweight construction. Try selecting our D-XSUB "BOOST" or "XTENDED LF" low frequency processing settings, turn up the volume, and watch the eyes widen and jaws drop. All this in a small, easy to install enclosure. Listeners will need to search for the source of this much low frequency performance.

Features:

  • 12" powered subwoofer with 1020W class-D power amplifier
  • High-output 12" woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
  • 42Hz-150Hz frequency range is ideal for small to medium-sized applications
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for minimal distortion
  • Cardioid mode for bass management onstage
  • Selectable X-OVER (80/100/120 Hz)
  • M20 and O35 mm dual pole sockets
  • Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS122)

Great bass sound speaks for itself. Period.
If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity. The lineup features the acclaimed DXS18 and recently upgraded versions of the 15" and 12" models, the DXS15mkII and DXS12mkII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance. All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end. We've worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.

High-Efficiency 1020W Class-D Amplifiers
The DXS's high-performance Class-D amplifier is capable of producing up to 1020W of power, and a maximum SPL of 135dB, delivered with exceptional clarity and accuracy. Both the DXS15mkII and DXS12mkII can produce 3dB more SPL than previous models.

Custom Designed Transducer
The high-output woofer of DXS18 features a 4" voice coil magnet and delivers powerful, well-defined, low-frequency bass with minimal distortion. The DXS12mkII and DXS15mkII both feature 2.5" voice coil magnets.

Band-Pass Type Enclosure
All DXS Series enclosures incorporate a band-pass design to reduce unwanted vibrations and noise that could otherwise sabotage your sound. We've also designed a very durable plywood enclosure which, when combined with the band-pass configuration, tested better than the traditional bass-reflex design and reduced distortion considerably, making it possible to achieve a higher SPL.

Rugged coating for superior protection
Enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.

Compact and portable design enclosure
Just as impressive as the high output at their disposal is the compact portability and lightweight construction that houses the DXS Series' awesome power. The DXSmkII models in particular have shed 2kg and 3kg compared to their 15" and 12" predecessors respectively, making it easier than ever to load up, set up, or tear down your PA.

Optional Wheel Kit
For more fast and convenient setup of your DXS subwoofers, optional casters are available, featuring radial ball bearings that ensure quiet during your performance.

Optional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during operation in outdoor performances, and in dusty and dirty warehouse storage, or the rigors of equipment transport on the road. Trilaminar polyester fabric with an inner cushion protect from impacts. Slits allow easy access to the handles for carriage.
*NOTE: The covers do NOT guarantee waterproof protection.

Dual pole socket
For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.

Cardioid Mode
Because low frequencies can be omnidirectional, controlling the output directivity of a system's bottom end can be a challenge, with the sound pressure hitting the stage often being equal to that of its intended FOH audience. For setups consisting of two or more DXS subwoofers, selecting the newly developed Cardioid Mode effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience, resulting in a cleaner stage monitoring environment and a more pronounced bass experience for the audience.

D-XSUB Bass Processing
Powerful D-XSUB processing gives you total control of your low frequency. NORMAL mode gives you the ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from smaller cabinets. Take your full-range system to the next level with the power and versatility of DXS Series active subwoofers.

Selectable X-OVER(80/100/120Hz)
Crossover switching allows users to seamlessly match DXS subwoofers with any of Yamaha's full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array (up to 120Hz).

More +

Product Specs

Speaker type 12" powered subwoofer, Band-pass type
Frequency range (-10dB) 42 Hz - 150 Hz
Components LF 12" cone, 2.5" voice coil
Output power Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis) 134 dB SPL
I/O connectors INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
Processors D-XSUB: BOOST,XTENDED-LF, OFF
Cooling Natural convection
Power requirements 100V – 240V, 50Hz/60Hz
Power consumption 100W
Pole socket 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions W 400 mm (15.75")
H 567 mm (22.32")
D 570 mm (22.44")
Net weight 30.0 kg (66.1lbs)
Others Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
