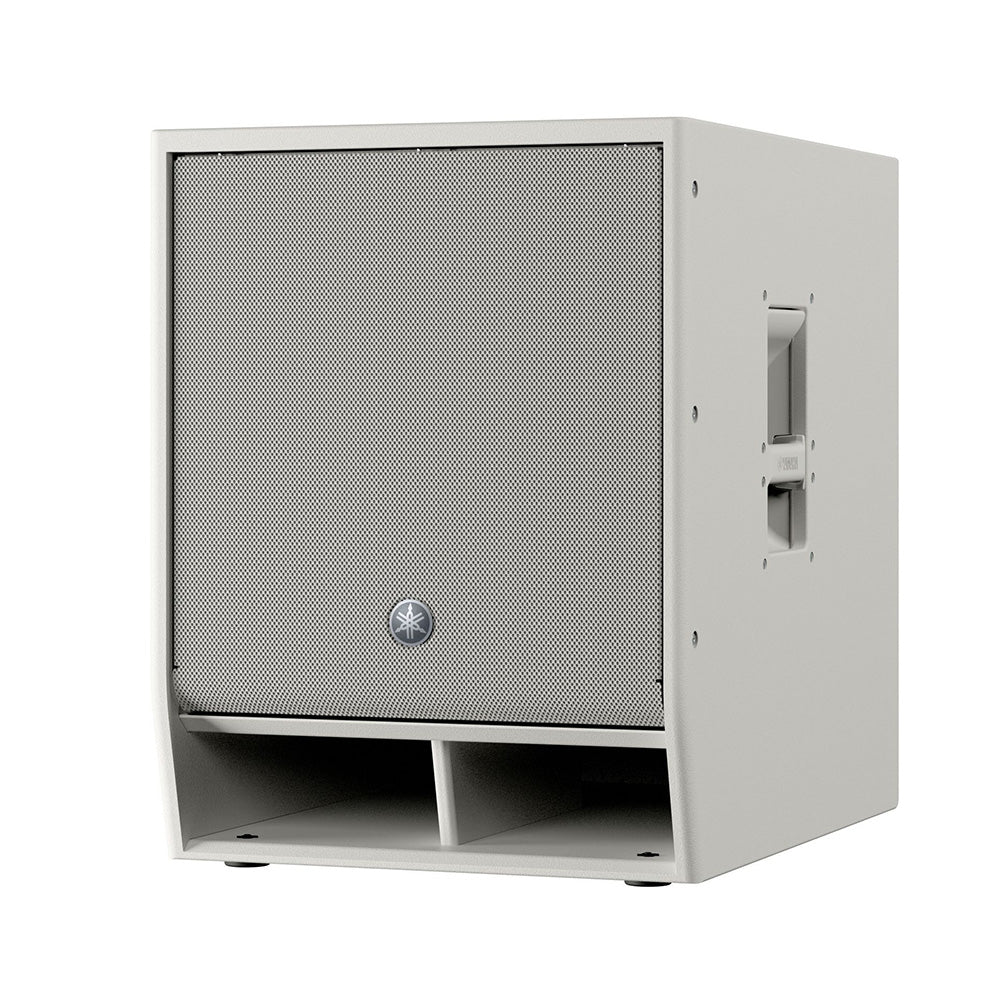

Yamaha DXS15XLFW Active 15-Inch PA Subwoofer (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
Not for the faint of heart, the newest DXS XLF's go deeper than any model before, with an extended low frequency of 30Hz— perfect for professional touring musicians, DJ's, and sound engineers who need that extra-low, thundering bottom end that you just can't get from other subwoofers in this class. Flexible DSP and a bass-reflex cabinet design with a wide, flared port ensure your lower frequencies maintain outstanding clarity and musicality even when the volume is cranked.
Features:
- Powered 15" subwoofer with 4" Voice Coil
- Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today's sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-definition sound with super low latency
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
| Speaker type | Powered Subwoofer, bass-reflex | |
| Frequency range (-10dB) | 33Hz - 150Hz | |
| Coverage area | - | |
| Components | LF | 15" Cone, 4" Voice Coil, Ferrite magnet |
| MF | - | |
| HF | - | |
| Crossover | - | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 136dB SPL *1 | |
| Power rating | Dynamic | 1600W *2 |
| Continuous | 1230W | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k½, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 40W (Idle), 180W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | - | |
| Dimensions | W | 450 mm (17.7") |
| H | 587 mm (23.1") (with rubber feet) | |
| D | 600 mm (23.6") | |
| Net weight | 40.0kg (88.2lbs) | |
| Options | Cover: SPCVR-DXS15X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black | |
| Floor Monitor Angle | - | |
| Pole socket | _35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
Not for the faint of heart, the newest DXS XLF's go deeper than any model before, with an extended low frequency of 30Hz— perfect for professional touring musicians, DJ's, and sound engineers who need that extra-low, thundering bottom end that you just can't get from other subwoofers in this class. Flexible DSP and a bass-reflex cabinet design with a wide, flared port ensure your lower frequencies maintain outstanding clarity and musicality even when the volume is cranked.
Features:
- Powered 15" subwoofer with 4" Voice Coil
- Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today's sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-definition sound with super low latency
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
| Speaker type | Powered Subwoofer, bass-reflex | |
| Frequency range (-10dB) | 33Hz - 150Hz | |
| Coverage area | - | |
| Components | LF | 15" Cone, 4" Voice Coil, Ferrite magnet |
| MF | - | |
| HF | - | |
| Crossover | - | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 136dB SPL *1 | |
| Power rating | Dynamic | 1600W *2 |
| Continuous | 1230W | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k½, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 40W (Idle), 180W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | - | |
| Dimensions | W | 450 mm (17.7") |
| H | 587 mm (23.1") (with rubber feet) | |
| D | 600 mm (23.6") | |
| Net weight | 40.0kg (88.2lbs) | |
| Options | Cover: SPCVR-DXS15X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black | |
| Floor Monitor Angle | - | |
| Pole socket | _35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
